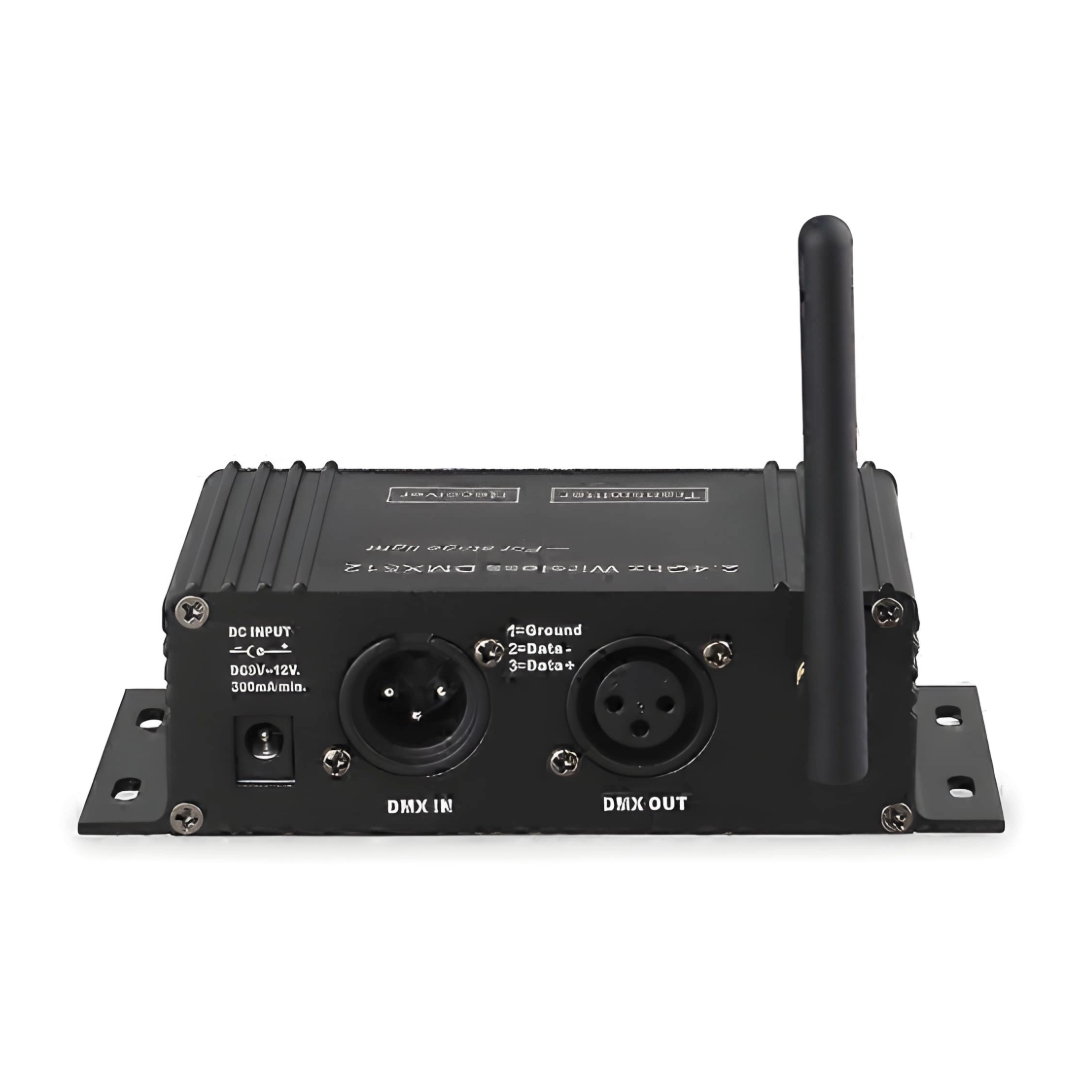

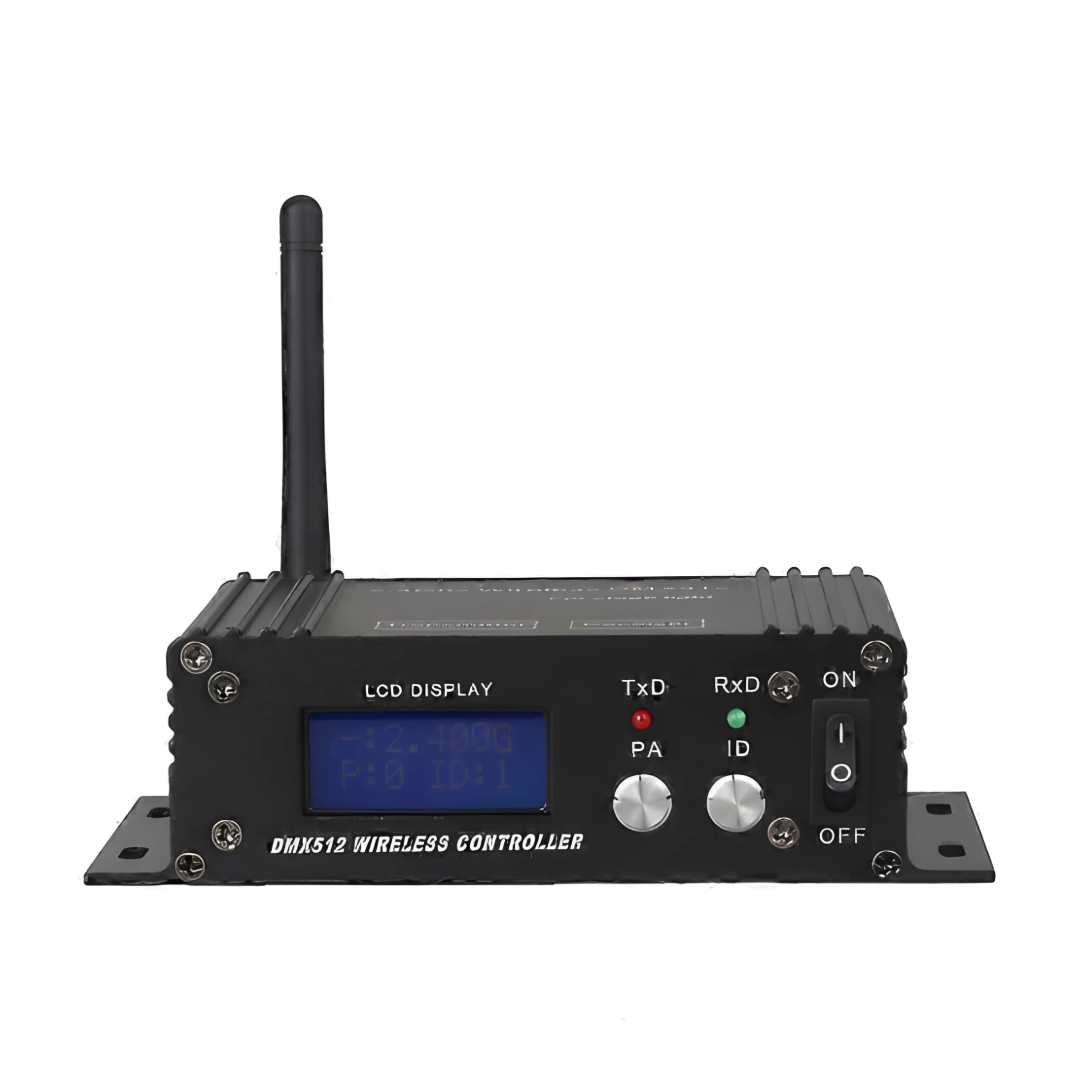

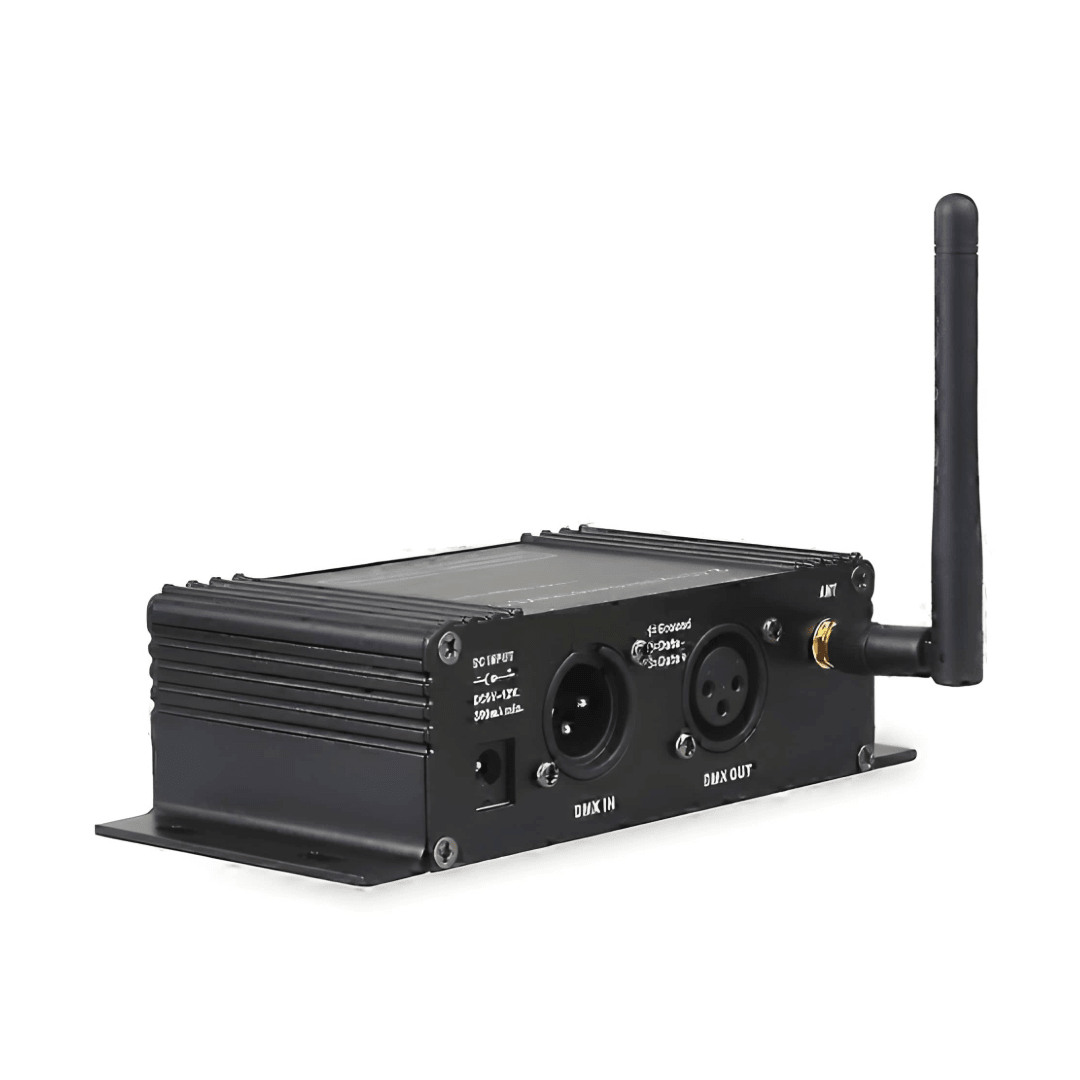

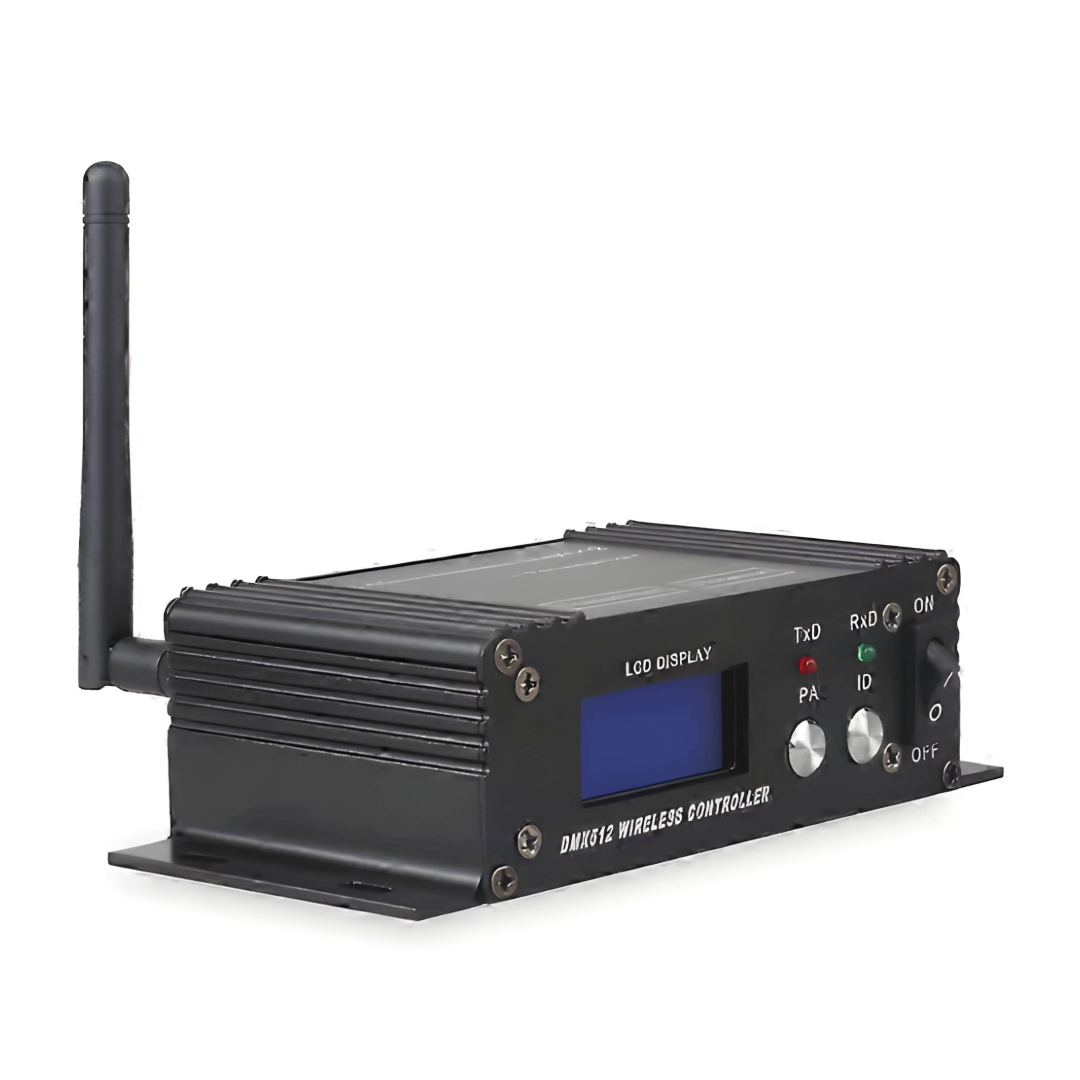

• Compact wireless DMX512 transceiver engineered to eliminate long DMX cable runs in stage lighting installations.
• Functions as either a transmitter or receiver with 126 auto-hopping frequency channels to prevent signal interference.
• Delivers real-time DMX512 protocol transmission over distances up to 200 meters line-of-sight with zero signal delay.
• Utilizes 2.4 GHz ISM frequency band technology with 7 selectable ID groups for controlling multiple lighting zones independently.
• Ideal for mobile DJs, stage lighting rigs, architectural fixtures, event venues, and rental production setups.

Key Features

• Selectable Transceiver Operation: Easily switches between transmitter and receiver modes to suit any lighting configuration.
• 126 Automatic Frequency Hopping Channels: Automatically scans and selects clear wireless channels to ensure uninterrupted control.
• Extended Transmission Range: Transmits reliable DMX data up to 200 meters in open-space line-of-sight environments.
• Multi-Zone Control (7 ID Groups): Enables up to 7 independent wireless networks to operate simultaneously in the same space.
• Standard 3-Pin XLR Connectivity: Plugs directly into standard DMX lighting consoles, moving heads, and LED fixtures.

Specifications

• Model Code: DMX TR1 / LIGHYB052
• Product Type: Wireless DMX Transceiver (Transmitter / Receiver)
• Protocol: DMX512
• Operating Frequency: 2.4 GHz ISM Band
• Channels / Frequency Hopping: 126 Channels
• Wireless Range: Up to 200 Meters (Line-of-Sight)
• ID Groups: 7 Selectable Groups
• Connectors: 3-Pin XLR
• Weight & Dimensions: 21.0 cm x 2.0 cm x 2.0 cm | 0.18 kg

What's in the Box

• 1 x Hybrid DMX TR1 Wireless DMX Transceiver
• 1 x Power Adapter
• 1 x User Manual
