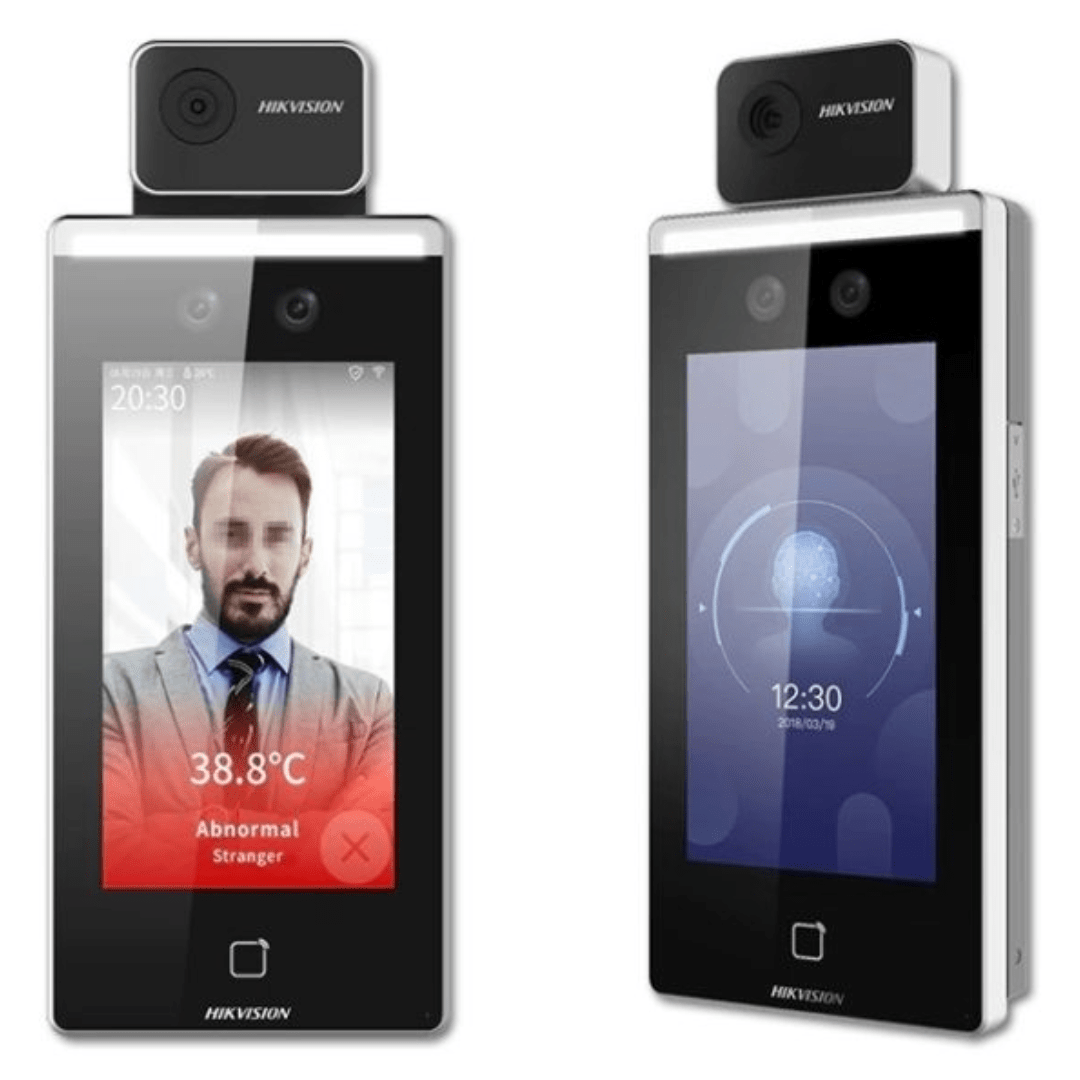

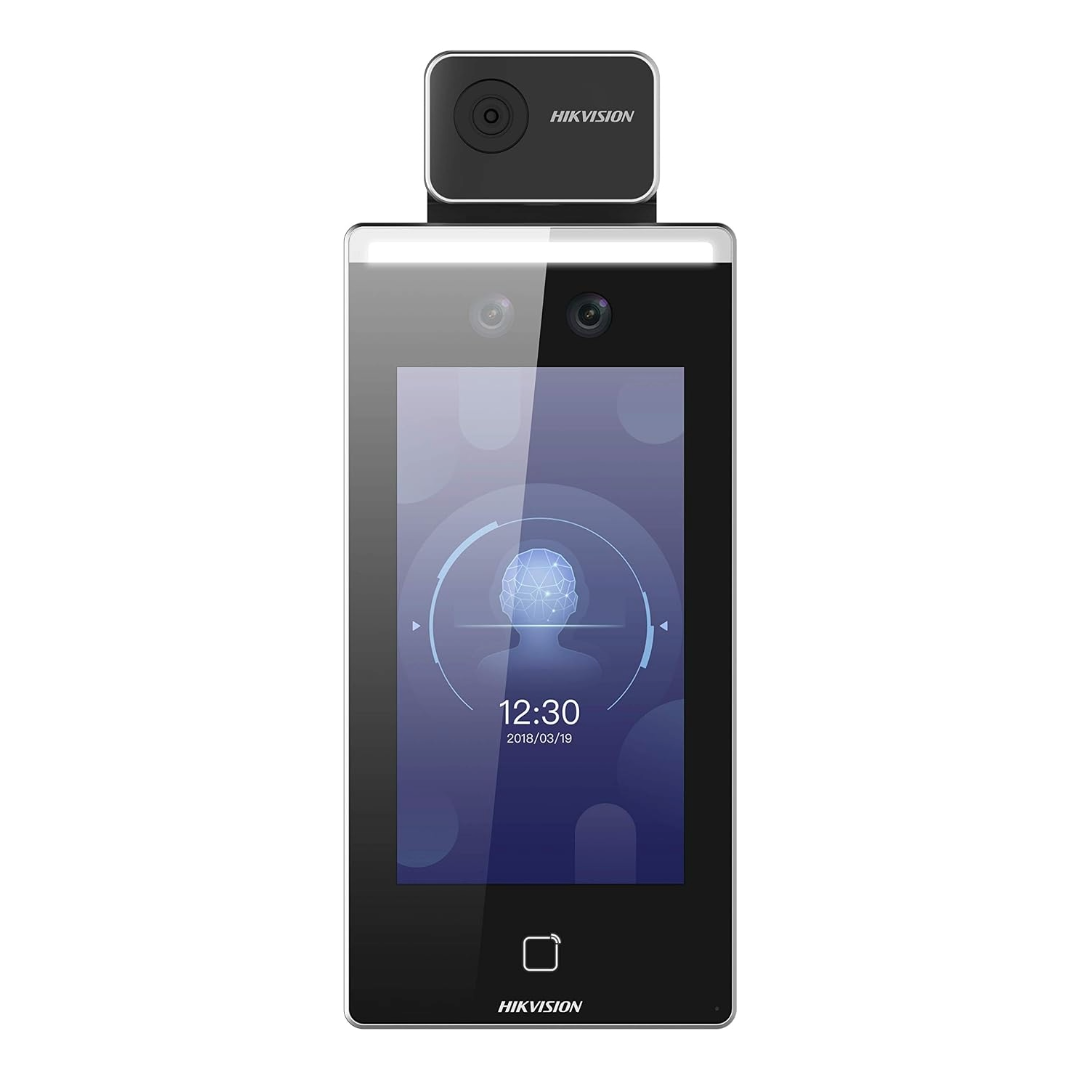

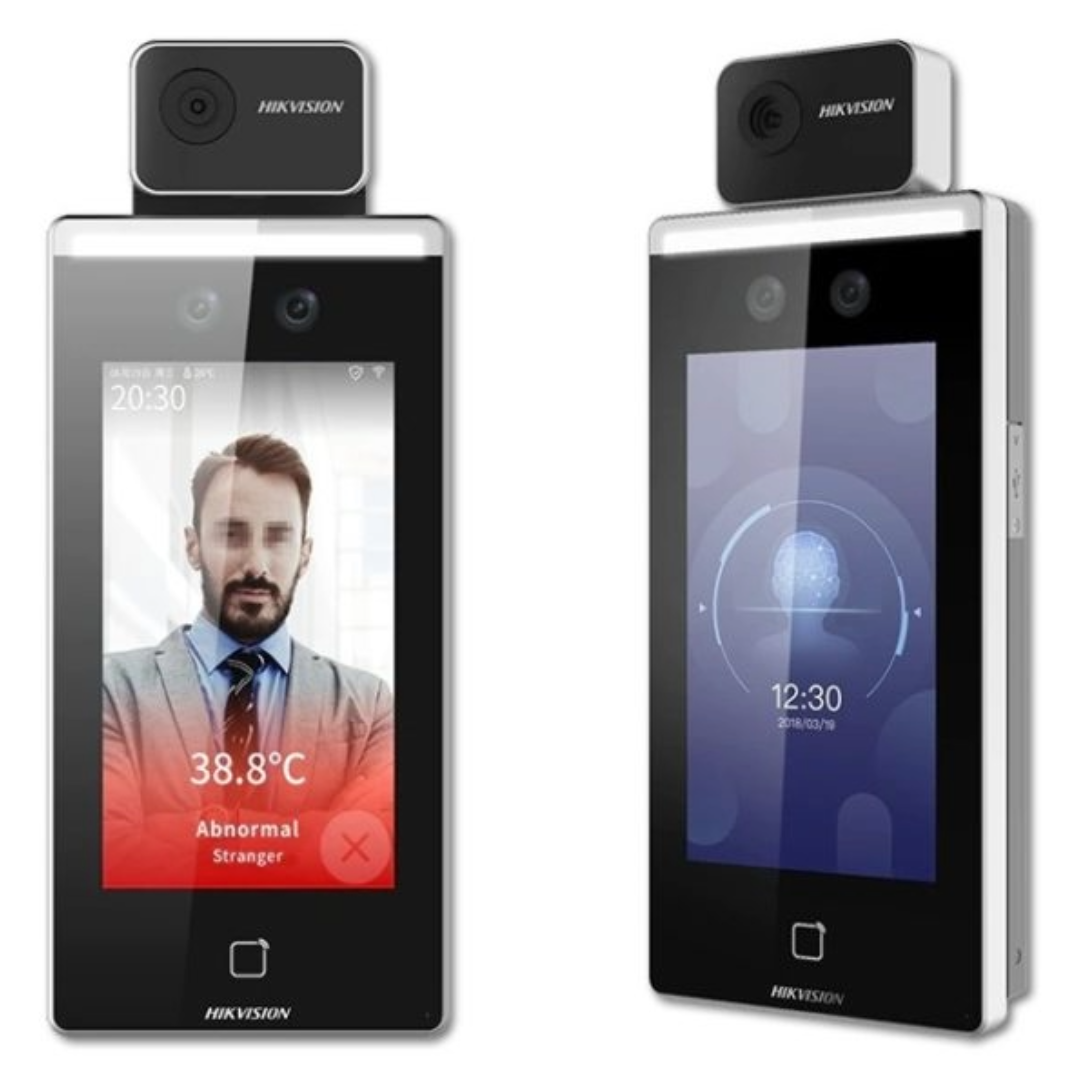

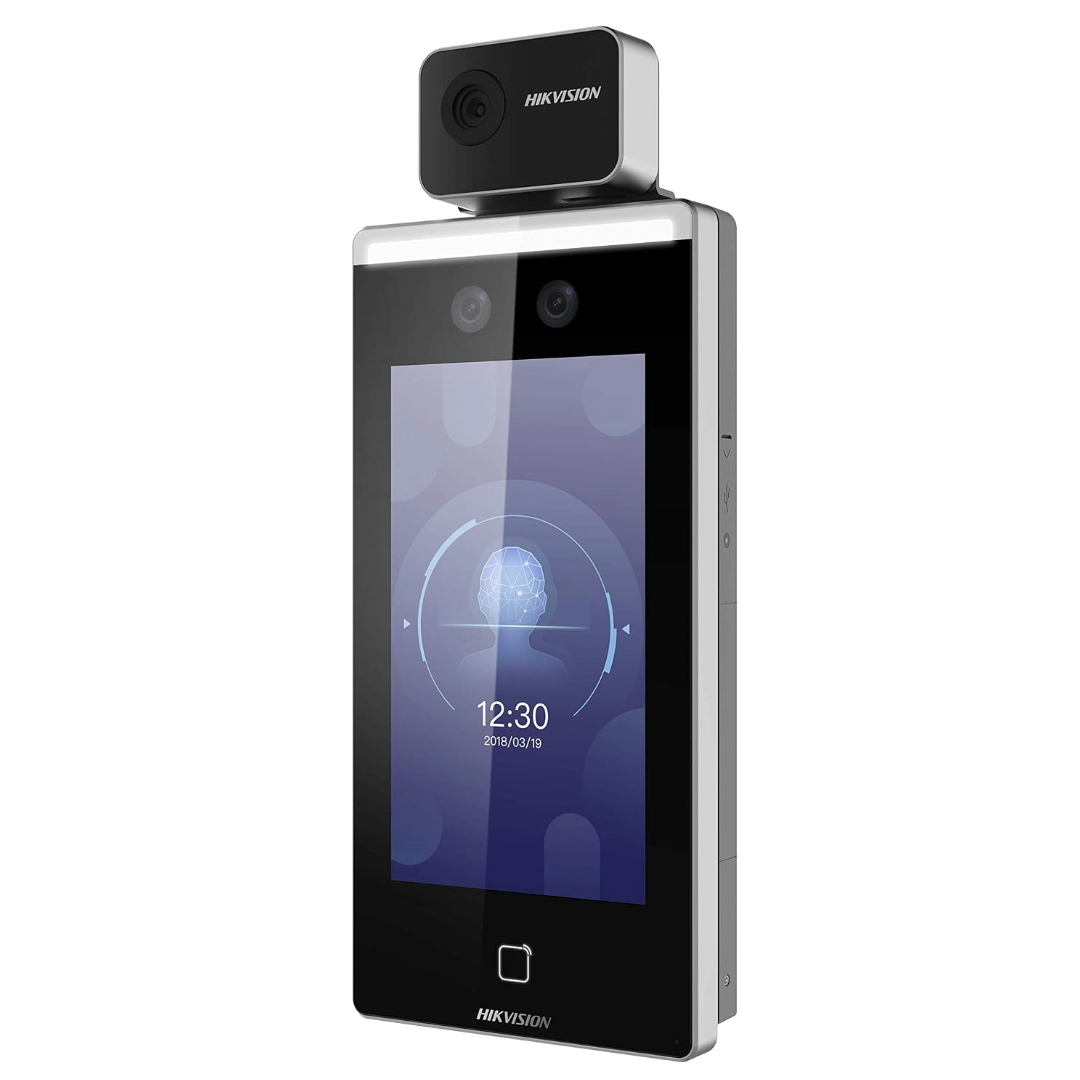

Hikvision DS-K1TA70MI-T Face Recognition Terminal with Temperature Screening

R 14,600.00
Quantity:
Easy Returns
🔒 Multiple Secure Payment Methods
💬 Friendly Advice Available
🚚 Delivery within 3–5 business days
Sku: 25741700
Visa Mastercard American Express Ozow MTN Mobile Money

  • Integrated access control and time attendance terminal featuring non-contact body temperature measurement and facial recognition.
  • Equipped with an uncooled Vanadium Oxide (VOx) thermal sensor to measure skin-surface temperature with an accuracy of ±0.5 °C at distances between 0.3 and 1.8 metres.
  • Features a vibrant 7-inch LCD touch screen and a 2MP dual-lens camera with WDR (Wide Dynamic Range) for reliable facial verification in varying light conditions.
  • Built-in mask detection algorithm alerts users to put on a mask and can be configured to deny access to individuals without proper facial protection.
  • Includes an integrated Mifare 1 (13.56 MHz) card reader module for multi-factor authentication (face, card, temperature, or combination).
  • Triggers customizable voice prompts and relay outputs (door lock control or warning alarms) upon detecting abnormal temperature readings.
  • Ideal for enterprise offices, factories, schools, transport hubs, and high-security access control checkpoints.
Features
  • Non-Contact Thermal Screening: Fast temperature screening capability with a measurement range of 30 °C to 45 °C.

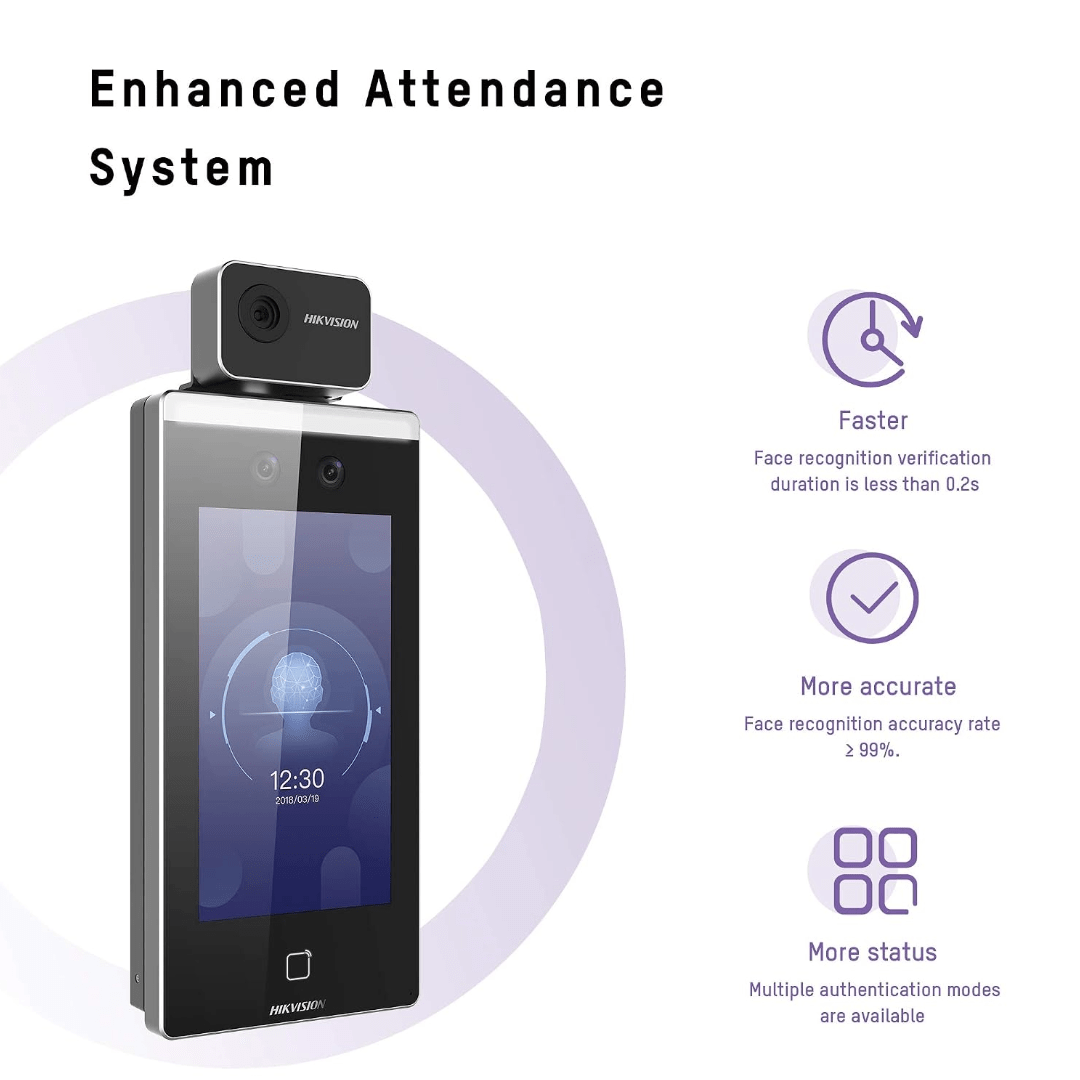

  • Ultra-Fast Facial Verification: Facial recognition speed of under 0.2 seconds per user with an accuracy rate of ≥99%.
  • Mask Detection & Enforcement: Automatically triggers voice alerts and access restrictions if no mask is detected.
  • High System Capacity: Holds up to 6,000 face templates, 6,000 Mifare cards, and records up to 100,000 offline event logs.
  • Multi-Factor Authentication Modes: Flexible access policies via Face, Card, Temperature, or combined rules.
  • Comprehensive Connectivity: Gigabit Ethernet network port with Wiegand, RS-485, door contact, exit button, and tamper switch interfaces.
Specifications
  • Model / Part Number: DS-K1TA70MI-T
  • Product Series: Pro Face Recognition Terminals
  • Display: 7-Inch LCD Touch Screen
  • Camera: 2 MP Dual-Lens Camera with WDR
  • Thermal Sensor: Uncooled Vanadium Oxide (VOx) sensor (120 x 160 resolution)
  • Temperature Range: 30 °C to 45 °C (86 °F to 113 °F)
  • Measurement Accuracy: ±0.5 °C (without blackbody calibration)
  • Measuring Distance: 0.3 m to 1.8 m
  • Face Recognition Distance: 0.3 m to 1.8 m
  • Face Recognition Speed: < 0.2 seconds per person
  • Face Recognition Accuracy: ≥ 99%
  • Capacity: 6,000 Faces / 6,000 Cards / 100,000 Event Logs
  • Card Type: Mifare 1 Card (13.56 MHz)
  • Network Interface: 1 x RJ45 10/100/1000 Mbps Self-Adaptive Ethernet
  • Communication Interfaces: 1 x RS-485, 1 x Wiegand (Input/Output)
  • I/O Ports: 1 x Lock Relay Output, 1 x Door Contact Input, 1 x Exit Button, 2 x IO Input, 1 x IO Output, 1 x Tamper
  • Operating Voltage: 12 VDC / 2A
  • Operating Temperature: 0 °C to 50 °C (For temperature measurement mode: 10 °C to 35 °C indoor environment)
  • Application: Indoor, windless environments
What's in the Box?
  • 1 x Hikvision DS-K1TA70MI-T Terminal
  • 1 x Mounting Plate & Screw Accessory Pack
  • 1 x Wiring Harness Adapter Cables
  • 1 x Quick Start Guide
Vendor Hikvision
Type Thermometers
Sku 25741700
Barcode 6941264057970
Weight:  2.0 kg
