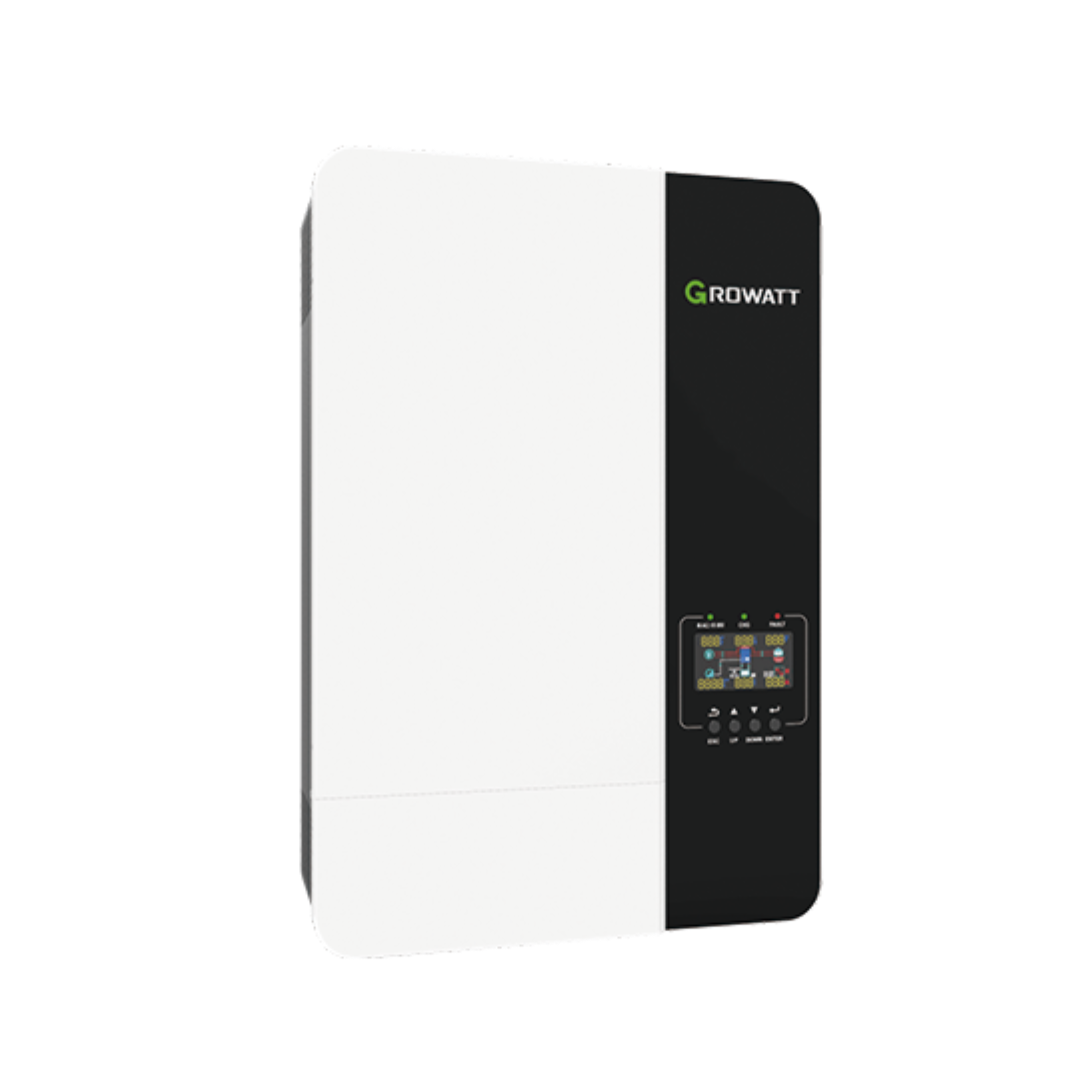

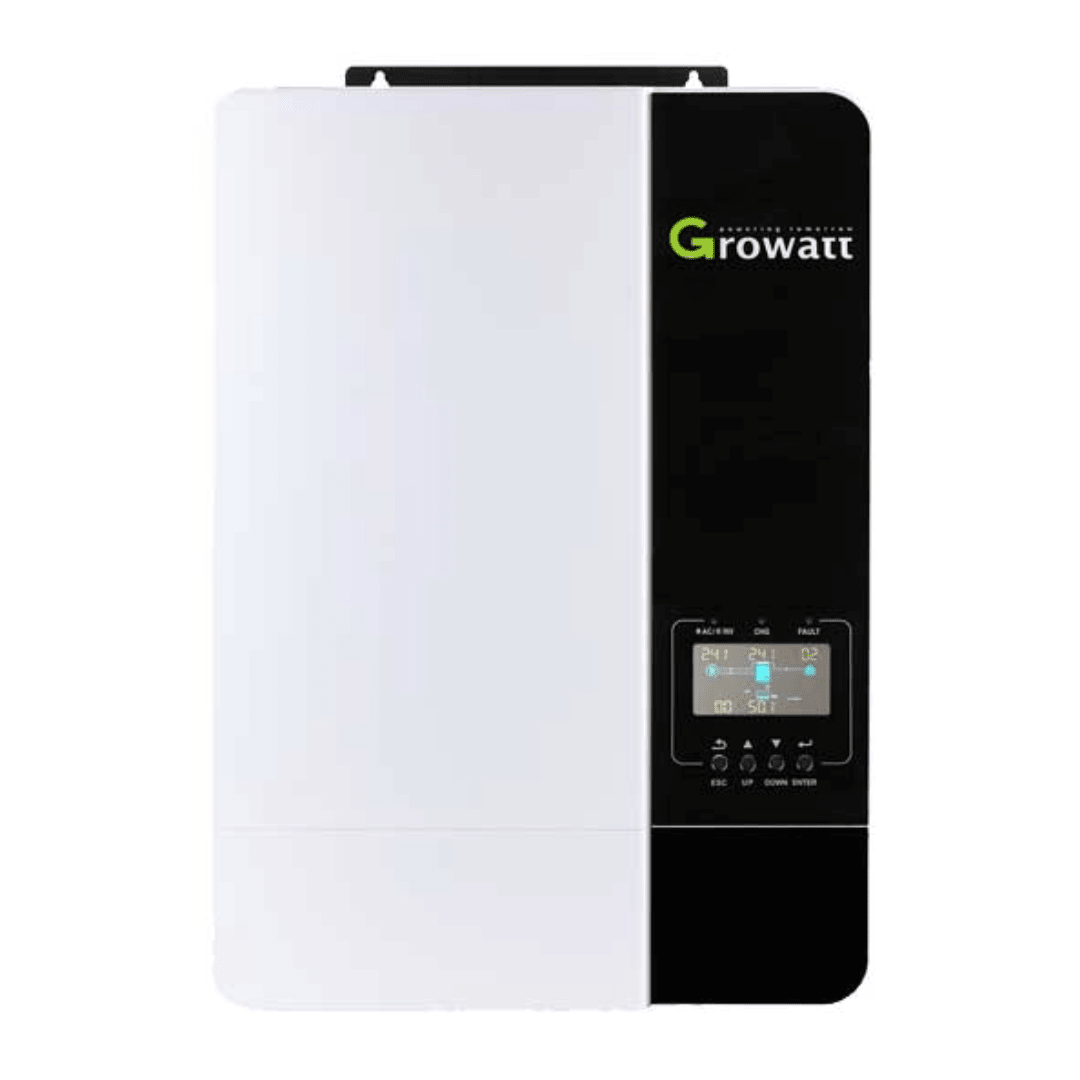

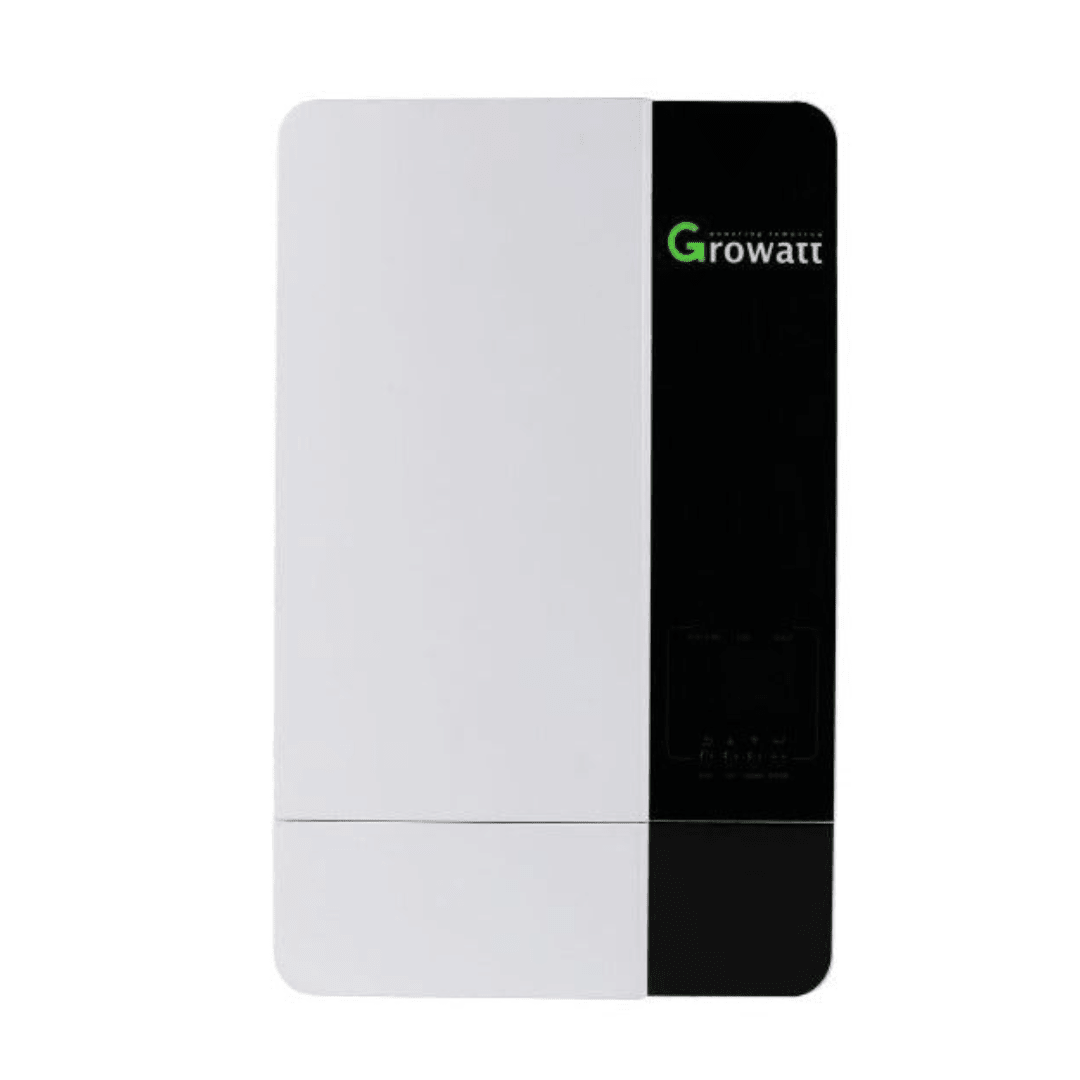

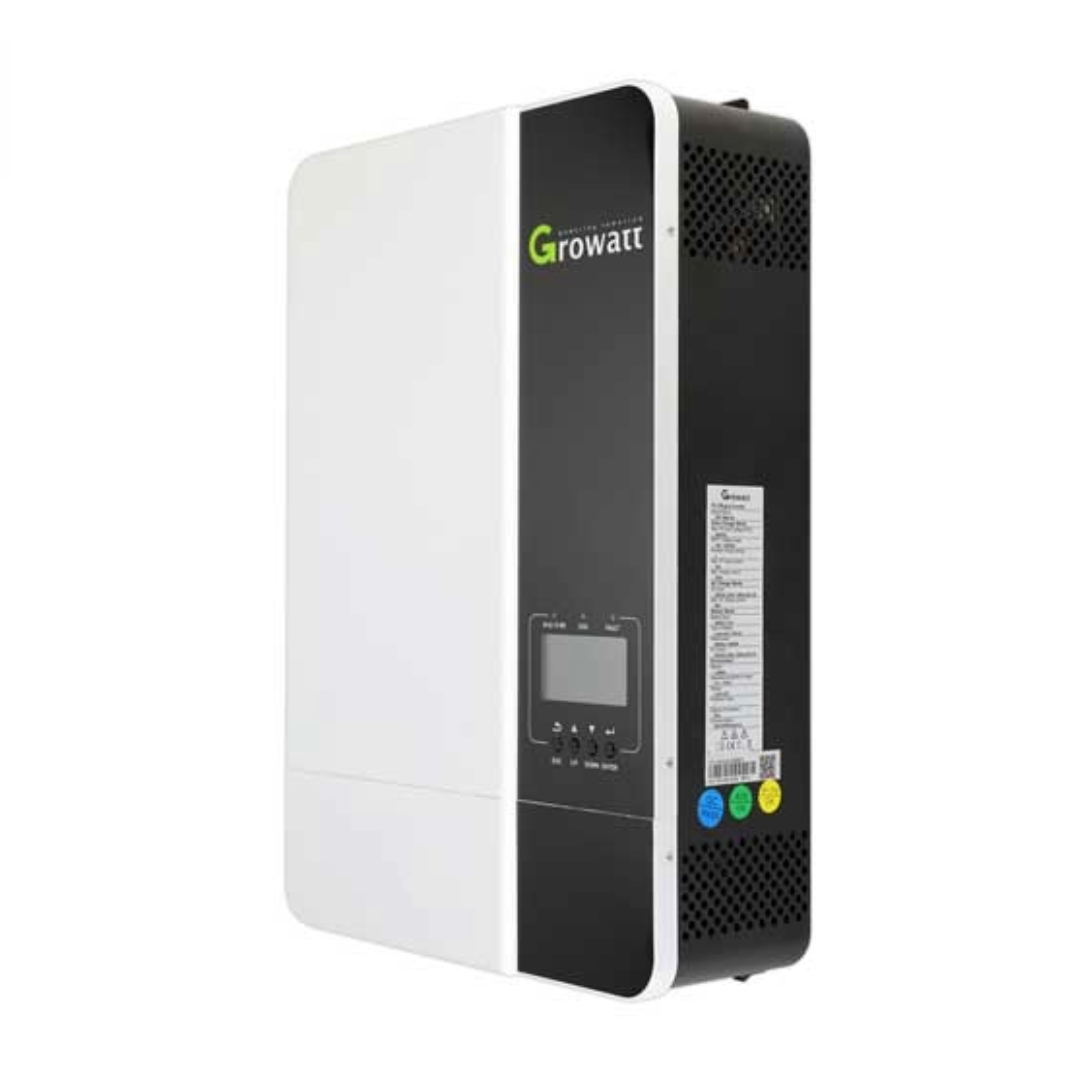

Multi-functional 5000W 48V off-grid inverter integrated with an MPPT solar charge controller and high-frequency pure sine wave inverter technology.
Engineered to provide reliable backup power and energy management for residential homes, small businesses, and remote sites during load shedding or utility outages.
Features a high PV input voltage range (up to 450V DC), allowing longer panel strings and reduced cabling complexity.
Capable of operating with or without a 48V battery bank, directly powering AC loads from solar energy during peak sunlight hours.
Parallel expansion capability allows up to 6 units to be connected for higher power output (up to 30kW) or 3-phase system configuration.

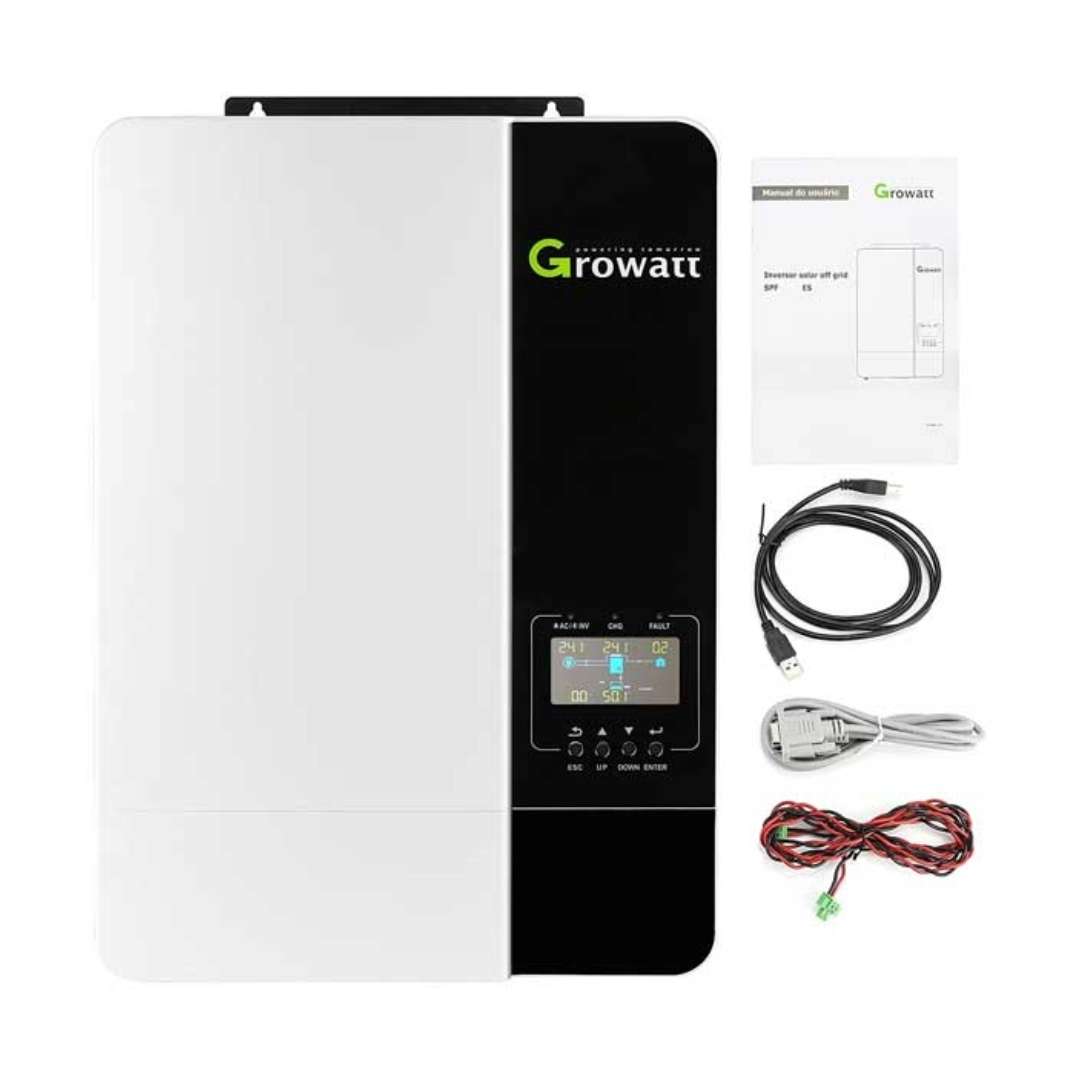

Includes a plug-and-play ShineWiFi-F dongle for real-time mobile and desktop remote monitoring via the Growatt ShinePhone app.
Features
Dual Output Modes: Runs seamlessly with 48V Lithium-ion or Lead-Acid battery systems, or in battery-free mode powered by solar and grid input.
Integrated 100A MPPT Controller: Maximizes solar energy collection efficiency with a wide operating tracker voltage window (120VDC–430VDC).

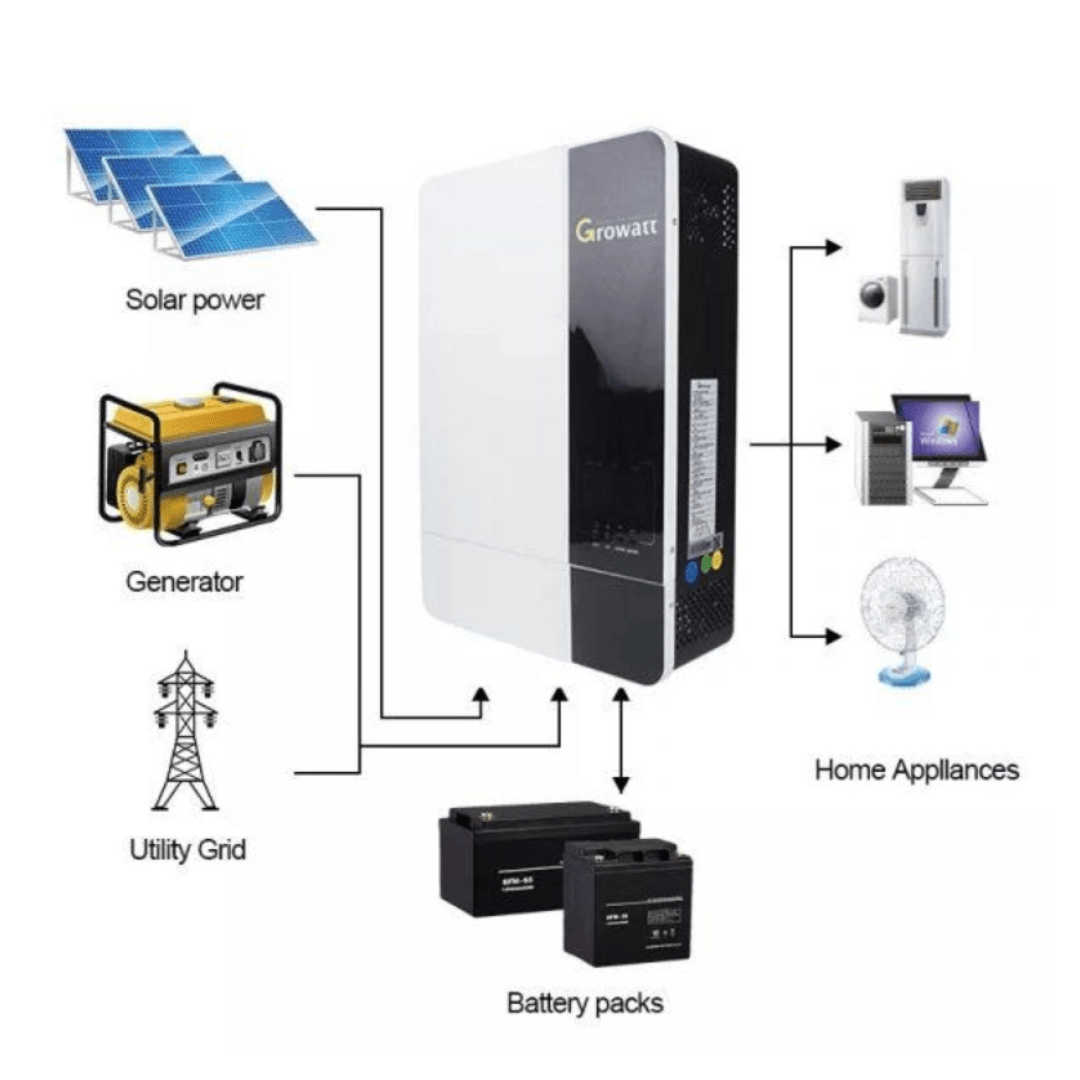

Grid & Generator Assistance: Combines solar power, utility grid, and generator inputs to optimize energy source usage and battery charging rates.
Scalable Architecture: Supports parallel connection of up to 6 units for single-phase or three-phase power scaling.

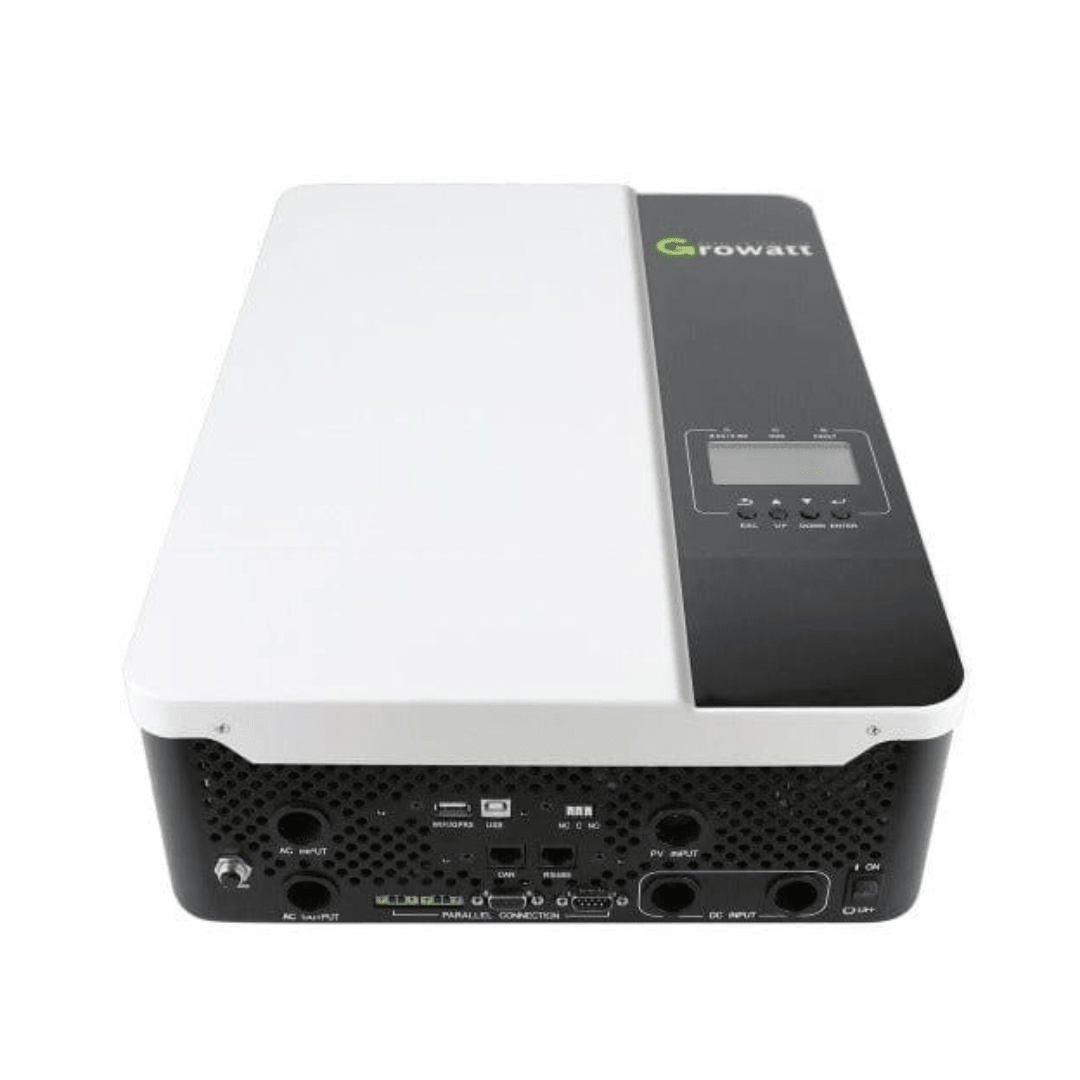

Remote Management: Built-in RS485/CAN port for BMS communication with lithium batteries, plus bundled WiFi dongle for live cloud tracking.

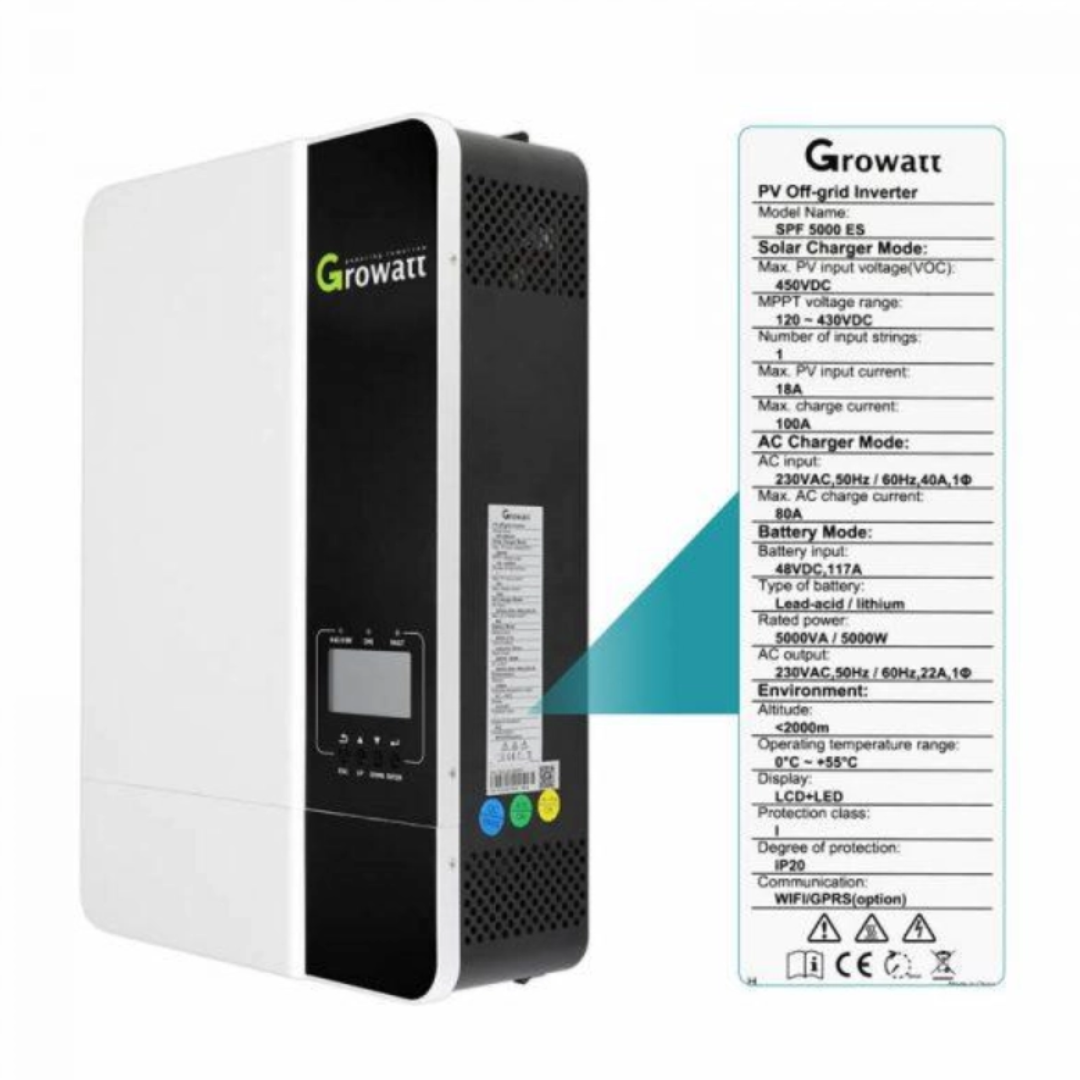

Specifications
Model / Part Number: SPF 5000 ES
Product Type: Off-Grid / Hybrid Solar Inverter
Rated Output Power: 5000W / 5000VA
Output Voltage: 230VAC ± 5% (50Hz / 60Hz)
Waveform: Pure Sine Wave
Surge Power: 10,000VA
Battery Bank Voltage: 48 VDC
Max. Solar Array (PV) Power: 6000W
Max. PV Open Circuit Voltage: 450 VDC
MPPT Voltage Range: 120 VDC – 430 VDC
Max. Solar Charge Current: 100A
Max. AC Charge Current: 80A
Parallel Capability: Up to 6 Units (Single-Phase or 3-Phase)
Communication Interface: CAN / RS485 (BMS), USB, WiFi (ShineWiFi-F Included)
Application: Residential Solar Systems, Load Shedding Backup, Commercial Energy Management
