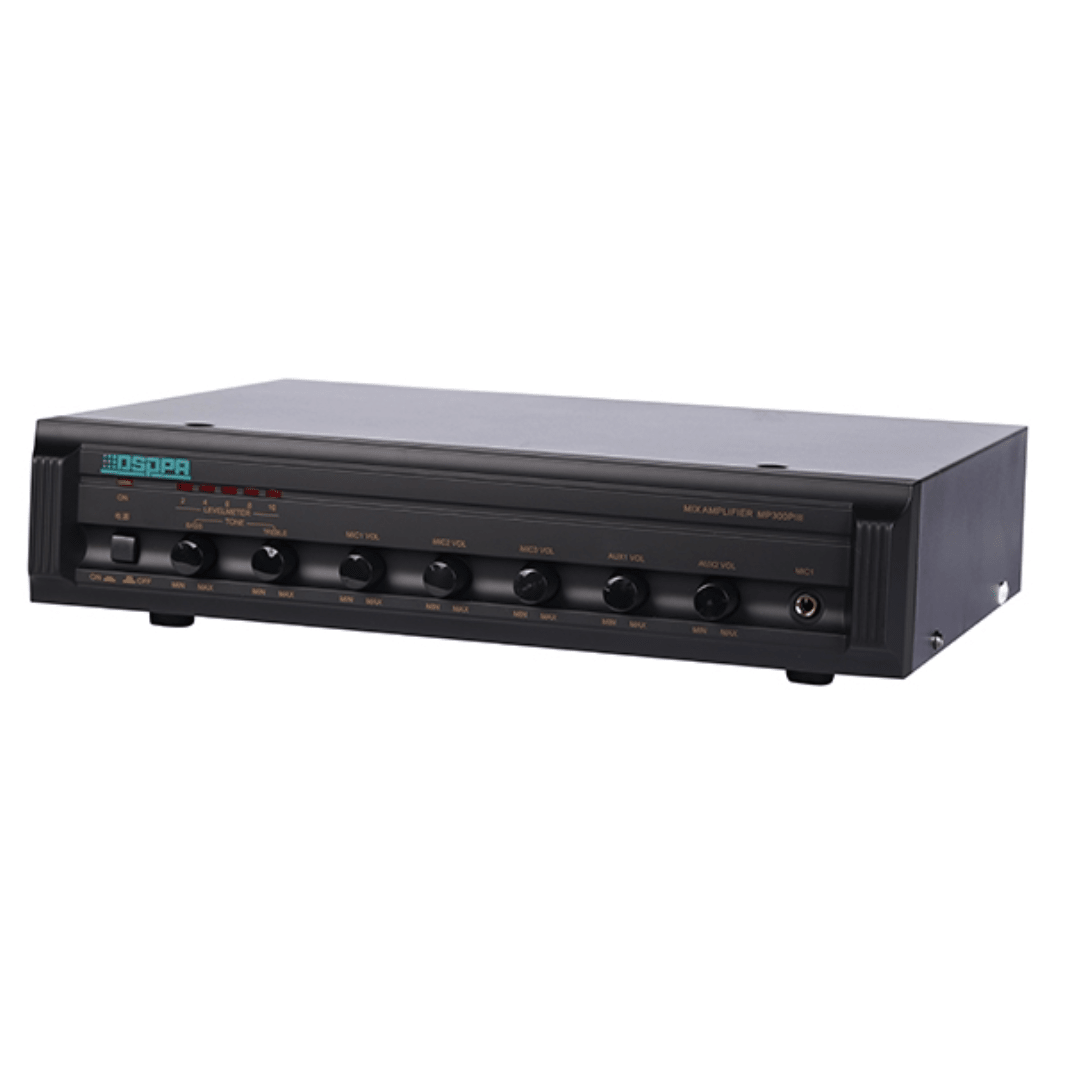

DSPPA MP300PIII 120W 100V Line Public Address Mixer Amplifier

R 3,725.00
Quantity:
Easy Returns
🔒 Multiple Secure Payment Methods
💬 Friendly Advice Available
🚚 Delivery within 3–5 business days
Sku: 64253300
Visa Mastercard American Express Ozow MTN Mobile Money

  • Commercial 100V line public address mixer amplifier engineered to provide reliable, high-integrity audio distribution for background music and paging systems.
  • Delivers 120W RMS power output with flexible 70V/100V constant voltage terminal options as well as 4–16 Ohm low-impedance speaker outputs.
  • Features a built-in 3-channel microphone mixer and 2 auxiliary line inputs to integrate paging microphones, media players, and external audio sources.
  • Equipped with a dedicated MIC1 priority input with automatic muting function (ducking) to instantly override background music during emergency announcements.
  • Housed in a heavy-duty 2U rack-mountable chassis with comprehensive protection against short circuits, thermal overload, and clip distortion.
Features

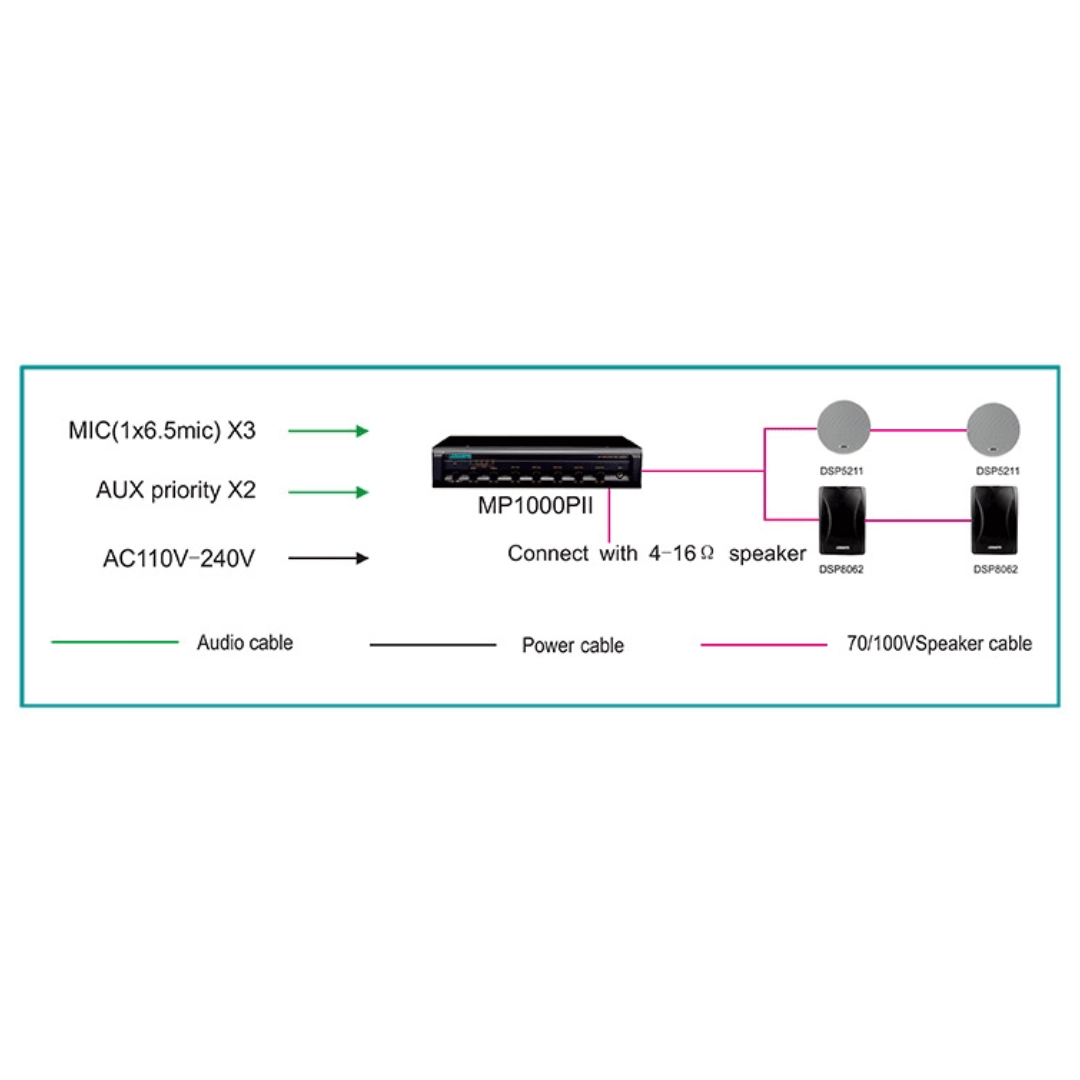

  • Flexible Speaker Outputs: Supports high-impedance 70V / 100V line distribution for long speaker runs alongside 4–16 Ohm low-impedance connections.
  • 3 Microphone Inputs: Accommodates three separate microphones for multipoint paging, announcements, or vocal amplification.
  • MIC1 Override Priority: Automatically attenuates secondary line and mic inputs when speech is detected on the MIC1 channel.

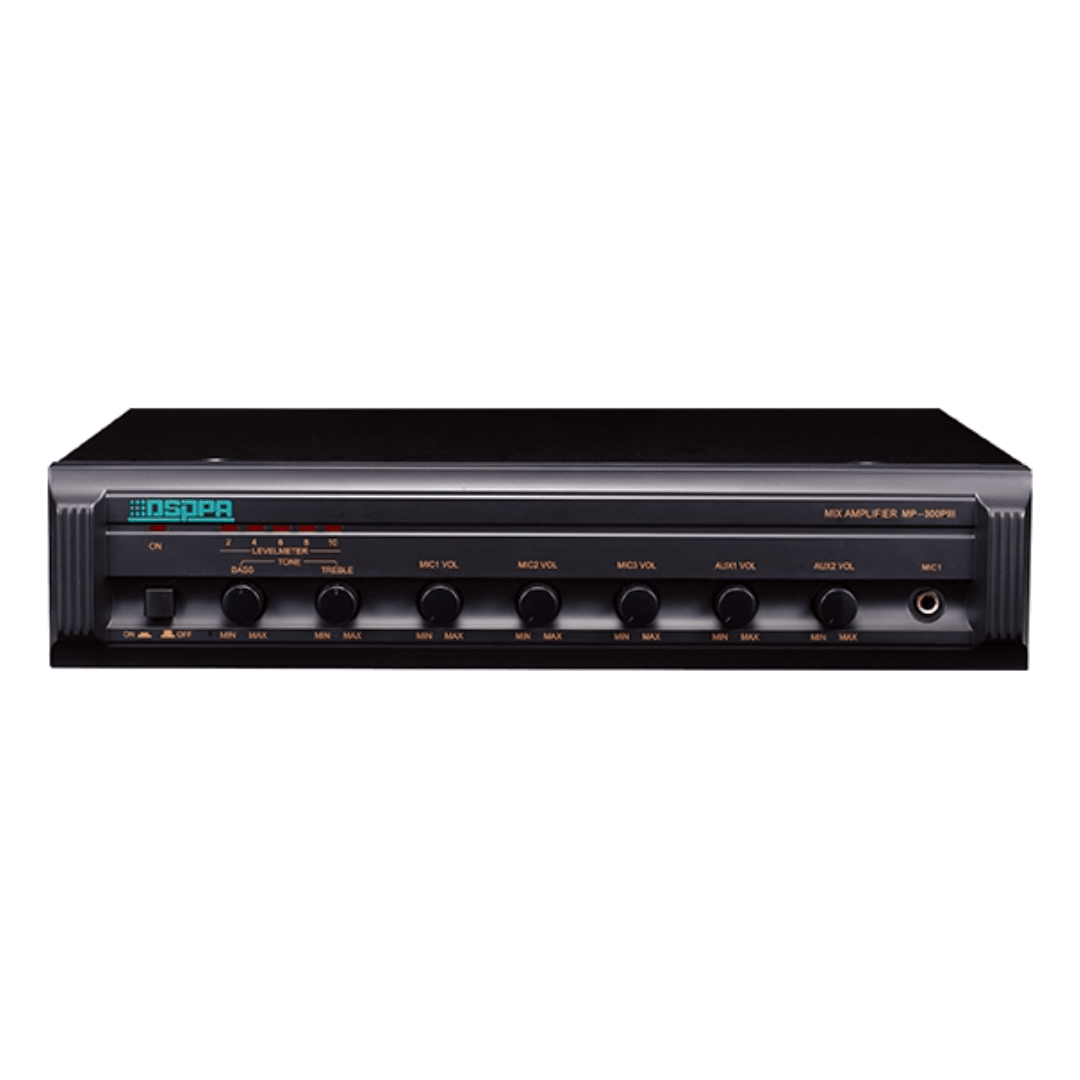

  • Master & Channel Level Controls: Independent volume controls for individual inputs plus master volume and 2-band (Bass/Treble) EQ adjustments.
  • Thermal & Short-Circuit Protection: Internal protection circuitry with LED indicators ensures safe operation under heavy continuous commercial workloads.
Specifications
  • Model / Part Number: MP300 PIII / MP300PIII
  • Product Type: Commercial PA Mixer Amplifier
  • Rated Output Power: 120W RMS

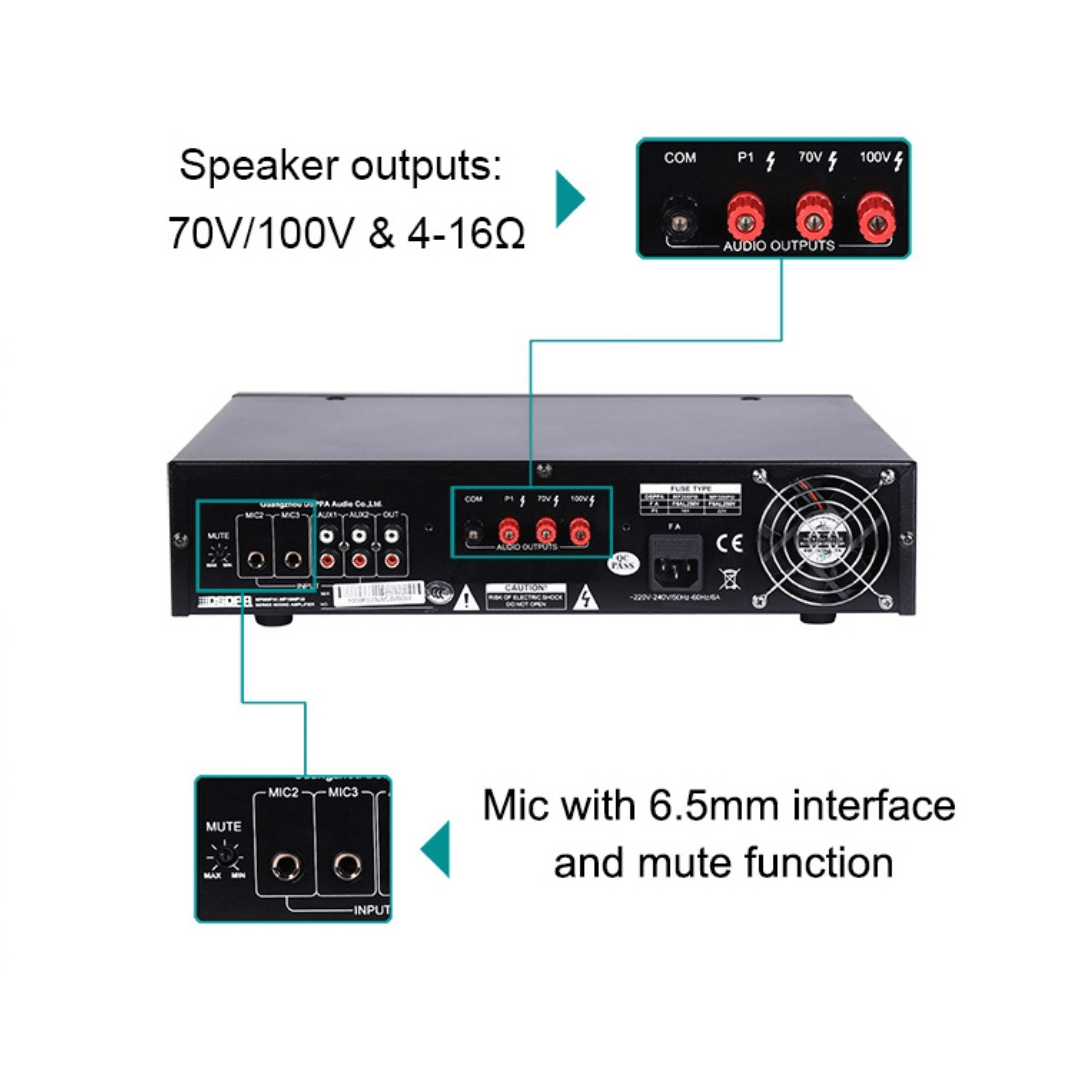

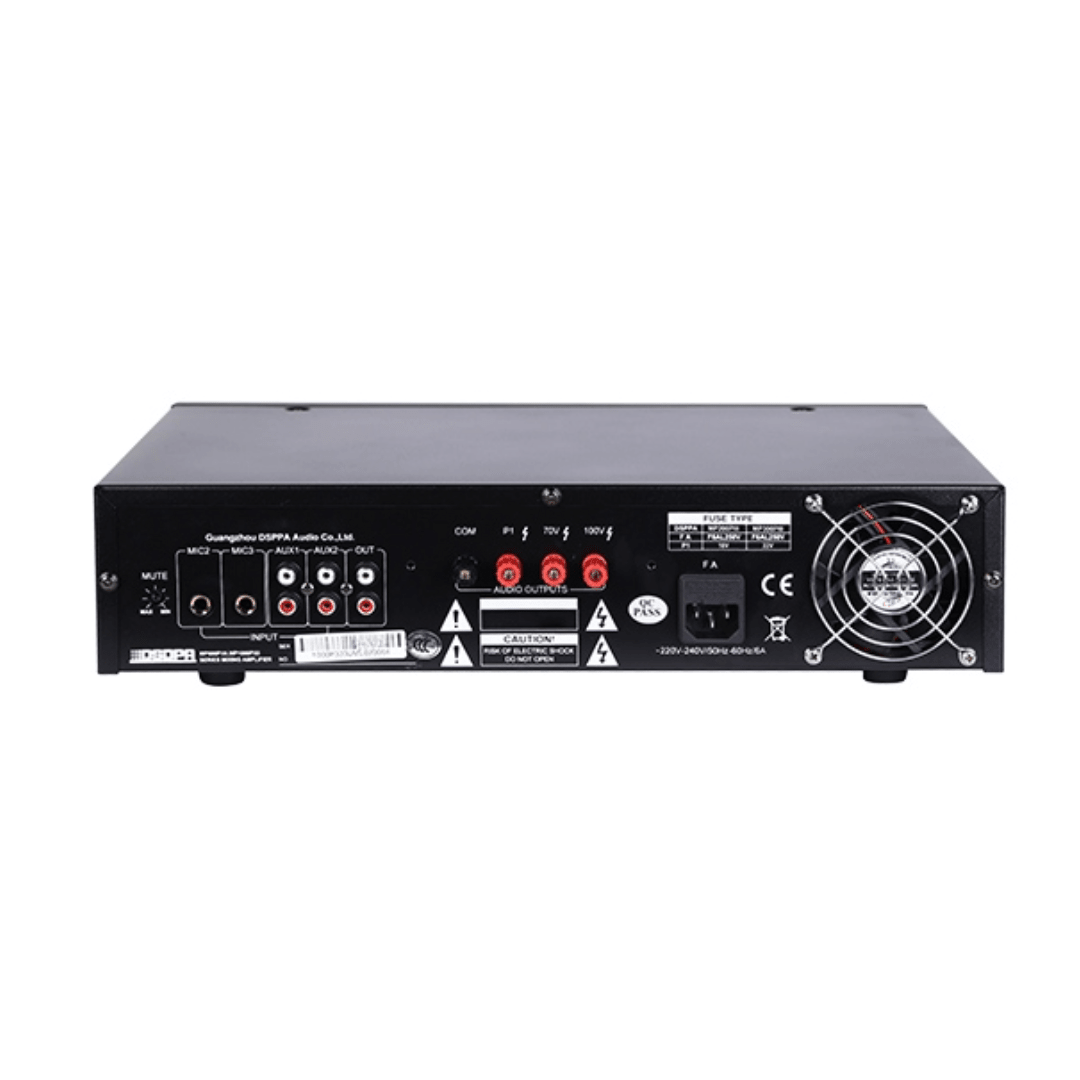

  • Speaker Outputs: 70V, 100V (High Impedance) / 4–16 Ohms (Low Impedance)
  • Inputs: 3 x MIC Inputs (6.35mm / 1/4" Jack), 2 x AUX Line Inputs (RCA)
  • Outputs: 1 x AUX Line Output (RCA for cascading amplifiers)
  • Frequency Response: 80 Hz – 16,000 Hz (±3 dB)
  • Total Harmonic Distortion (THD): < 0.5% at 1 kHz, 1/3 rated power
  • Signal-to-Noise Ratio (S/N): MIC: > 66 dB; AUX: > 70 dB
  • Tone Controls: Bass: ±10 dB @ 100 Hz; Treble: ±10 dB @ 10 kHz
  • Power Supply: AC 220V–240V / 50Hz–60Hz
  • Rack Unit Height: 2U Rack Mountable
  • Application: Schools, Shopping Malls, Warehouses, Restaurants, Offices, Houses of Worship
What's in the Box?
  • 1 x DSPPA MP300 PIII 120W 100V Line Mixer Amplifier
  • 1 x AC Power Cable
  • 1 x User Manual / Documentation
Vendor Dsppa
Type PA Amplifiers
Sku 64253300
Weight:  8.5 kg
