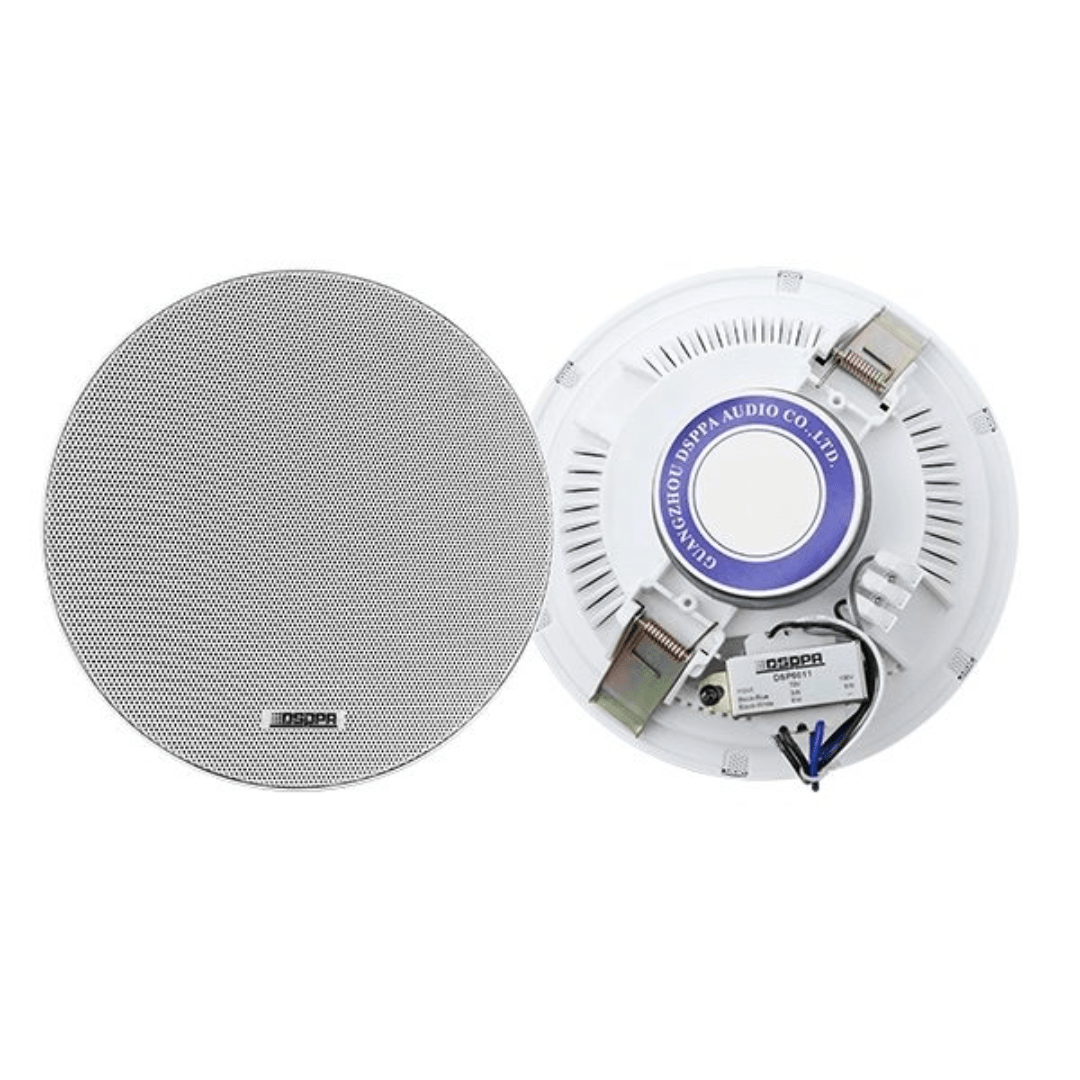

DSPPA DSP6011 Ceiling Speaker 6.5" 6W Frameless 100V Line

R 0.00
Quantity:
Sku: 80406011
Visa Mastercard American Express Ozow MTN Mobile Money

  • The DSPPA DSP6011 6.5" 6W Frameless Ceiling Speaker is a durable, low-profile commercial audio transducer engineered for background music (BGM) distribution and public address (PA) paging systems.
  • Featuring an integrated multi-tap 70V/100V step-down transformer, this surface-mount architectural loudspeaker operates in a high-voltage, low-current mode.
  • This power configuration allows for ultra-long distance cable runs and hassle-free parallel daisy-chaining of multiple loudspeakers across large commercial zones.

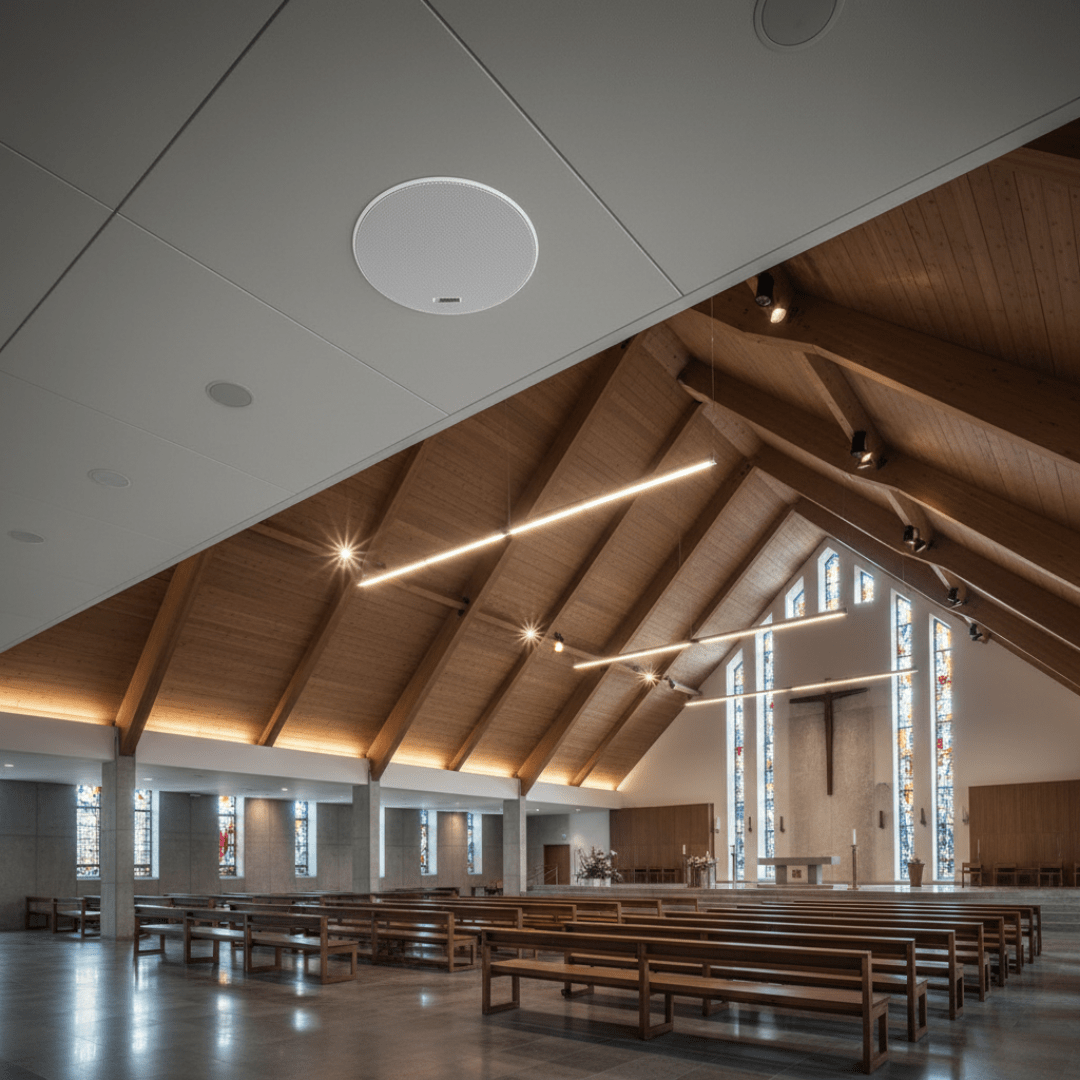

  • Designed to seamlessly blend into modern architectural environments, the DSP6011 features a cutting-edge frameless design with a paintable white aluminum mesh grille that sits completely flush against the drywall.
  • Manufactured from high-quality, flame-retardant engineering plastic that remains durable, non-deformable, and non-fading over time, it serves as an essential, long-term sound solution for schools, gymnasiums, airports, and retail facilities.
Features

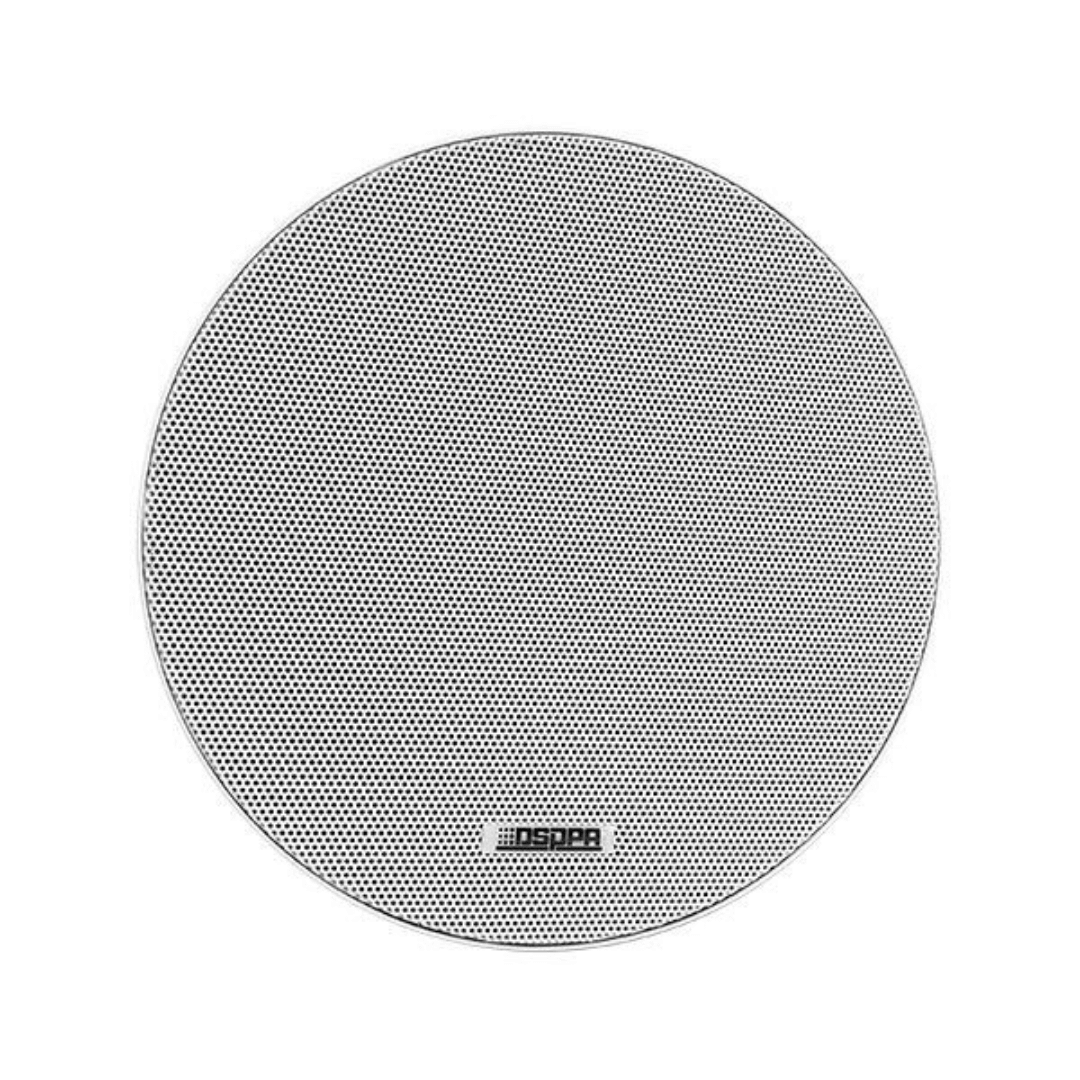

  • Modern Frameless Layout & Aluminum Grille: Designed with an ultra-narrow edge layout and a resilient, perforated aluminum mesh grille.

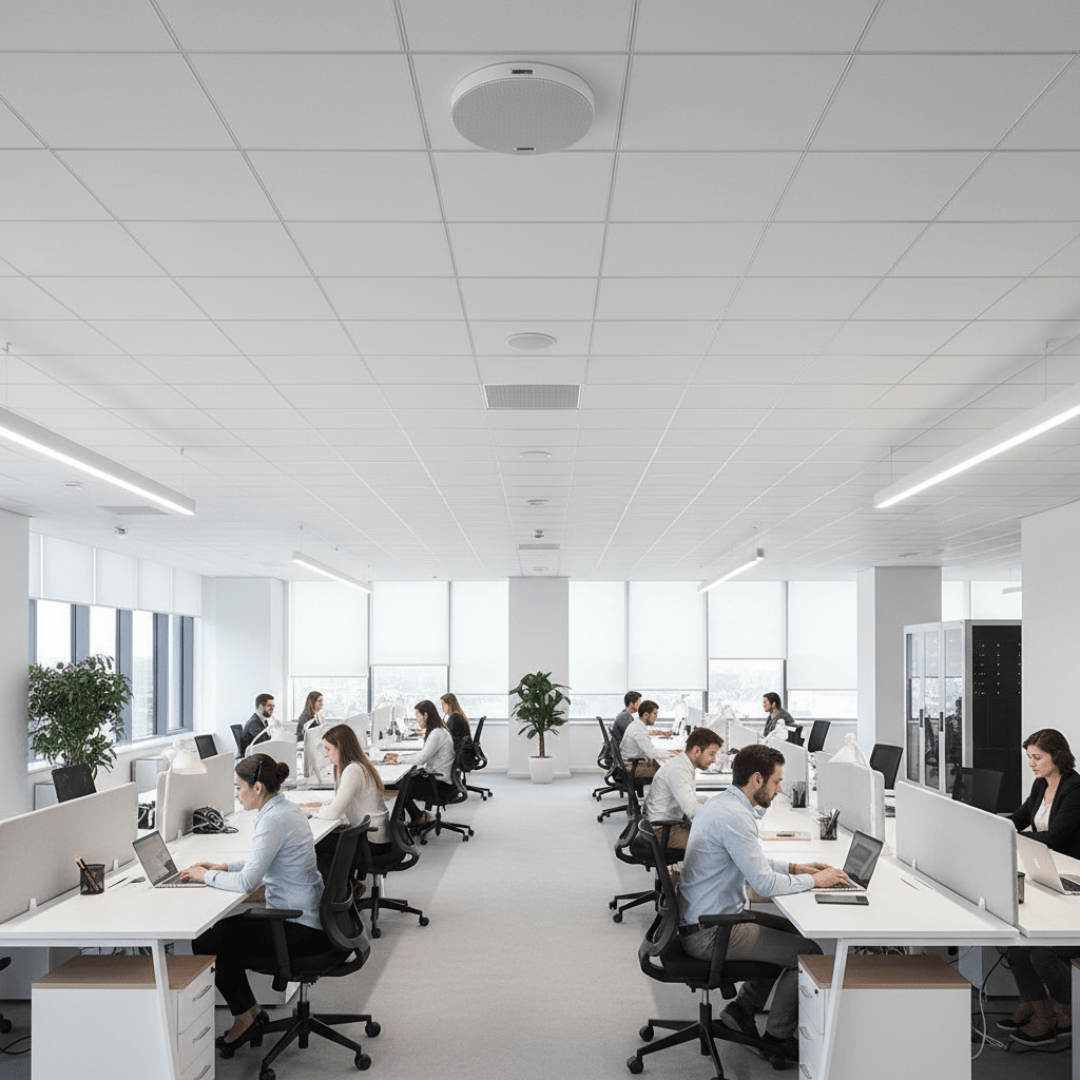

  • This clean structural footprint is perfectly optimized for high-end corporate boardrooms, modern offices, and luxury retail storefronts where bulky plastic bezels would disrupt interior design aesthetics.

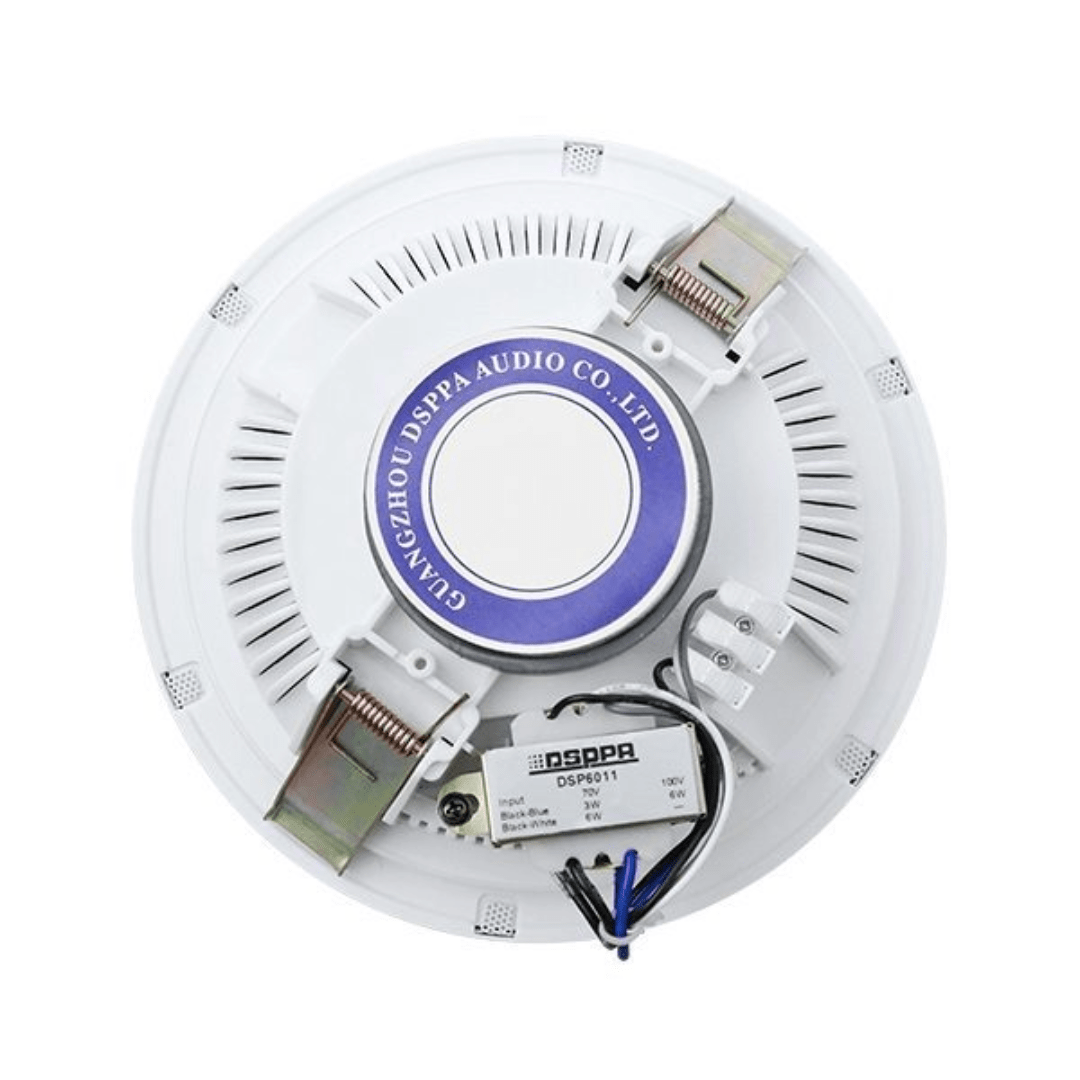

  • Integrated Multi-Tap Transformer: Outfitted with a specialized three-speaker line terminal that supports multiple power-tap options under both 70V and 100V standards.
  • This variable impedance interface is ideal for fine-tuning sound distribution across vast open areas, matching specific zone volume demands without overloading the amplifier.
  • Premium Non-Fading Engineering Plastic Base: Molded from heavy-duty, high-grade engineering plastic that resists warping, structural deformation, and yellowing over time.
  • This resilient material composition is essential for demanding architectural applications, ensuring the speaker casing retains its pristine finish over years of service.
  • Acoustically Balanced 6.5-Inch Driver Array: Powered by a premium 6.5-inch full-range transducer calibrated to yield a broad 110Hz - 15kHz frequency response.
  • This acoustic profiling is critical for achieving highly articulate voice intelligibility and warm, rich musical playback, ensuring page announcements cut through ambient environment noise.
  • In-Ceiling Quick Spring Clip Installation: Equipped with a rugged, tool-free dual spring clamp mechanism that snaps securely into standard ceiling panels.
  • This effortless anchoring assembly is the definitive solution for commercial installation contractors who need to minimize field labor times during rapid, multi-speaker building deployments.
Specifications
  • Model Designation: DSP6011
  • Component Type: Frameless Commercial In-Ceiling Surface Loudspeaker
  • Transducer Diameter: 6.5 inches
  • Constant Voltage Input: Dual 70V / 100V Transmission Line Compatibility
  • Rated Output Power (RMS): 6 W (Multi-tap terminal options)
  • Characteristic Sensitivity: 90dB +/- 2dB (1W/1m)
  • Maximum Sound Pressure Level (SPL): 97dB +/- 2dB
  • Effective Frequency Response: 110Hz - 15kHz
  • Chassis Material: Premium Non-Fading Engineering Plastic Injection Mold
  • Grille Material: Protective Perforated Aluminum Mesh
  • Required Ceiling Cutout Dimensions: Diameter 165mm - 170mm
  • Primary Application: Distributed Public Address Paging and Background Music for Schools, Gymnasiums, Airports, and Supermarkets
What’s in the Box
  • 1 × DSPPA DSP6011 6.5" 6W Frameless 100V Line Ceiling Speaker
Vendor Dsppa
Type PA Speakers
Sku 80406011
Weight:  1.0 kg
