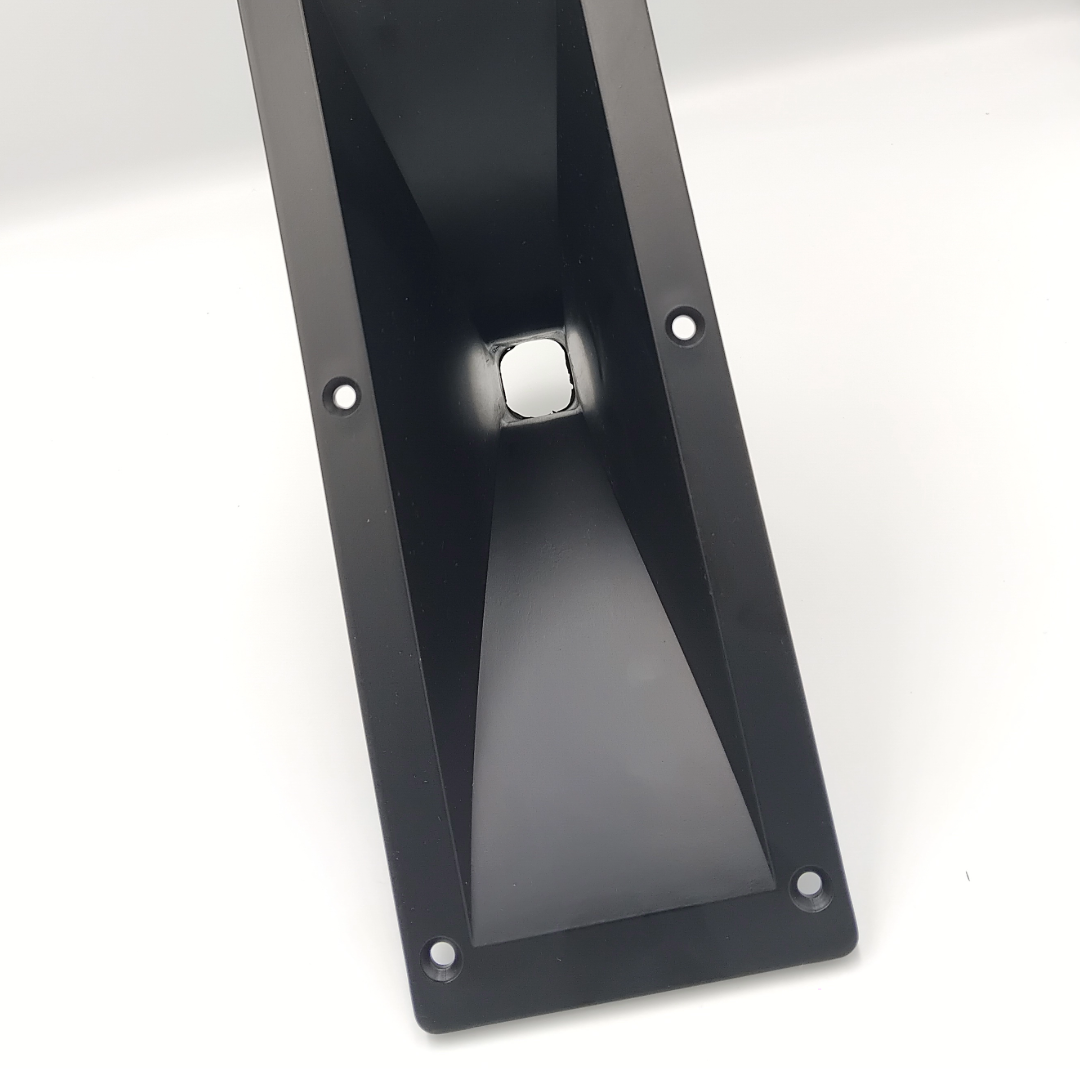

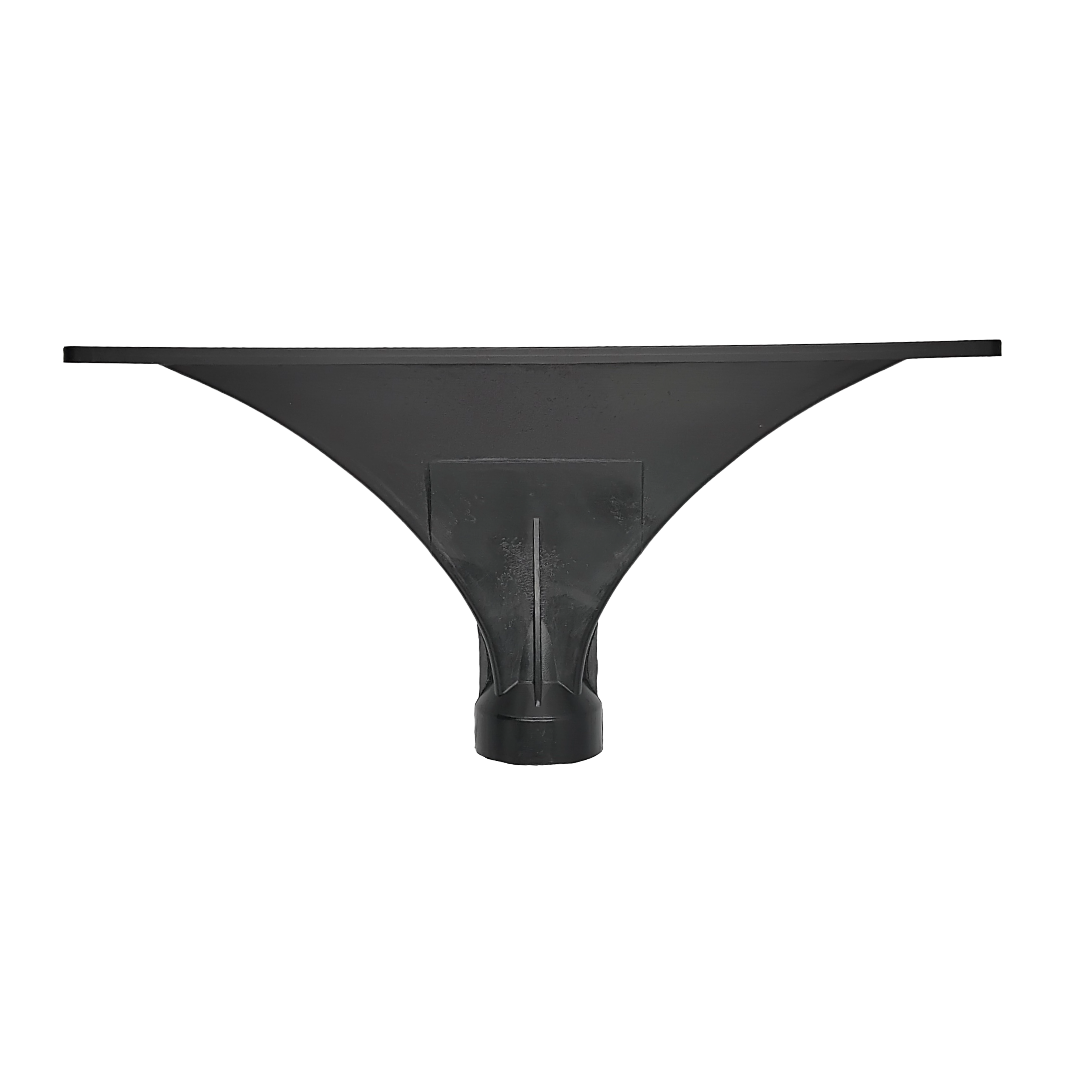

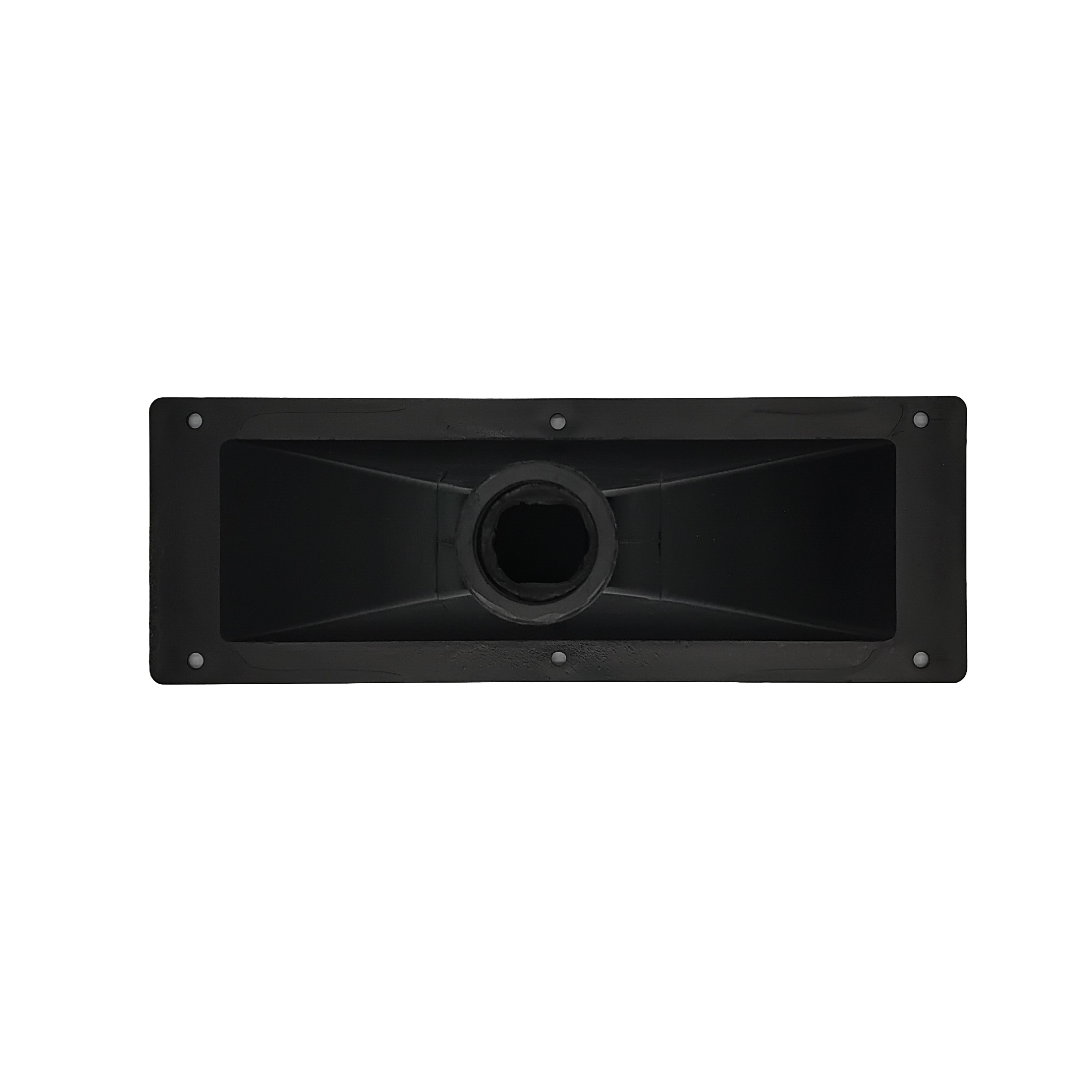

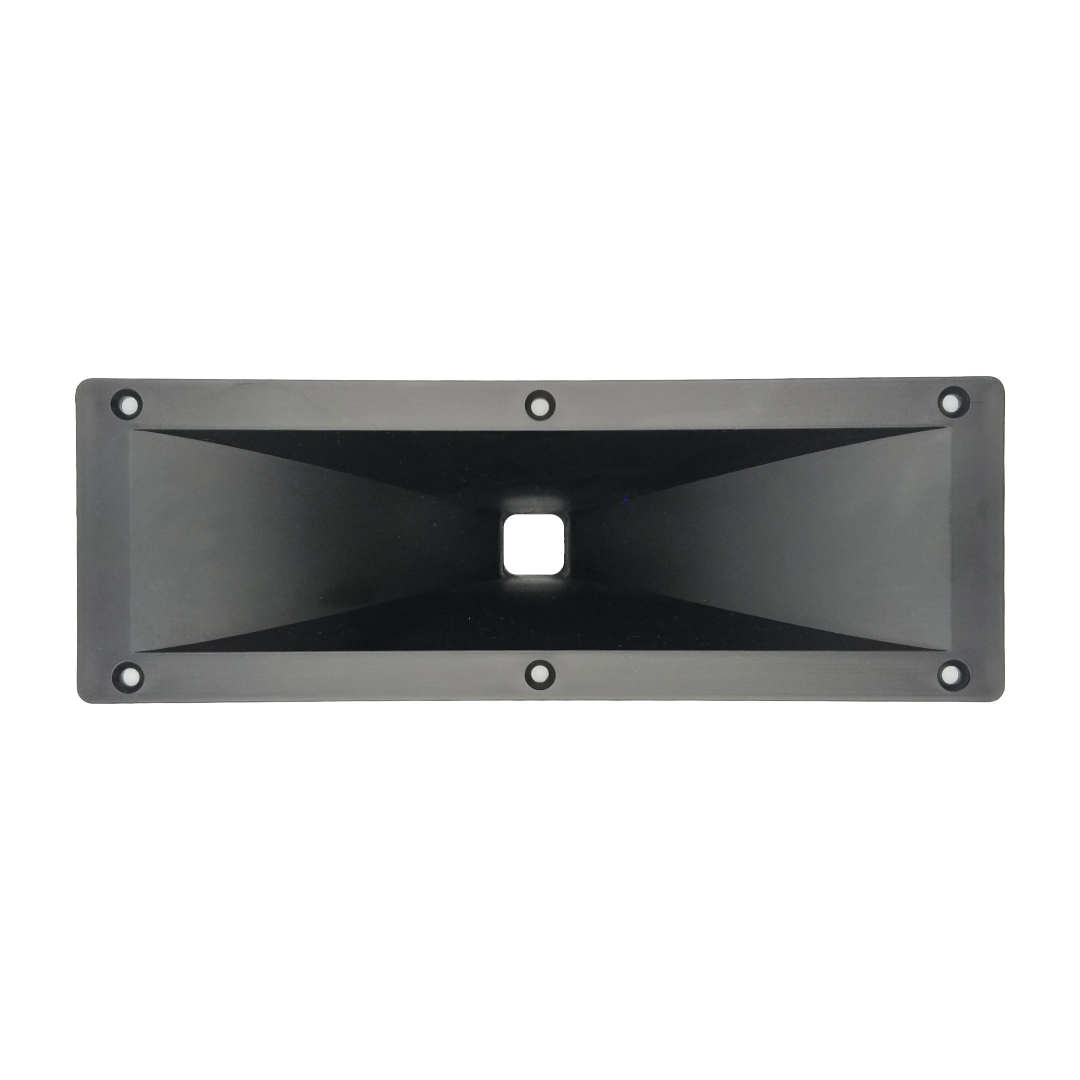

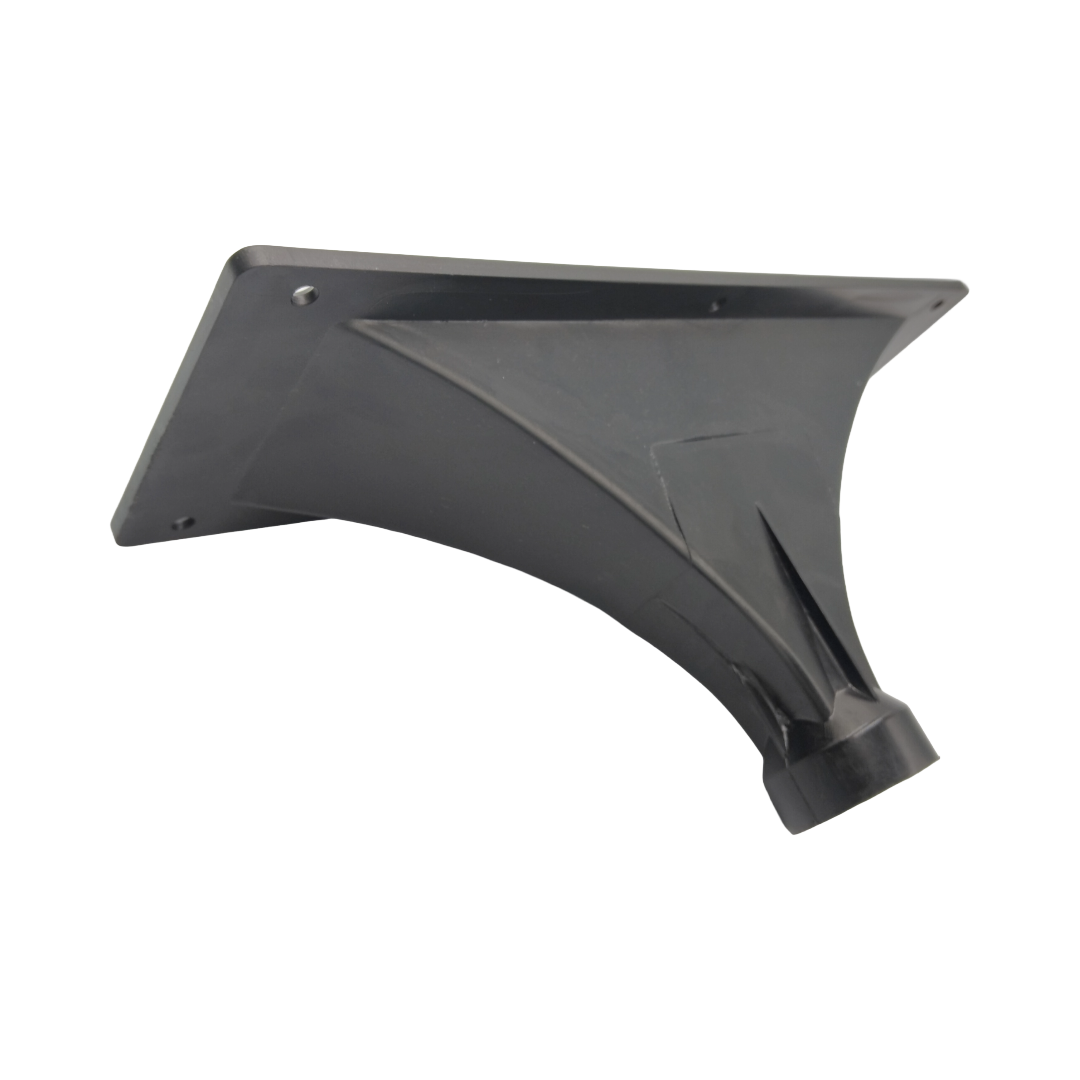

Design Acoustics H001/TW408/HN337 Horn Flare (110mm x 260mm)

R 69.00
Quantity:
Easy Returns
🔒 Multiple Secure Payment Methods
💬 Friendly Advice Available
🚚 Delivery within 3–5 business days
Sku: 80453171
Visa Mastercard American Express Ozow MTN Mobile Money

  • Professional high-frequency horn flare designed for high-frequency compression drivers in PA speaker cabinets, monitor wedges, and custom audio enclosures.
  • Features a 110 mm x 260 mm rectangular throat mouth format engineered for controlled dispersion, enhanced vocal projection, and smooth high-frequency response.
  • Molded from high-density, resonance-free ABS plastic to withstand stage vibration, acoustic pressure, and physical impact.
  • Designed with a standard threaded or bolt-on mounting interface to ensure seamless connection with standard 1-inch throat high-frequency drivers.
  • Flanged perimeter includes pre-drilled countersunk mounting holes for easy, flush installation into front speaker baffles.
Features
  • Optimized High-Frequency Dispersion: Rectangular horn shape directs crisp, articulate highs across wide listening angles with reduced phase cancellation.
  • Resonance-Free ABS Construction: Rigid composite structure eliminates unwanted horn-throat ringing and enclosure coloration.
  • Compact Baffle Footprint: 110 mm x 260 mm outer dimensions fit easily into 2-way and 3-way loudspeaker cabinet cutouts.
  • Universal Driver Compatibility: Designed for standard 1" throat HF compression drivers.
  • Pre-Drilled Baffle Mounts: Standard mounting hole pattern ensures fast and secure cabinet installation.
Specifications
  • Model / Part Number: Design Acoustics H001 / TW408 / HN337
  • Product Type: High-Frequency (HF) Horn Flare
  • Outer Dimensions (H x W): 110 mm x 260 mm
  • Material: High-Impact Molded ABS Plastic
  • Color / Finish: Matte Black
  • Throat Diameter Compatibility: 1 Inch (25.4 mm) Standard HF Driver Mount
  • Mounting Type: Baffle Surface Mount
  • Application: PA Speakers, Stage Monitors, DJ Speakers, and Custom Loudspeaker Builds
What's in the Box?
  • 1 x Design Acoustics H001/TW408/HN337 Horn Flare (110mm x 260mm)
Vendor Design Acoustics
Type Speaker Parts & Accessories
Sku 80453171
Weight:  0.2 kg
