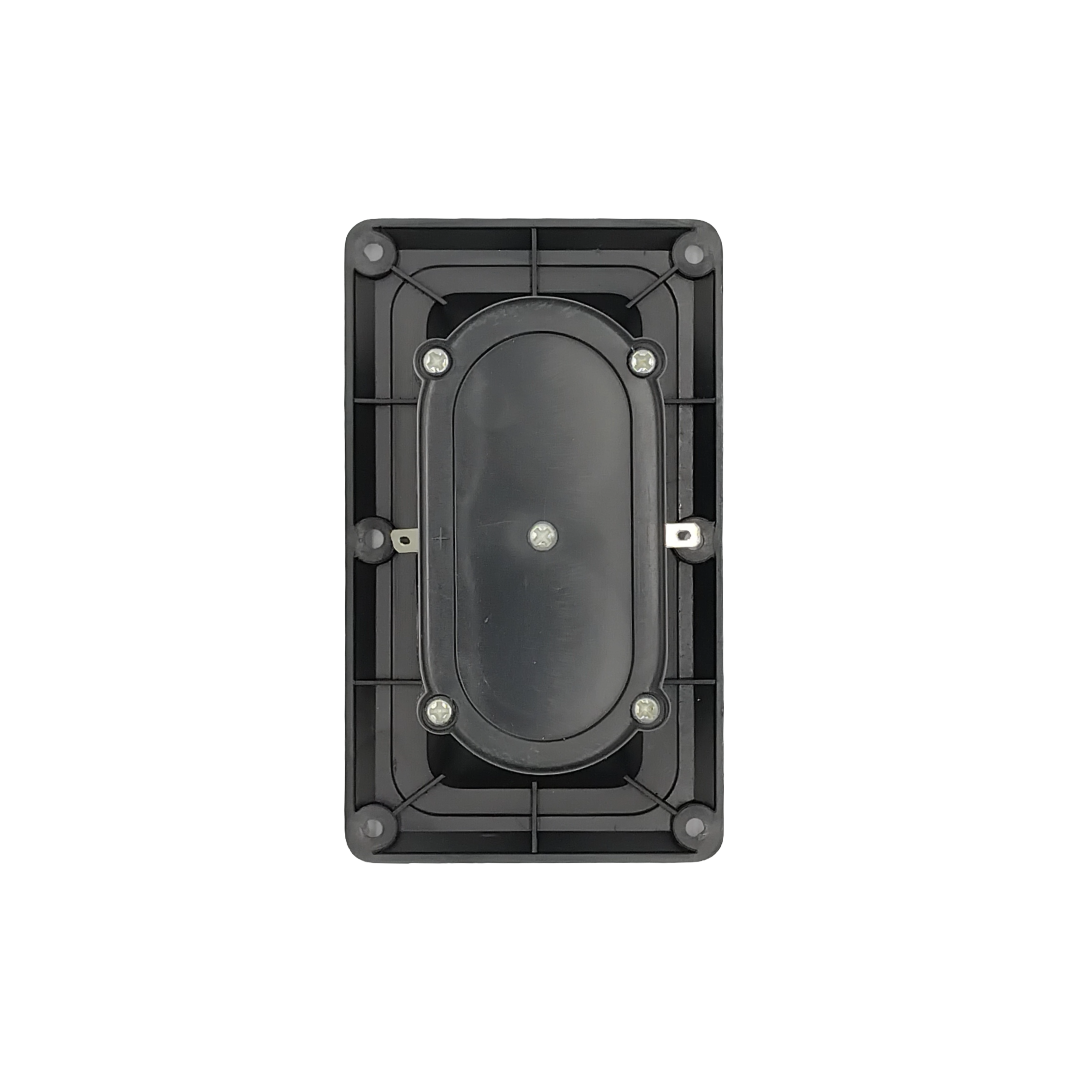

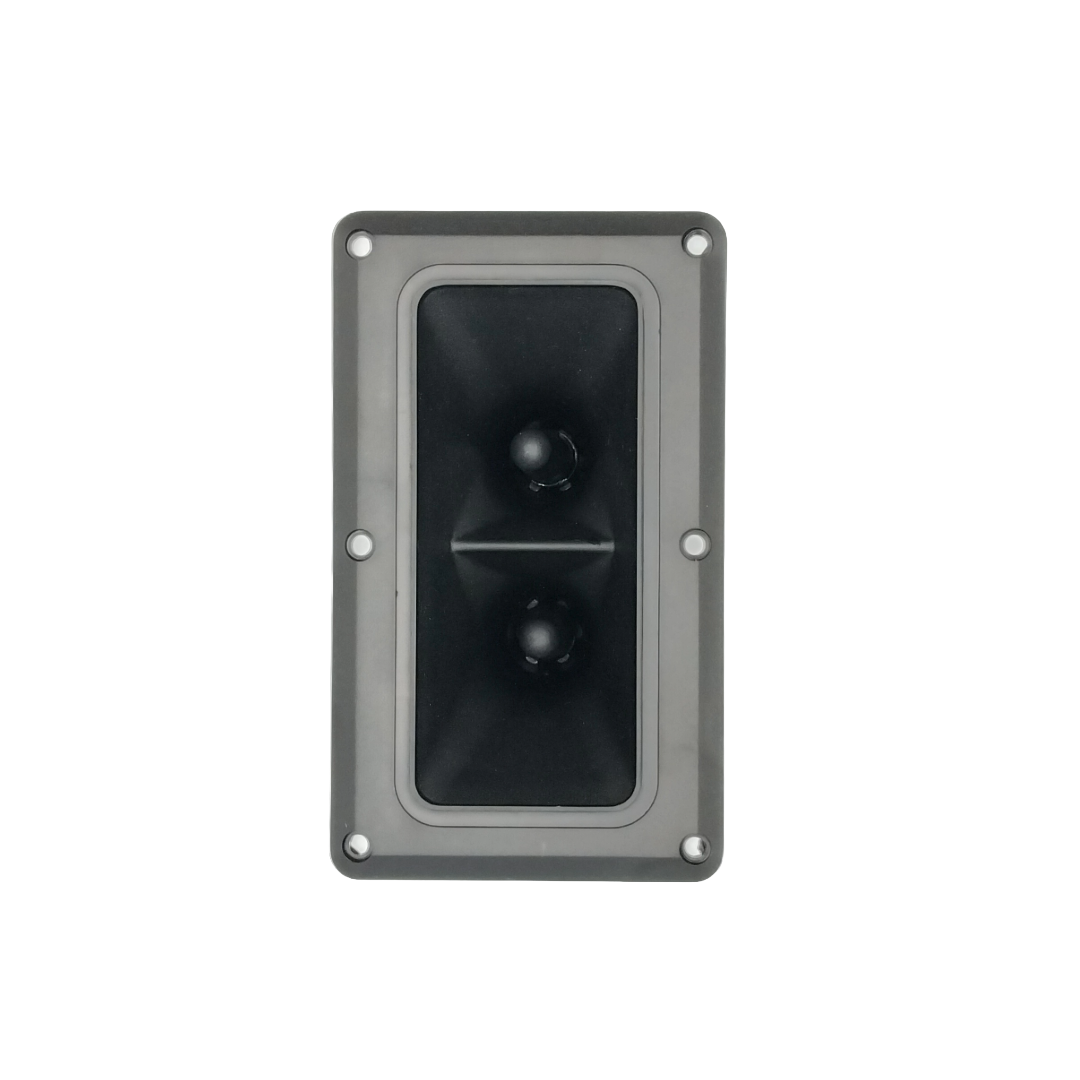

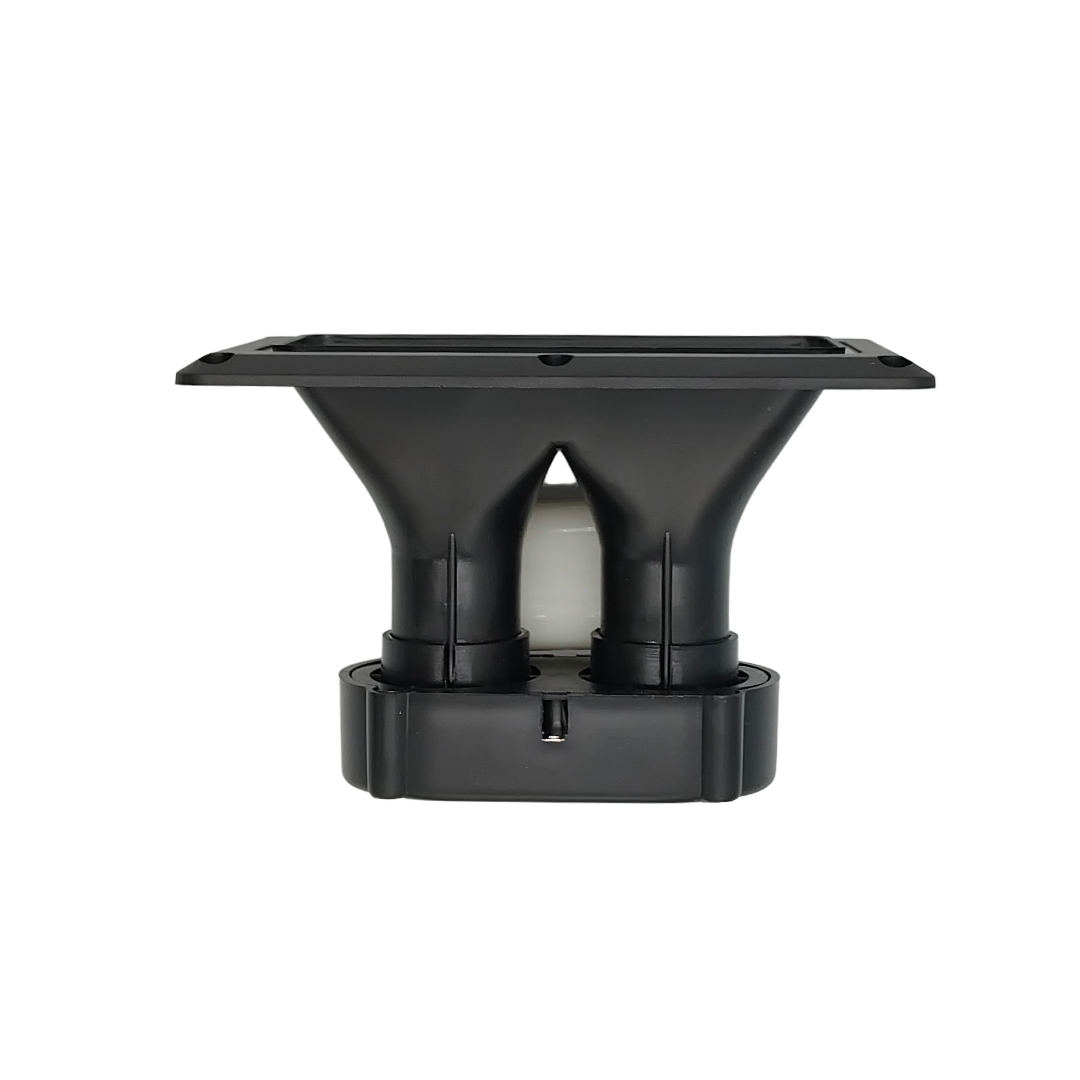

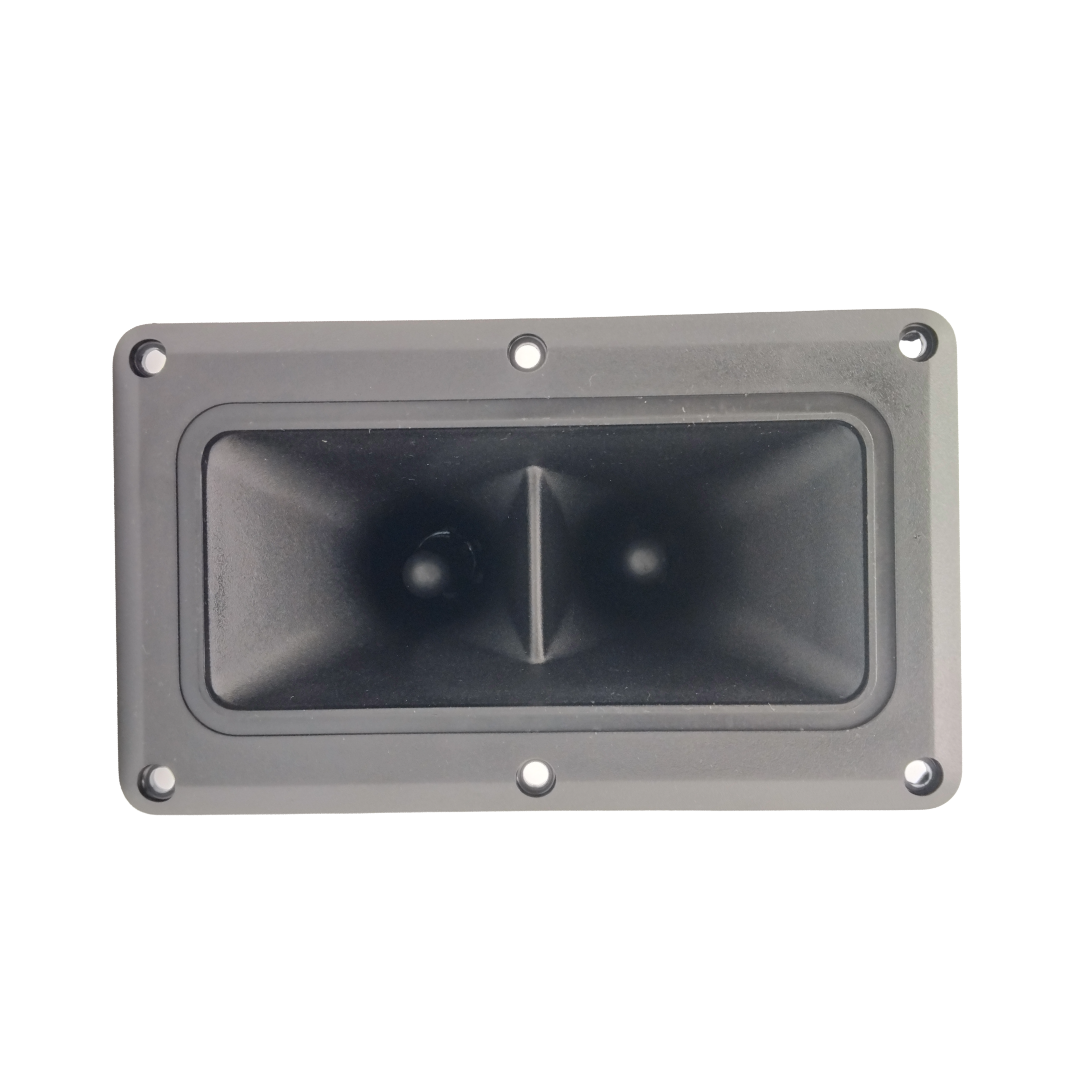

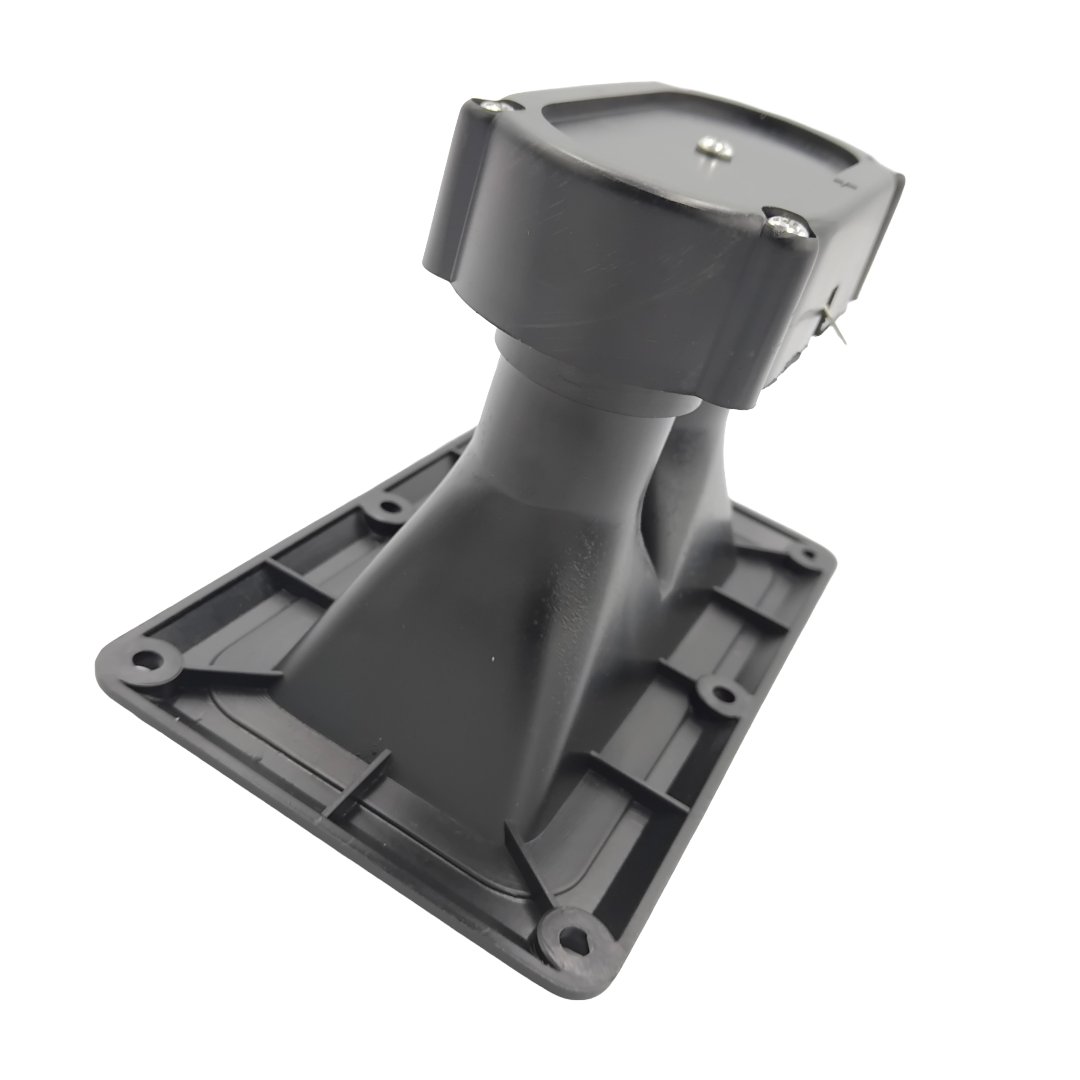

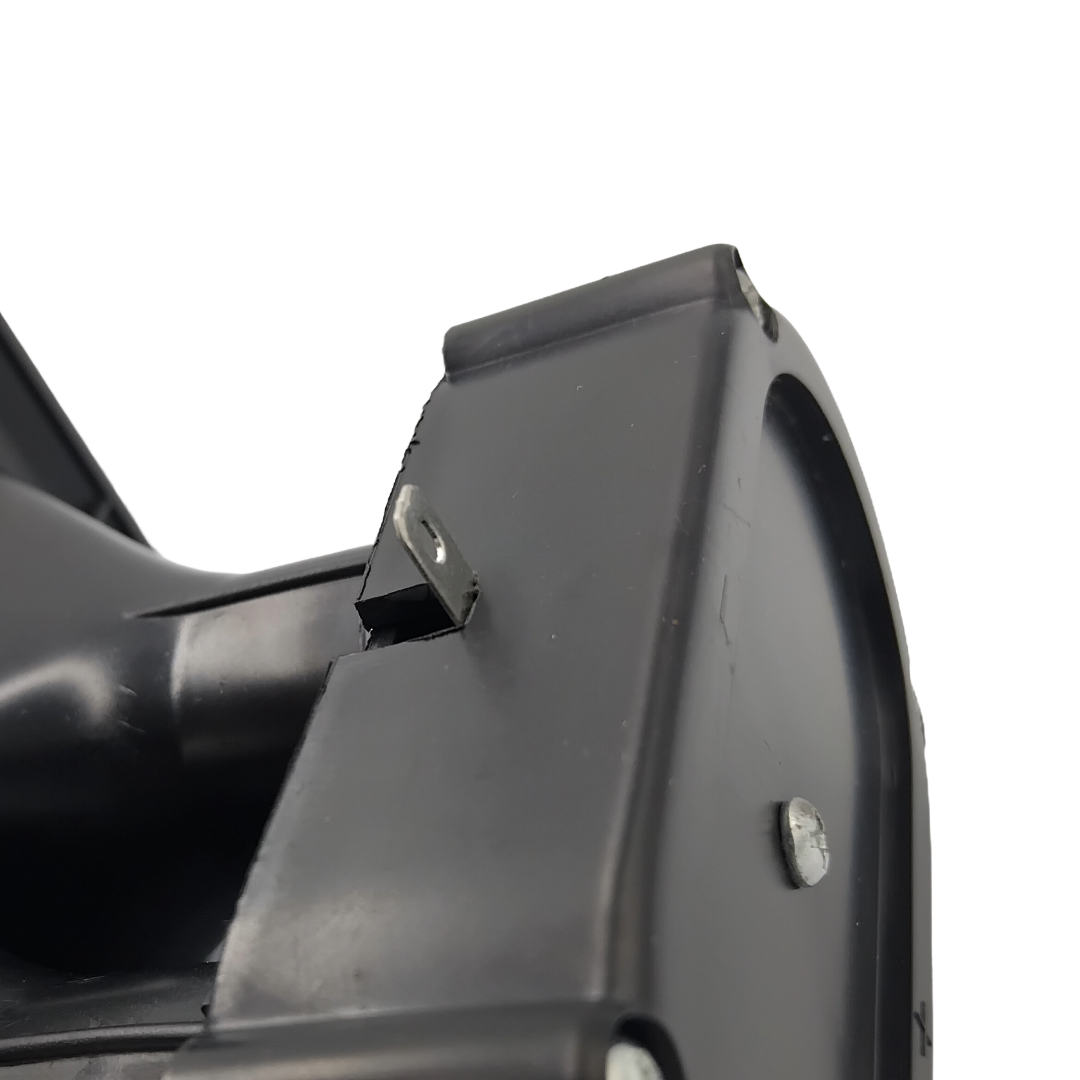

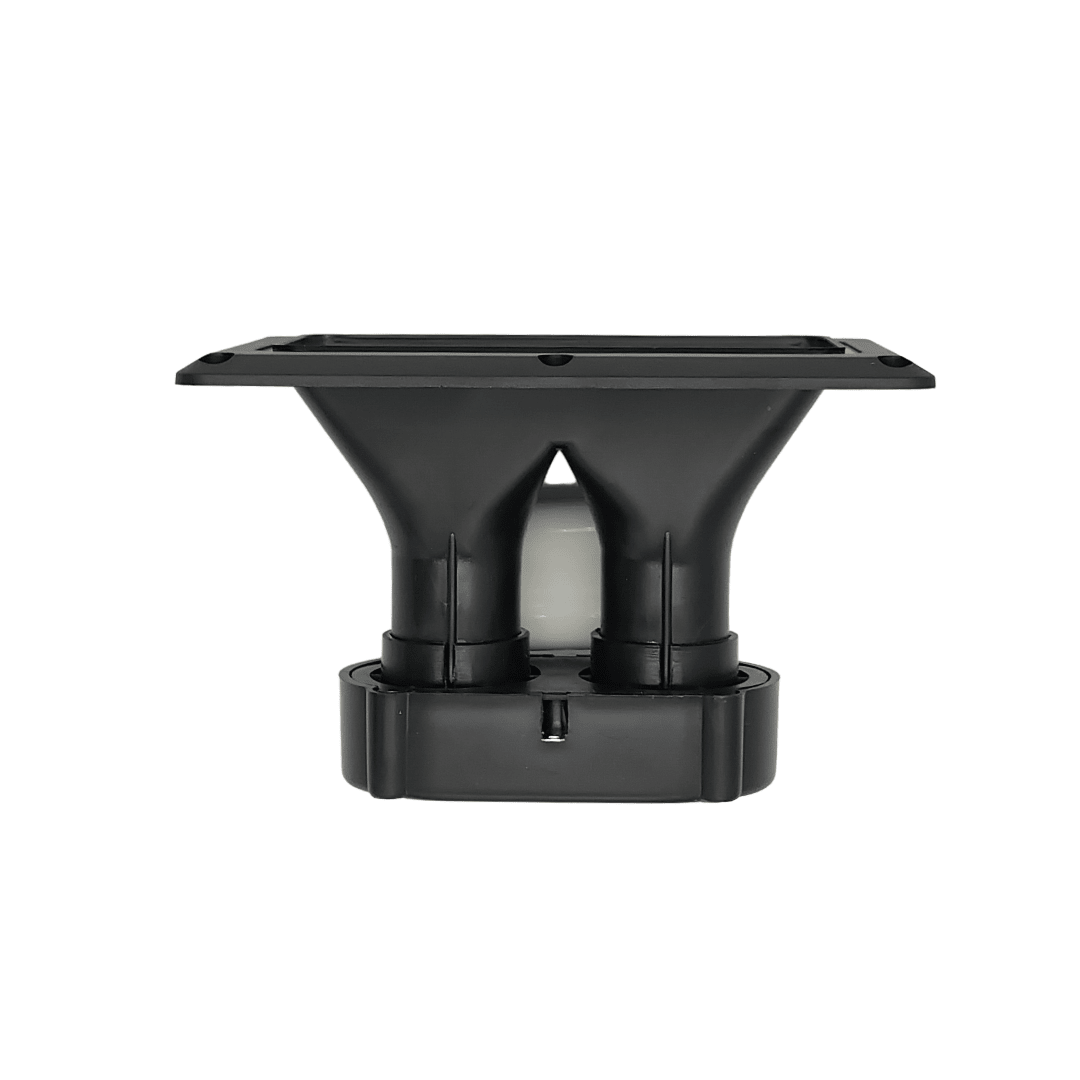

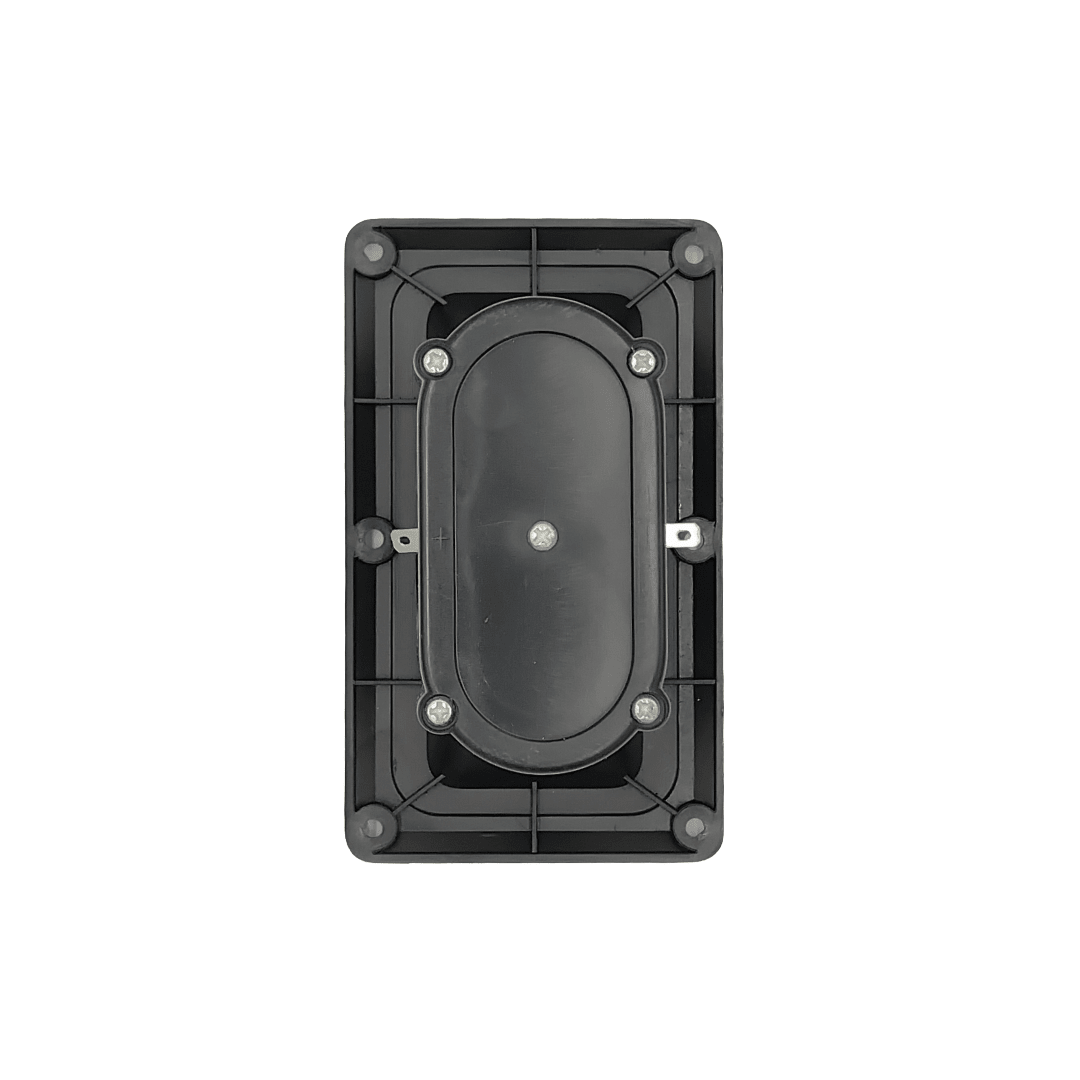

Design Acoustics FX301/SPB2009 Twin Rectangle Horn Tweeter (150W Max, 3.5" x 6.5")

R 35.00
Quantity:
Easy Returns
🔒 Multiple Secure Payment Methods
💬 Friendly Advice Available
🚚 Delivery within 3–5 business days
Sku: 80354610
Visa Mastercard American Express Ozow MTN Mobile Money

  • High-output twin rectangular horn tweeter designed for high-frequency reinforcement in PA cabinets, DJ speakers, karaoke systems, and custom loudspeaker enclosures.
  • Features a dual-horn flare configuration (3.5" x 6.5" outer mouth dimensions) engineered for wide sound dispersion and crisp vocal articulation.
  • Capable of handling up to 150W maximum peak power, providing excellent high-frequency headroom and transient performance.
  • Constructed from high-density, acoustic-grade ABS polymer to prevent unwanted horn body resonance, distortion, and mechanical strain.
  • Built with a flush front mounting flange featuring pre-drilled countersunk mounting holes for simple, secure installation onto cabinet baffles.
Features
  • Twin Horn Configuration: Dual-mouth horn geometry enhances high-frequency efficiency and spreads high notes evenly across wide listening spaces.
  • 150W Peak Power Handling: Delivers strong high-frequency acoustic output capable of keeping up with high-power woofers.
  • Resonance-Free Polymer Housing: Rigid ABS structure resists vibration and acoustic pressure for clean, uncolored high frequencies.
  • Wide Dispersion Pattern: Ensures clear vocal projection, crisp cymbal shimmer, and detailed sound coverage.
  • Direct Drop-In Replacement: Standard 3.5" x 6.5" rectangular footprint for easy mounting into existing cabinet cutouts.
Specifications
  • Model / Part Number: FX301 / SPB2009
  • Product Type: Twin Rectangular Horn Tweeter
  • Dimensions (H x W): 3.5 Inches x 6.5 Inches (89 mm x 165 mm)
  • Power Rating: 150W Max / Peak
  • Nominal Impedance: 8 Ohms
  • Housing Material: Molded High-Impact ABS Plastic
  • Color / Finish: Black
  • Mounting Style: Baffle Surface Screw Mount
  • Application: PA Speaker Cabinets, DJ Enclosures, Stage Monitors, Audio Projects
What's in the Box?
  • 1 x FX301/SPB2009 Twin Rectangle Horn Tweeter (150W Max, 3.5" x 6.5")
Vendor Design Acoustics
Type Speaker Parts & Accessories
Sku 80354610
Weight:  1.0 kg
