• Heavy-duty 1-way passive low-pass crossover network designed specifically for dedicated subwoofers and bass speaker enclosures.
• Filters out mid and high frequencies, routing only deep low-frequency signals to the woofer to produce clean, distortion-free bass response.
• Handles up to 500W Maximum / Peak power (250W RMS) into standard 8-Ohm system loads.

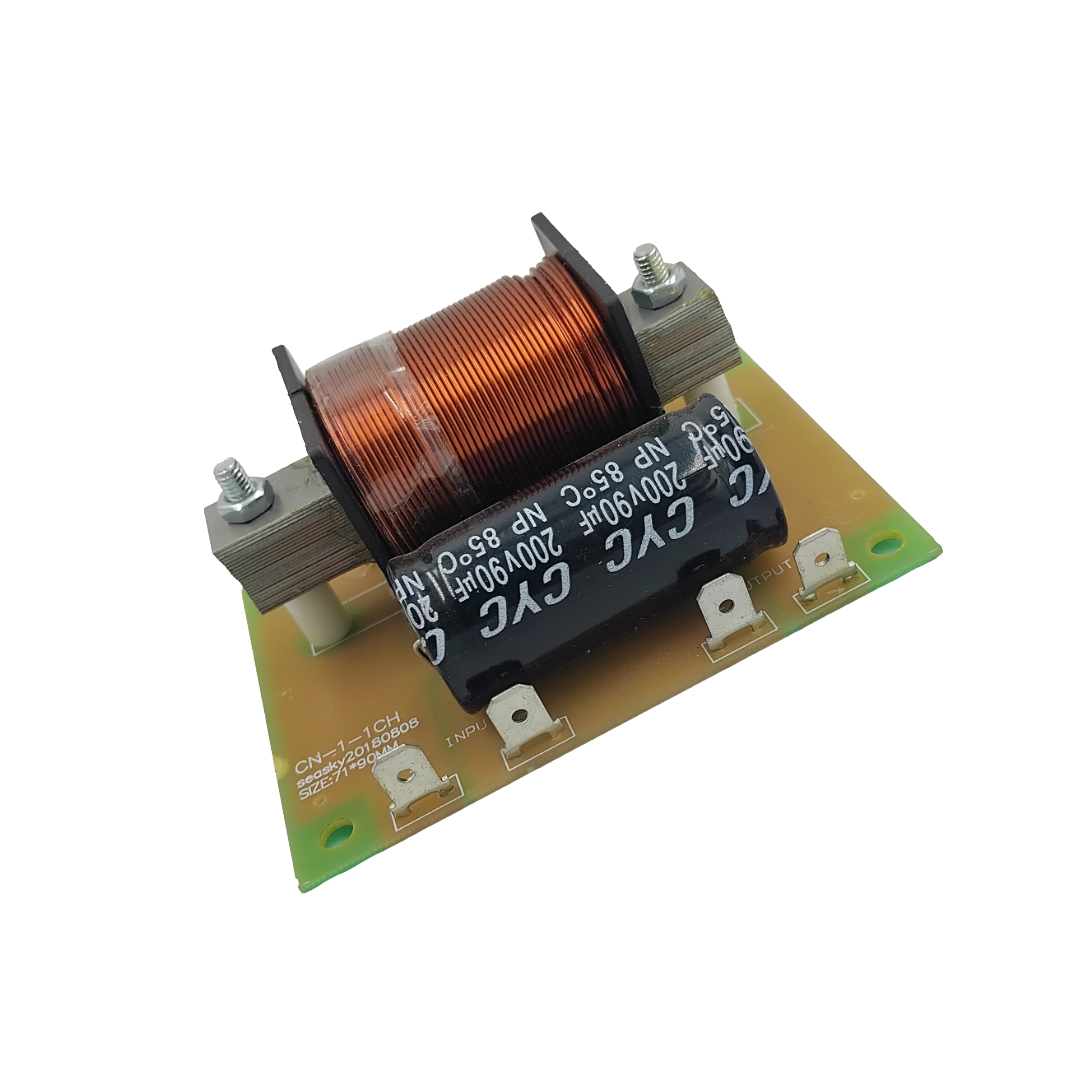

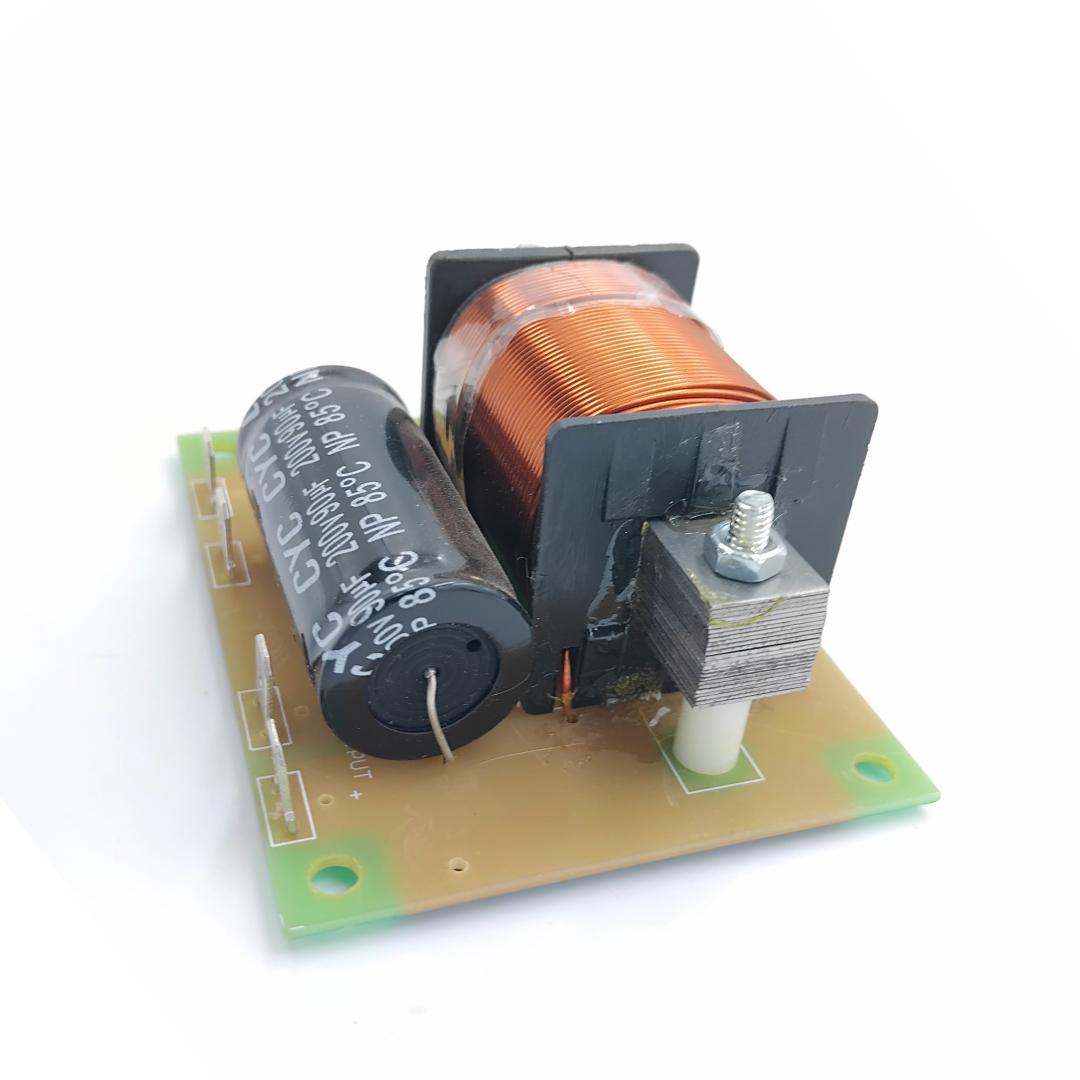

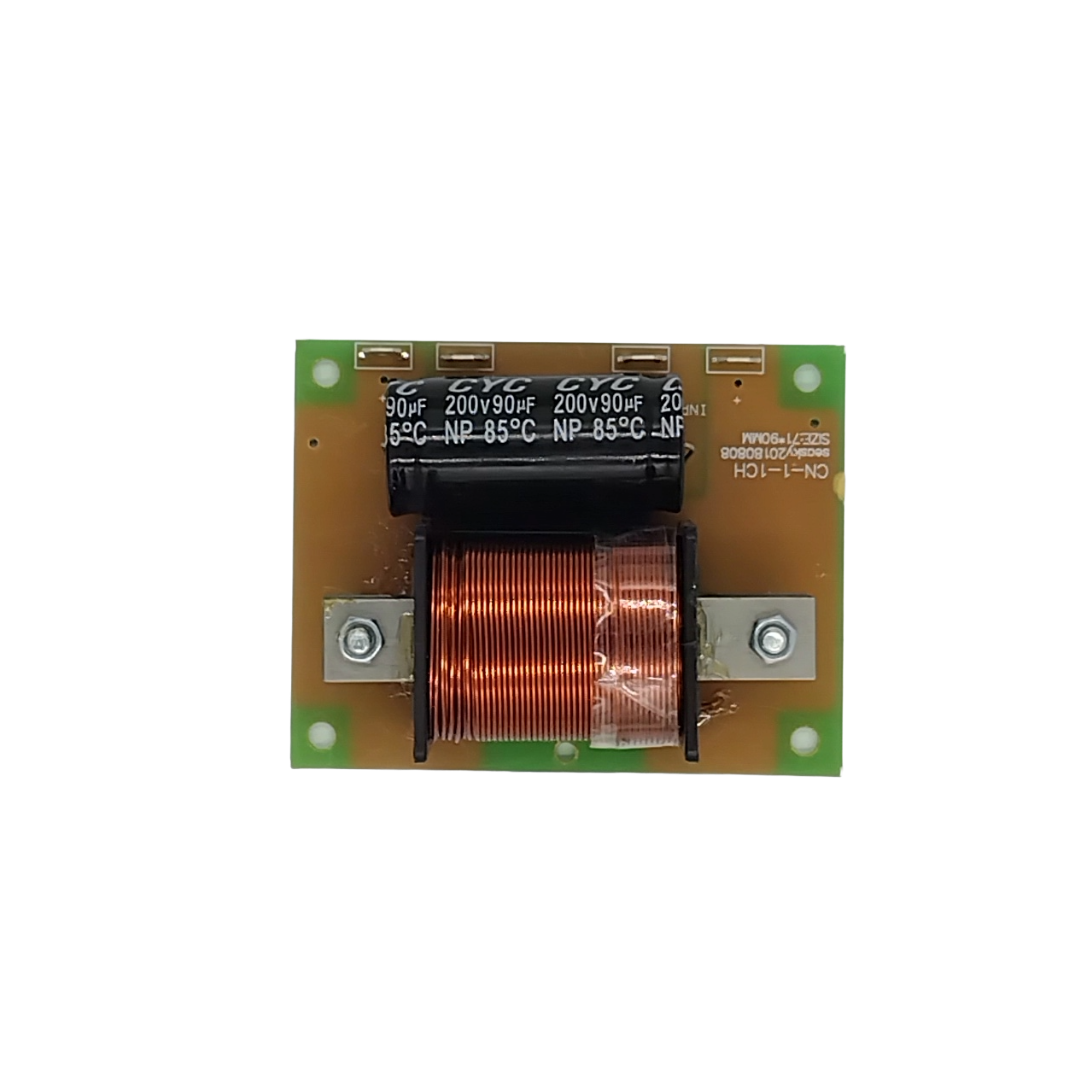

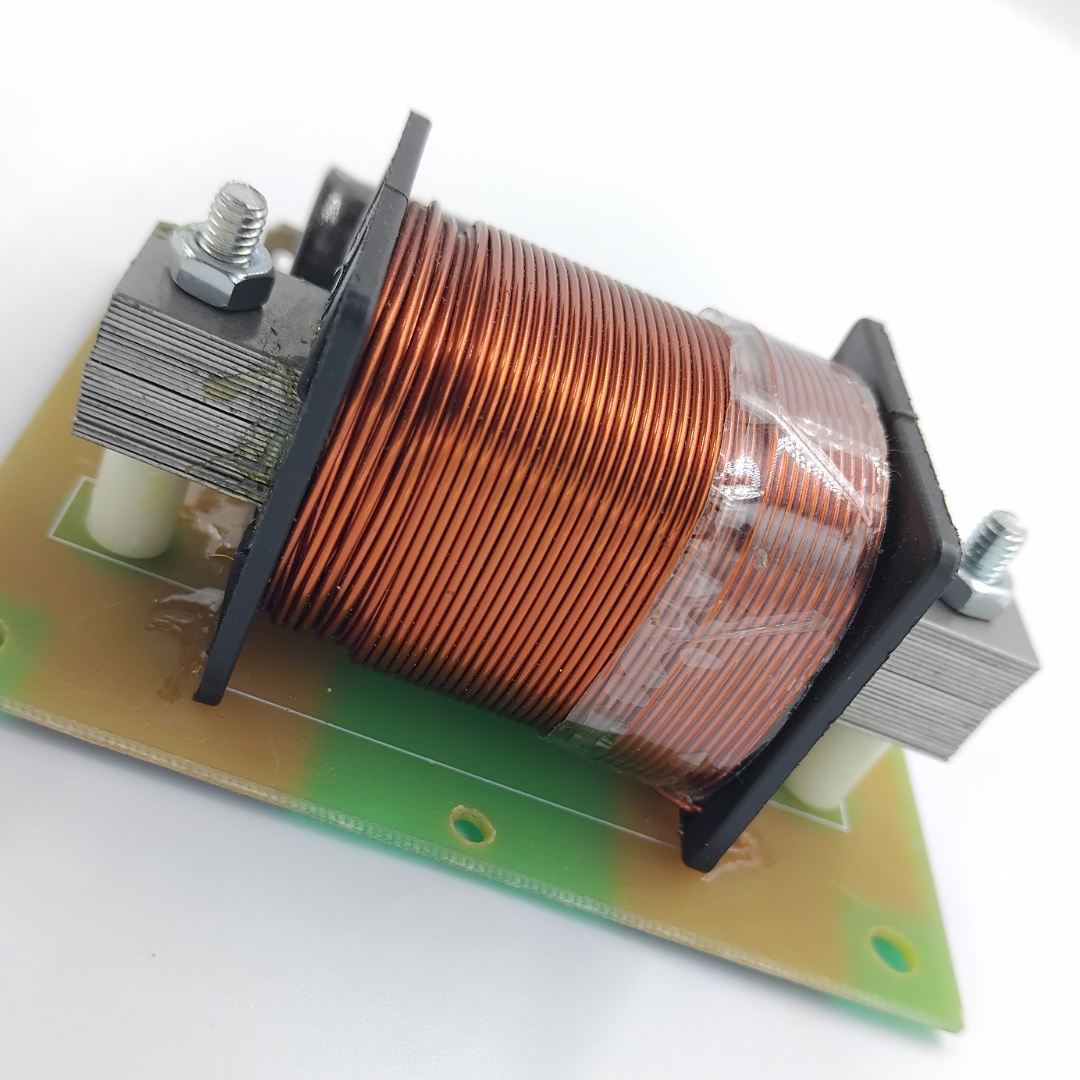

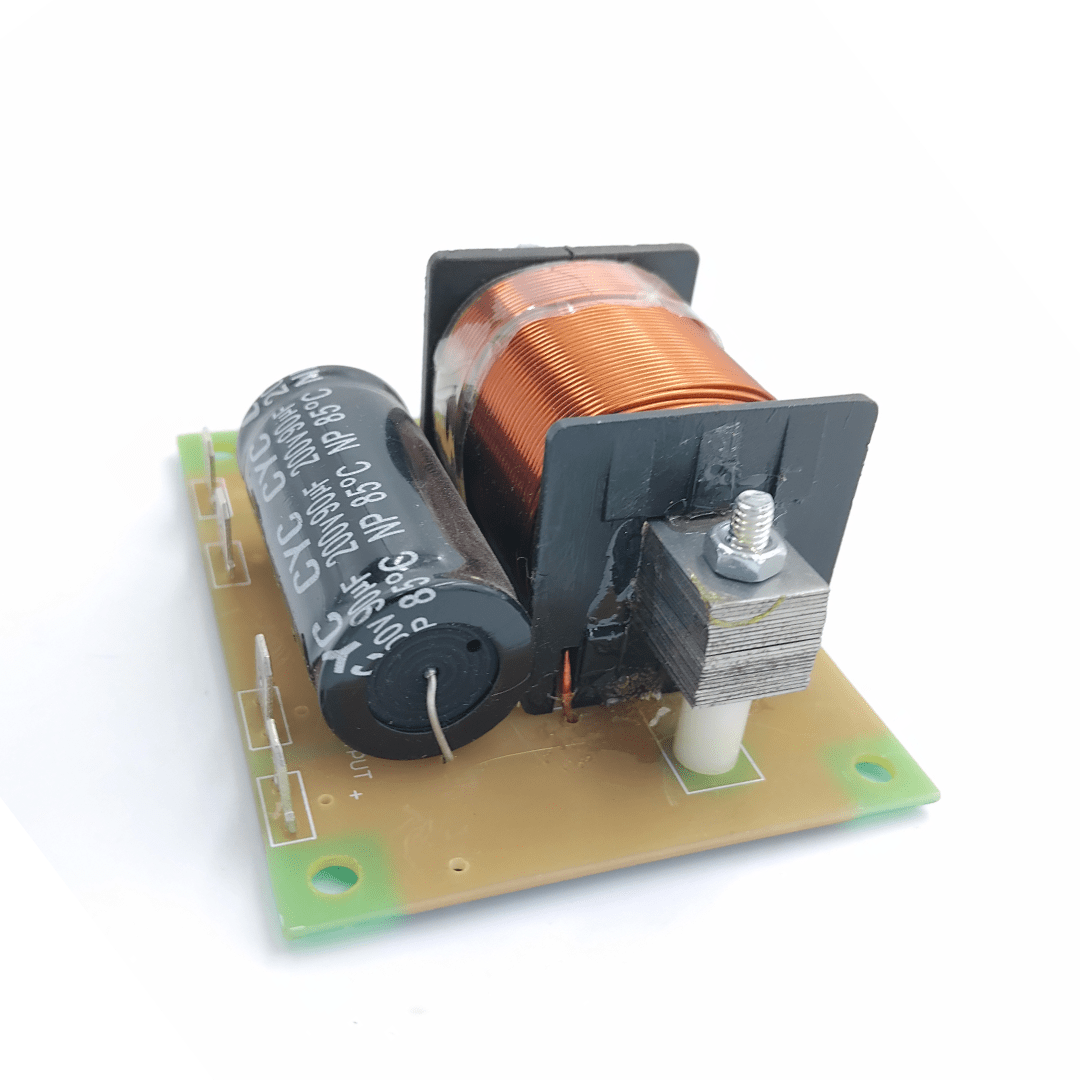

• Constructed on a high-grade fiberglass PCB with low-resistance copper-wound inductors and heavy-duty capacitors to prevent signal degradation.
• Ideal for custom speaker builds, subwoofer upgrades, DJ cabinets, and live sound reinforcement installations.

Features

• Dedicated Low-Pass Filter: Blocks unwanted vocal and treble frequencies from reaching subwoofers, focusing cabinet efficiency purely on low-end reproduction.
• 500W Power Capability: Built to withstand continuous high-output usage in live venue and mobile DJ applications.
• 8-Ohm Load Compatibility: Matches standard 8-Ohm woofers and sub bass drivers.
• Low Insertion Loss: High-quality component selection minimizes power dissipation as heat, delivering maximum energy directly to the driver.
• Easy Installation: Clearly marked input and output solder terminals for straightforward wiring inside speaker cabinets.

Specifications

• Model / Part Number: CN1500 / CN-1500
• Product Type: 1-Way Passive Low-Pass Crossover Network
• Filter Type: Low-Pass (Subwoofer / Bass)
• Power Capacity: 500W Max / 250W RMS
• Nominal Impedance: 8 Ohms
• Cutoff Frequency: Approx. 150 Hz – 250 Hz
• Filter Slope: 12 dB / Octave

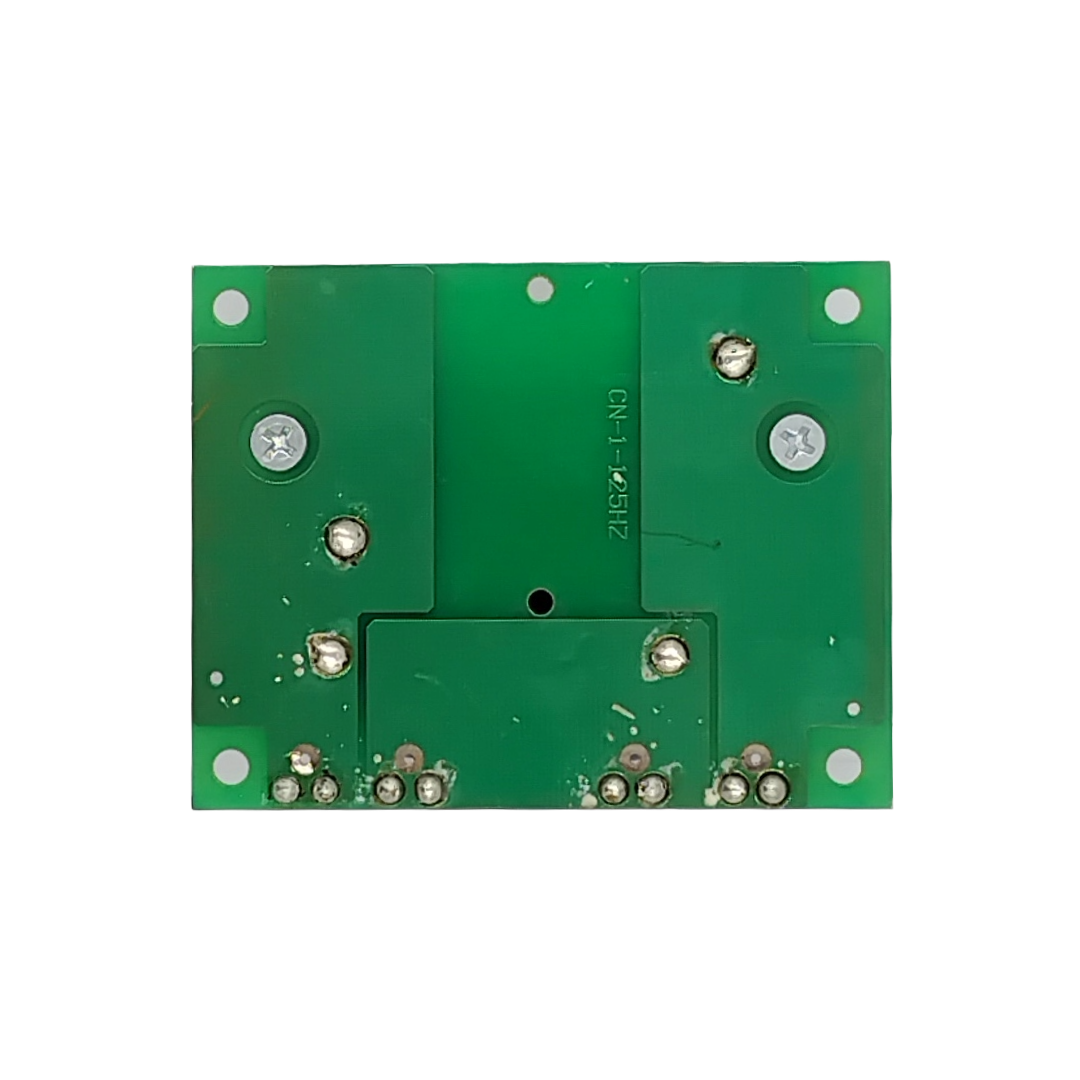

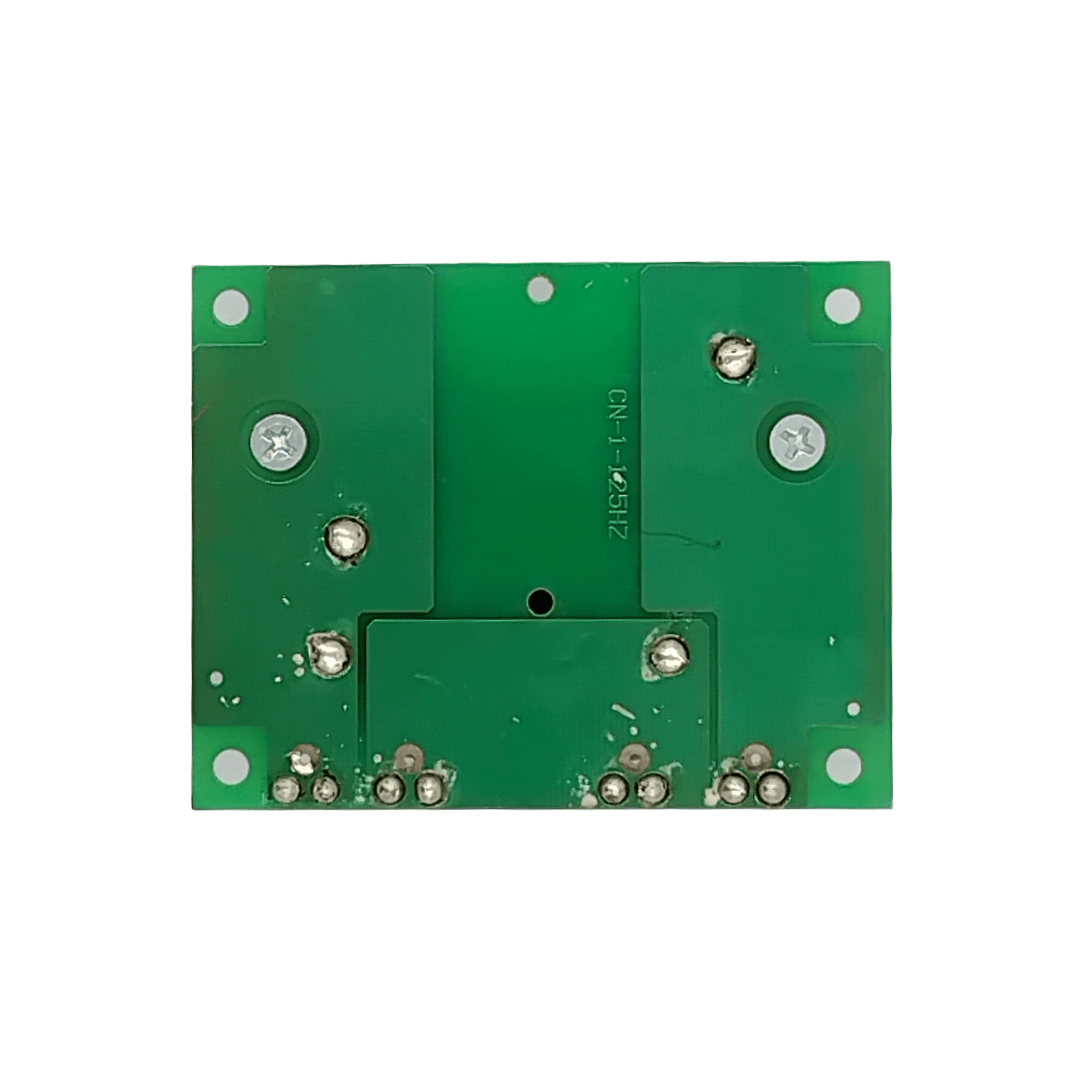

• PCB Material: Flame-Retardant Fiberglass Circuit Board
• Application: Subwoofer Enclosures, Bass Bins, Custom DIY Speaker Cabinets

What's in the Box?

• 1 x Design Acoustics CN1500 1-Way Low Passive Crossover Board
