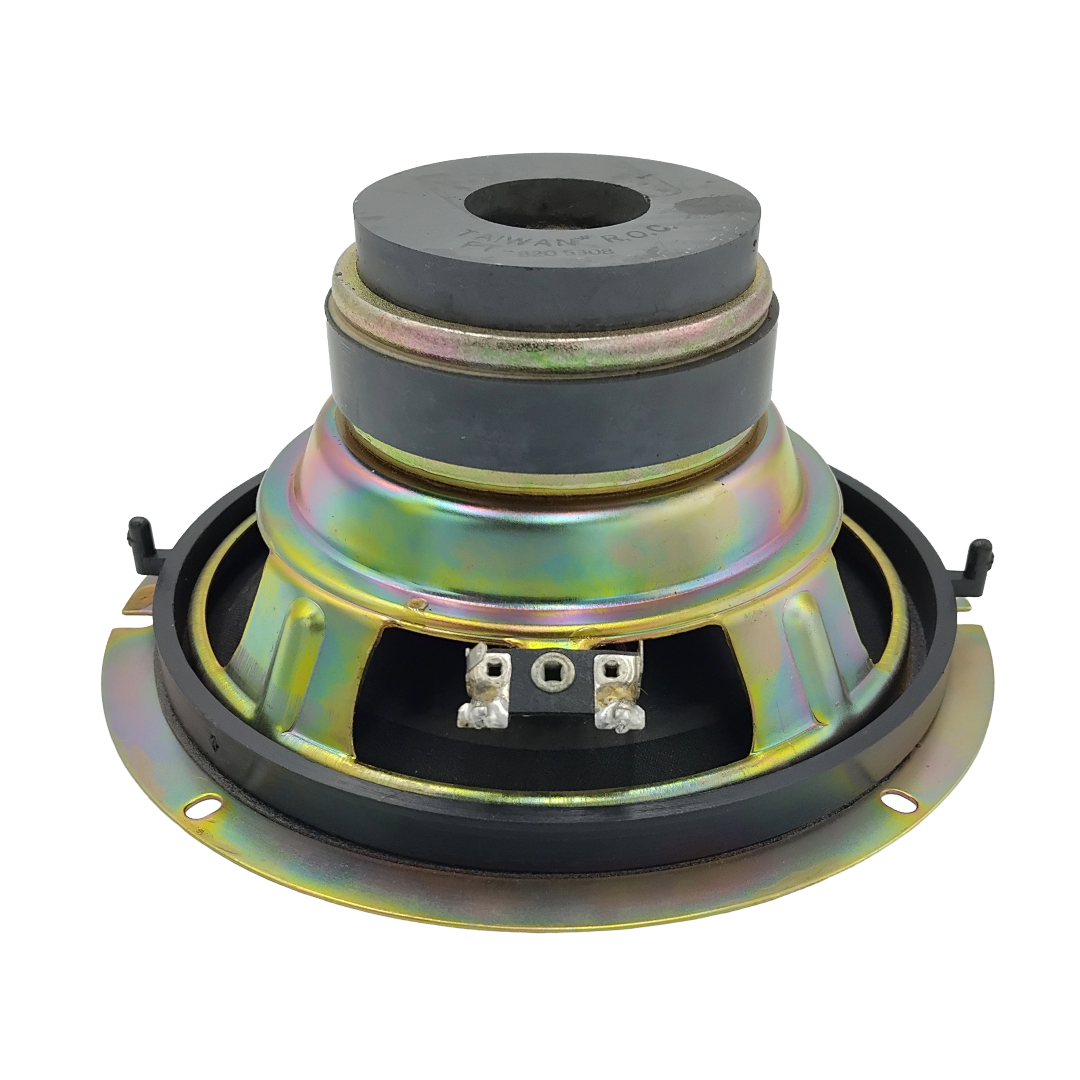

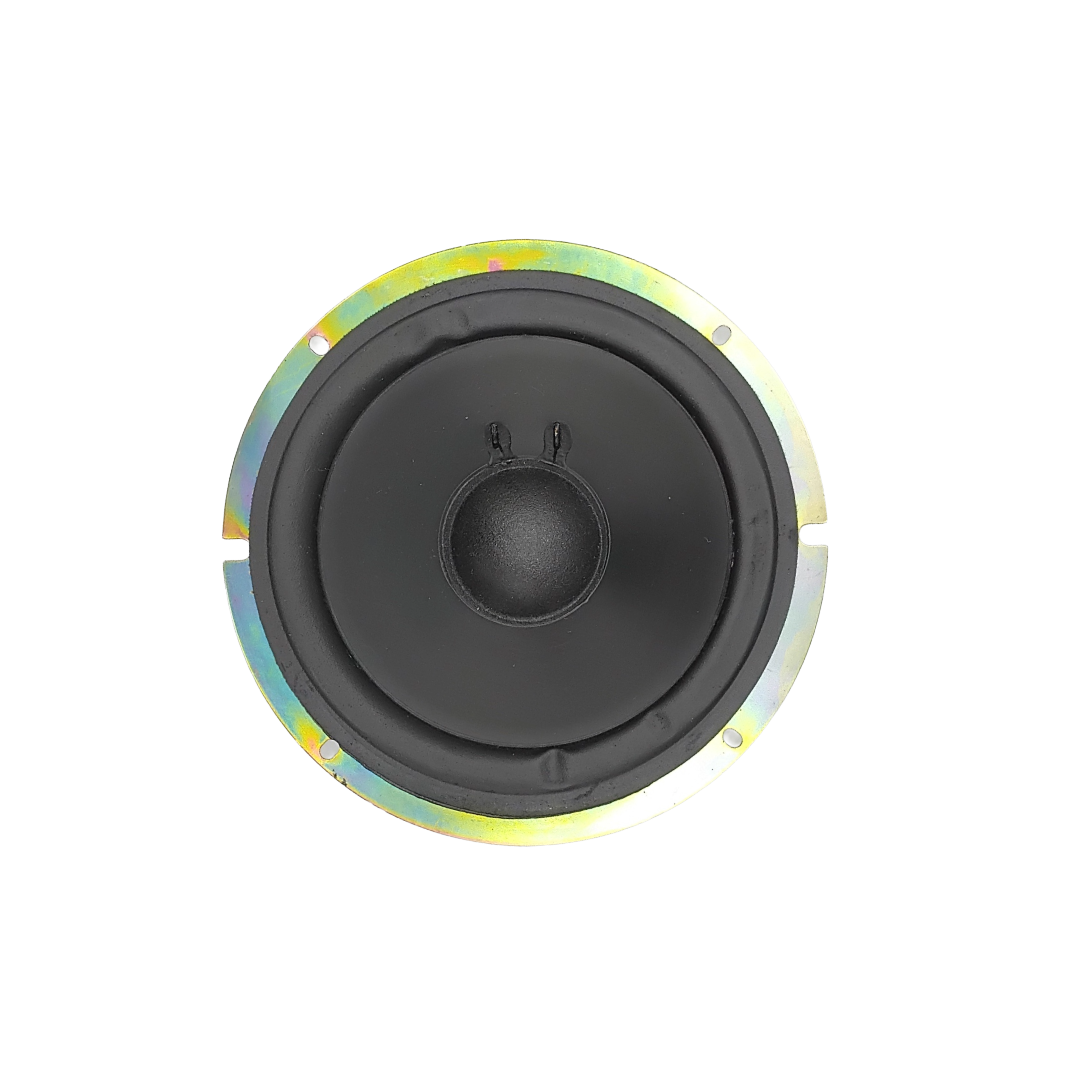

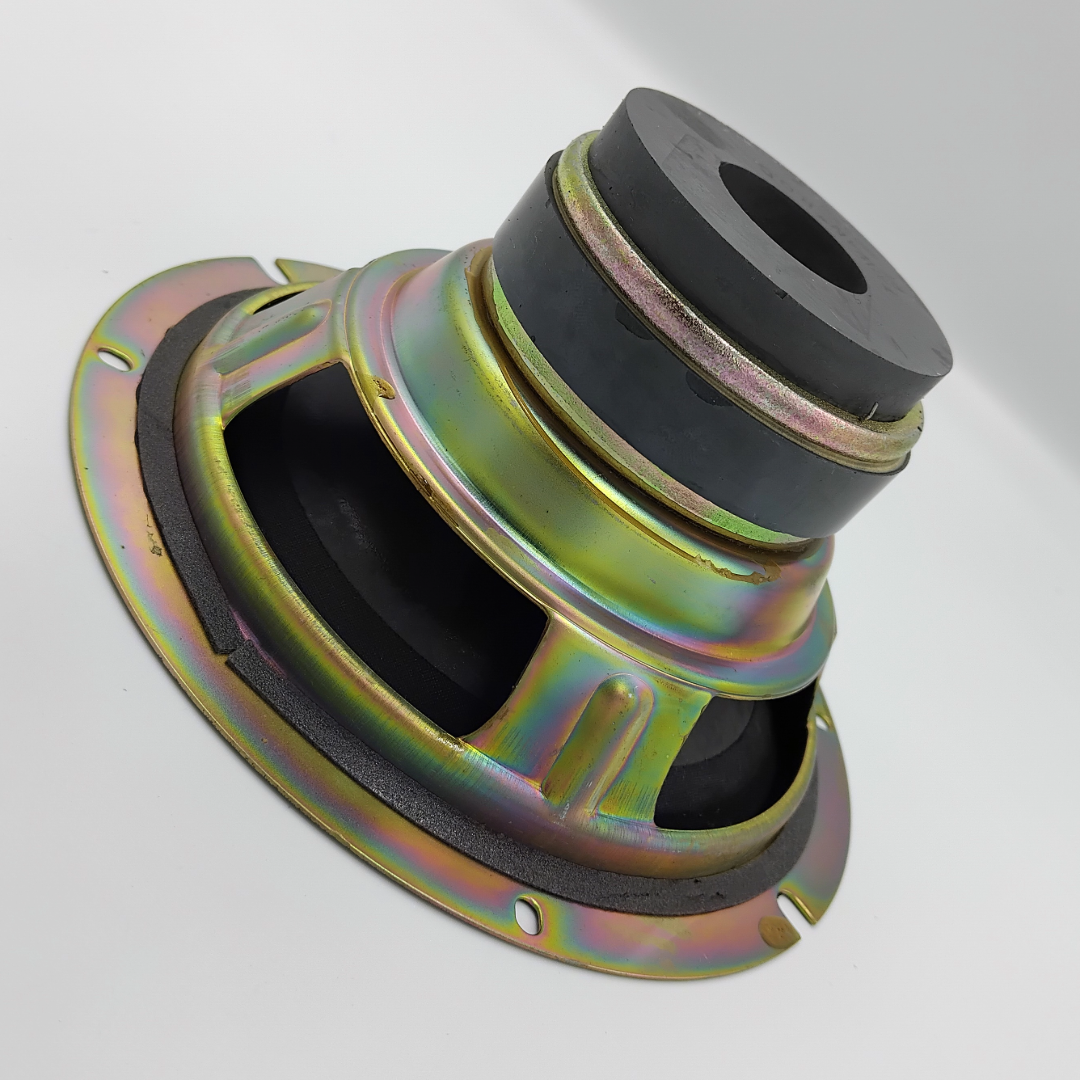

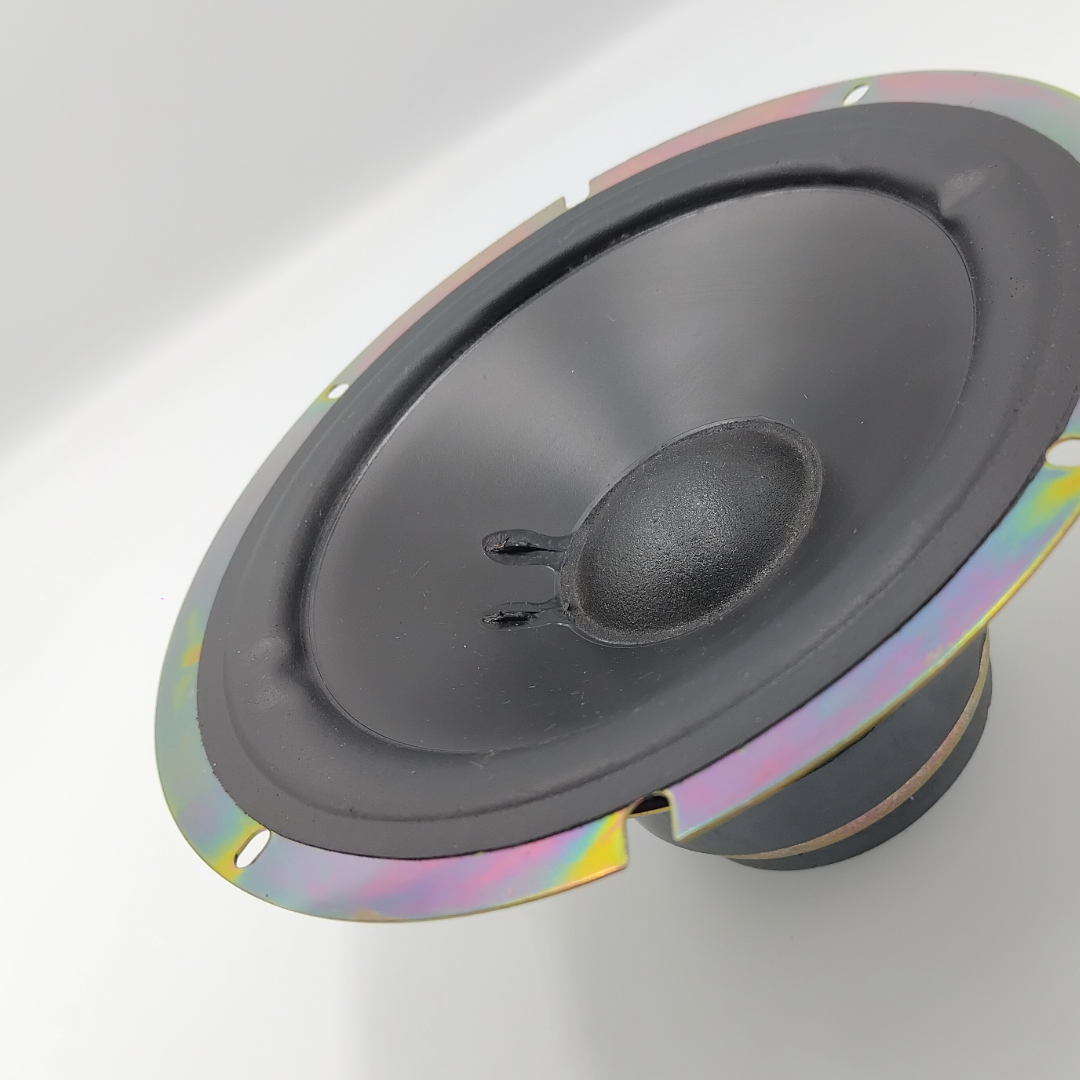

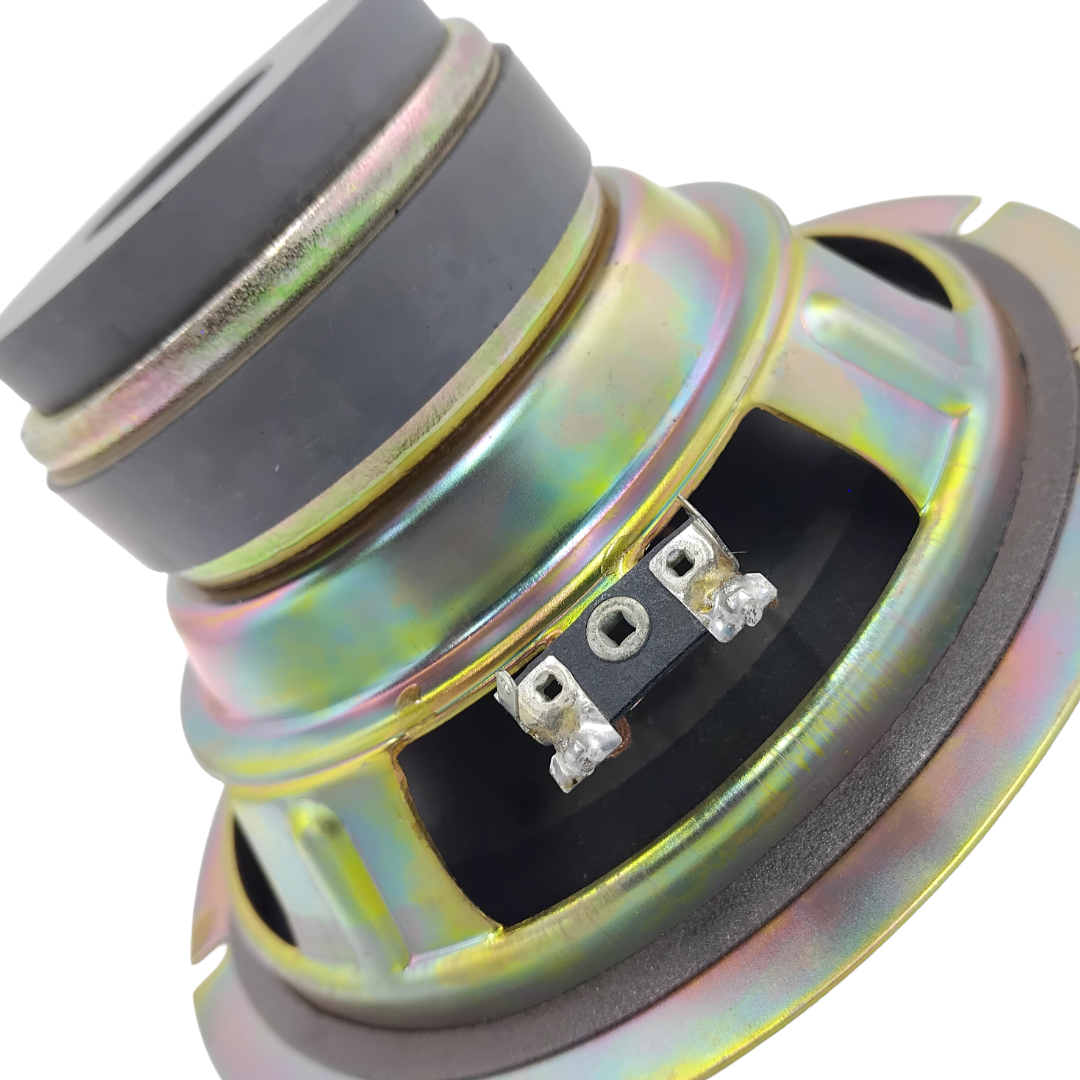

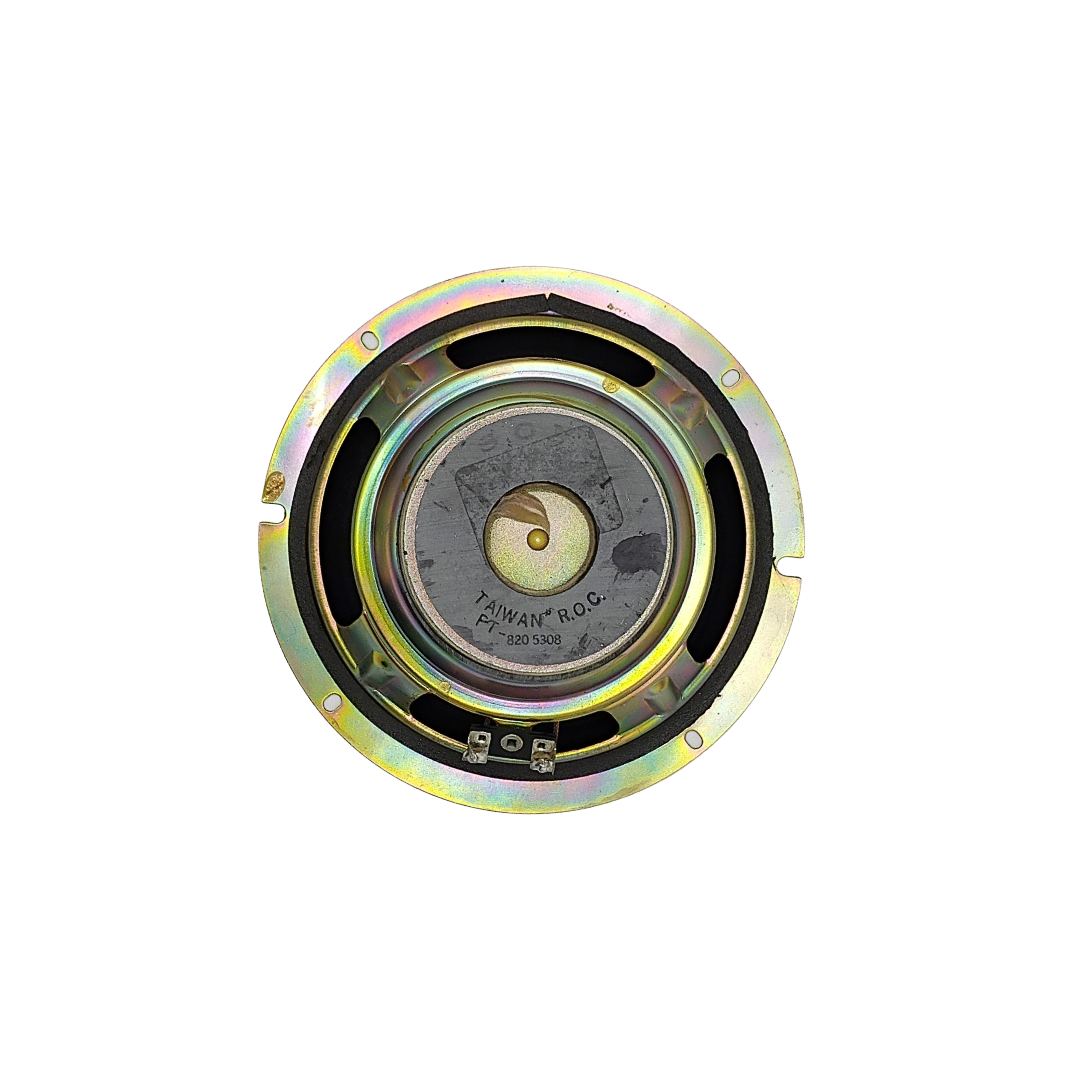

Design Acoustics 722/SPK143 6.5" Double Magnet Speaker Replacement (60W, 8 Ohm)

R 180.00
Quantity:
Easy Returns
🔒 Multiple Secure Payment Methods
💬 Friendly Advice Available
🚚 Delivery within 3–5 business days
Sku: 80200143
Visa Mastercard American Express Ozow MTN Mobile Money

  • High-performance 6.5-inch mid-bass replacement speaker driver designed for PA speaker cabinets, studio monitors, home Hi-Fi systems, and custom loudspeaker projects.
  • Features a high-efficiency double magnet structure that enhances magnetic field strength, providing tight cone control, higher sensitivity, and lower distortion.
  • Rated at 60W power handling with an 8-Ohm nominal impedance, delivering punchy mid-bass frequencies and warm, detailed midrange clarity.
  • Built with a durable paper/composite cone and a high-flex roll surround to support high-excursion demands during extended playback.
  • Rigid stamped steel frame with standard perimeter mounting holes enables straightforward drop-in replacement into standard 6.5" cabinet cutouts.
Features
  • Double Magnet Motor: Dual-ferrite magnetic motor assembly maximizes magnetic flux for superior transient response and efficiency.
  • 60W Power Capacity: Optimized for reliable performance in medium-power PA systems, Hi-Fi enclosures, and multi-way speaker builds.
  • Balanced Acoustic Output: Delivers clear, natural midrange vocal reproduction combined with firm low-end bass extension.
  • Sturdy Steel Frame: Rigid stamped steel chassis maintains voice coil alignment and resists mechanical flexing.
  • Universal 6.5" Drop-In Fit: Standard frame dimensions and mounting hole layout simplify replacement of worn or damaged drivers.
Specifications
  • Model / Part Number: 722 / SPK143
  • Product Type: 6.5" Mid-Bass Replacement Driver
  • Speaker Diameter: 6.5 Inches (165 mm)
  • Magnet Assembly: Double Magnet Structure
  • Power Rating: 60W
  • Nominal Impedance: 8 Ohms
  • Frame Material: Stamped Steel
  • Cone Material: Paper / Fiber Composite
  • Mounting Style: Cabinet Baffle Surface Mount
  • Application: PA Cabinets, Hi-Fi Loudspeakers, Studio Monitors, DIY Audio Builds
What's in the Box?
  • 1 x 722/SPK143 6.5" Double Magnet Speaker Replacement Driver (60W, 8 Ohm)
Vendor Design Acoustics
Type Replacement Speakers
Sku 80200143
Weight:  1.0 kg
