• True diversity UHF wireless microphone system with 1, 2, or 4 individually programmable channels
• Syncs to each transmitter to set carrier frequency, EQ settings, transmission power, and display backlight colour
• Transmitters available as rugged handheld microphones with dynamic capsules or compact bodypacks
• Supports neckband or lavalier microphones with fully balanced signal connection
• Twin BNC antennas can be mounted front or rear when rack-mounted
• Channels are tuneable within license-free UHF and duplex gap bands (arranged in groups of 8–16 frequencies)
• Controlled via full colour TFT display with rotary encoder
• Each transmitter has a backlit display synced wirelessly via IR
• Designed for stage performances, conferences, theatres, and vocal applications

Features

• Independent 7-band EQ per channel
• True diversity antennas with internal distribution
• Auto frequency sweep function

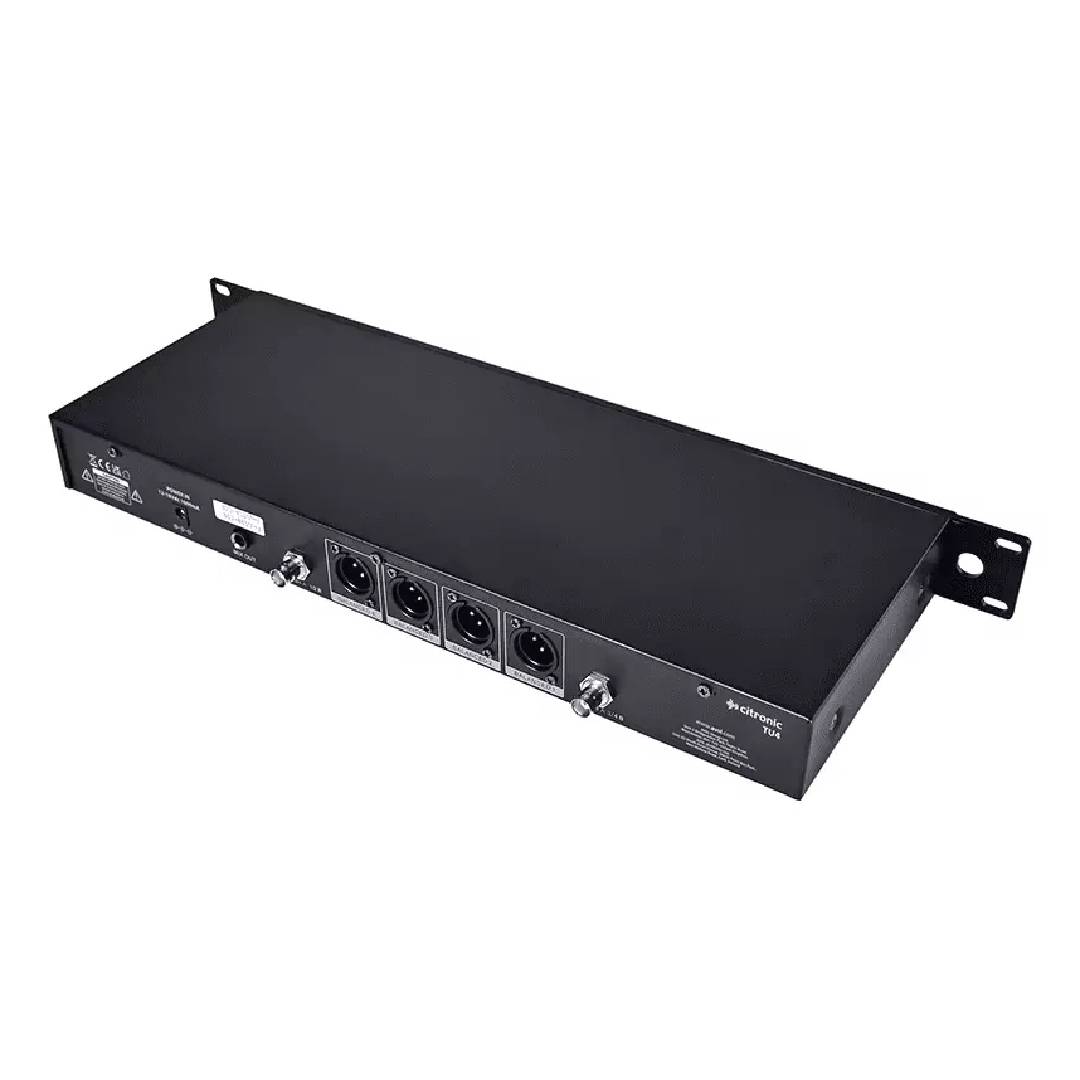

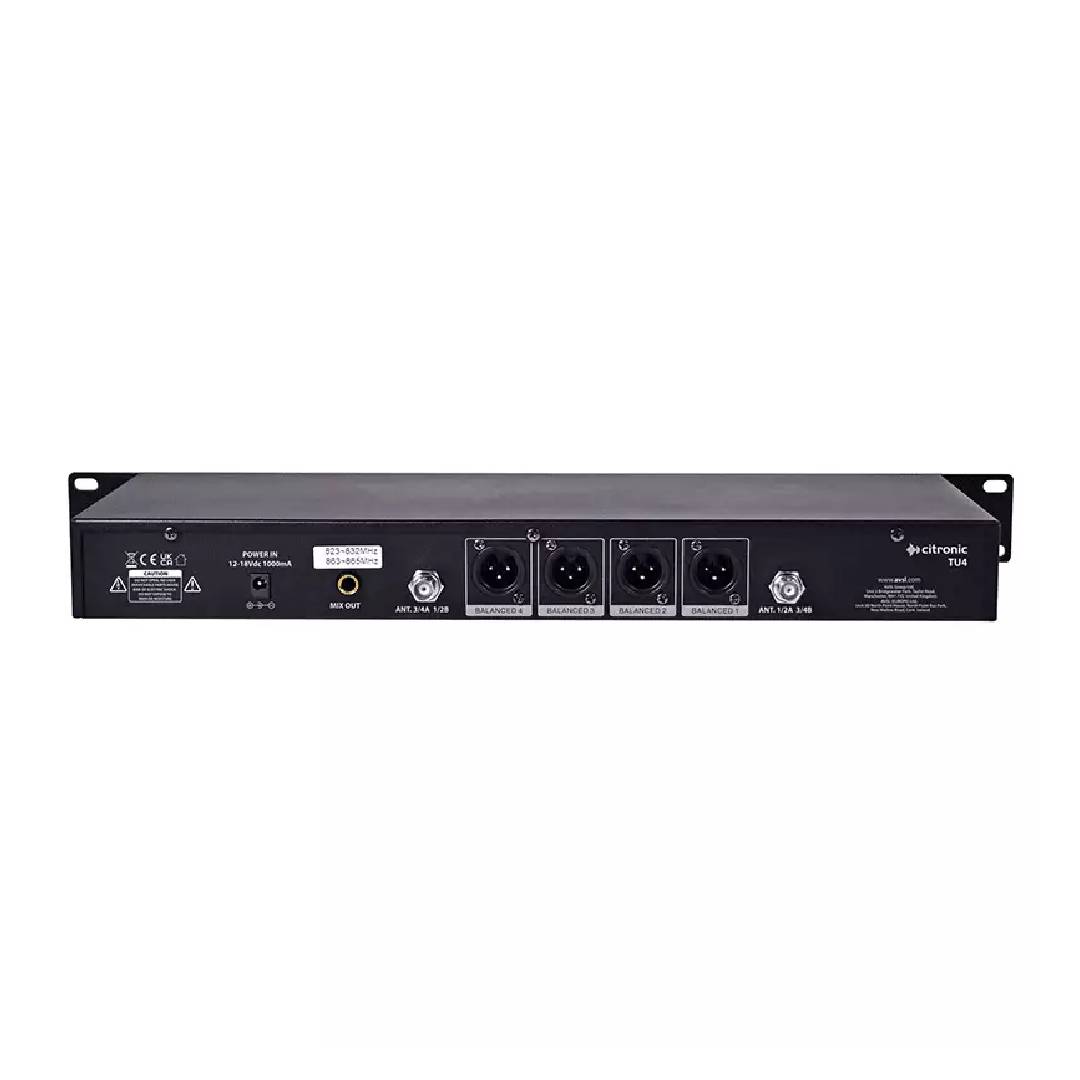

• Individual XLR outputs or single mixed jack output
• Licence-free operation (863–865MHz)
• Additional 823–832MHz frequencies usable with PMSE license
• Bodypack versions available with neckband and lavalier microphones

Specifications

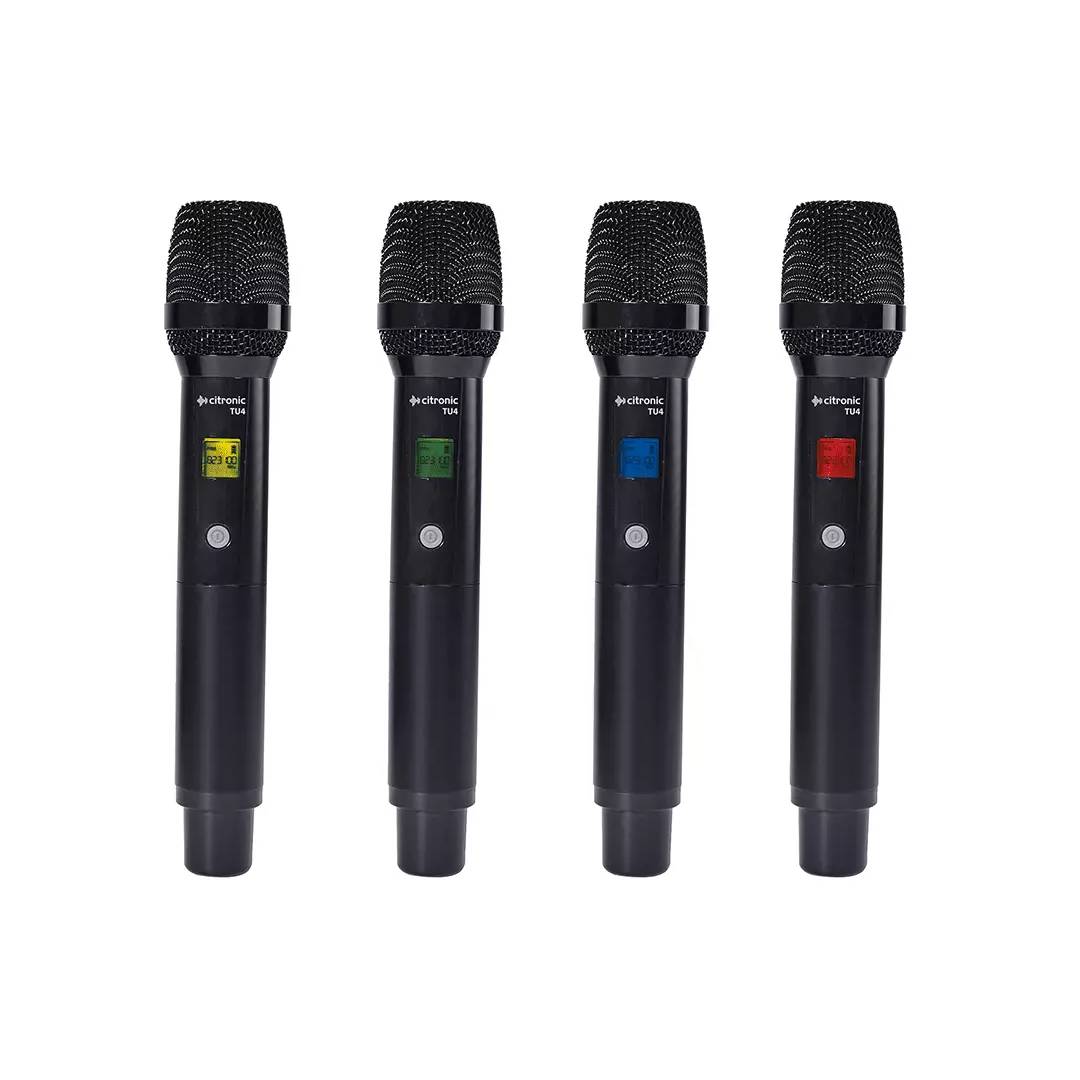

• Handheld Transmitter
  • Dimensions: 258 × 47 mm Ø
  • Weight: 354 g (no battery)

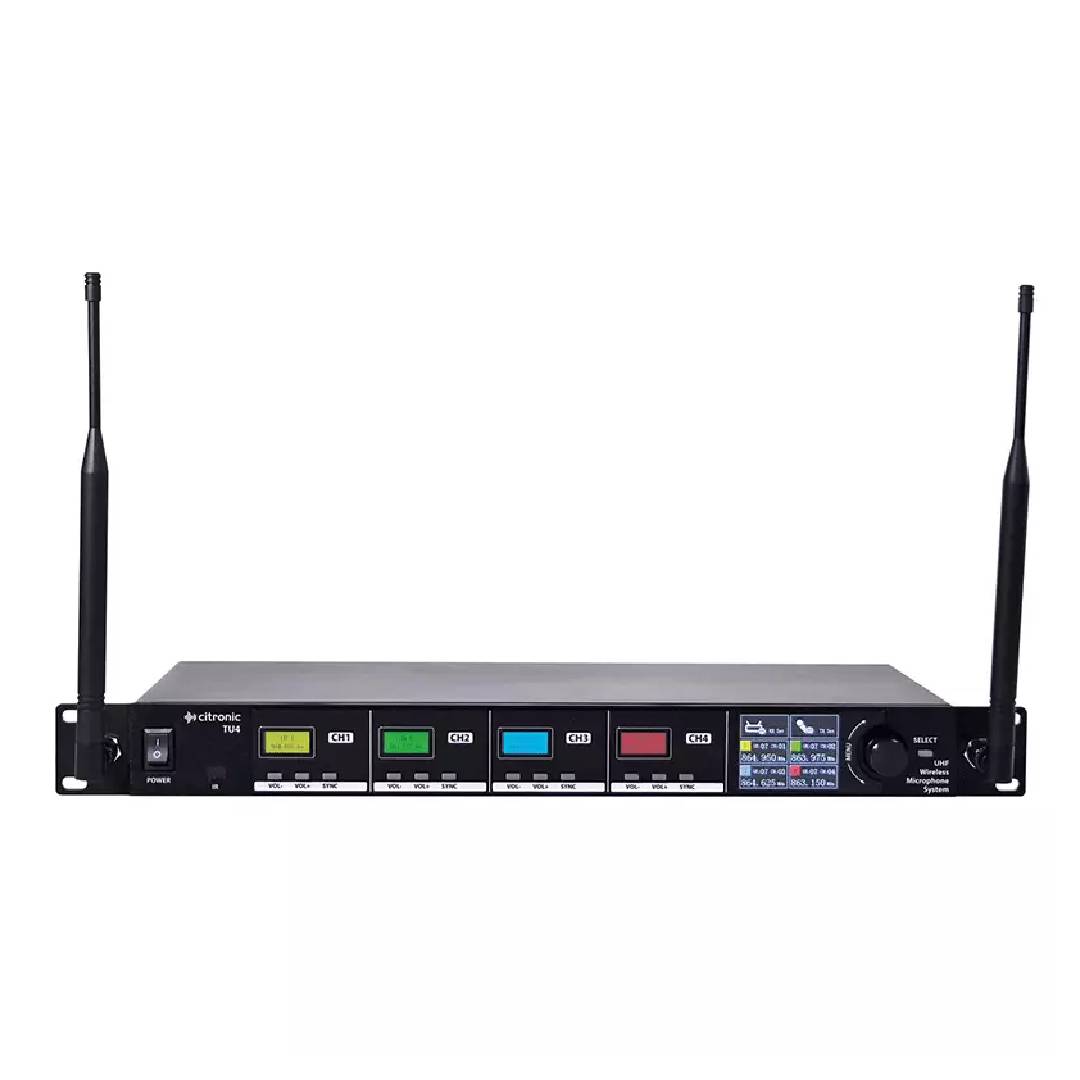

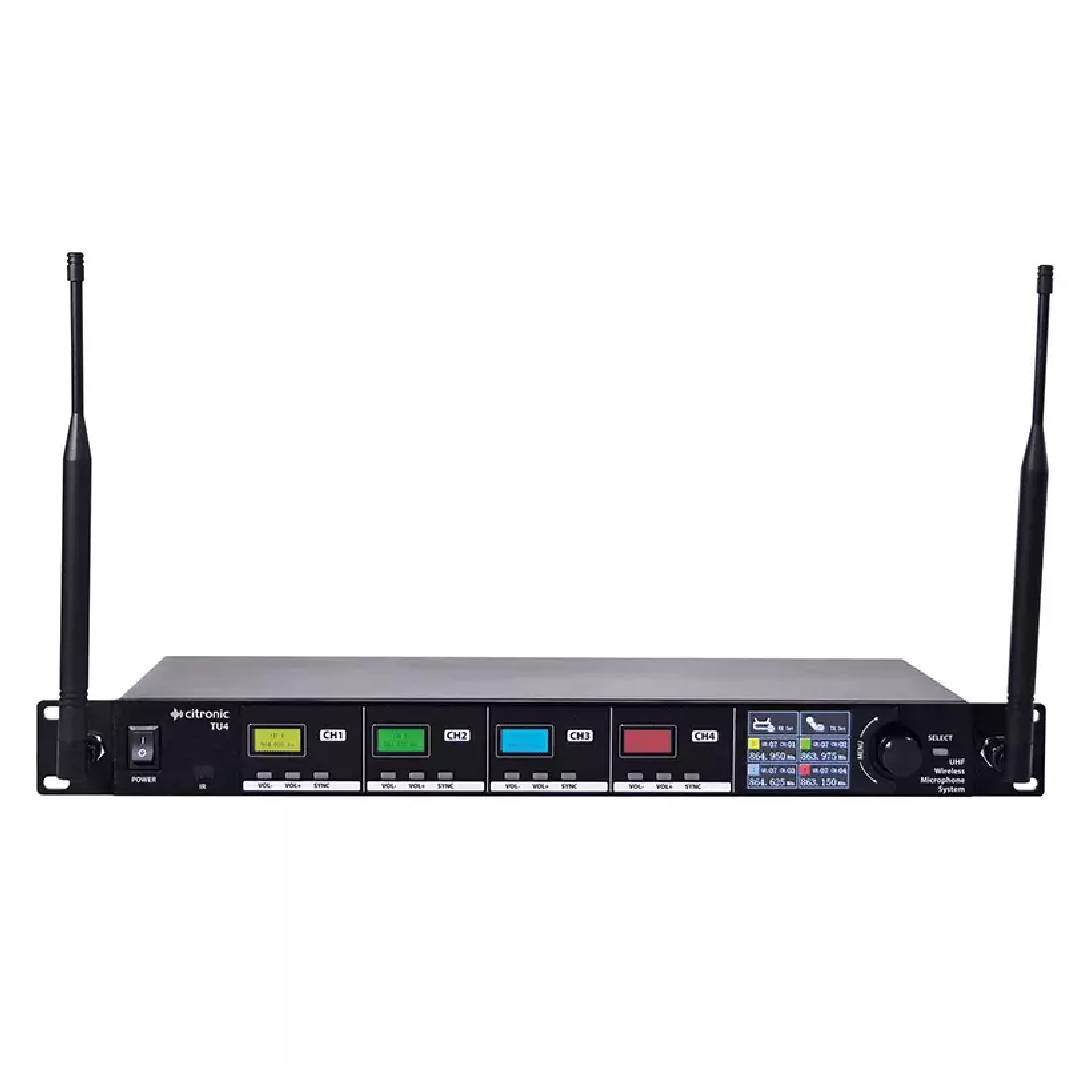

• Receiver
  • Dimensions: 482 × 185 × 44 mm (1U)
  • Weight: 1.513 kg
• General
  • Power supply: 12–18V DC, 1000mA (mains adaptor supplied)
  • Batteries: 2 × AA per channel
  • Carrier frequencies: 823–832 MHz / 863–865 MHz
  • Wireless range: Up to 60 m
  • Antenna connection: 2 × BNC

What's in the box

• 1 × Quad channel wireless receiver
• 4 × Handheld wireless microphones

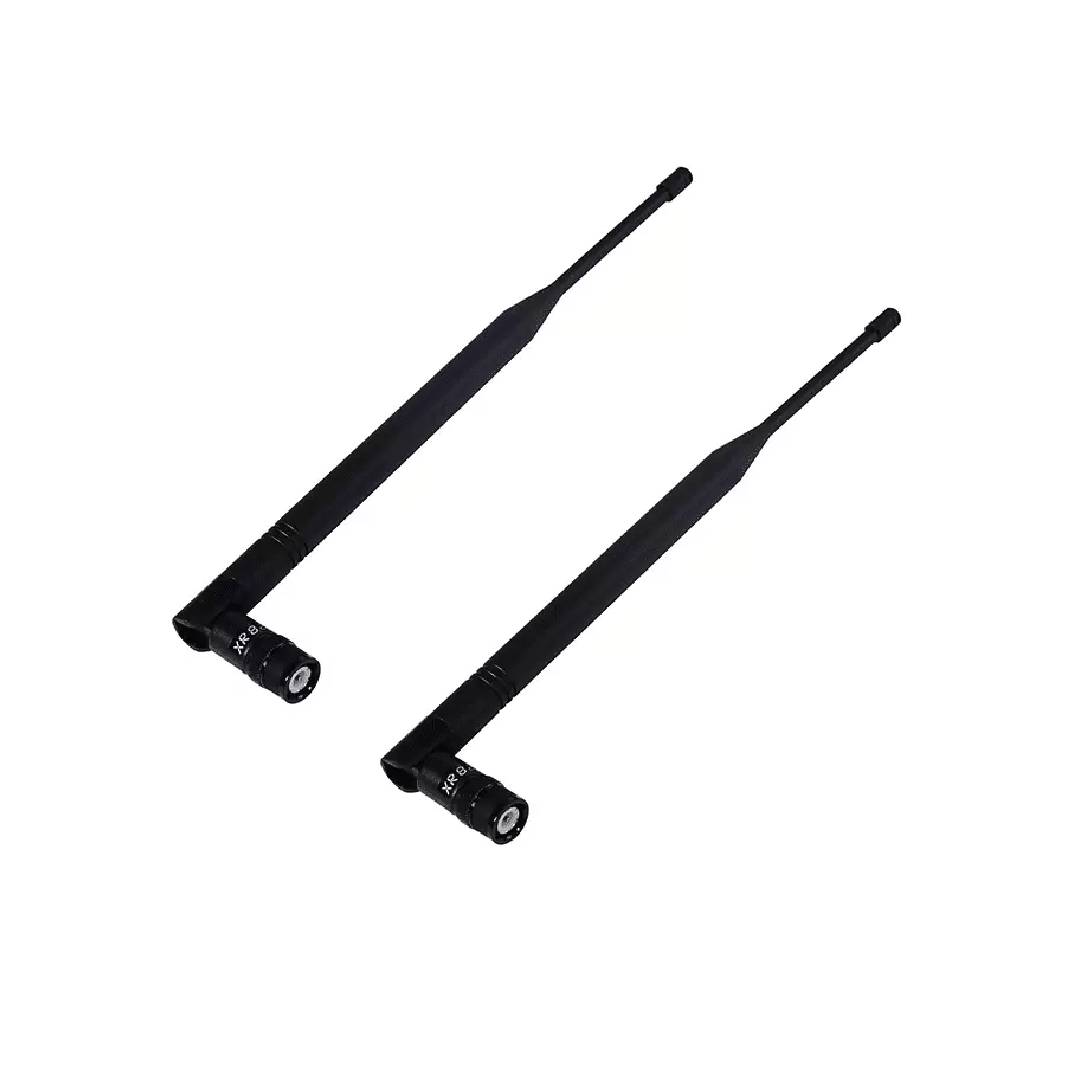

• 2 × Antennas
• 1 × Power adaptor
• Rack mount accessories
• User manual
