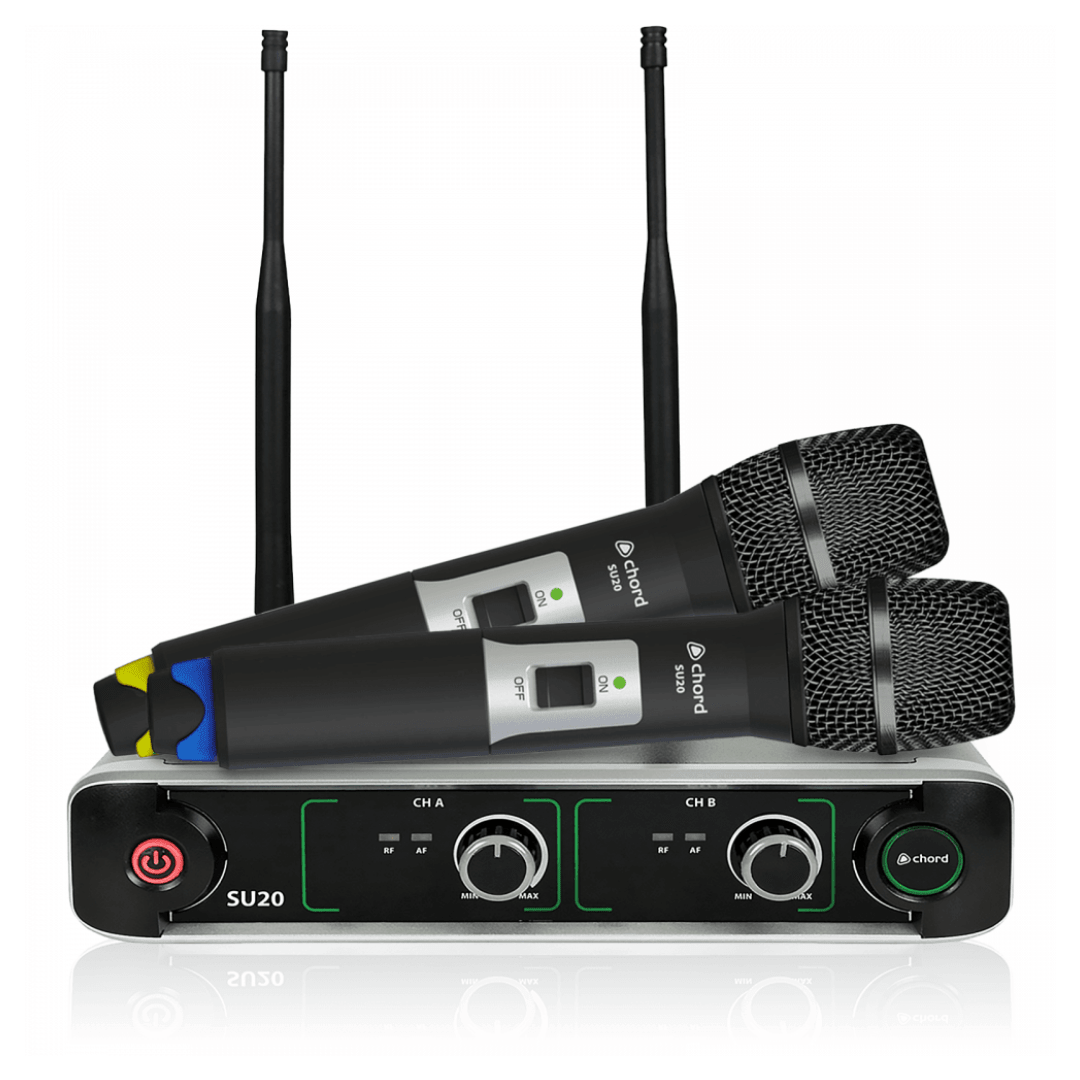

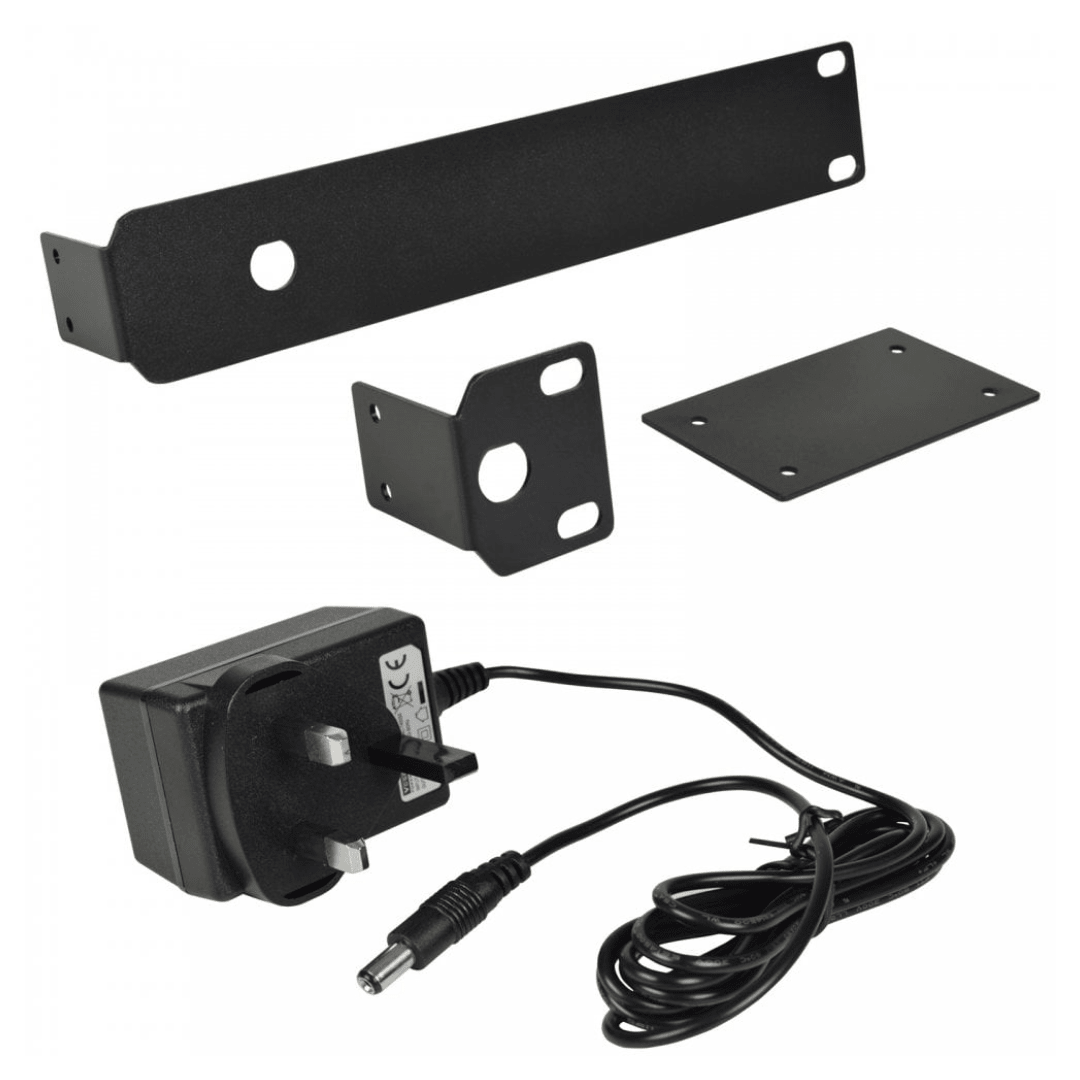

Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19″ rack space. BNC cables and detachable antennas are provided for rear or front mounting as required. Each transmitter is powered by 2 x AA batteries and the beltpack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.

Features

• Up to 2 sets (4 microphones) can be used together
• Available in handheld or beltpack versions with 2 carrier frequency options
• Compact half-rack receiver
• Front or rear mountable antennas
• Supplied with power adaptor and 4 x AA batteries

Specifications

• Power supply: 14Vdc 350mA (adaptor supplied)
• Antenna connection: BNC
• Batteries: 4 x AA (2 per transmitter) included
• Range: 60m
• Microphone : polar pattern: Cardioid (handheld, neckband or lavalier)
• Output connections: 2 x balanced XLR, 1 x unbalanced 6.3mm jack
• Output impedance: 2.2k Ohms
• Output level: 400mV (balanced), 200mV (unbalanced)
• Frequency response: 50Hz - 18kHz (±3dB)
• S/N ratio: >80dB
• THD: <0.5% @ 1kHz
• Dimensions : receiver: 203 x 187 x 42mm
• Weight : receiver: 845g
• Dimensions : handheld transmitter: 250 x 47mm
• Weight : handheld transmitter[tab] 231g (no battery)br] Dimensions : beltpack transmitter[tab] N/A
• Weight : beltpack transmitter: 74g N/A
• Carrier frequencies: 863.42MHz (Red) + 864.3MHz (Green) (Green)

What's in the box

• 1 x Power Supply
• 1 x receiver
• 2 x Handheld Microphones
• 2 x 4 Pack AA Batteries
