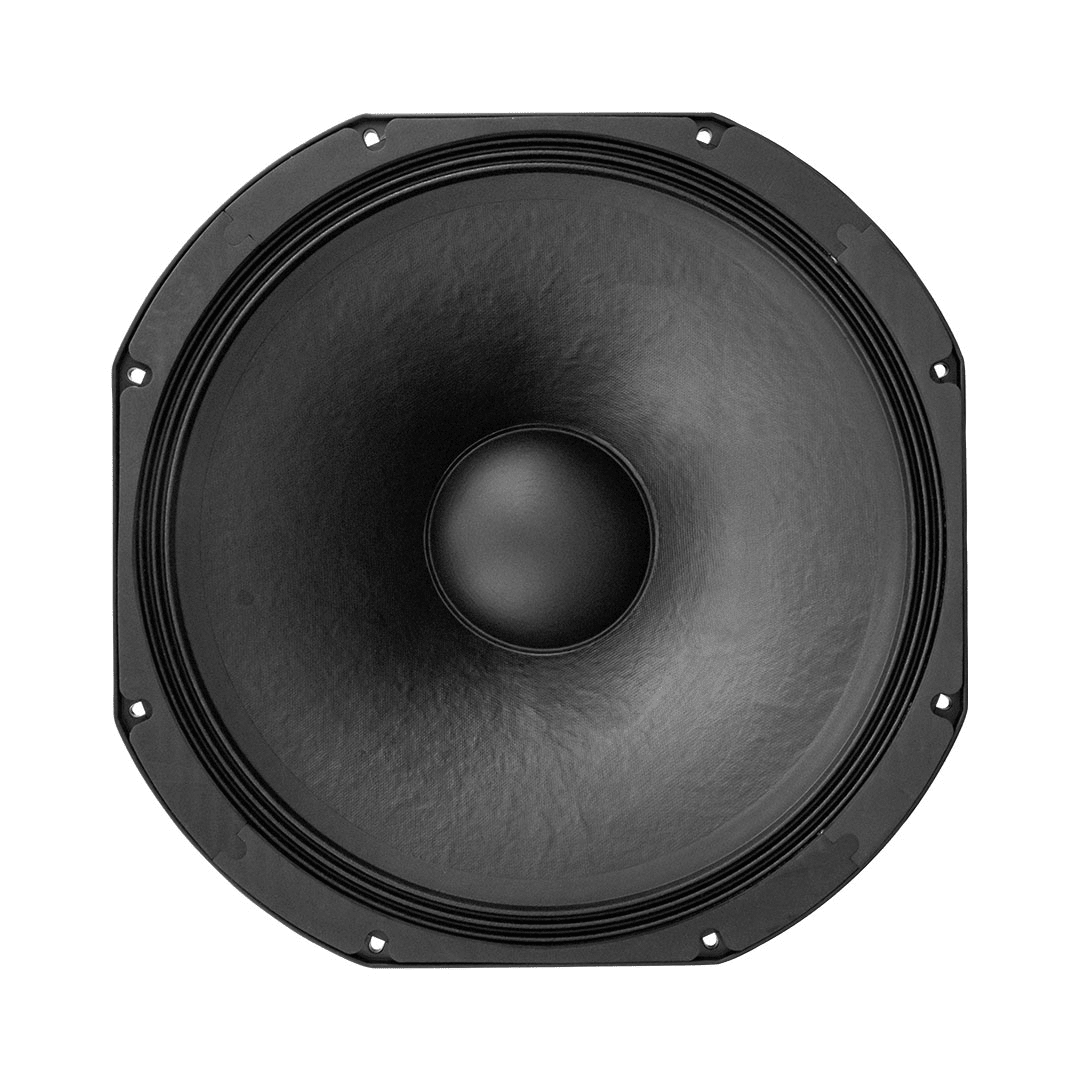

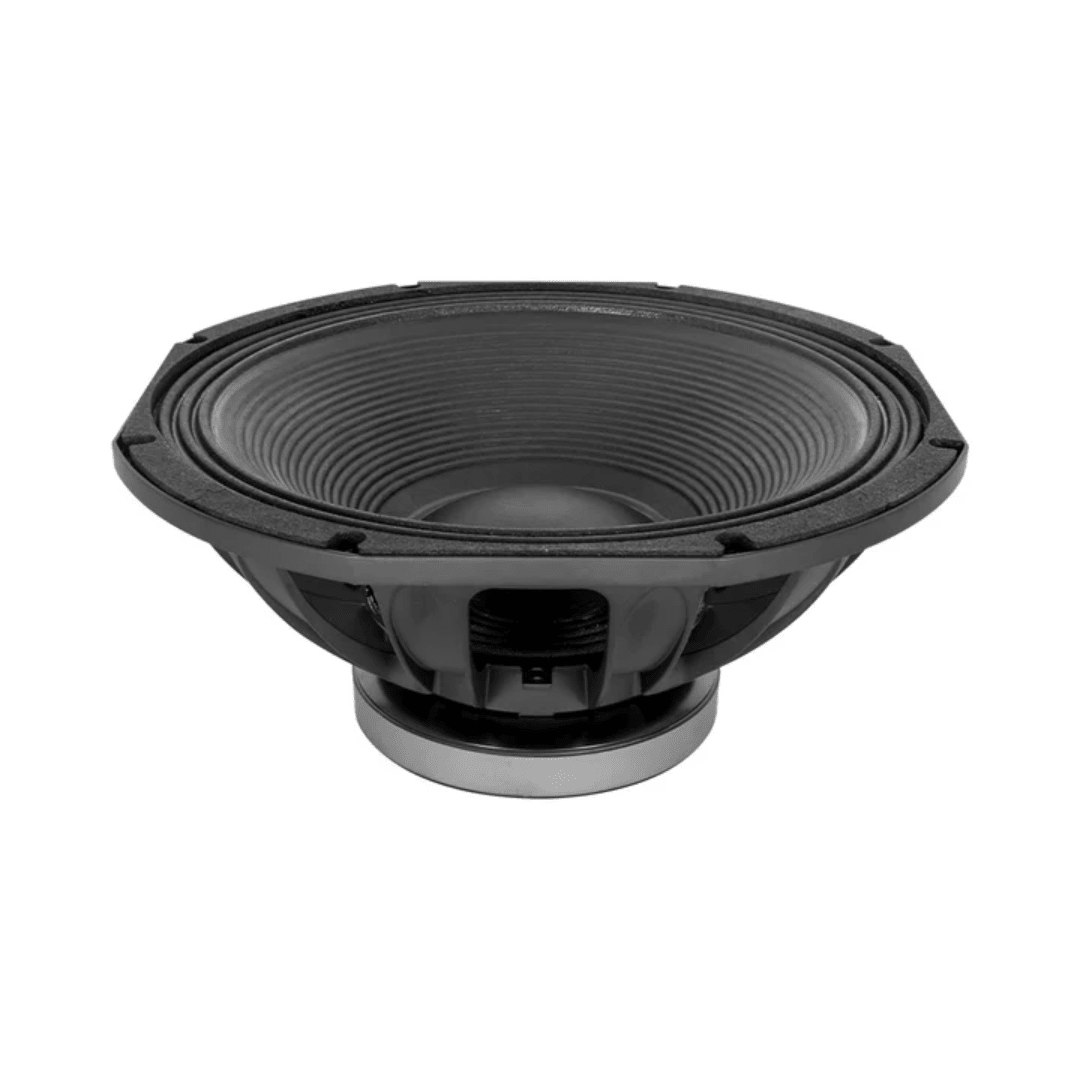

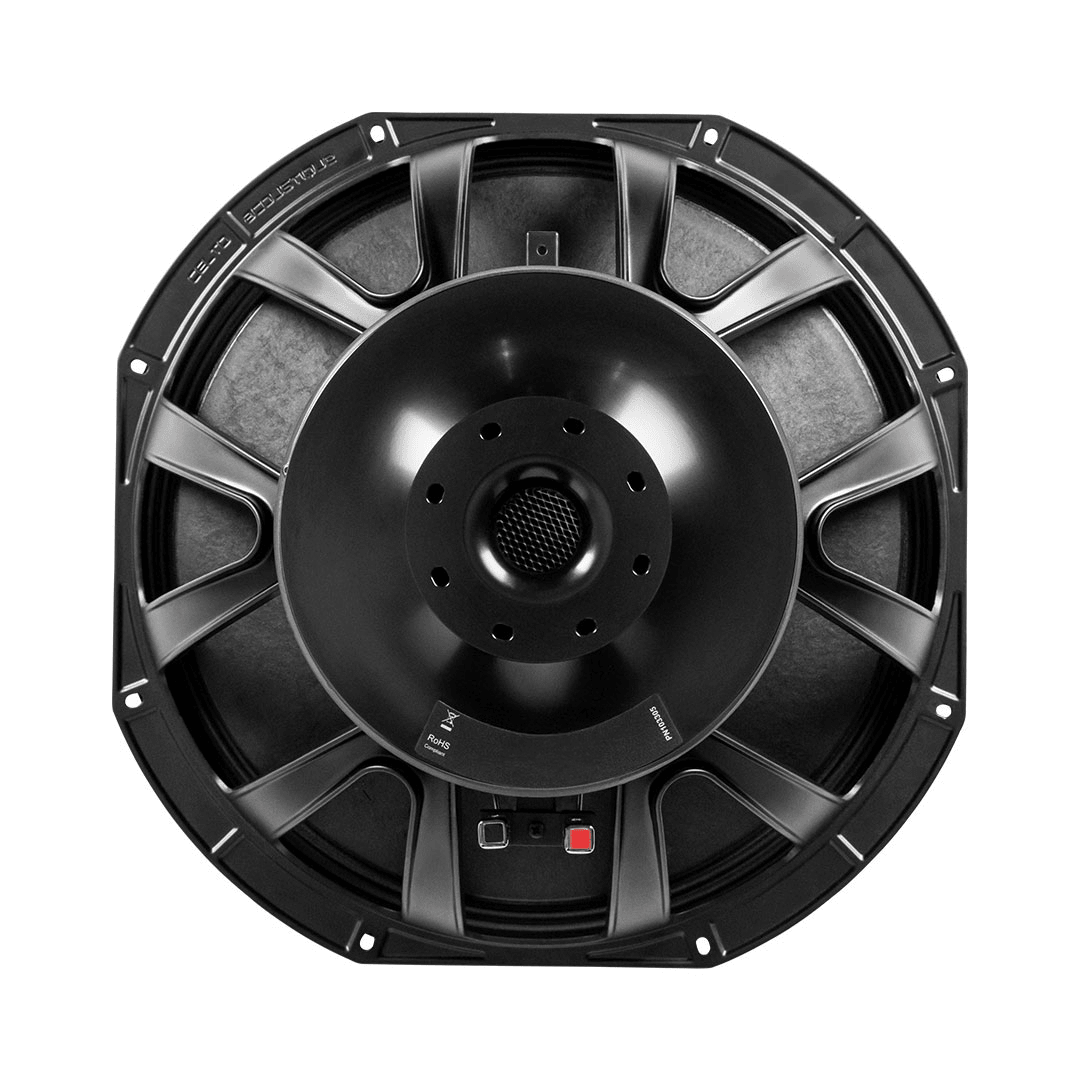

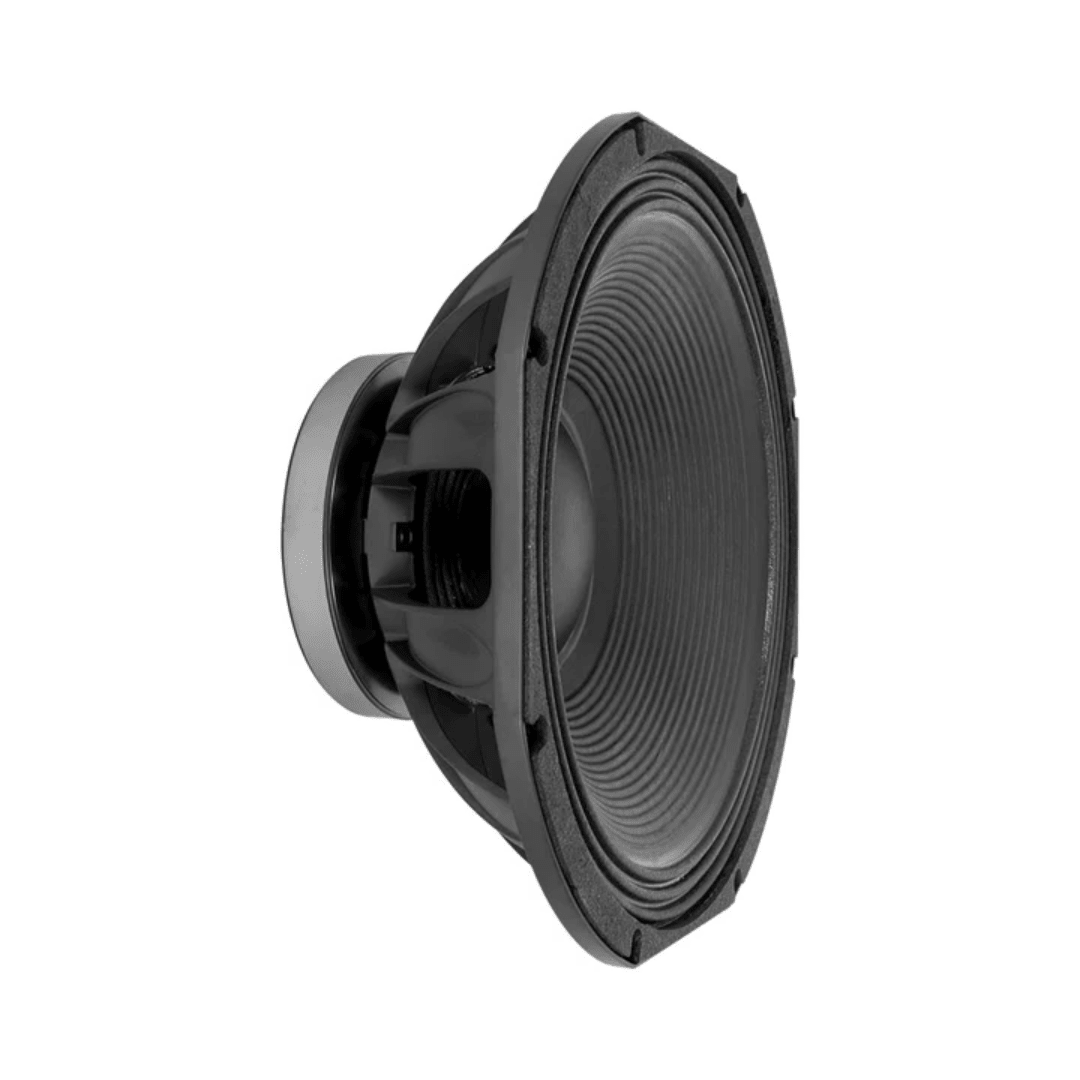

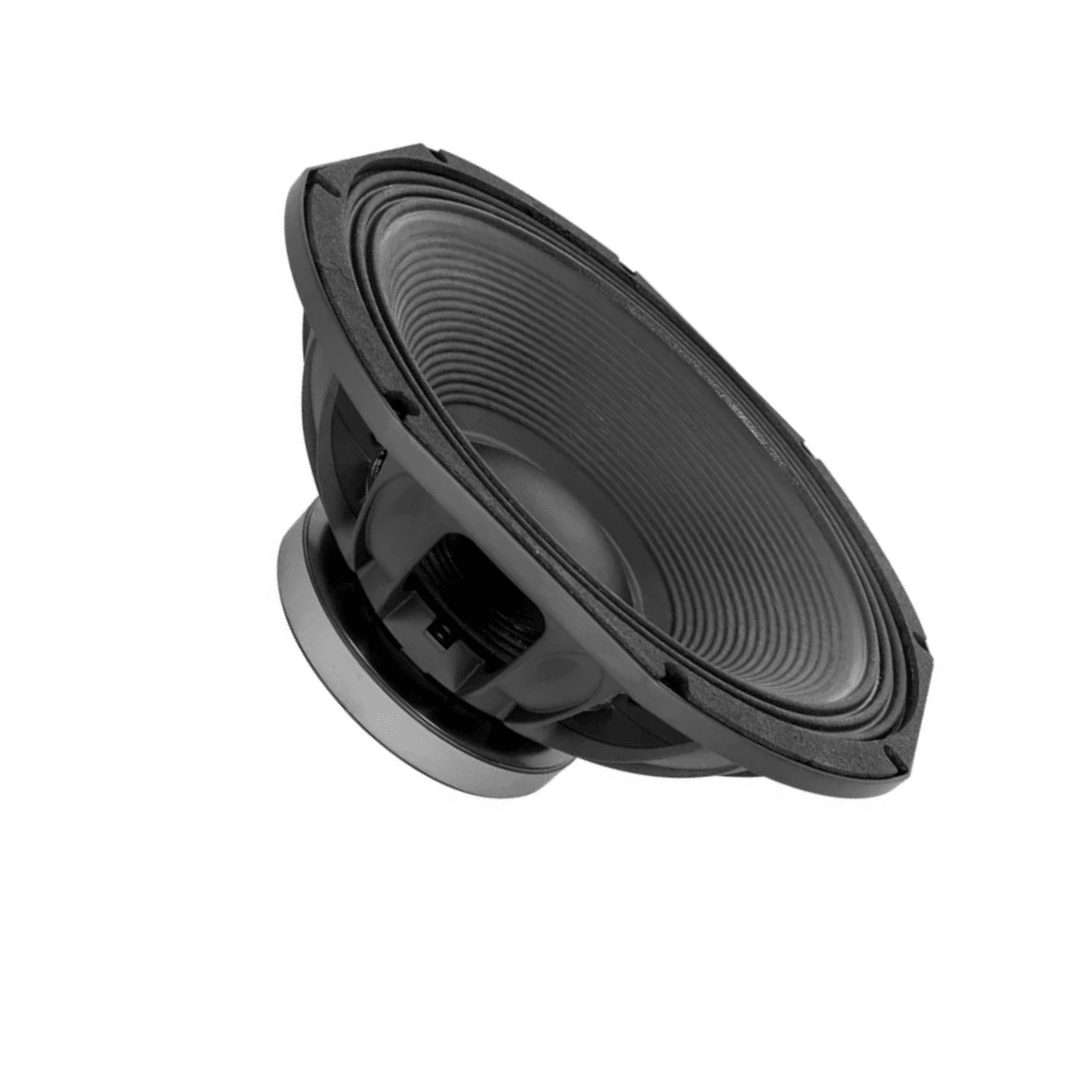

Celto 18SW1500-8 18″ Replacement Subwoofer Speaker

R 4,490.00
Quantity:
Sku: 80205237
Visa Mastercard American Express Ozow MTN Mobile Money

  • The 18SW1500 is a beautifully finished ultra-thick powder coated aluminum die-cast woofer, with a solid <0.1% carbon CNC machined steel T-Yoke, French bobbin with Japanese wire 240°C voice coil, Japanese / USA damper, water resistant fiber loaded Canadian pulp paper cone, high grade Y35 flaw-free ferrite magnet and a robust 5mm square spring terminal connecting block.
Features
  • Ultra-long excursion
  • Split winding voice coil
  • DCS (Deflective cooling system)
  • Water resistant Kevlar® loaded paper cone
  • Optimized parameters for compact cabinet designs
Specifications
  • General Specifications
    • Nominal diameter: 460mm (18inch)
    • Nominal impedance: 8 ohms
    • Power handling: 1500W RMS (AES Standard)
    • Sensitivity: 97dB / 1W / 1m
    • Voice coil diameter: 4 inch (100mm)
    • Voice coil height Hvc: 34mm
    • Voice coil air gap Hag: 15mm
    • Xmax (Hvc-Hag)/2 + Hag/4: +/- 13.25mm
    • Xmech (peak-peak): 62mm
    • Voice coil winding: 2 layer IN/OUT
    • Voice coil material: 240°C Thermal Class Copper
    • Voice coil former: DUPONT® GFB  fiberglass
    • Suspension: Triple roll, impregnated fabric
    • Spider: Dual with silicon damping, NOMEX®
    • Cone: Fiber loaded, waterproof treated paper
    • Chassis: Die-cast aluminum
    • Magnet: 230mm diameter Y35 ferrite
  • Mounting & Shipping
    • Overall Diameter: 470mm
    • Bolt circle diameter: 445mm
    • Baffle cutout diameter: 422mm
    • Flange & gasket thickness: 13mm
    • Overall depth: 225mm
    • Net weight: 15.5Kg
    • Shipping weight: 18Kg
    • Shipping dimensions: 460x460x280mm
  • T&S Parameters
    • F(s): 34Hz
    • Q(ms): 9.763
    • V(as): 182 liters
    • M(ms): 248 grams
    • R(ms): 5.553 Kg/s
    • S(d): 1225 sq.c+C5m
    • V(d): 1.716 liters
    • R(e): 5.75 ohms
    • Q(es): 0.406
    • C(ms): 0.0853 mm/N
    • Q(ts): 0.39
    • L(e): 1KHz: 1.98mH
    • BL: 27.5
    • n(0): 1.8%
What's in the box
  • 1 x Replacement Subwoofer Speaker
Vendor Celto
Type Replacement Speakers
Sku 80205237
Weight:  20.0 kg
