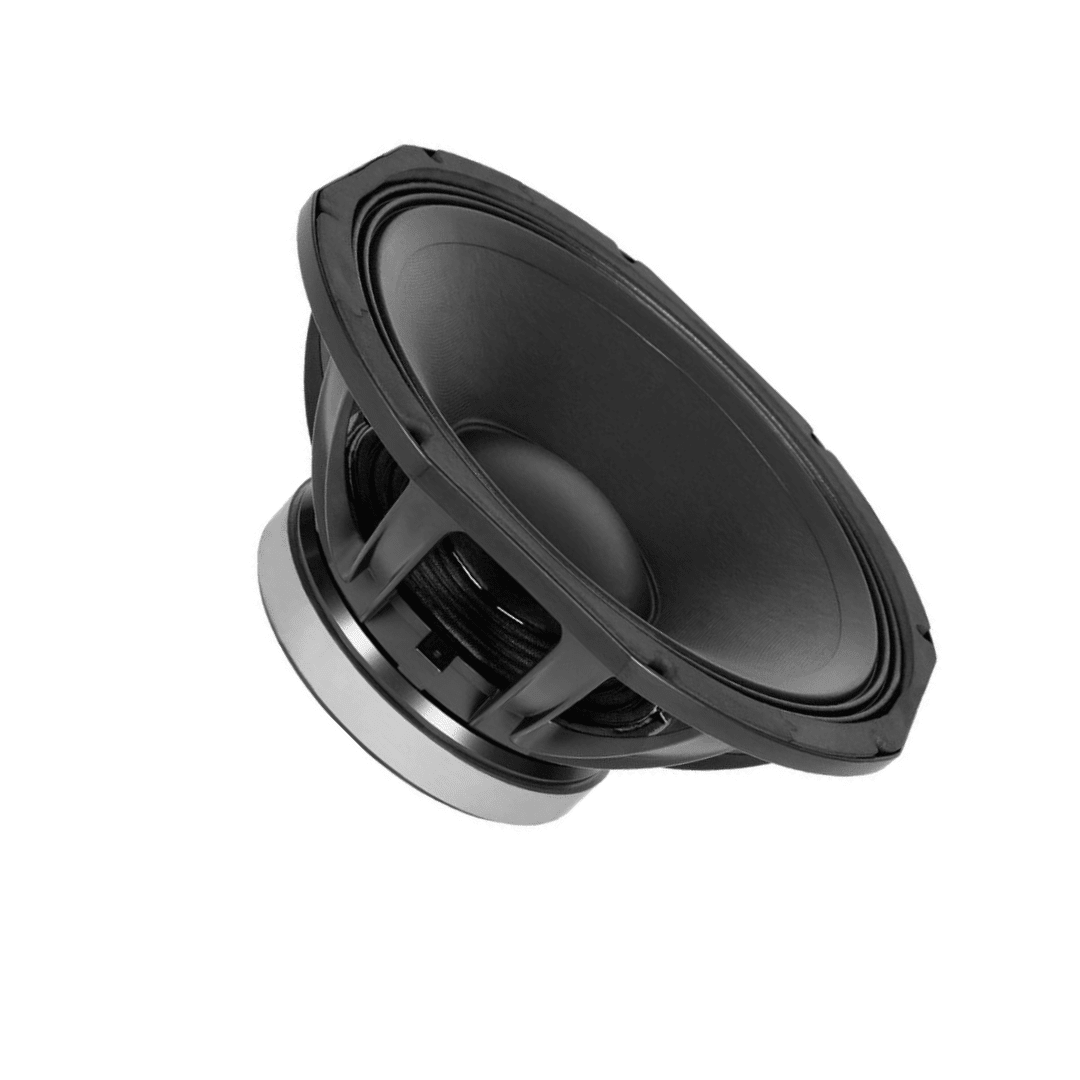

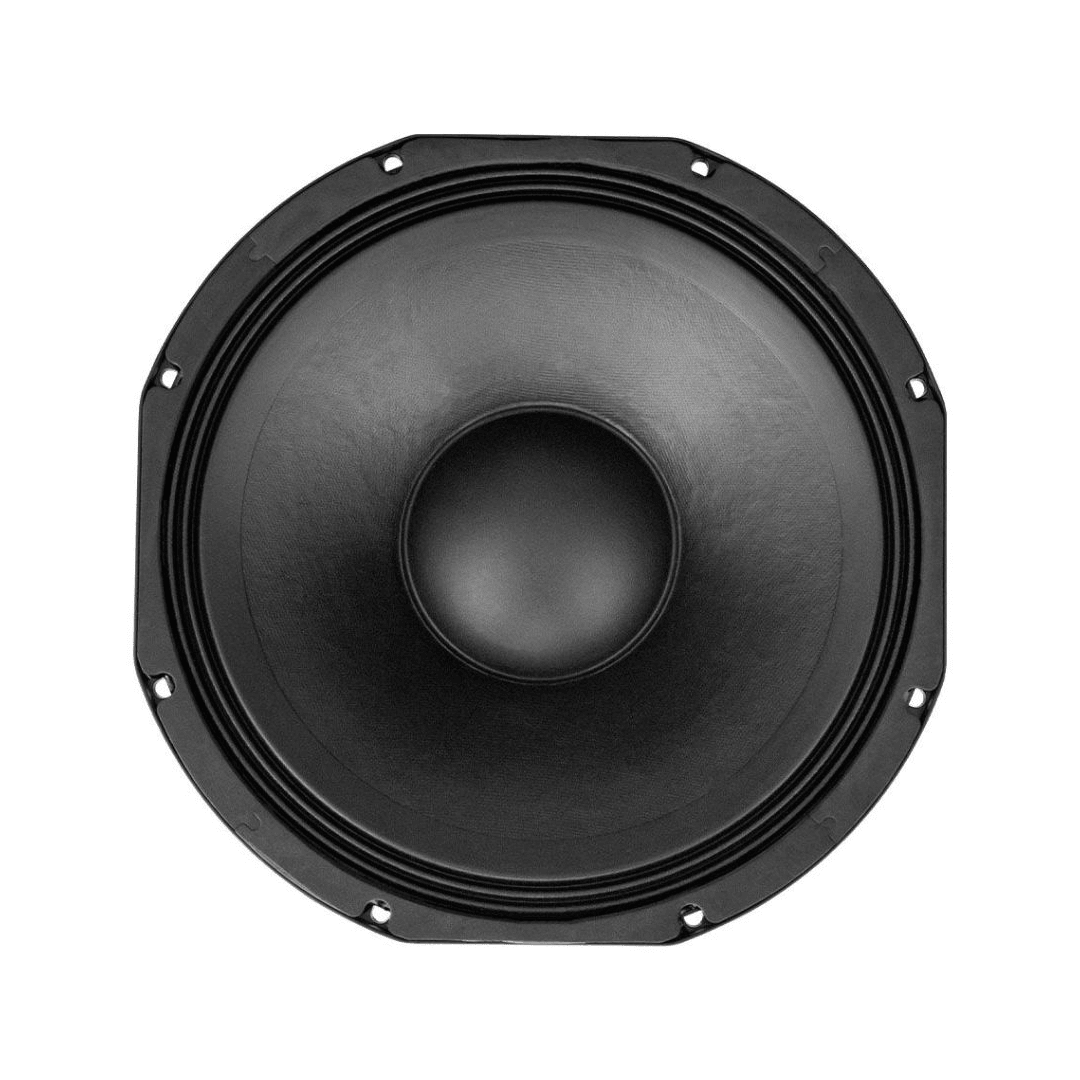

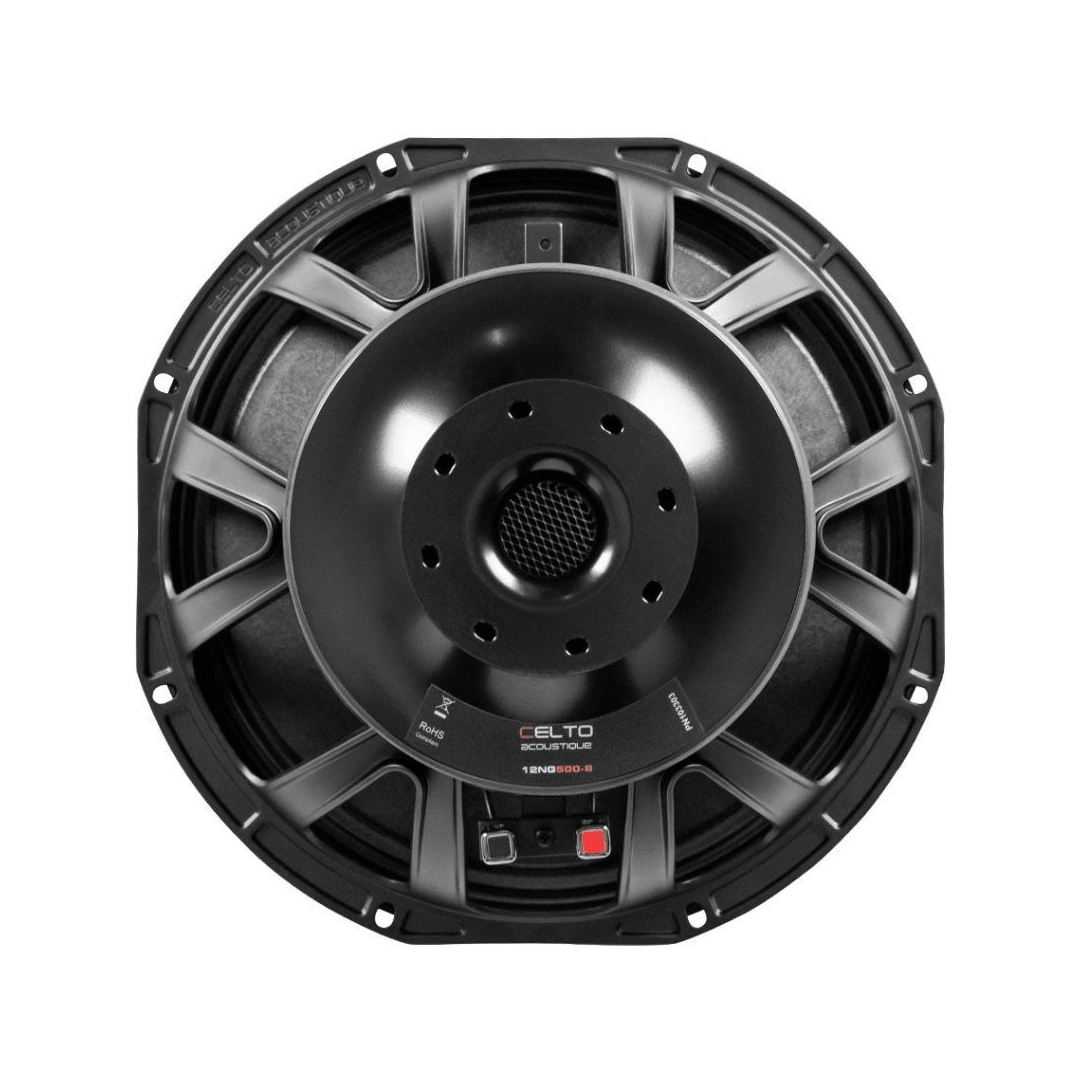

CELTO 12NG500-8 Replacement Subwoofer Speaker

R 1,849.00
Quantity:
Sku: 80201285
Visa Mastercard American Express Ozow MTN Mobile Money

  • As usual with CELTO products, there has been absolutely no compromise in design, selection of materials used, manufacturing and quality control.
  • This 12” driver features a beautifully finished powder coated die cast aluminium basket, Japanese wire 240°C voice coil, KEVLAR® loaded Canadian pulp paper cone with waterproof coating on both sides, high purity and temperature DMEGC Y35 magnate, and secure square push terminals able to accommodate 5mm diameter connecting wire.
Features
  • Balanced tonality ideal for 2-way speakers
  • High efficiency
  • Water resistant paper cone
  • Optimized parameters for compact cabinets



Specifications
  • Nominal diameter: 320mm (12 inch)
  • Nominal Impedance: 8Ω
  • Power handling: 500W RMS (AES Standard)
  • Sensitivity: 97dB / 1W / 1m
  • Voice coil diameter: 3 inch (75mm)
  • Voice coil height Hvc: 20.5mm
  • Voice coil air gap Hag: 9mm
  • Xmax (Hvc-Hag)/2 + Hag/4: ±8mm
  • Xmech (peak-peak): 40mm
  • Voice coil winding: 2 layers IN / OUT
  • Voice coil material: 240°C Thermal Class CCAW
  • Voice coil former: BAF fiberglass
  • Suspension: Triple roll, impregnated fabric
  • Spider: single, cold formed NOMEX®
  • Cone: fiber loaded, waterproof treated paper
  • Chassis: Die Cast Aluminum
  • Magnet: Ø180mm Y30 Ferrite
What's in the box
  • 1 x Replacement Subwoofer Speaker
Vendor Celto
Type Replacement Speakers
Sku 80201285
Weight:  7.0 kg
