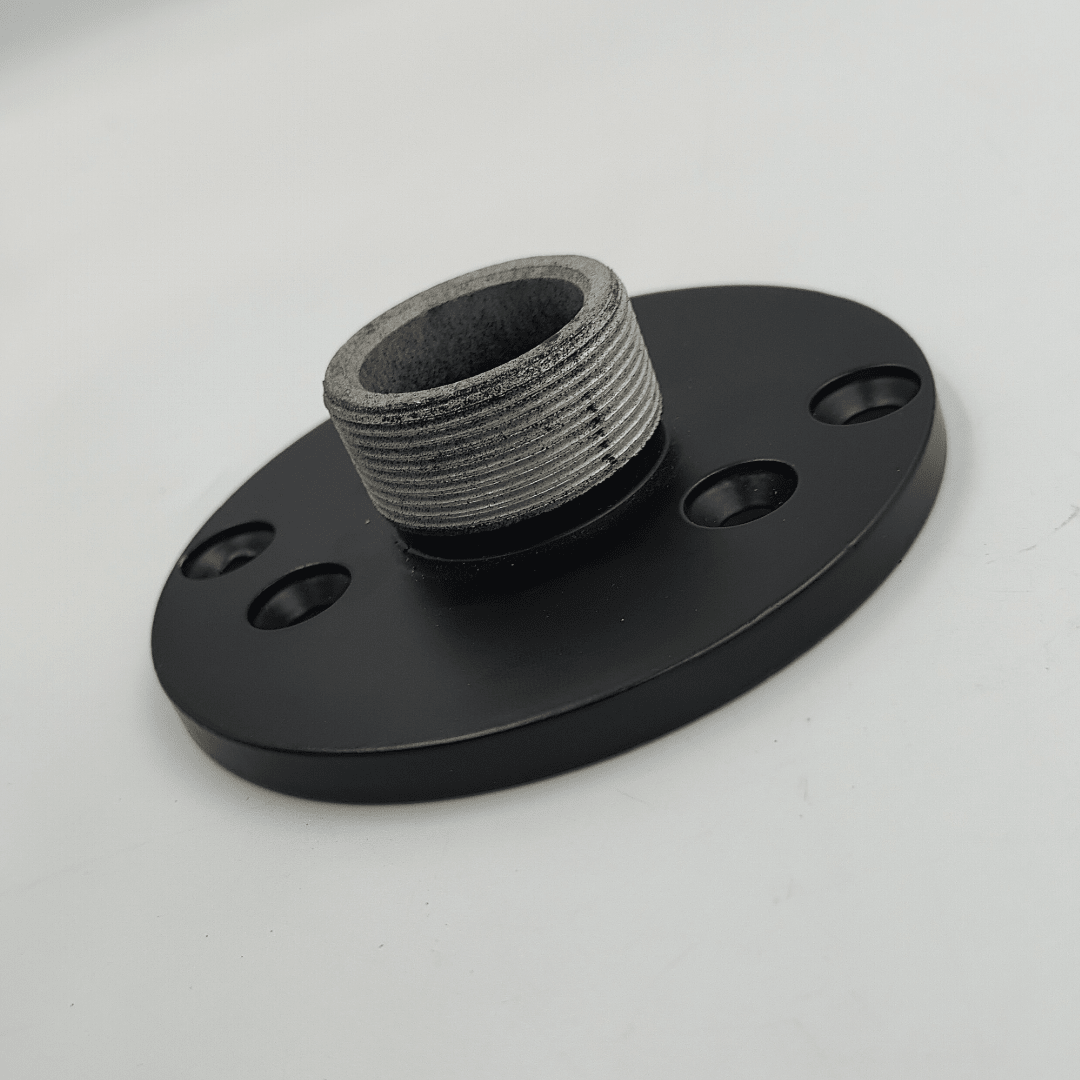

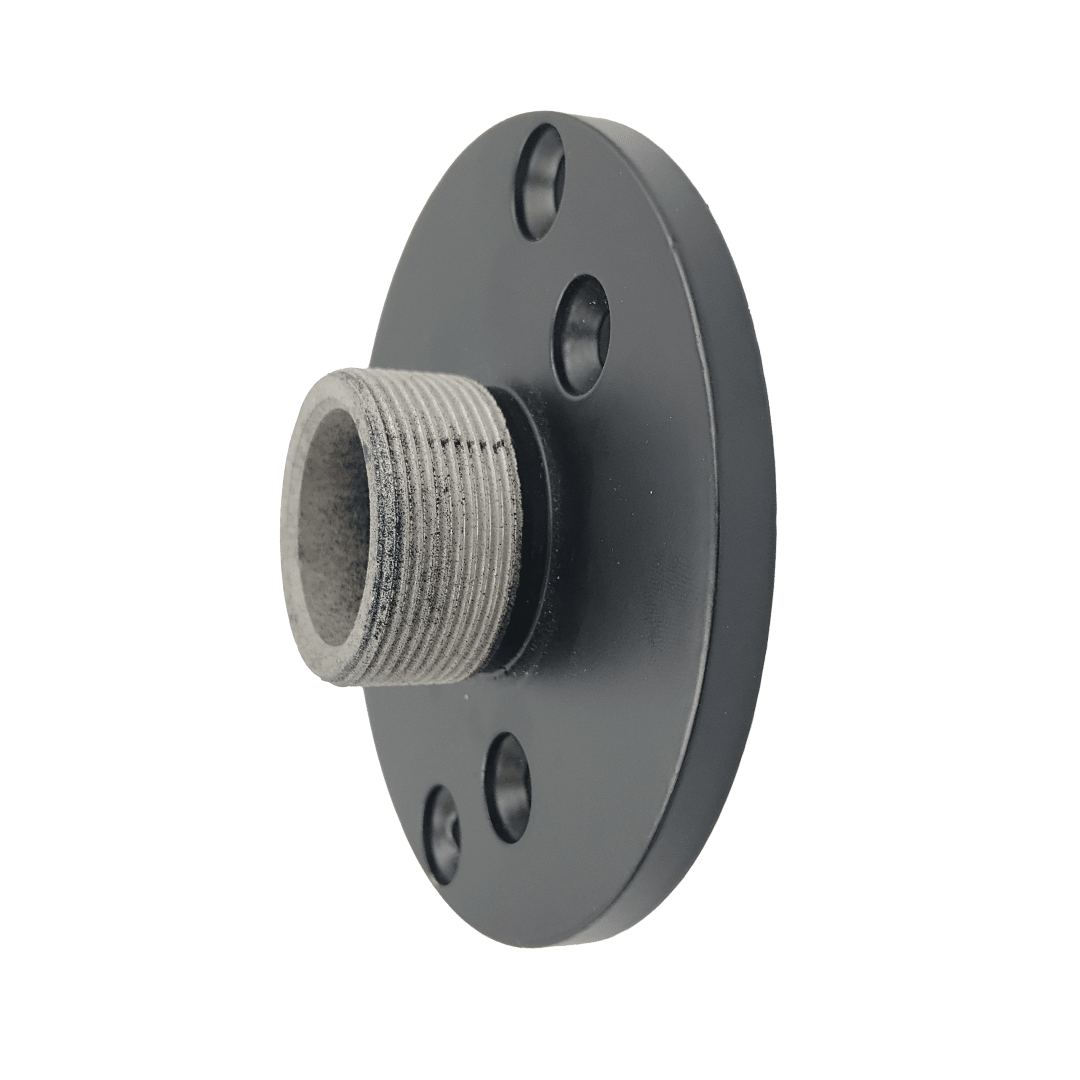

• Heavy-duty precision metal adapter designed to connect bolt-on style compression drivers to standard screw-on horn flares.
• Converts 2-bolt or 4-bolt driver mounting patterns into a standard 1-3/8" - 18 TPI female threaded socket for seamless horn attachment.
• Constructed from solid die-cast metal to eliminate acoustic resonances, air leaks, and mechanical flexing under heavy driver weight.
• Features a smooth 1-inch (25.4mm) internal acoustic expansion taper that prevents high-frequency turbulence and phase distortion.
• Essential fitting for pro audio technicians, speaker builders, and repair specialists integrating mismatched compression drivers and horn flares.

Features

• Bolt-to-Screw Conversion: Adapts multi-bolt pattern compression drivers to standard 1-3/8" screw-on horn flares.
• Solid Die-Cast Metal Construction: Rigid metal housing ensures vibration-free operation and long-term structural durability.
• Acoustically Optimized Taper: Precision internal throat design ensures efficient sound wave propagation with minimal reflection.

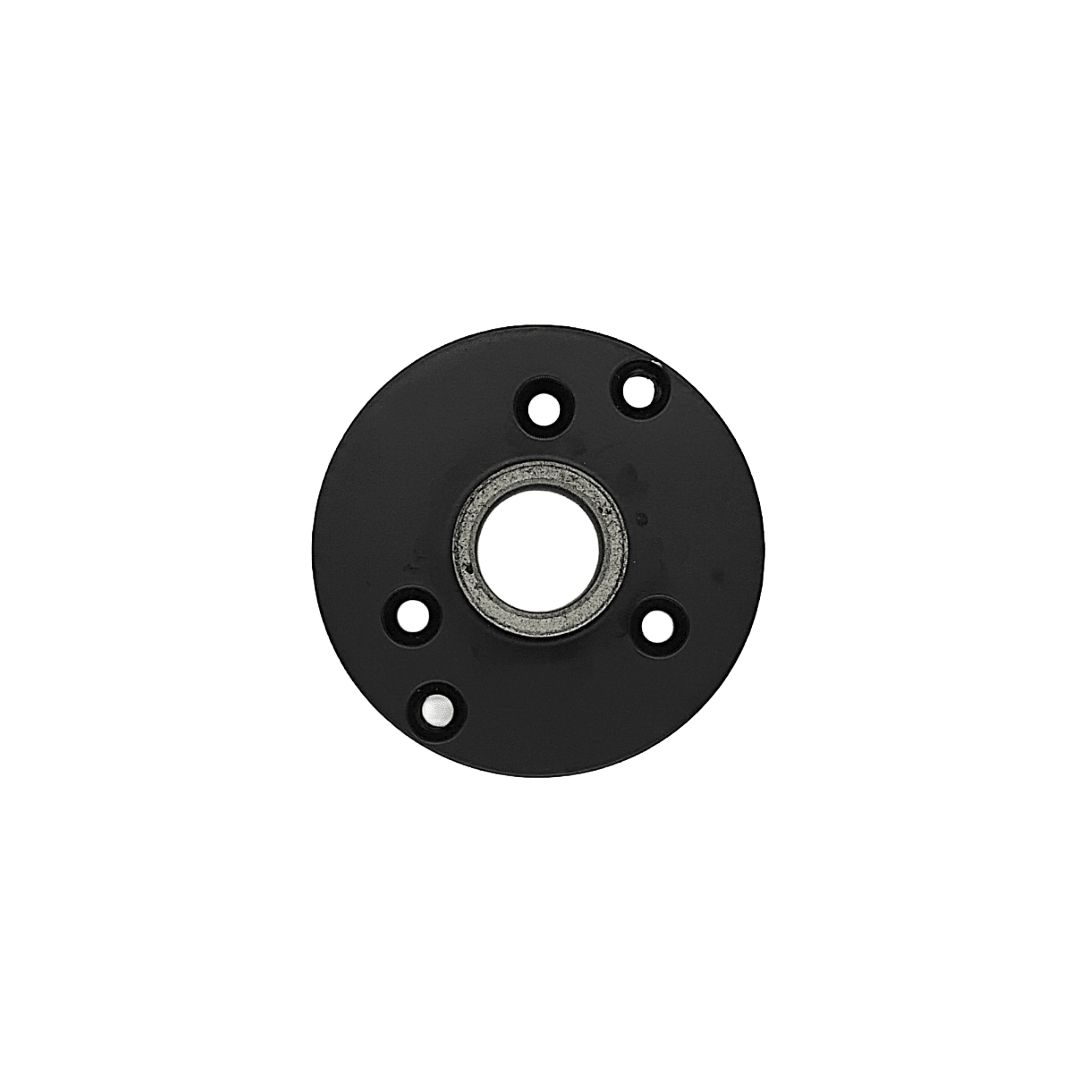

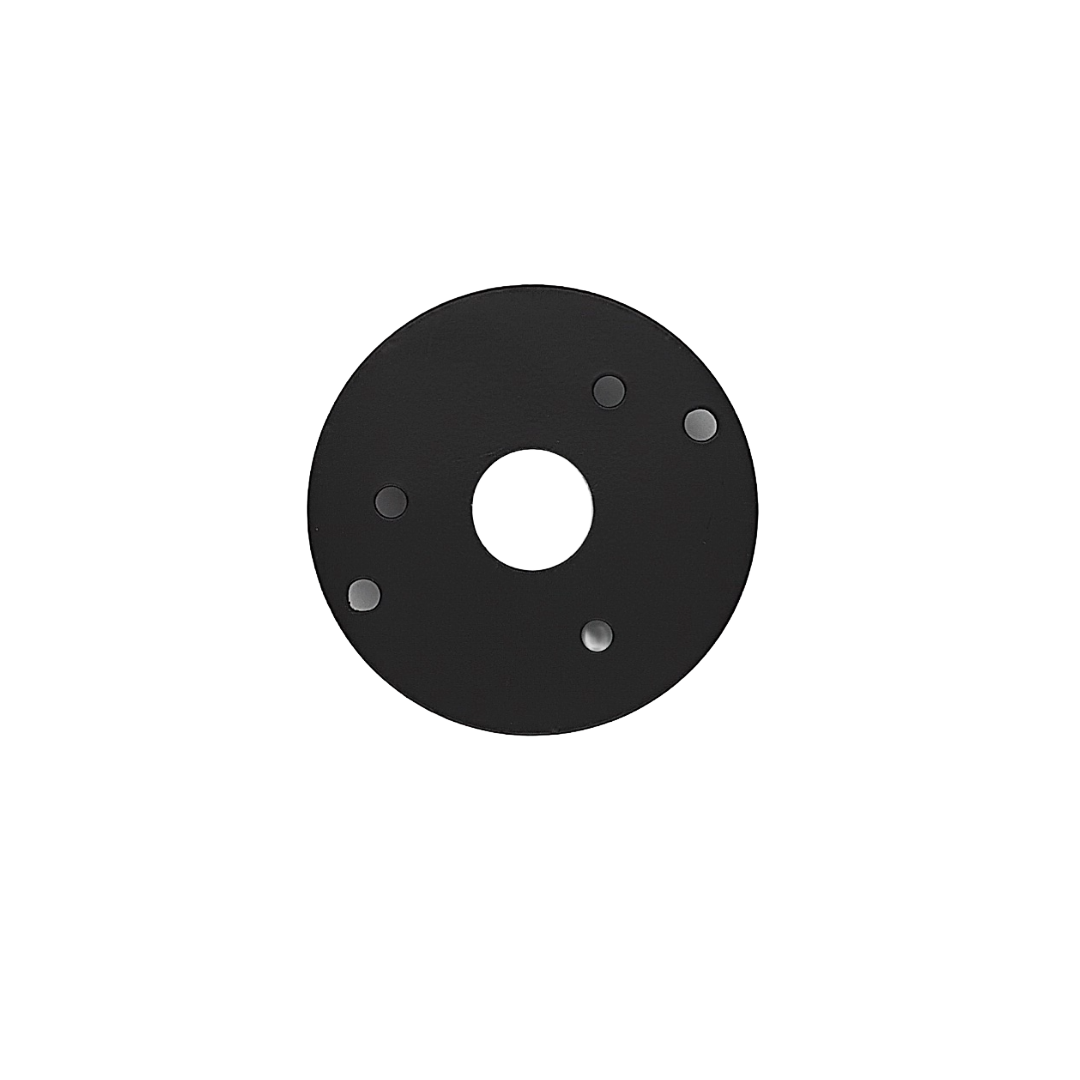

• Multi-Pattern Flange Mount: Pre-drilled bolt holes align with standard 2-bolt and 4-bolt driver mounting configurations.
• Compact Low-Profile Form: Keeps overall high-frequency assembly length minimal inside speaker cabinets.

Specifications

• Model / Part Number: LA-0096
• Product Type: Horn Driver Adapter (Bolt-On to Screw-On)
• Horn Connection: 1-3/8" - 18 TPI (Female Thread)
• Throat Diameter: 1 Inch (25.4 mm)
• Driver Flange Attachment: Multi-hole Bolt Pattern (2-Bolt / 4-Bolt Flange)
• Material: Die-Cast Metal Alloy
• Application: PA Speaker Repair, Custom Loudspeaker Assembly, Compression Driver Adaptation, Live Sound System Integration

What's in the Box?

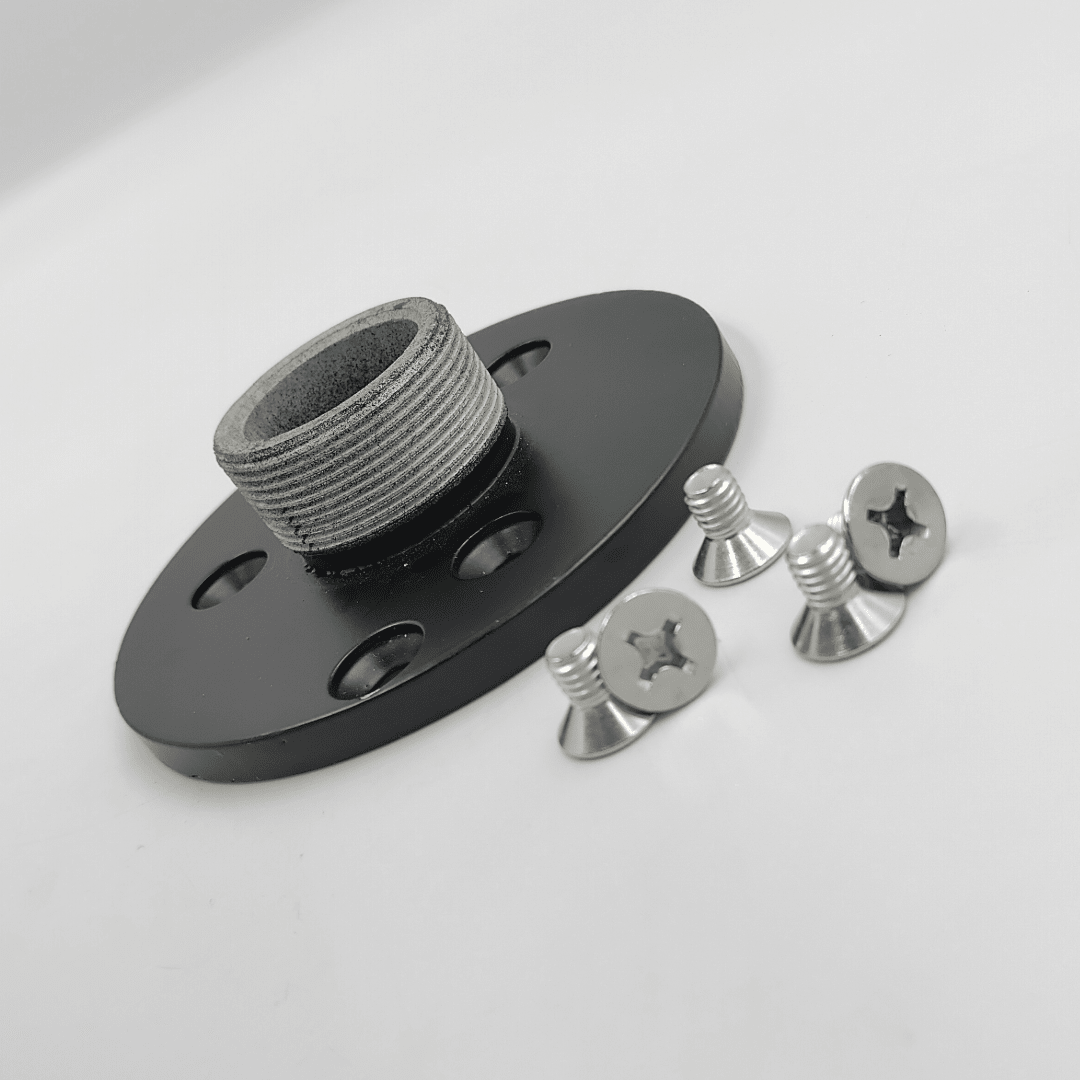

• 1 x Audio Agent LA-0096 1-Inch Driver Adapter (Bolt-to-Screw)
