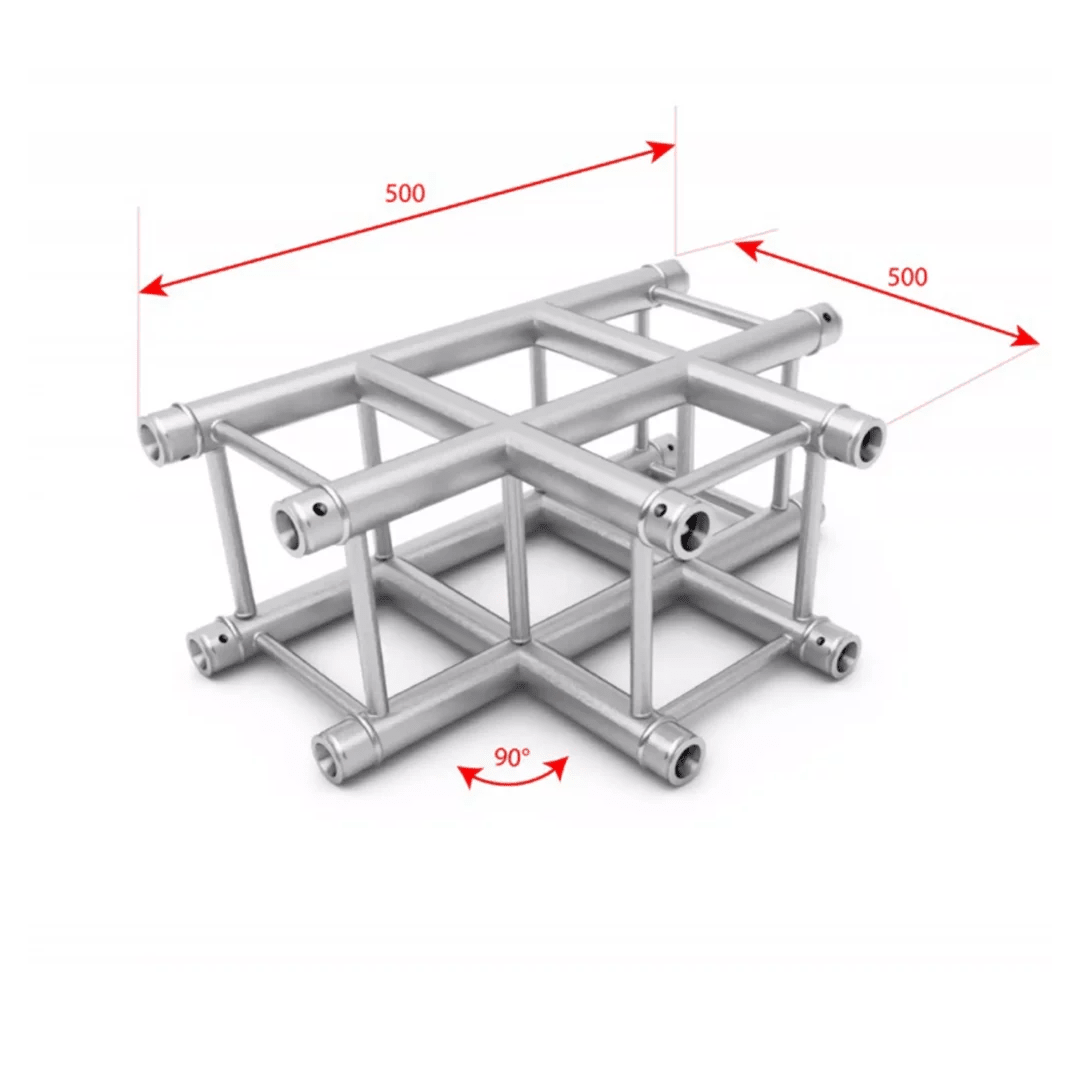

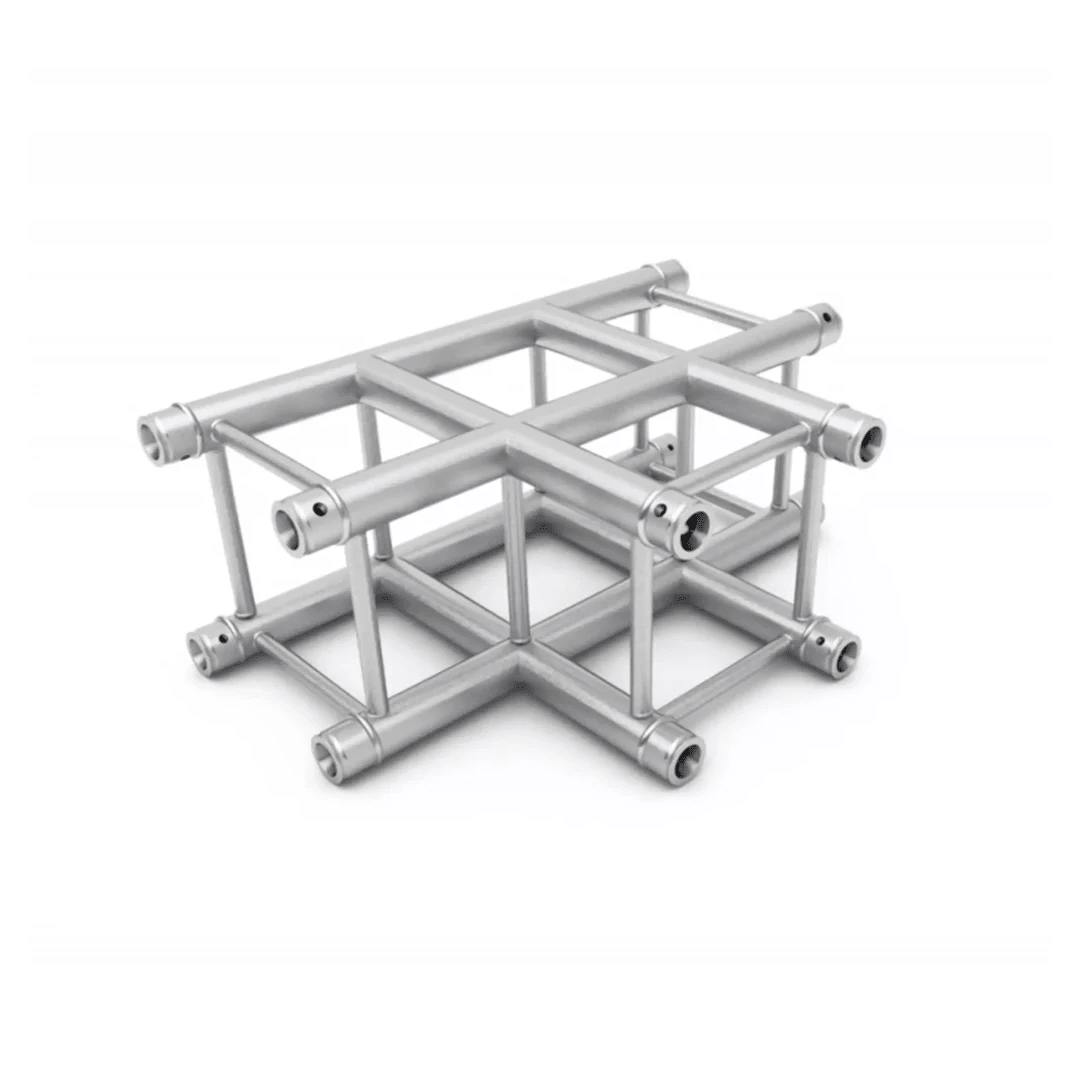

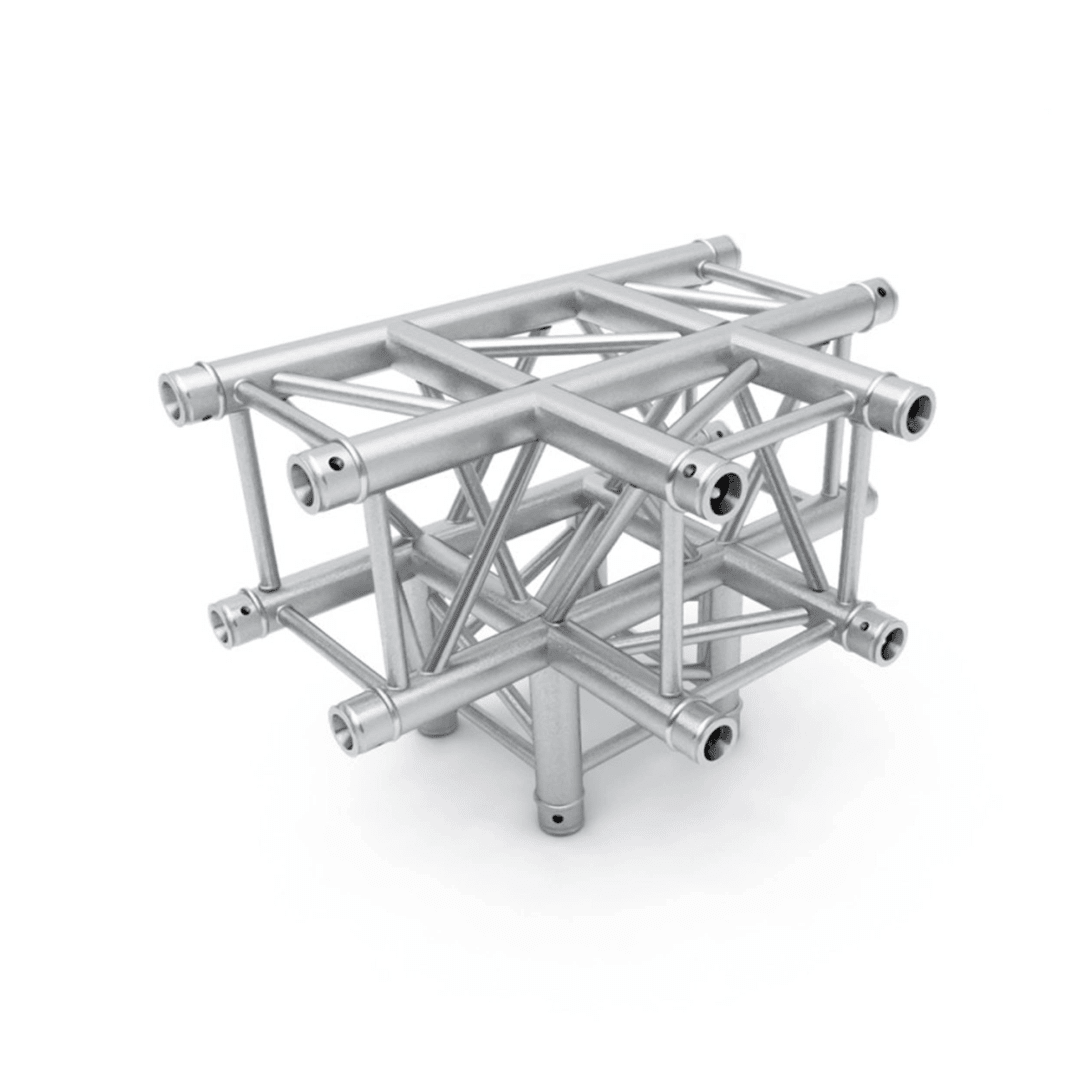

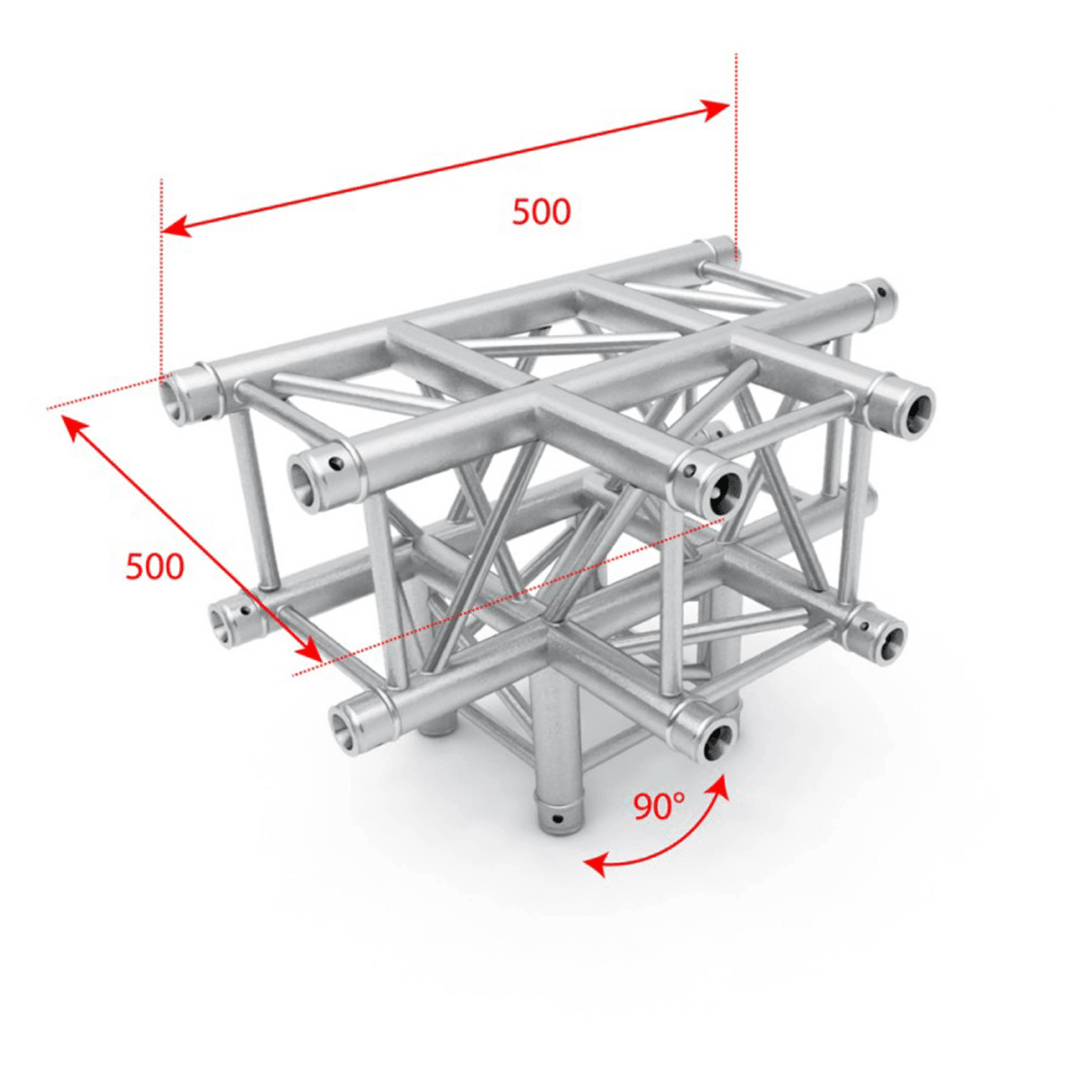

The Alustage Quad 290 Truss T-Piece is a heavy-duty, structural rigging component engineered for professional stage lighting, concert production, and exhibition display booths.
This 4-way corner junction allows production crews to connect multiple square grid sections perpendicularly, creating rigid horizontal grids or vertical support intersections without losing structural integrity.
Manufactured from structural-grade Aluminium EN AW-6082 T6, this quad truss segment offers an exceptional strength-to-weight ratio.
It features standard 50x2mm main chords and 20x2mm bracing, making it fully compatible with global standard 290mm conical coupling systems.
It is an essential asset for event production companies, arena backline crews, and trade show riggers who require safe, load-bearing modular frame configurations.
Features
Structural-Grade EN AW-6082 T6 Aluminium: Forged from a high-yield copper-free aluminum alloy renowned for its immense load capacity and corrosion resistance.
This premium material is perfectly optimized for supporting heavy moving-head lights, LED video walls, and audio arrays safely above crowds.
Standard 290mm Quad Square Layout: Built with a precise 290mm external depth spacing to match industry-standard square trussing formats.
This modular physical profile is ideal for seamless integration into existing stage rental inventories, ensuring true alignment across complex multi-tier grids.
Heavy-Duty 50mm Main Pipe Gauge: Features a thick 50mm diameter main tube with a robust 2mm wall thickness.
This reinforced structural profile is essential for resisting bending forces and mechanical torque, allowing for secure, high-tension spans across large stage widths.
Intricate 20x2mm Web Bracing: Engineered with structural diagonal braces welded tightly across the faces of the quad profile.
This web layout is critical for distributing downward shear forces evenly across the joint, preventing twist distortion during heavy rigging lifts.
Ultra-Lightweight 4.94kg Portable Architecture: Weighs just 4.94 kg despite its complex multi-directional connection paths.
This low-mass setup is the definitive solution for reducing total roof-load strain and speeding up tear-downs during tight arena changeover windows.
