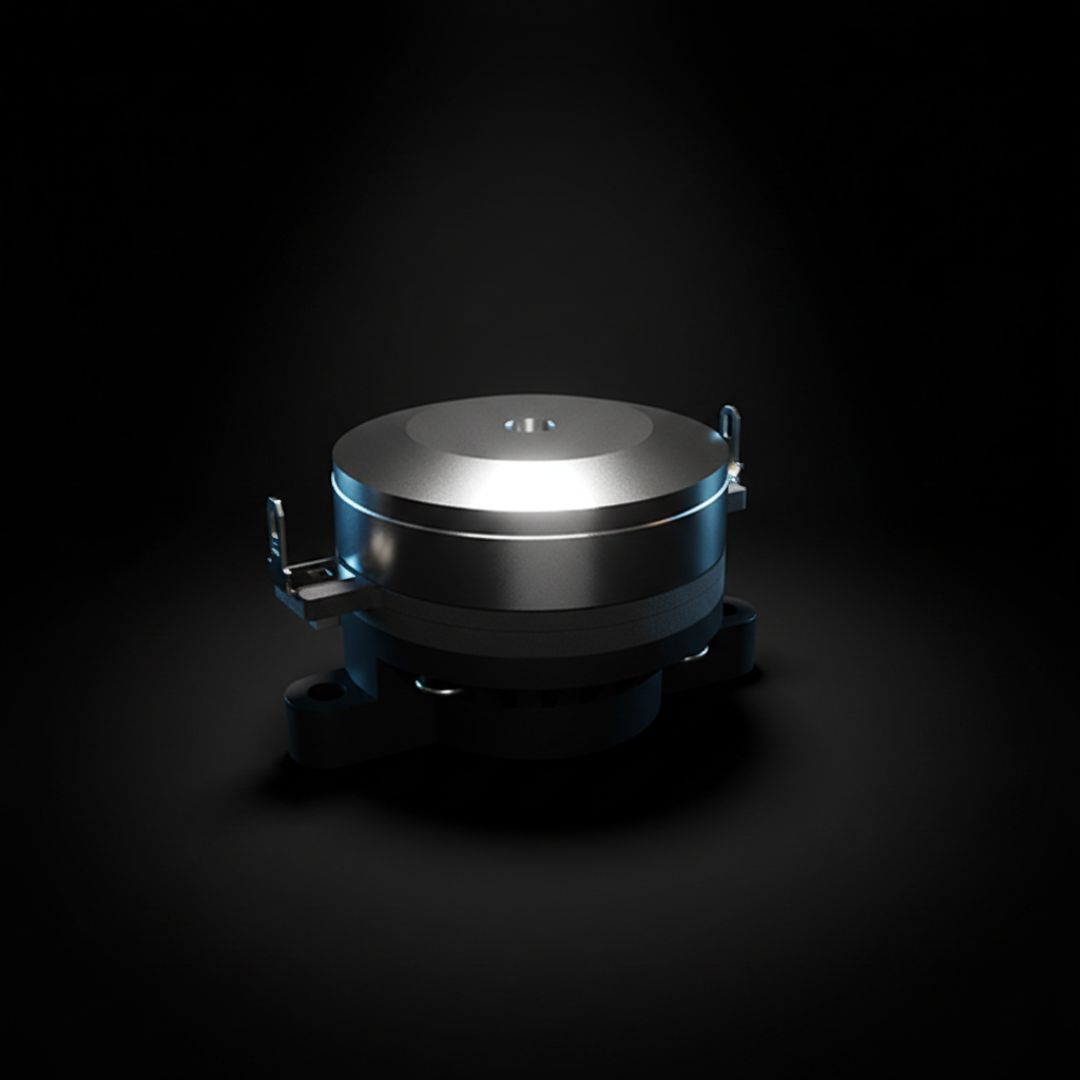

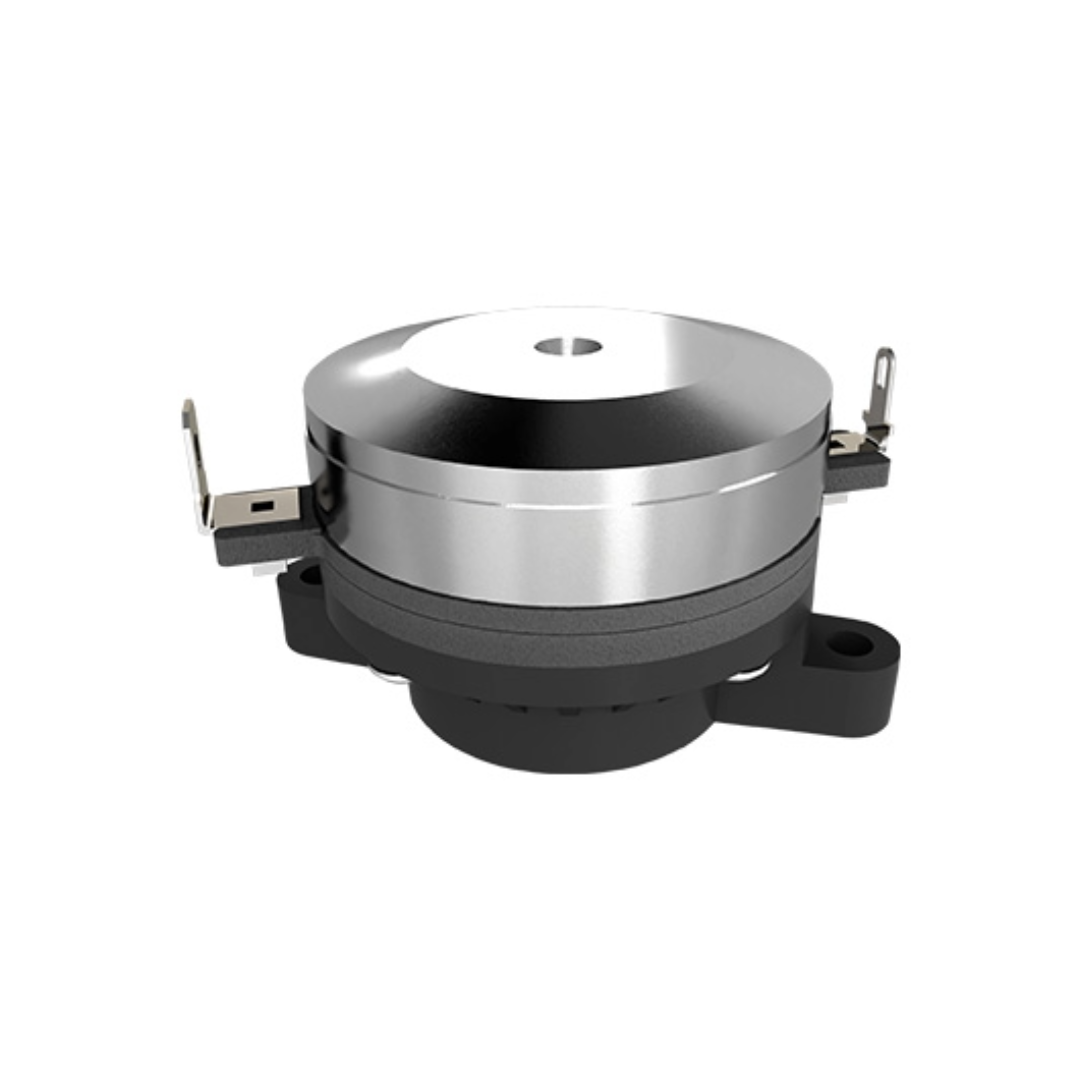

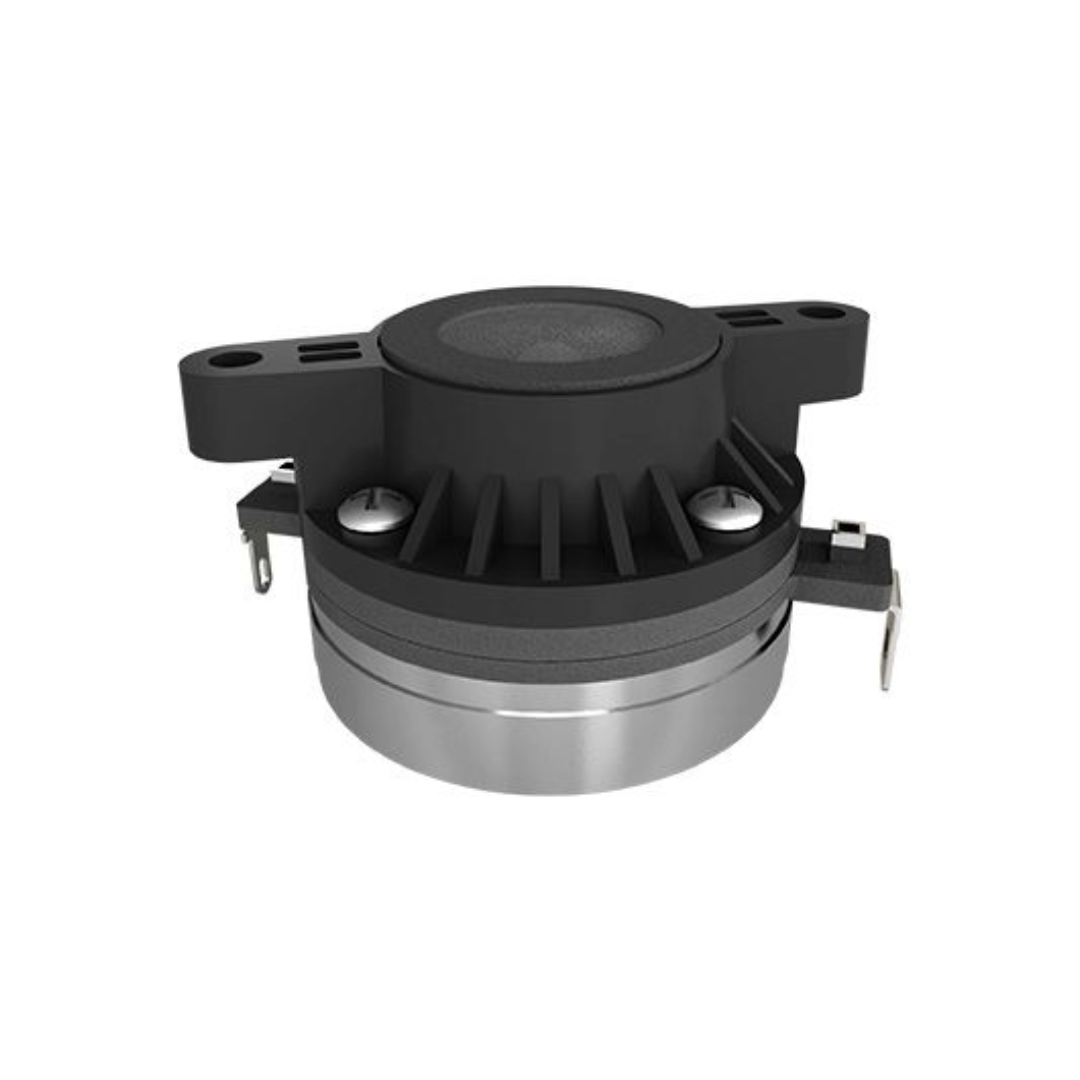

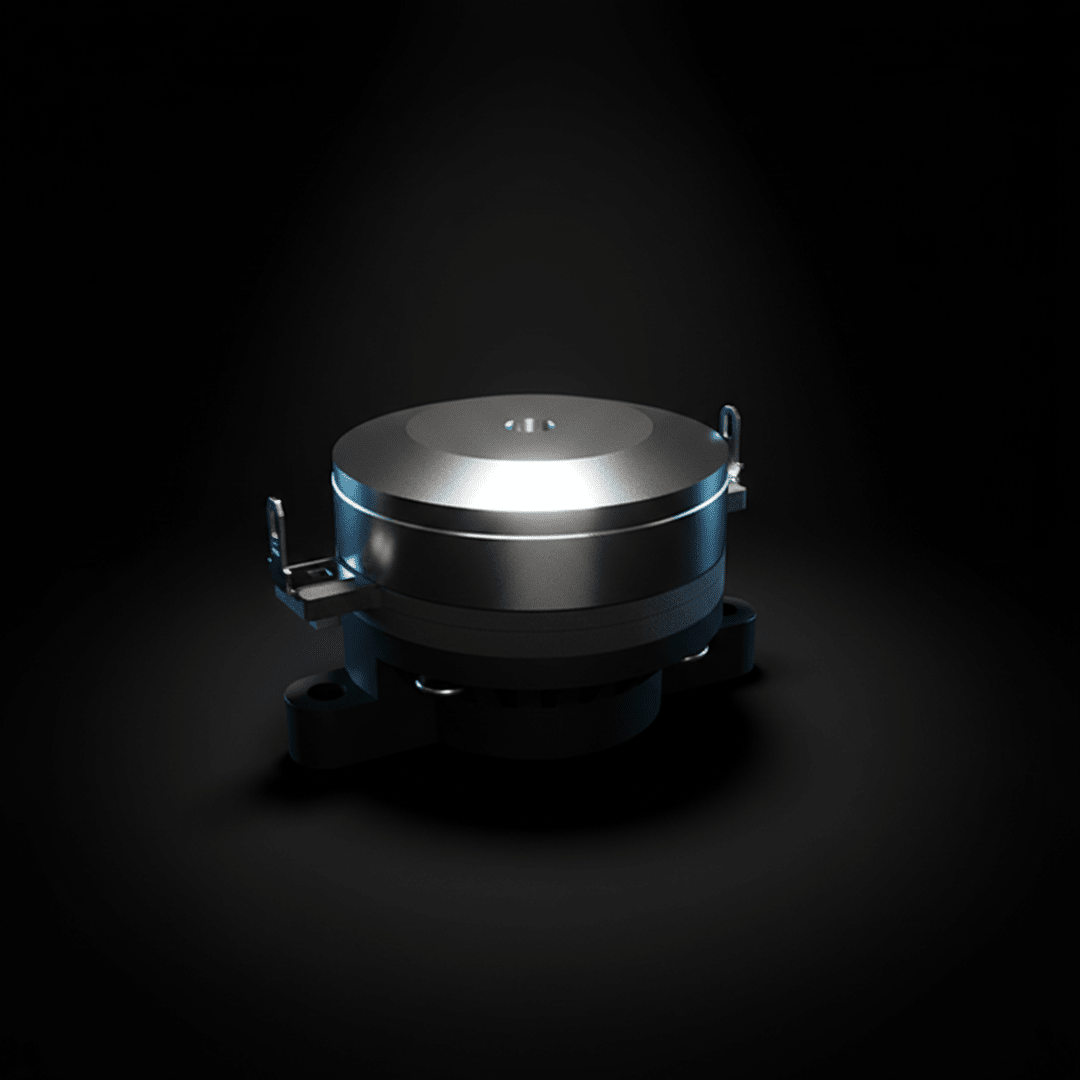

Precision High-Frequency Performance: The Agera FE25N-02 is a premium, high-efficiency replacement compression tweeter driver engineered to restore crisp, detailed high-frequency response to multi-driver sound columns and line array speaker systems.
Advanced Neodymium Motor Structure: Built with an ultra-compact, high-flux neodymium magnet assembly. Neodymium delivers massive magnetic force at a fraction of the weight of standard ferrite magnets, lowering overall system weight while enhancing driver transient response.
Compact Sound Column Optimization: Formulated specifically for commercial sound columns, where slim physical profiles and high intelligibility are vital for complex architectural acoustic environments like houses of worship, lecture halls, and auditoriums.
High Sensitivity Output: Yielding an exceptional 105 dB sensitivity (1W@1m), this high-frequency transducer translates modest amplifier power into screamingly clean, uncompromised vocal clarity and top-end splash.
Standard Exit Alignment: Features a precision 0.75-inch exit throat paired with a 1-inch (25.4mm) high-temperature voice coil, ensuring drop-in mechanical compatibility with standard waveguides, horns, and baffle structures.
Features
High-Power Handling: Safely handles up to 20W of maximum program power, offering robust thermal headroom when protected by an appropriate passive or active crossover network.
Extended Acoustic Range: Delivers flat, linear response across a wide 2.0 kHz to 18.0 kHz frequency range, easily blending with mid-range drivers across common crossover points.
High-Temperature Voice Coil: Wound with high-grade copper or aluminum wire on a heat-tolerant former to avoid thermal compression during prolonged high-volume announcements or playback.
Micro-Weight Footprint: Features an incredibly compact 1.8" diameter and 1.3" depth, allowing it to drop into ultra-narrow enclosure cavities where space is restricted.
Stable 8-Ohm Impedance: A standard 8Ω nominal rating makes crossover design straightforward and simplifies parallel or series-parallel wiring configurations inside multi-tweeter arrays.
Specifications
Product Type: Compression Tweeter Driver
Model Number: FE25N-02
Magnet Material: Premium Neodymium
Voice Coil Diameter: 25.4 mm (1.0 Inch)
Exit Throat Diameter: 0.75 Inch
Nominal Impedance: 8Ω
Maximum Power Handling: 20 Watts Max
Frequency Response Range: 2.0 kHz - 18.0 kHz
Sensitivity (1W @ 1m): 105 dB
Overall Diameter: 1.8 Inches
Overall Depth: 1.3 Inches
Multipack Gross Weight: 5.35 kg
What's in the Box?
1 x Agera FE25N-02 Replacement Neodymium Tweeter Driver
