• Compact signal combiner and diplexer designed to merge satellite (SAT) and terrestrial (TV/FM) signals onto a single coaxial cable line.
• Eliminates the need for running multiple cable lines from antenna and satellite dish setups down to TV points.
• Features DC power pass-through capability on the satellite port to allow LNB powering directly from connected satellite decoders.
• Built in a shielded metal housing with integrated mounting tabs to protect against signal interference and ensure durable installation.
• Ideal for residential satellite installations, DSTV setups, terrestrial TV antenna feeds, and multi-dwelling unit (MDU) signal distribution networks.

Key Features

• Dual-Signal Combination: Combines high-frequency satellite signals and low-frequency terrestrial signals into one unified output cable.
• DC Power Pass-Through: Satellite port supports DC voltage pass-through to power the LNB on the satellite dish.
• RF Shielded Housing: Fully shielded metal casing minimizes external radio frequency and electromagnetic interference.
• Low Insertion Loss: High-grade internal circuitry maintains signal integrity and reduces signal attenuation across both frequency bands.

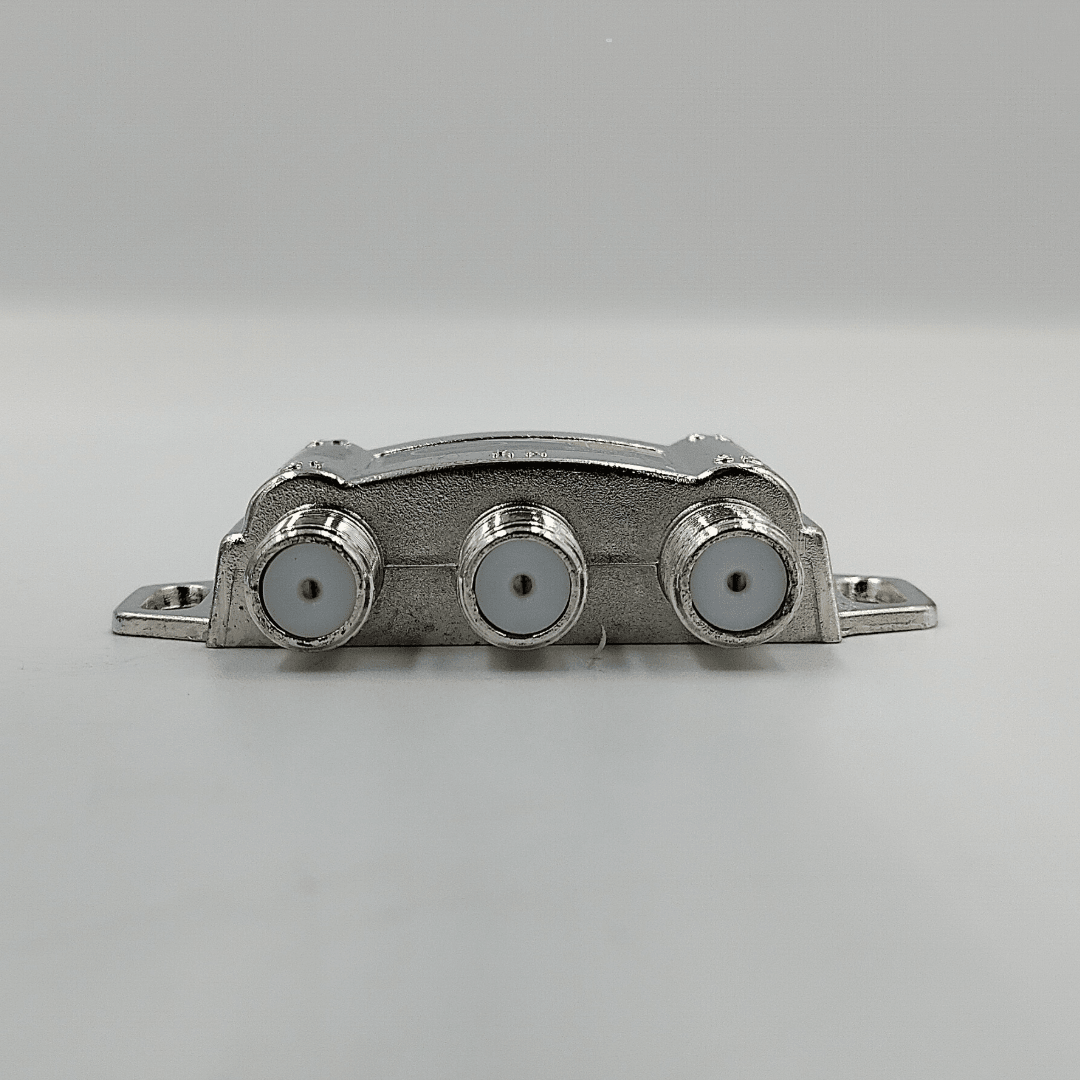

• Standard F-Type Connectors: Equipped with threaded F-type female connectors for secure, reliable coaxial cable termination.

Specifications

• Model Code: 001-M01-017
• Product Type: Satellite / Terrestrial Combiner Diplexer
• Satellite Frequency Range: 950 MHz – 2150 MHz
• Terrestrial Frequency Range: 5 MHz – 860 MHz

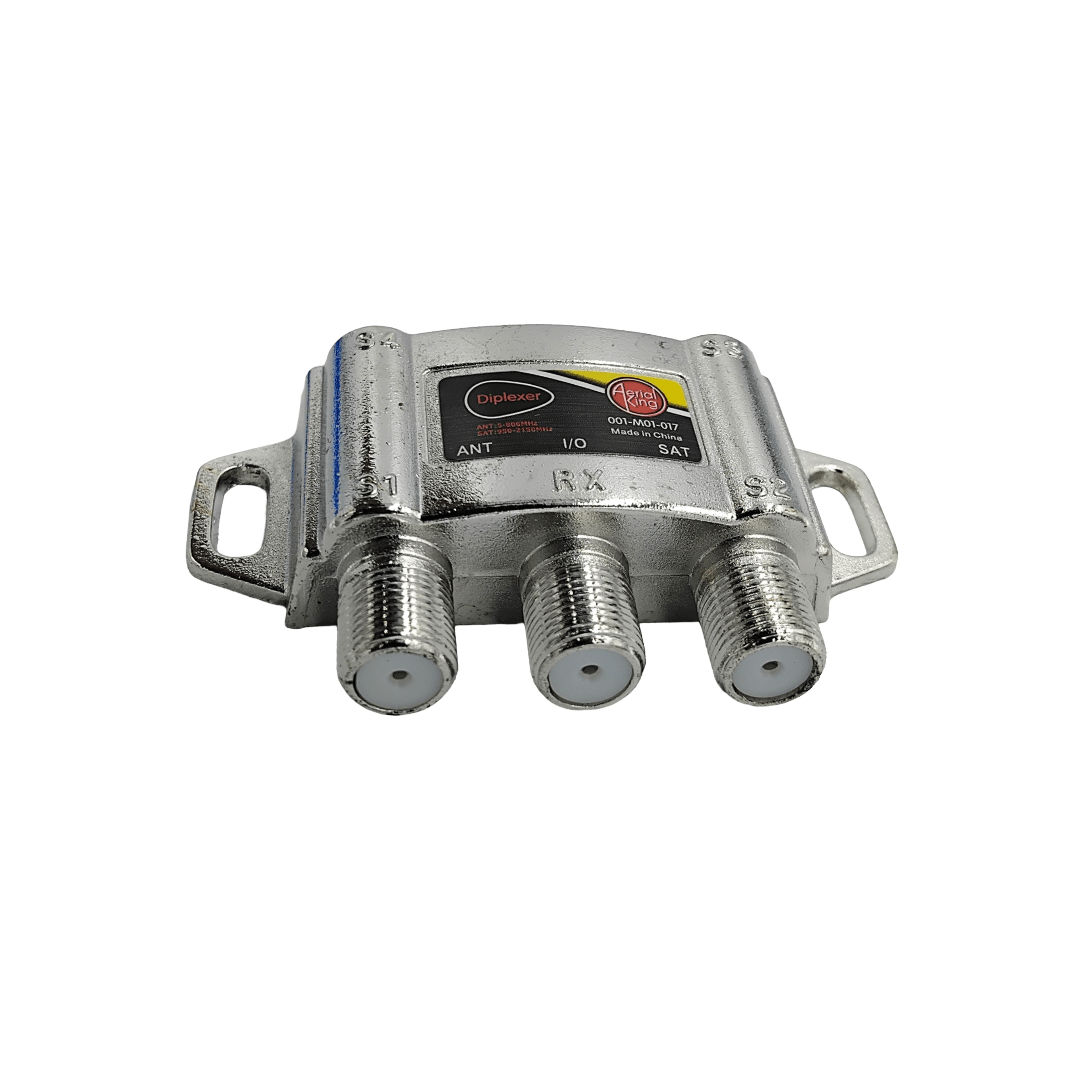

• Port Configuration: 1 x SAT Input, 1 x TV/ANT Input, 1 x I/O Combined Output
• Connector Type: Threaded Female F-Type Connectors
• Power Pass: DC Pass on Satellite Port (Max 24V / 500mA)
• Housing Material: Die-Cast Zinc / Metal Enclosure
• Weight & Dimensions: 5.8 cm x 5.0 cm x 1.8 cm | 0.08 kg

What's in the Box

• 1 x Aerial King 001-M01-017 Combiner Satellite/Terrestrial Diplexer
