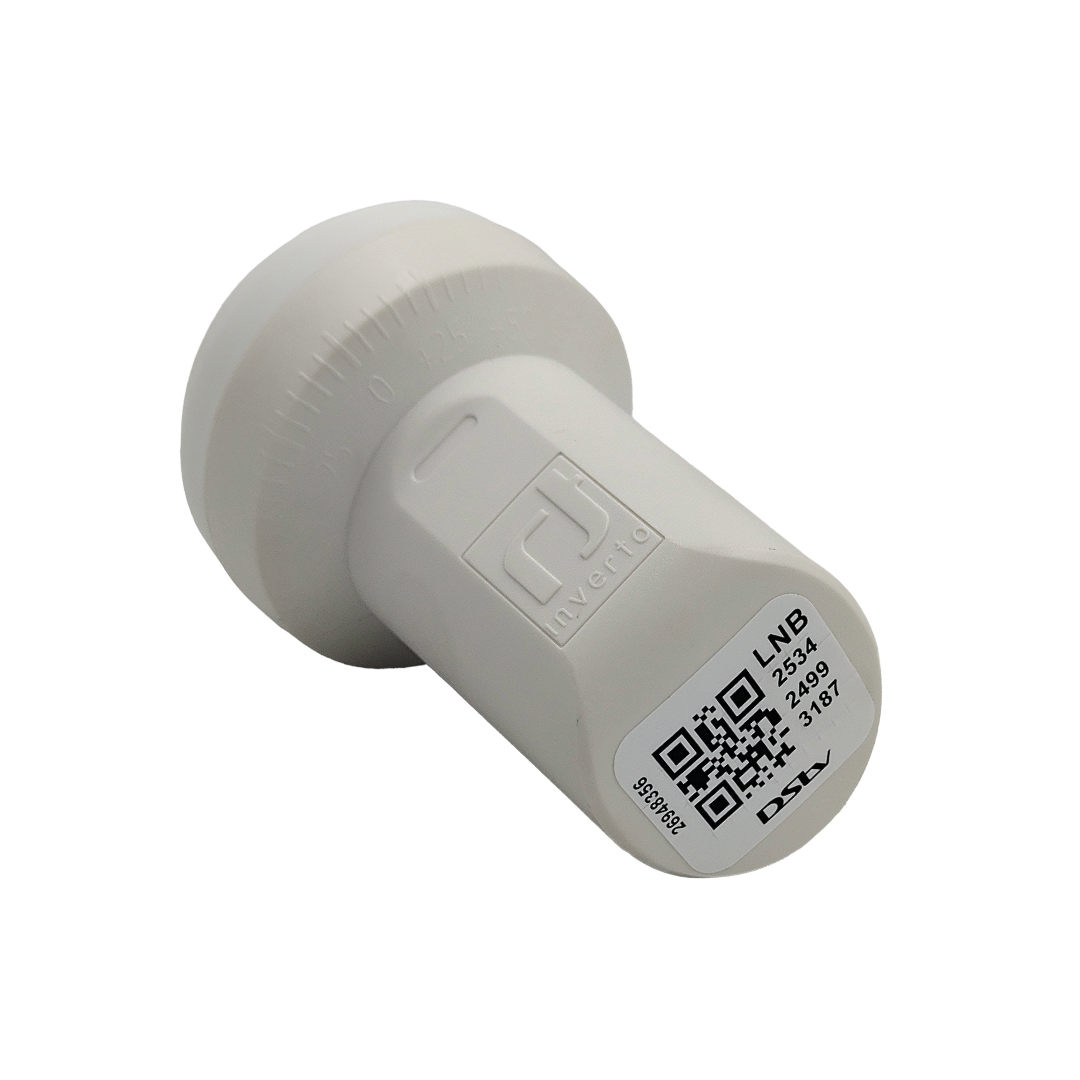

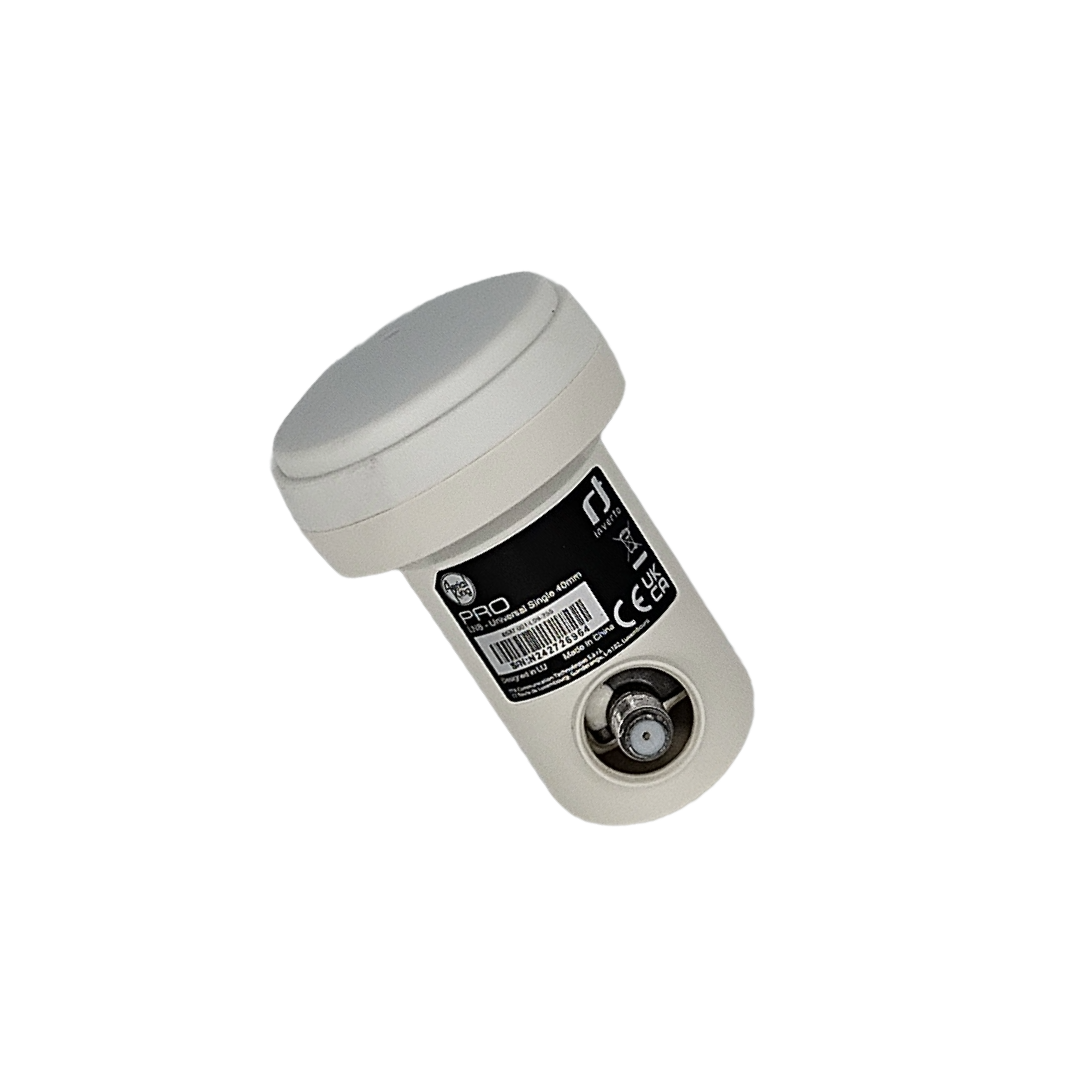

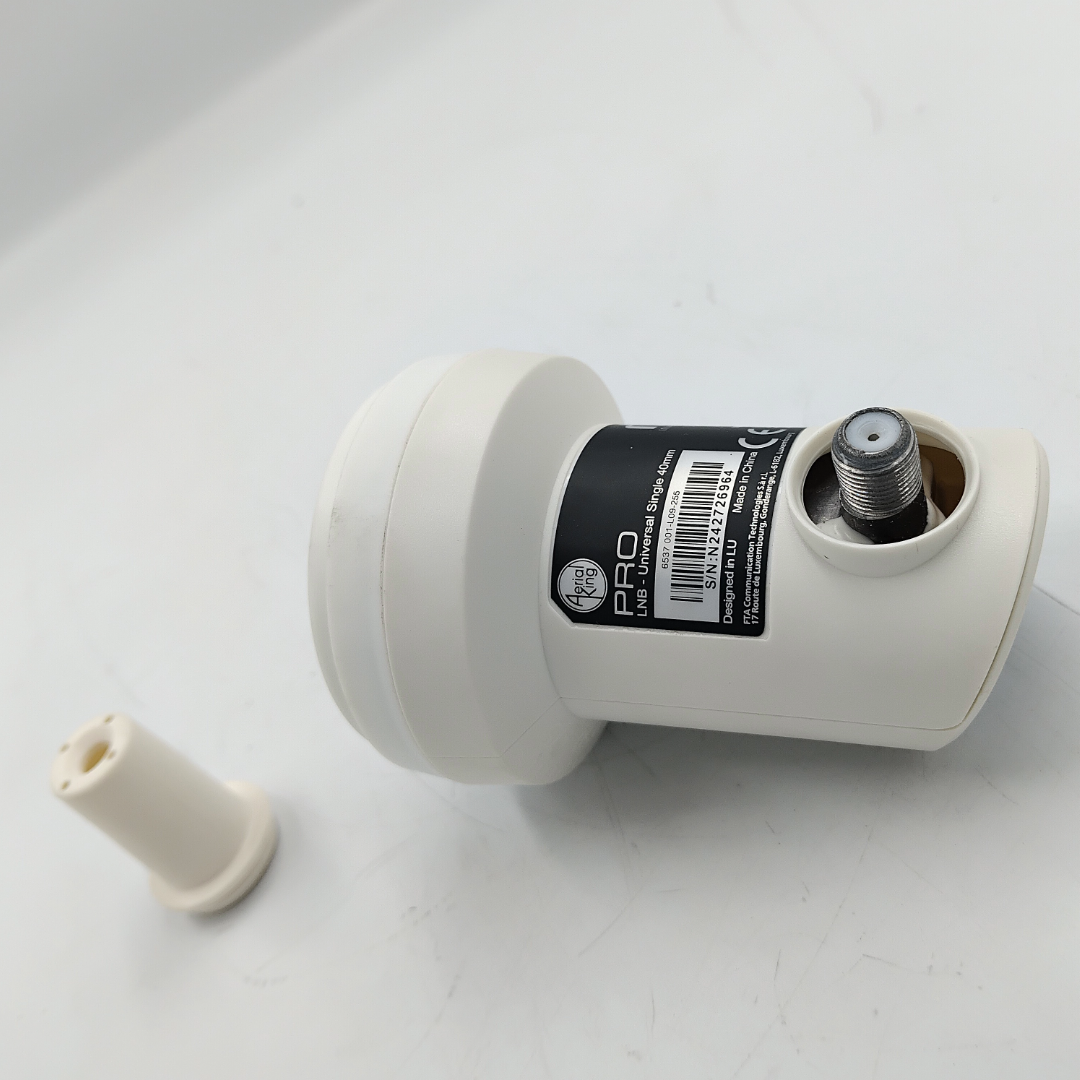

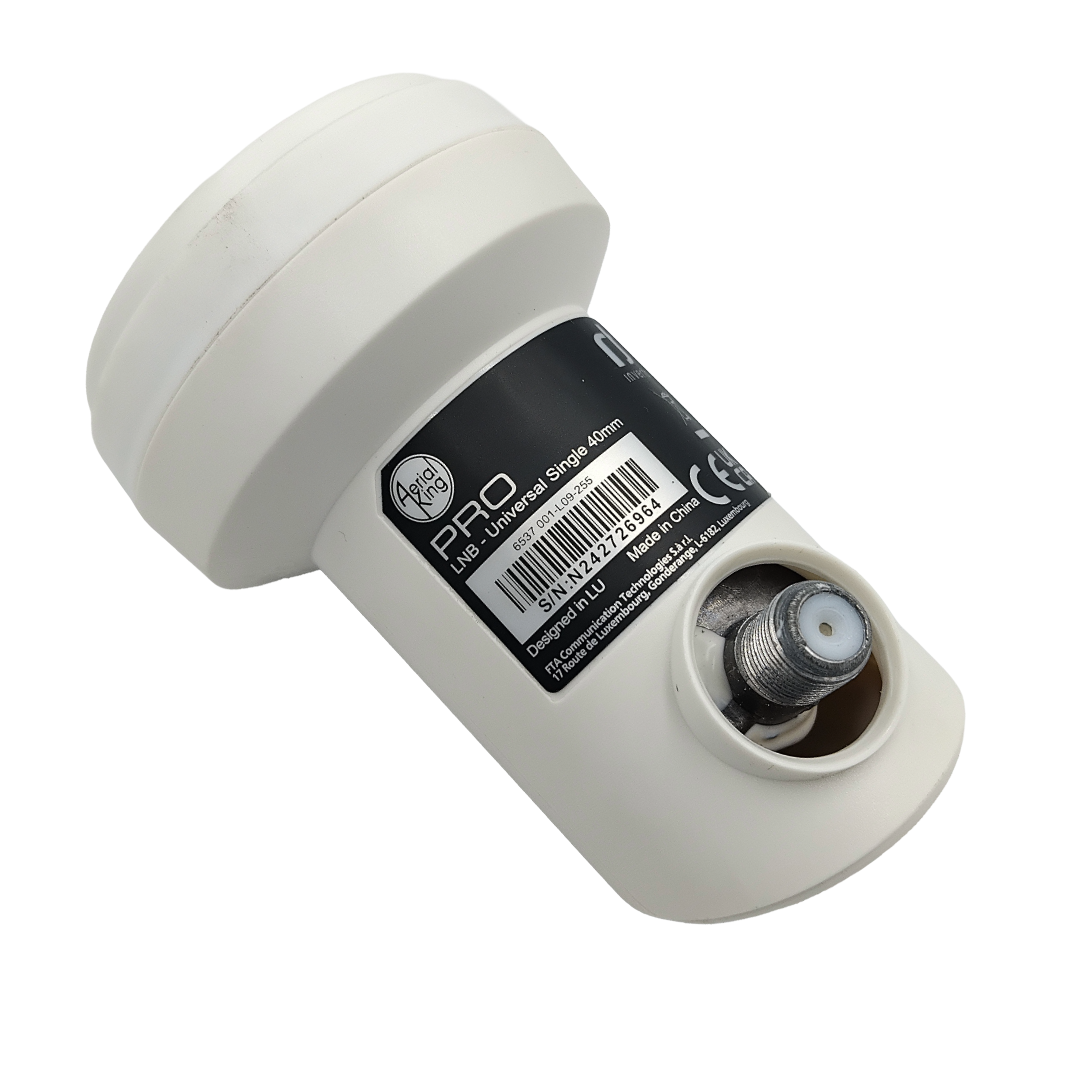

• Single-output universal Low-Noise Block Converter Feedhorn (LNBF) engineered for reception of Ku-band satellite television broadcasts.
• Captures high-frequency satellite signals from space, converting them into lower intermediate frequencies for standard decoder processing.
• Features ultra-low noise figure technology to deliver clear picture quality and signal stability, even during poor weather conditions.
• Housing built from durable, weather-resistant polymer designed to withstand harsh outdoor exposure, UV degradation, and moisture ingress.
• Compatible with single-tuner satellite decoders, including DSTV, OVHD (Openview HD), and other free-to-air satellite receivers.

Key Features

• Ku-Band Satellite Reception: Designed specifically to capture standard Ku-band satellite signals across horizontal and vertical polarizations.
• Low Noise Figure: Minimizes signal distortion and noise interference for maximized signal quality and link margin.
• Weatherproof Protective Casing: Rugged enclosure shields sensitive internal circuitry and feed horn from rain, dust, and direct sunlight.
• Standard 40mm Collar Neck: Fits all standard satellite dish LNB mounting brackets for quick and hassle-free installation.
• Direct Decoder Feed: Features a single female F-type connector port for direct coaxial connection to a single-tuner receiver.

Specifications

• Model Code: 001-L09-255
• Product Type: Universal Single LNBF (Ku-Band)
• Input Frequency Range: 10.70 GHz – 12.75 GHz
• Output Frequency Range: 950 MHz – 2150 MHz
• L.O. Frequency: 9.75 GHz / 10.60 GHz
• Noise Figure: 0.1 dB – 0.3 dB (Typical)
• Outputs: 1 x Single F-Type Connector Port
• Neck Diameter: Standard 40 mm
• Operating Voltage: 13V / 18V Switching (12/22 kHz Tone Pass)
• Weight & Dimensions: 12.0 cm x 6.0 cm x 6.0 cm

What's in the Box

• 1 x Aerial King 001-L09-255 Universal Single LNBF

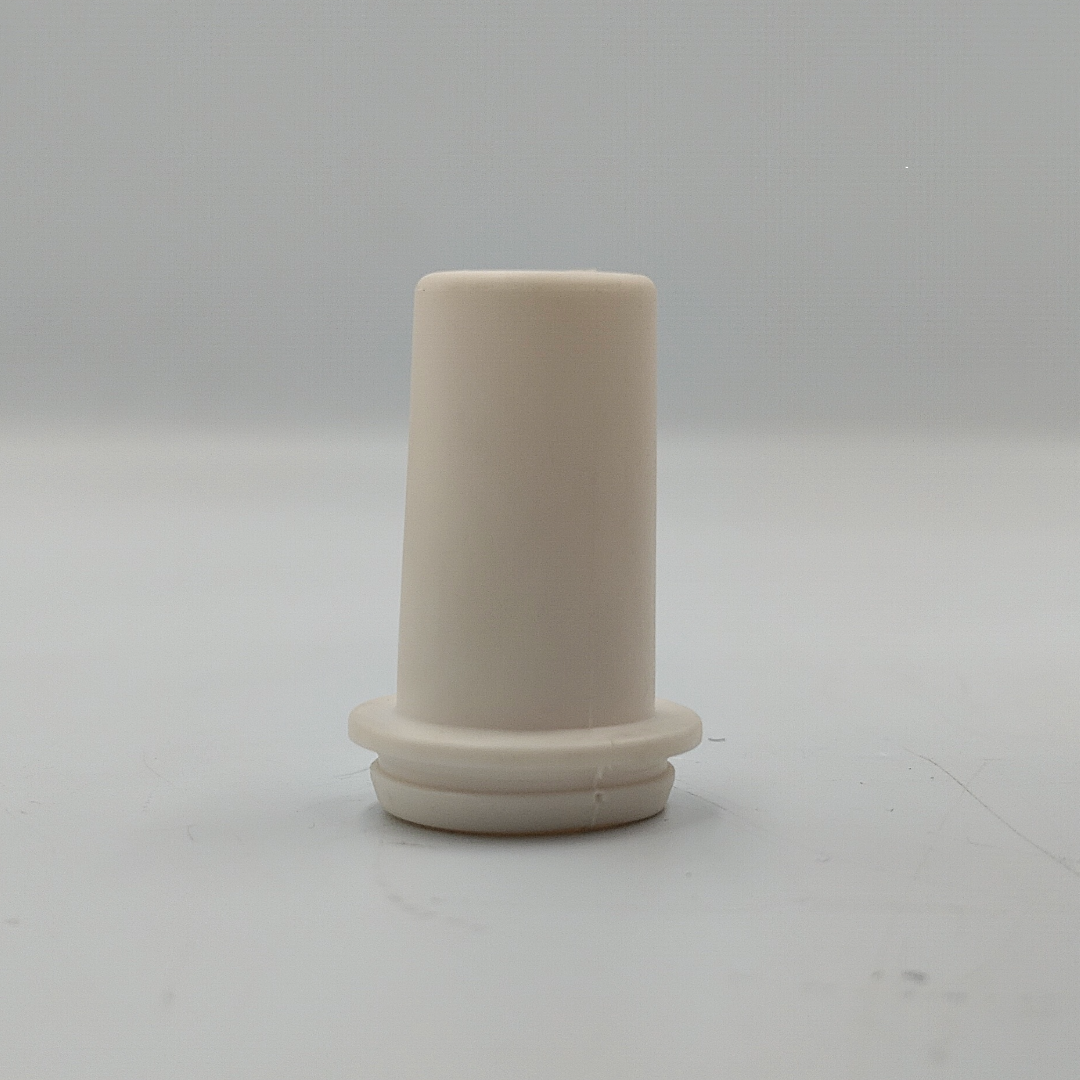

• 1 x Protective Cable Rubber Boot
