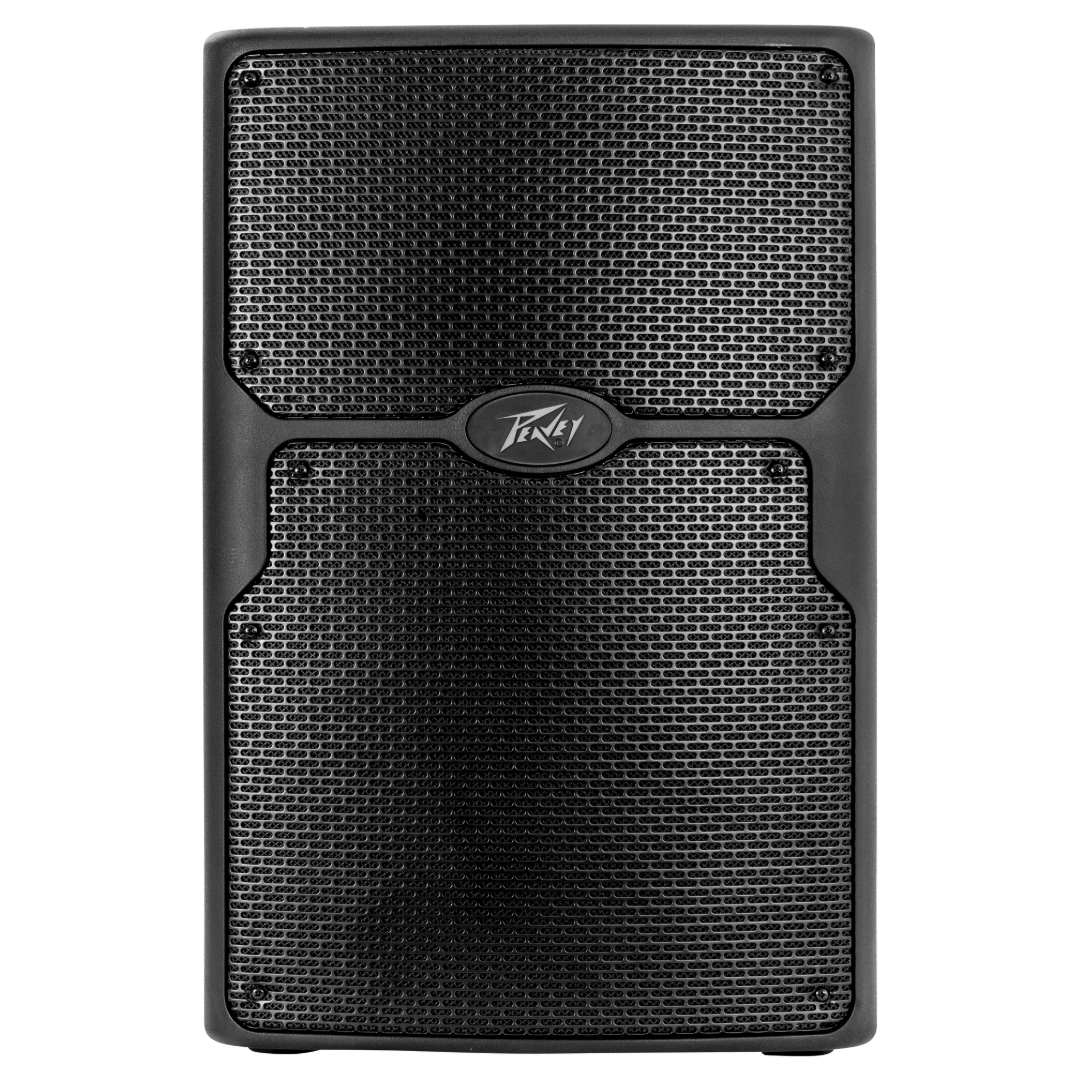

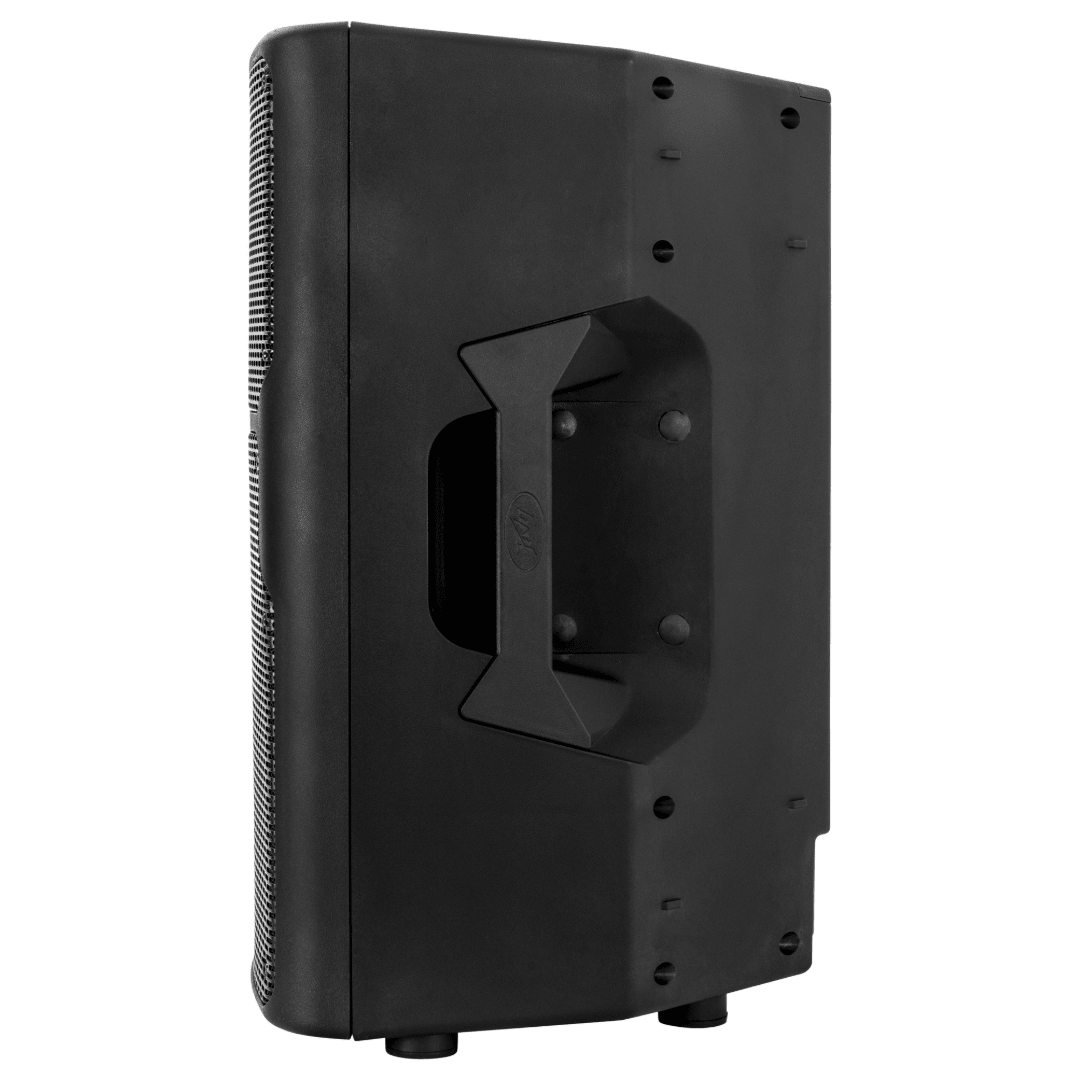

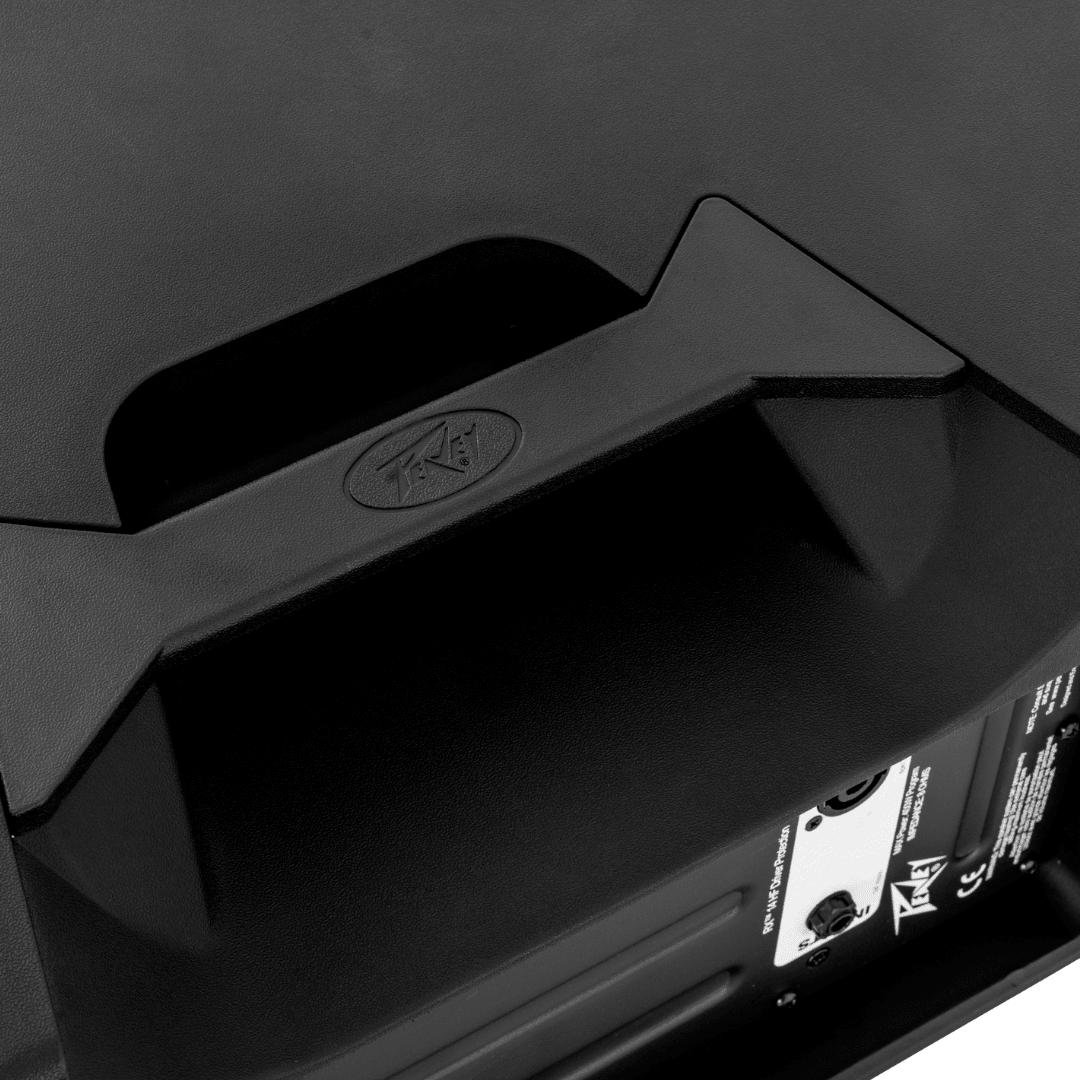

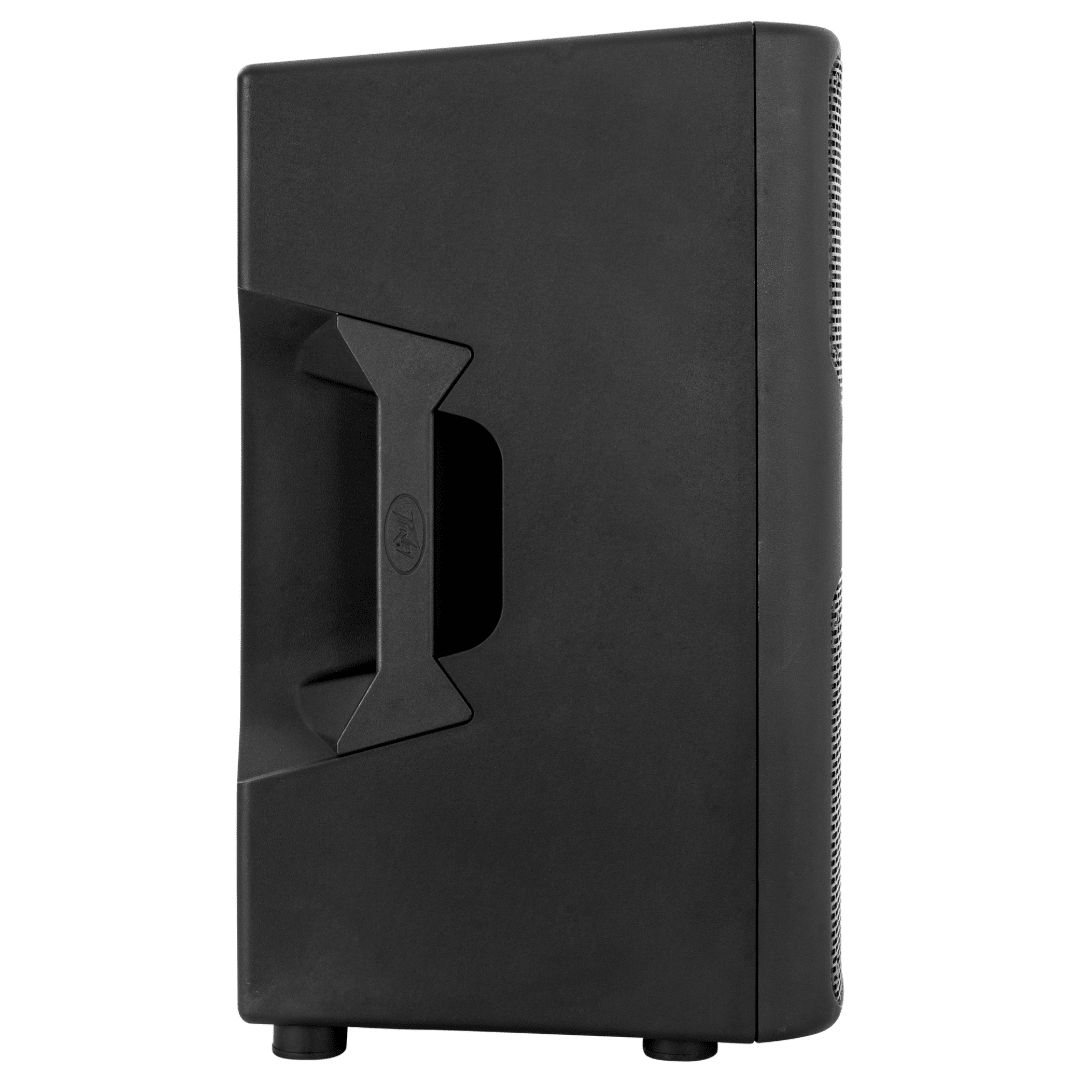

Peavey PVX 15 Passive Loudspeaker

R 6,999.00
Quantity:
Sku: 80500245
Visa Mastercard American Express Ozow MTN Mobile Money

  • The Peavey PVX 15 Passive Loudspeaker is a high-power, two-way sound reinforcement enclosure engineered to deliver premium full-range audio performance in a highly portable, lightweight layout.
  • Utilizing an 8-ohm voice coil configuration, this passive loudspeaker is built to efficiently handle 400 watts of program power and up to 800 watts at peak threshold.
  • This makes it an outstanding frontline PA choice for live music acts, mobile DJs, worship centers, and large corporate event spaces.
  • Constructed from a road-worthy, injection-molded ABS polypropylene trapezoidal cabinet, the PVX 15 provides extreme structural durability and excellent weather resistance.
  • The speaker features Peavey's patented Quadratic Throat Waveguide technology paired with an asymmetrical horn profile.
  • This advanced engineering focuses crisp, low-distortion high frequencies directly down toward the audience rather than reflecting off the ceiling, serving as an essential audio asset for demanding touring setups and fixed commercial installations.
Features
  • Patented Quadratic Throat Waveguide: Engineered with an industry-exclusive 100-degree horizontal by 50-degree vertical constant-directivity horn.
  • This optimized waveguide layout is perfectly suited for maintaining a smooth, linear high-frequency dispersion pattern while minimizing harmonic distortion across the venue.
  • Innovative Asymmetrical Horn Geometry: Designed with an integrated horn structure that tilts the primary acoustic energy downward by 10 degrees (+15 to -35 degrees).
  • This specialized target projection is ideal for focusing sound directly over seated or standing crowds, increasing voice clarity and maximizing gain before feedback.
  • Versatile Dual-Angle Trapezoidal Shell: Built with a specialized 45-degree angled facet along the right side of the rugged enclosure.
  • This flexible physical profile allows the cabinet to transition smoothly from a vertical main column layout into a high-output angled stage floor monitor, adapting to changing performance demands instantly.
  • Massive 15-Inch Low-Frequency Driver Array: Powered by a heavy-duty 15-inch low-frequency woofer with a 2-3/8 inch voice coil and a 50 oz magnet, crossed over into a 1.4-inch RX 14 titanium diaphragm compression driver.
  • This internal matrix is critical for throwing chest-pounding bass frequencies and highly articulate vocals, handling extreme volume levels without transducer clipping.

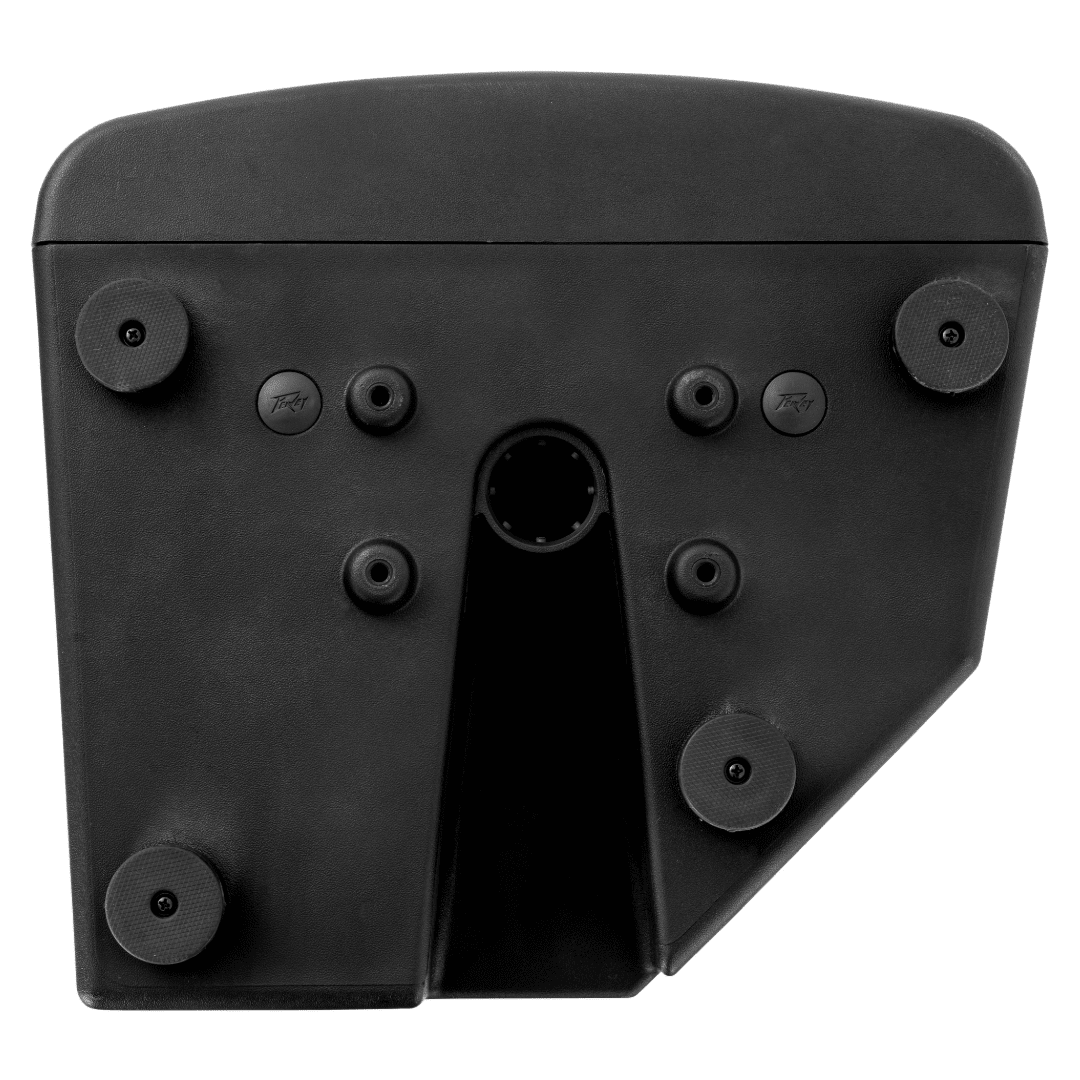

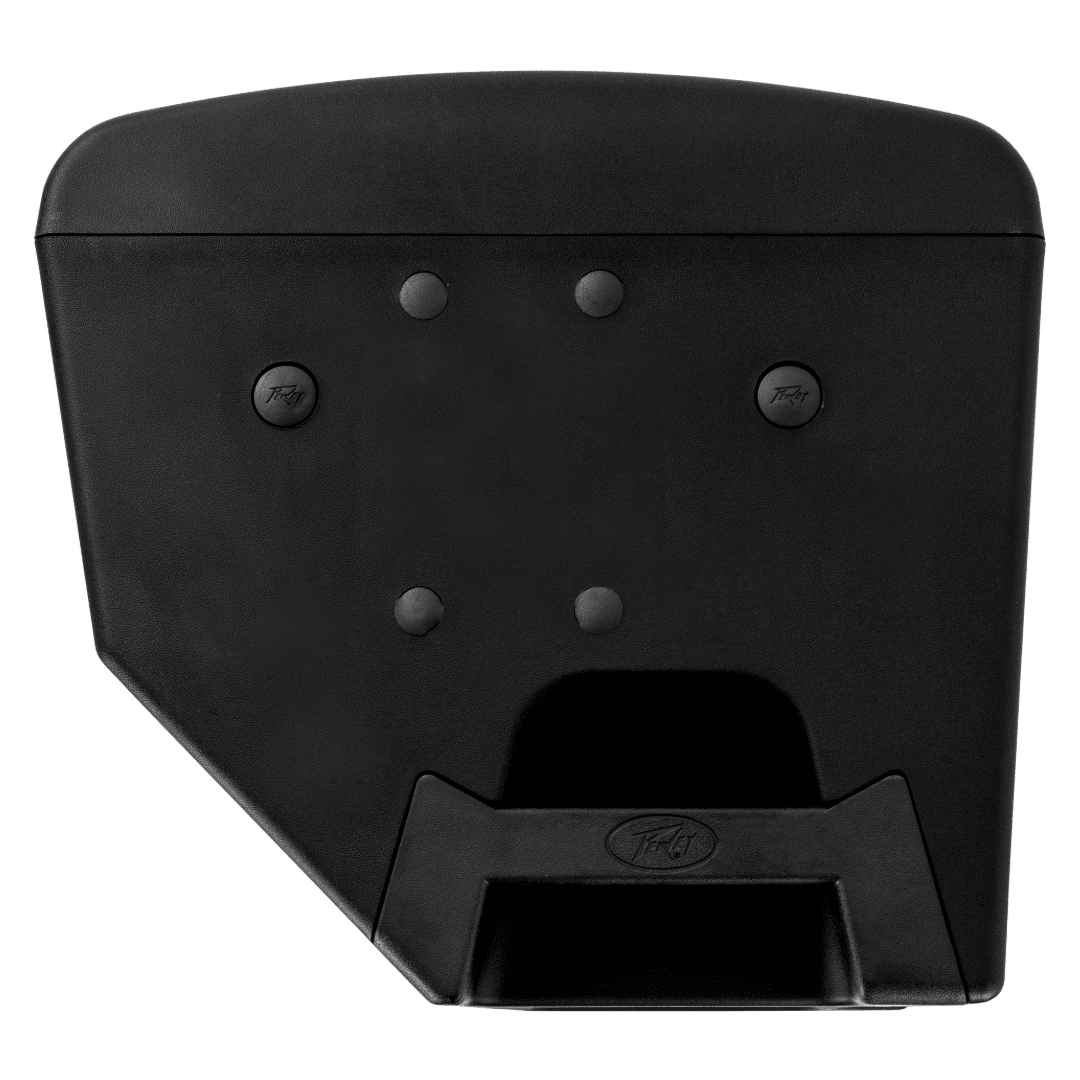

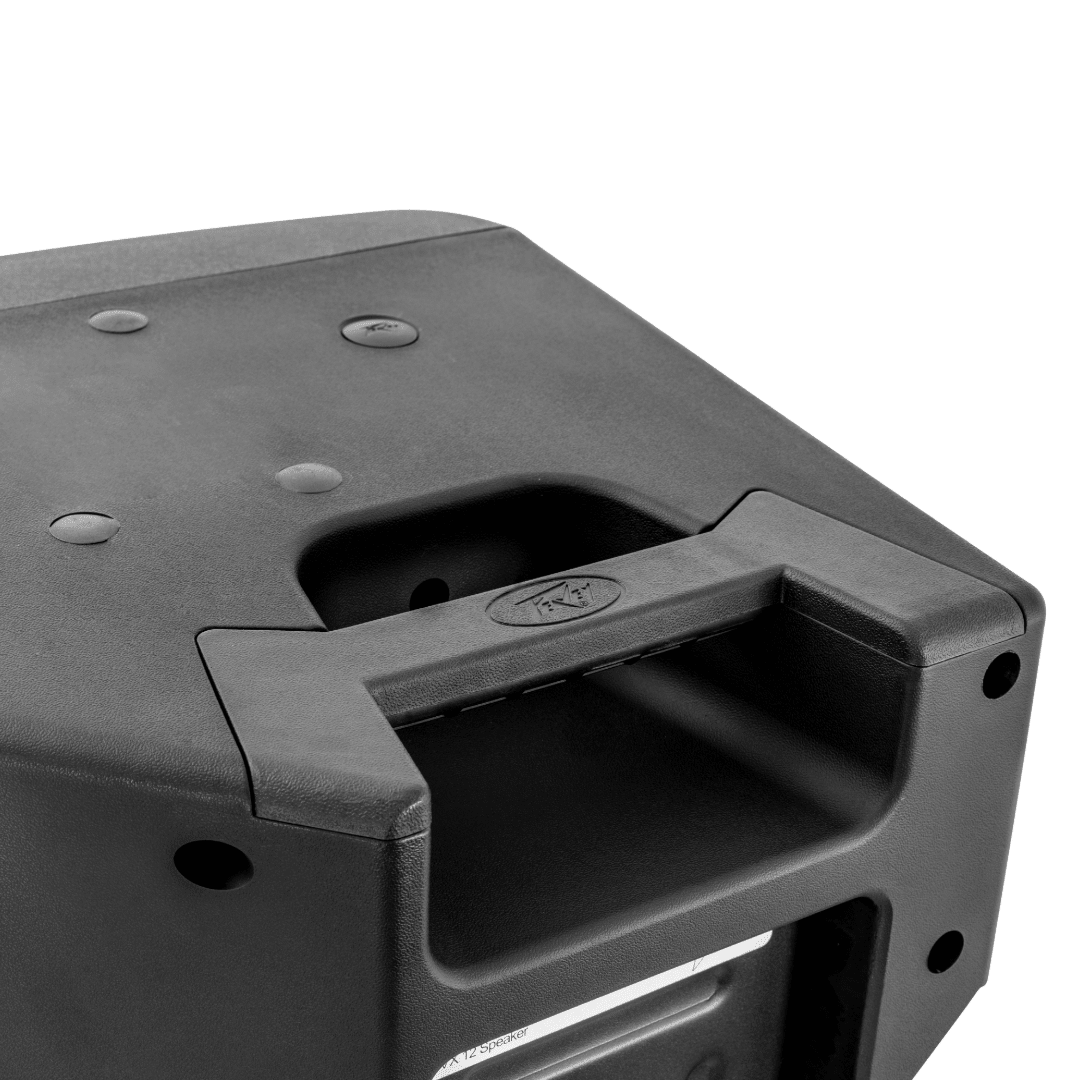

  • Comprehensive Modular Suspension Options: Outfitted with 4 x M10 flying point thread inserts, 3 x VersaMount 70 attachments, and a molded-in 1-3/8 inch speaker pole mount socket.
  • This heavy-duty rigging setup provides the definitive solution for structural installation projects, allowing production crews to fly the speakers vertically or horizontally with absolute safety.
Specifications
  • Component Type: 2-Way Non-Powered Sound Reinforcement Loudspeaker
  • Low-Frequency Driver: 15" Heavy-Duty Woofer with 2-3/8" Voice Coil & 50 oz Magnet
  • High-Frequency Driver: RX 14 1.4-Inch Titanium Diaphragm Dynamic Compression Driver
  • Nominal System Impedance: 8 Ohms
  • Power Handling Capacity: 200 Watts Continuous (RMS) / 400 Watts Program / 800 Watts Peak
  • Frequency Response: 57Hz - 20kHz (+/- 3 dB)
  • Frequency Range: 45Hz - 21kHz (-10 dB point in half-space)
  • System Sensitivity (1W/1m): 97 dB SPL
  • Maximum Output Capability: 120 dB SPL Continuous / 126 dB SPL Peak
  • Nominal Coverage Angle: 100° Horizontal × 50° Vertical
  • Crossover Frequency: 2.6 kHz (Internal passive network with driver protection EQ)

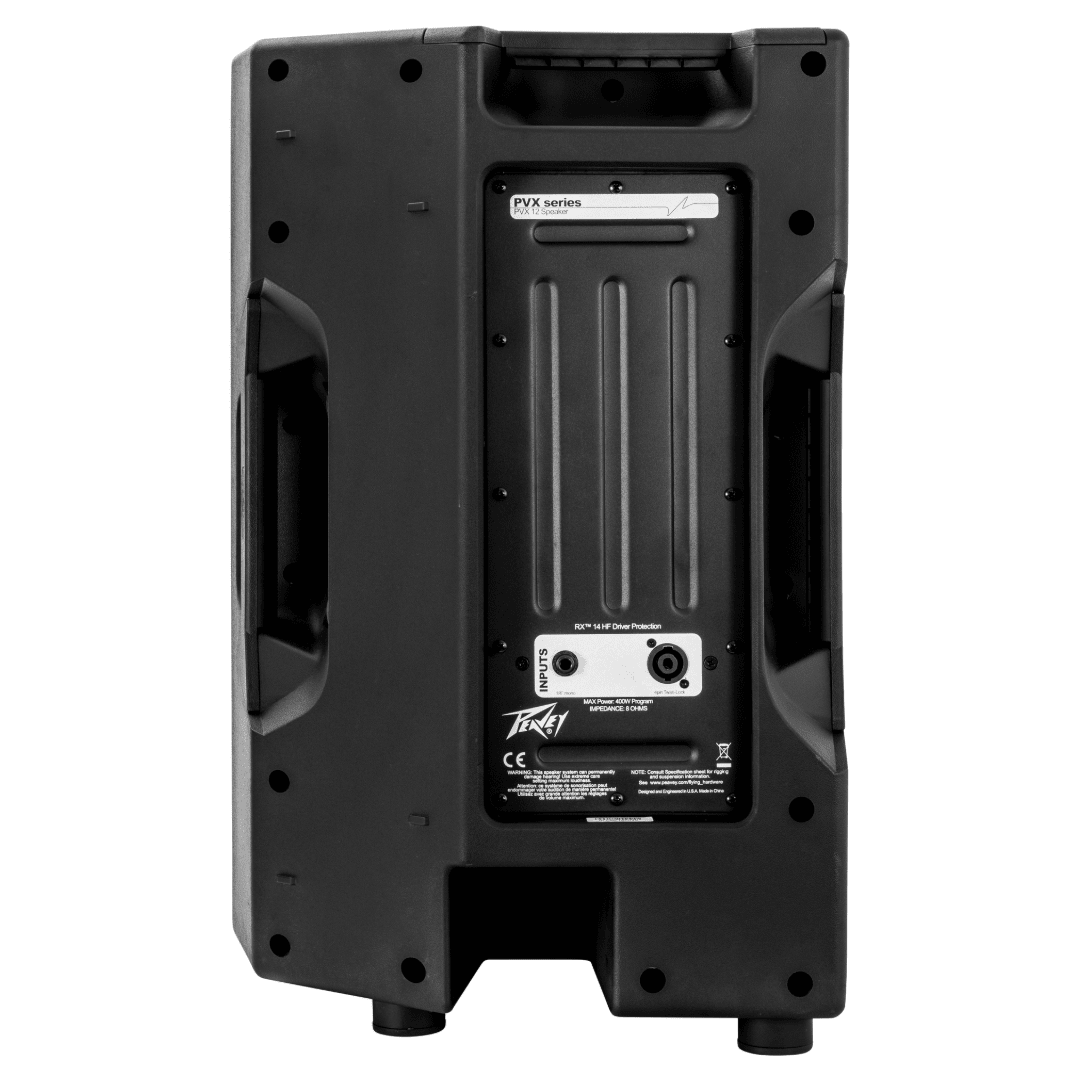

  • Input Interface Panel: 1 × 4-Pin Twist-Lock Connector & 1 × 1/4" Phone Jack (Parallel Wired)
  • Enclosure Material: Textured Black Molded Polypropylene Injection Casing

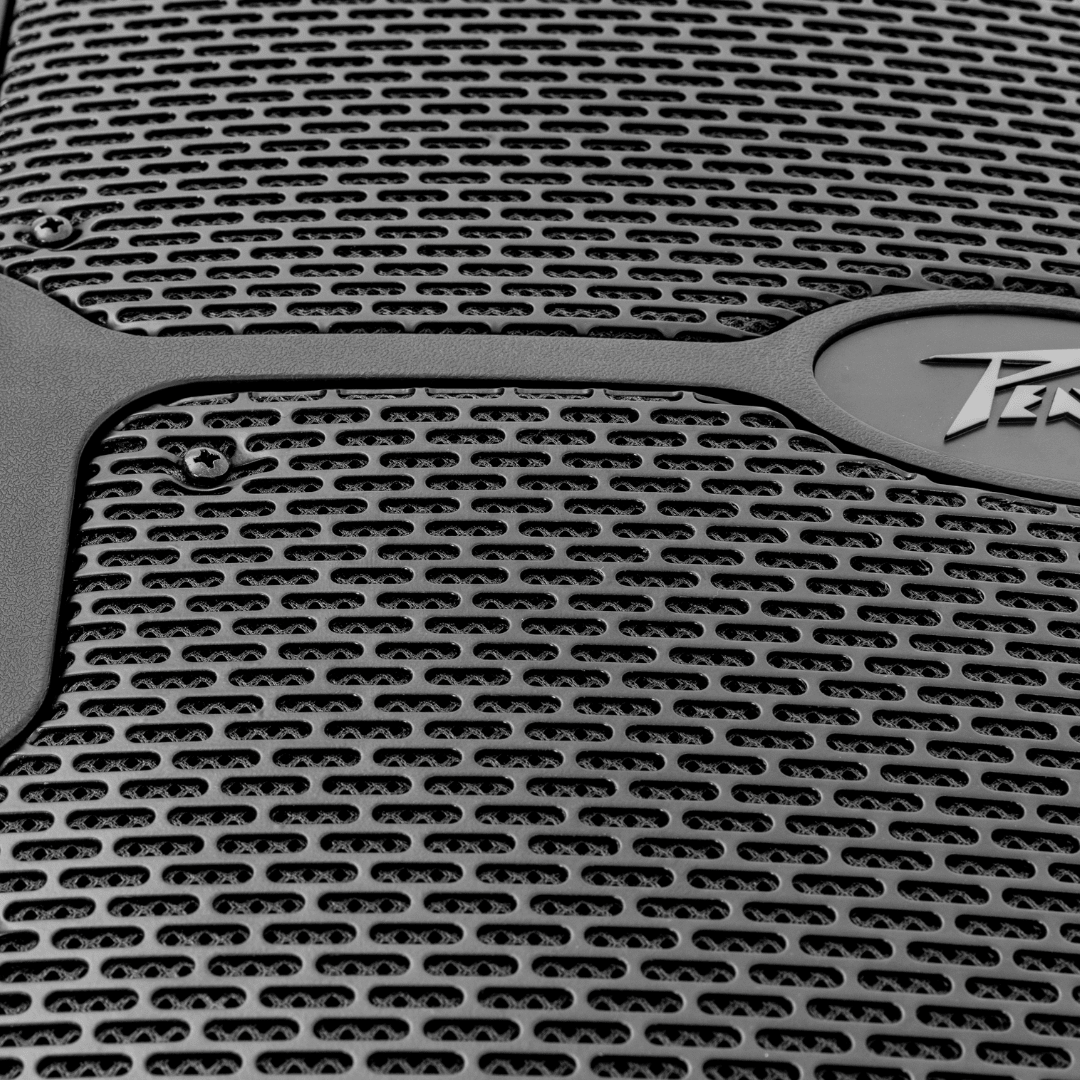

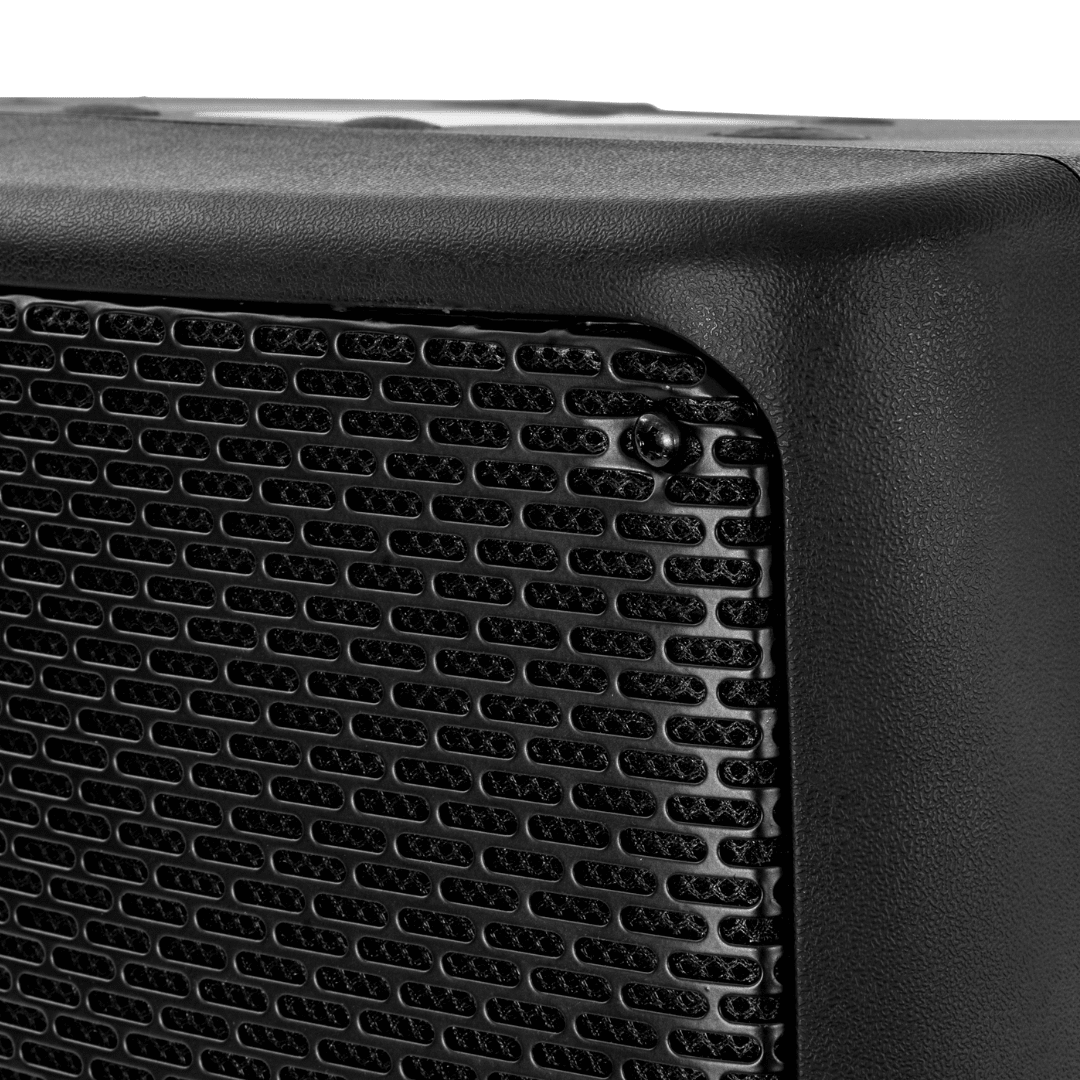

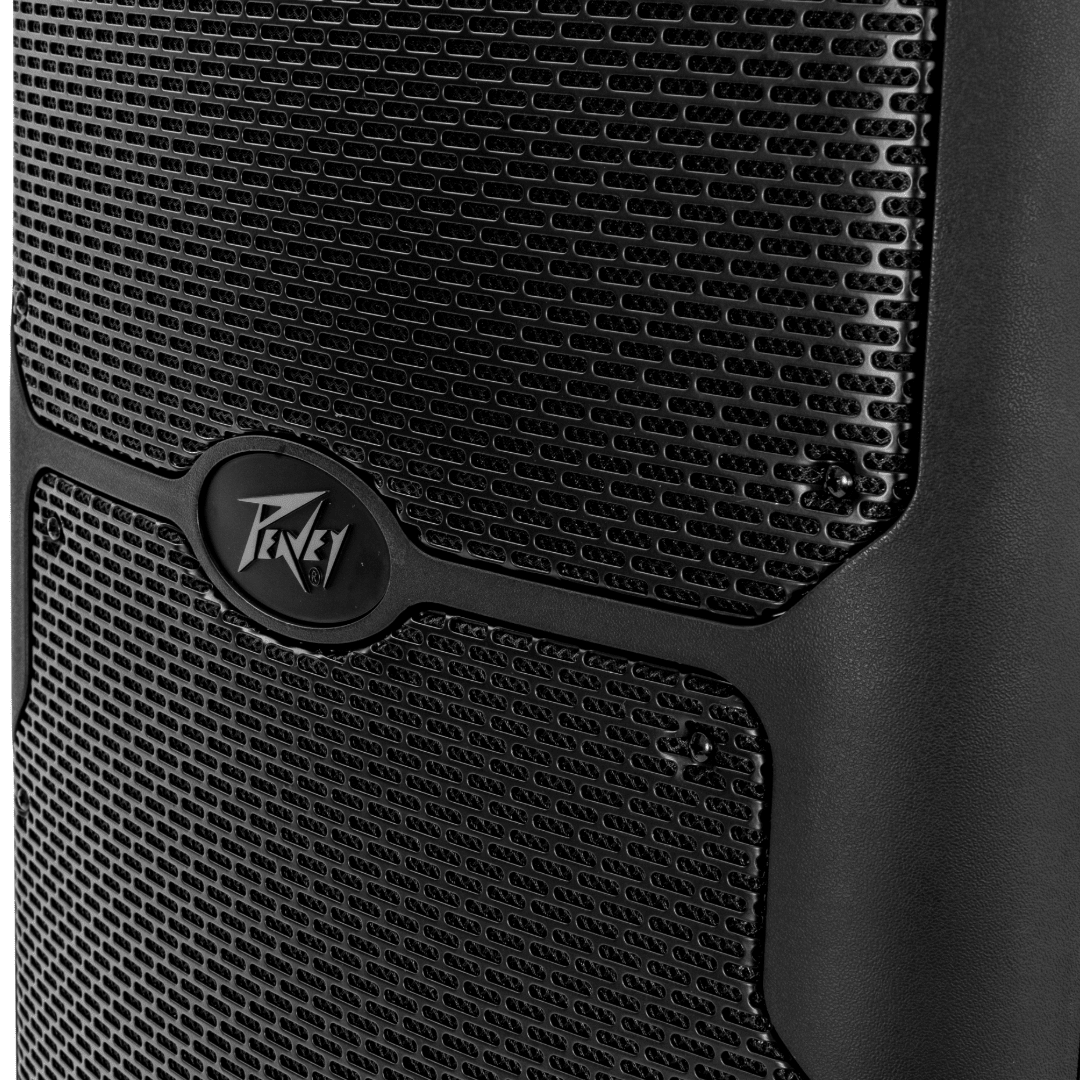

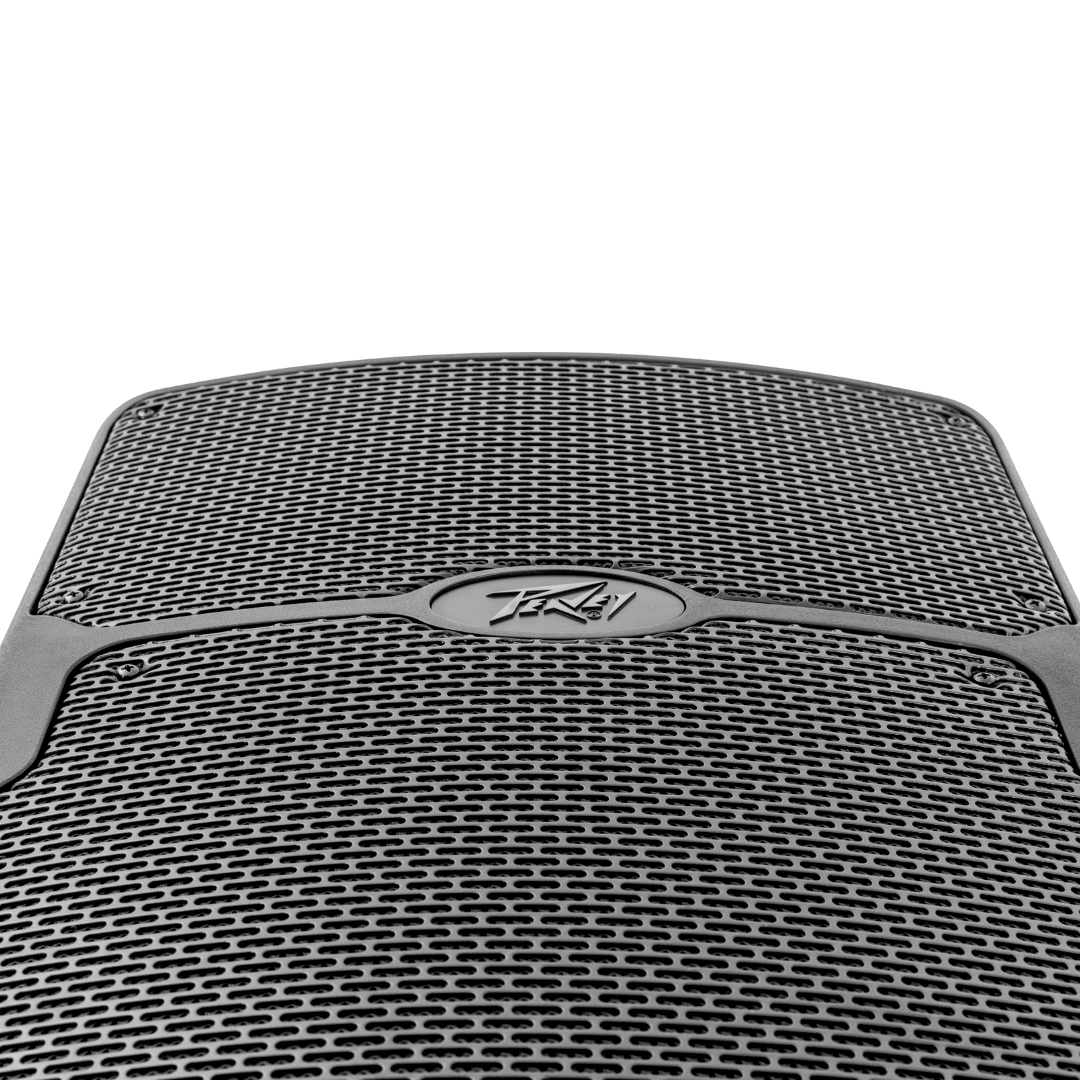

  • Grille Profile: Full-Coverage Powder-Coated Perforated Steel with Weather-Resistant Foam Cloth Lining
  • Physical Outline Dimensions: 28.25" (H) × 18.90" (W) × 18.71" (D)
  • Net Product Weight: 47.0 lbs (21.4 kg)
  • Primary Application: High-Volume Portable PA Mains, Side-Fills, Floor Monitors, or Suspended Commercial Arrays
What’s in the Box
  • 1 × Peavey PVX 15 Passive Two-Way Loudspeaker Enclosure
  • 1 × Comprehensive User Setup and Rigging Safety Manual
Vendor Peavy
Type Cabinet Speakers
Sku 80500245
Barcode 0014367671933
Weight:  22.2 kg
