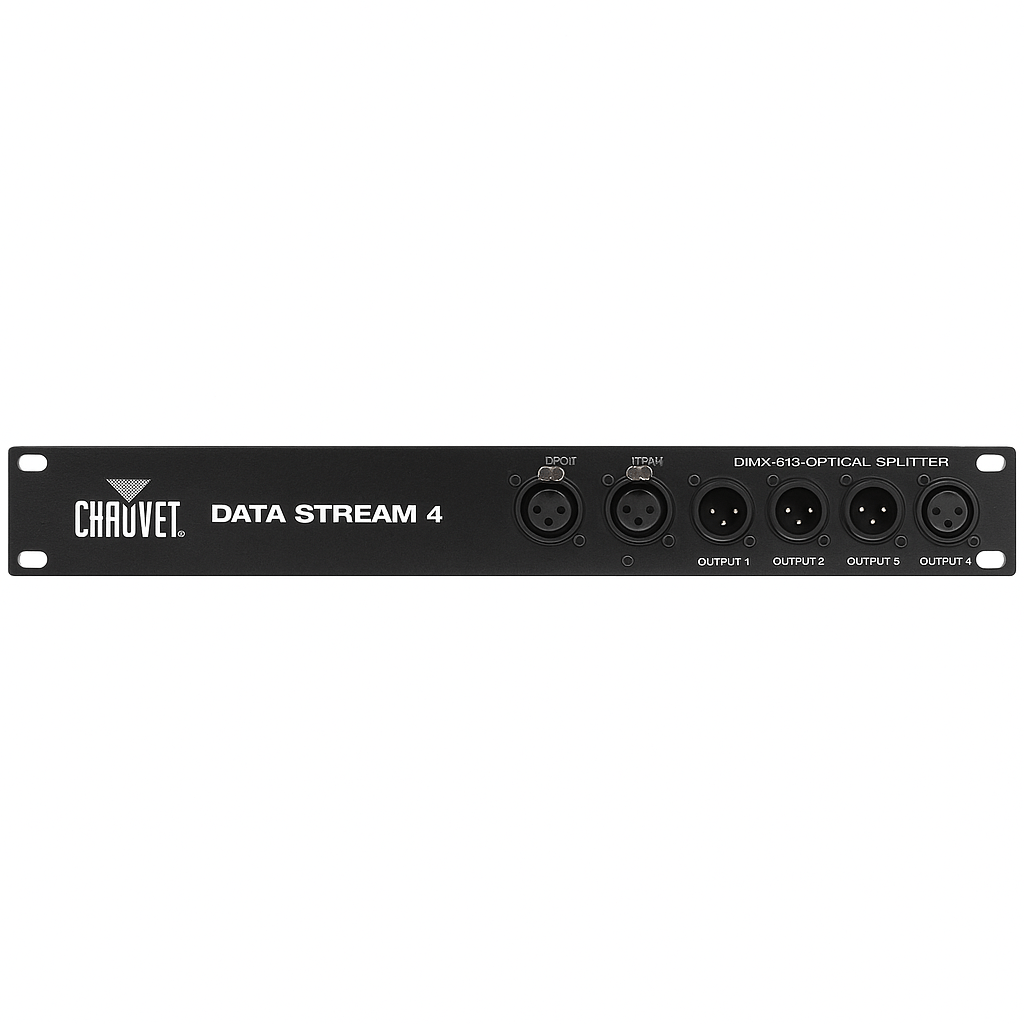

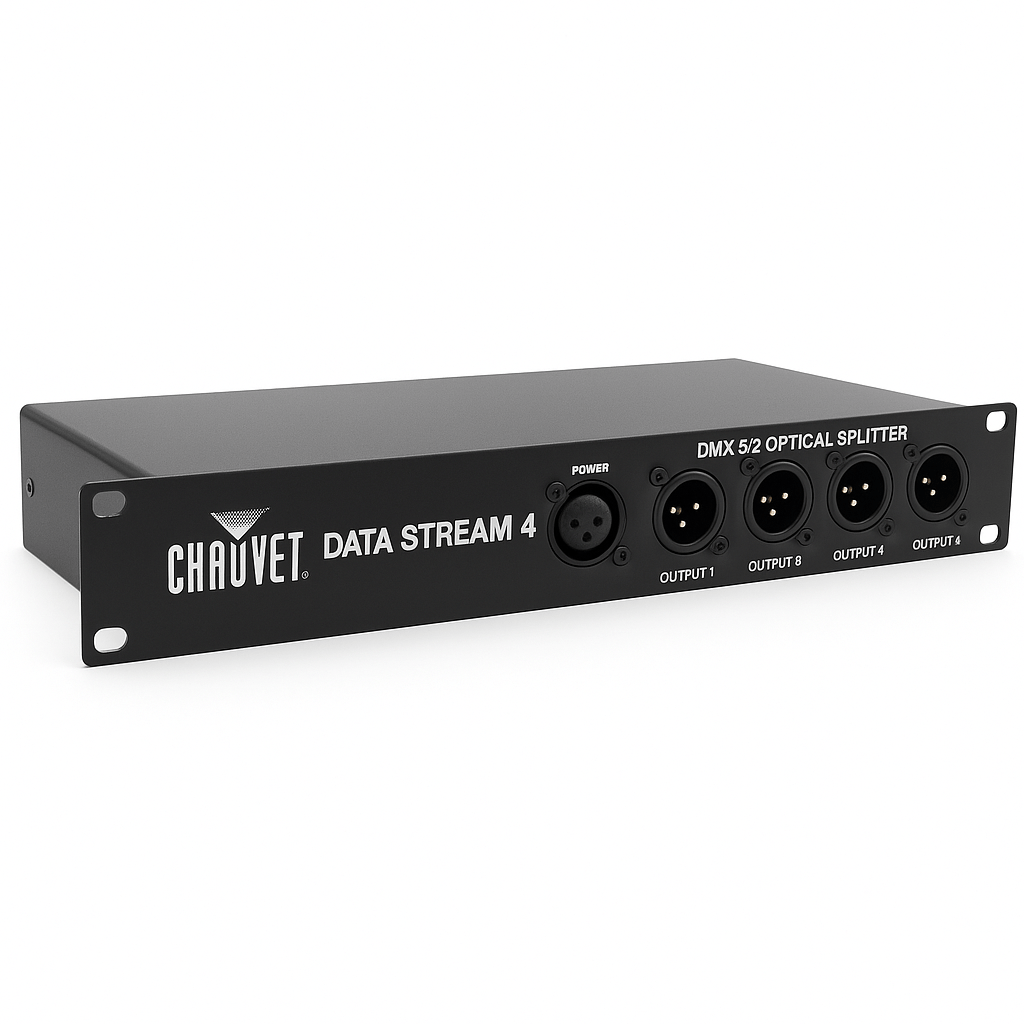

• Universal optical DMX-512 splitter designed to distribute a single DMX signal into four isolated outputs.
• One input, four output channels plus an additional “thru/link” port for chaining units.
• 1U rack-mount format, ideal for professional DJ, live sound, and lighting installations.
• Supports both 3-pin and 5-pin XLR DMX connectors on inputs and outputs for full compatibility.

Features

• Distributes one DMX signal to four independent, optically isolated outputs.
• Includes an extra “thru/link” port to connect or cascade multiple units.
• Equipped with both 3-pin and 5-pin XLR connectors on all ports for maximum flexibility.
• Electrical isolation between input and each output prevents ground loops and signal interference.
• Compact 19″ rack-mount design (1U height) — perfect for portable or fixed installations.
• Auto-ranging power input (100–240 VAC, 50/60 Hz) for worldwide operation.
• LED indicators show power and signal status for easy monitoring.

Specifications

• Input Voltage: 100–240 VAC, 50/60 Hz (auto-ranging)
• Power Consumption: 3 W (120 V) / 5 W (230 V)
• Current Draw: 0.1 A typical
• Connectors: 3-pin and 5-pin XLR (input, 4 × outputs, and thru)
• Outputs: 4 isolated DMX outputs + 1 thru link
• Isolation: Optical and electrical isolation between input and each output
• Mounting: Standard 19″ rack mount (1U)
• Dimensions: 483 × 134 × 46 mm (19″ × 5.3″ × 1.8″)
• Weight: 2.6 kg (5.8 lb)
• Power Cord: Included
• Warranty: 2 years (manufacturer)
• Approvals: CE certified

What's in the box

• 1 x Chauvet DJ Data Stream 4 unit
• 1 x Power cord
• 1 x User manual
• Warranty card
