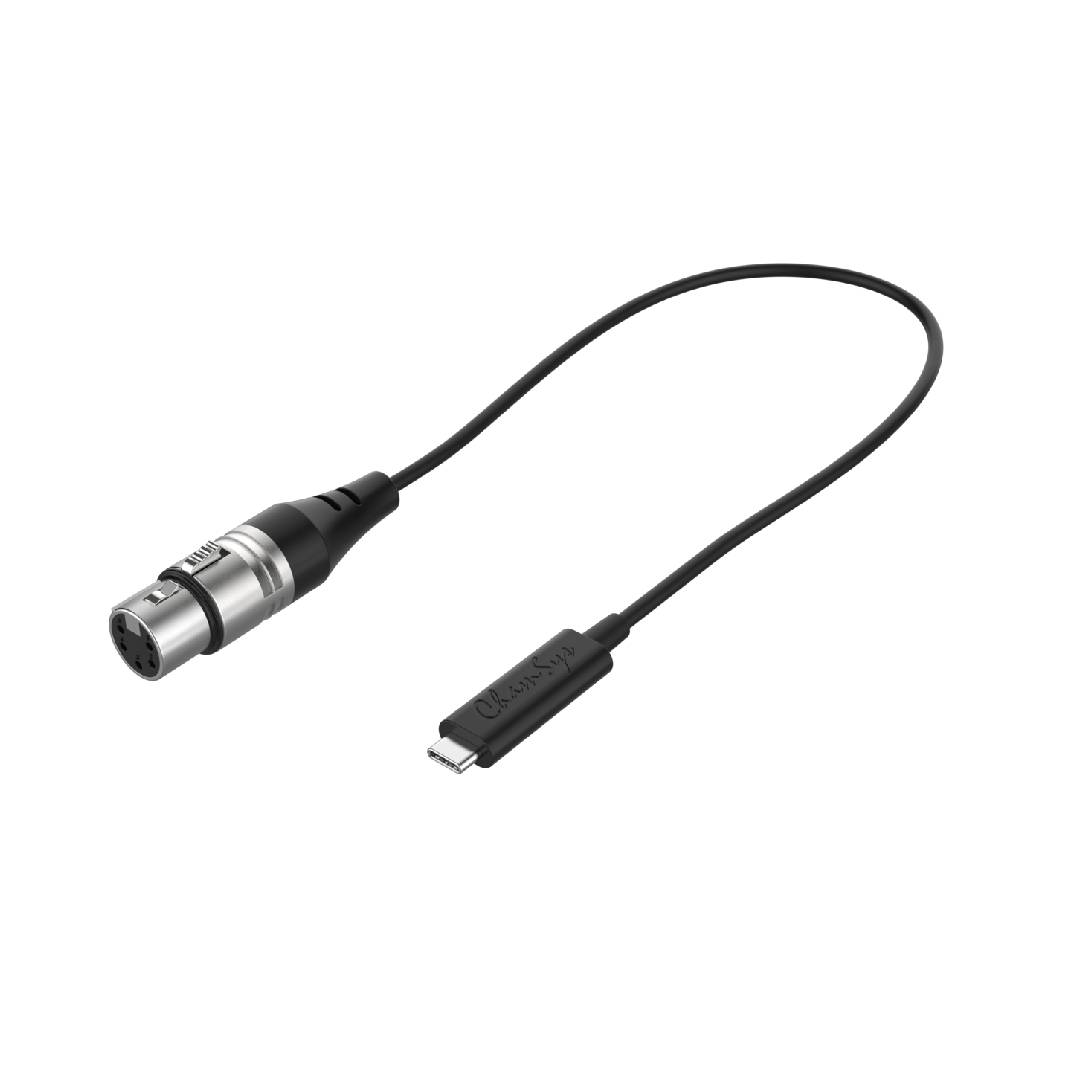

• Professional USB-to-DMX interface for controlling lighting fixtures via MagicQ software.
• Connects directly to a computer using USB-C (adapter to USB-A often included).
• Provides one full DMX universe for both DMX output and input.
• Supports RDM (Remote Device Management) for compatible fixtures.
• Designed for continuous operation — no time limits or restrictions.
• Ideal for lighting engineers, DJs, event setups, and small installations.

Features

• Single-universe DMX interface (512 channels).
• DMX 5-pin female XLR connector.
• USB-C connection (plug-and-play operation).
• RDM communication support.
• LED status indicator for power and signal.
• Compact, lightweight, and portable design.
• Works seamlessly with MagicQ software (Windows, macOS, Linux).
• Continuous, unrestricted use (no demo-mode timeout).
• Basic electrical protection for connected equipment.
• Compatible with 5-pin to 3-pin DMX adapters for broader fixture compatibility.

Specifications

• Hardware:
  • DMX Ports: 1 × 5-pin female XLR
  • USB Port: 1 × USB-C (USB-A adapter may be included)
  • RDM Support: Yes
  • Time Limit: None
  • LED Indicator: Yes
  • Dimensions: 135 mm × 93 mm × 38 mm
  • Weight: 0.1 kg (approx.)
  • Country of Origin: United Kingdom / China (depending on batch)
• Software / Functional:
  • Supported Software: MagicQ (Windows, macOS, Linux)
  • Universes Supported (software): Up to 64
  • Channels Supported: Up to 32,768
  • Fixtures: Up to 32,768
  • Cues: 5,000
  • Cue Stacks: 2,000
  • Palettes: 4,096
  • Groups: 5,000
  • Media Server Support: Up to 50 content types

What's in the box

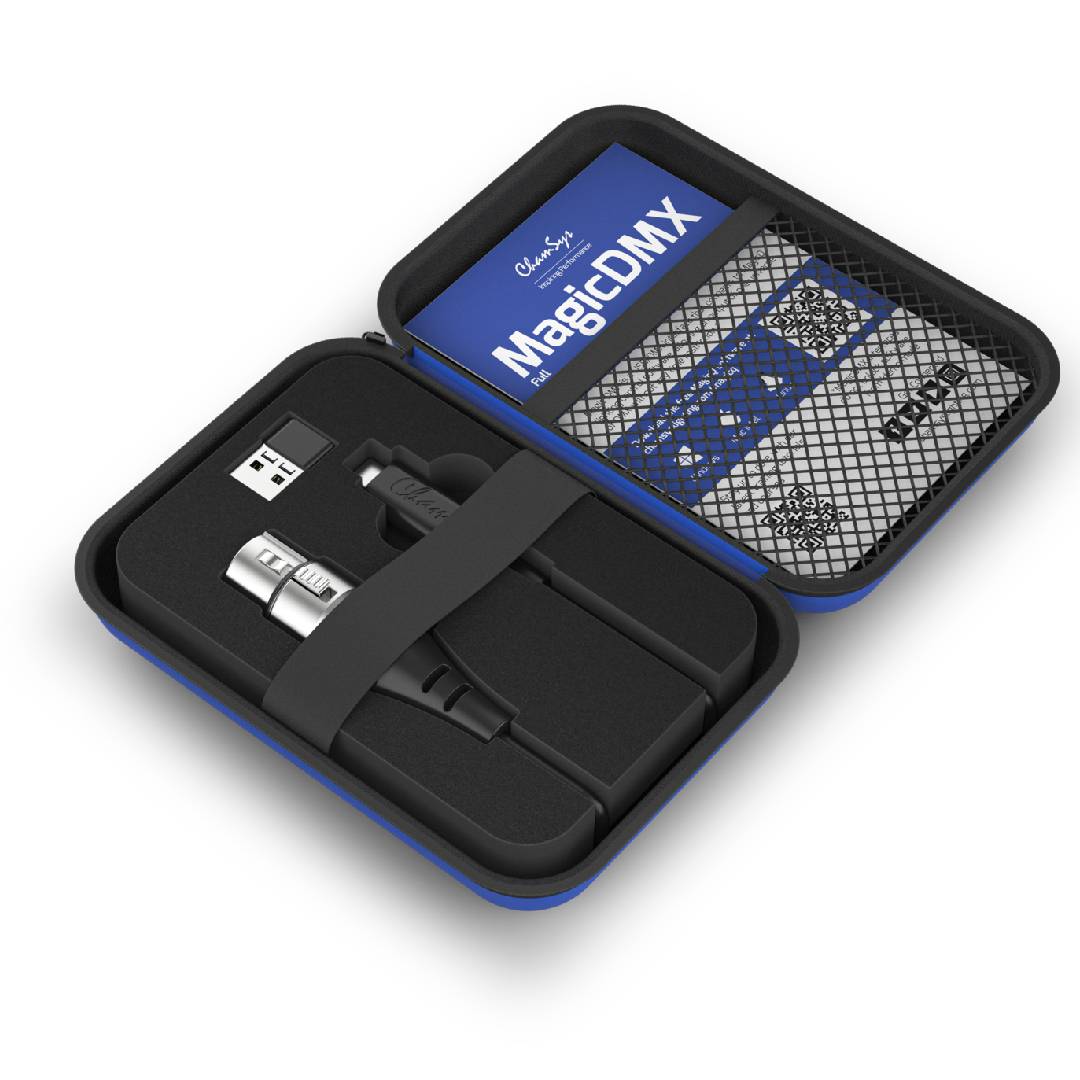

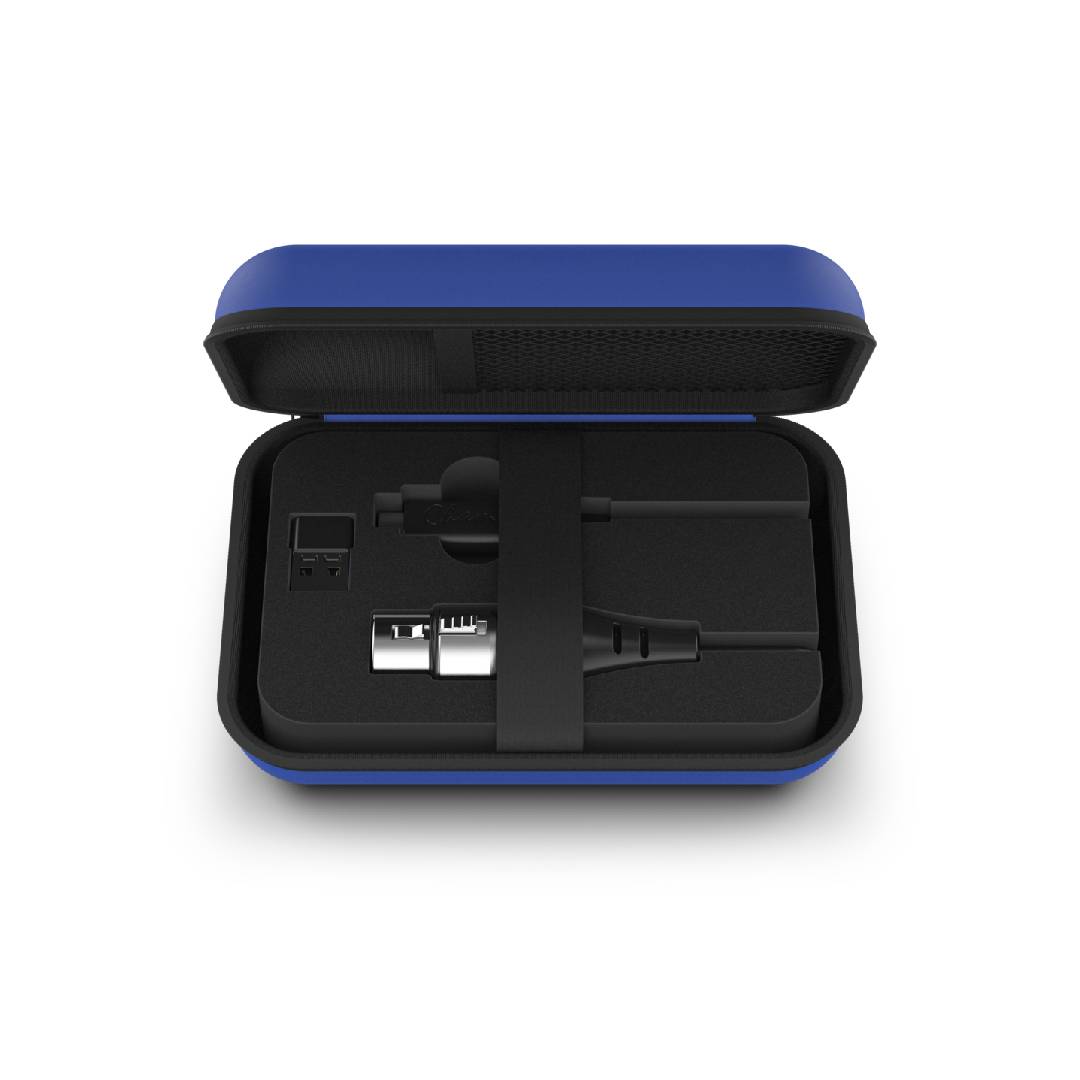

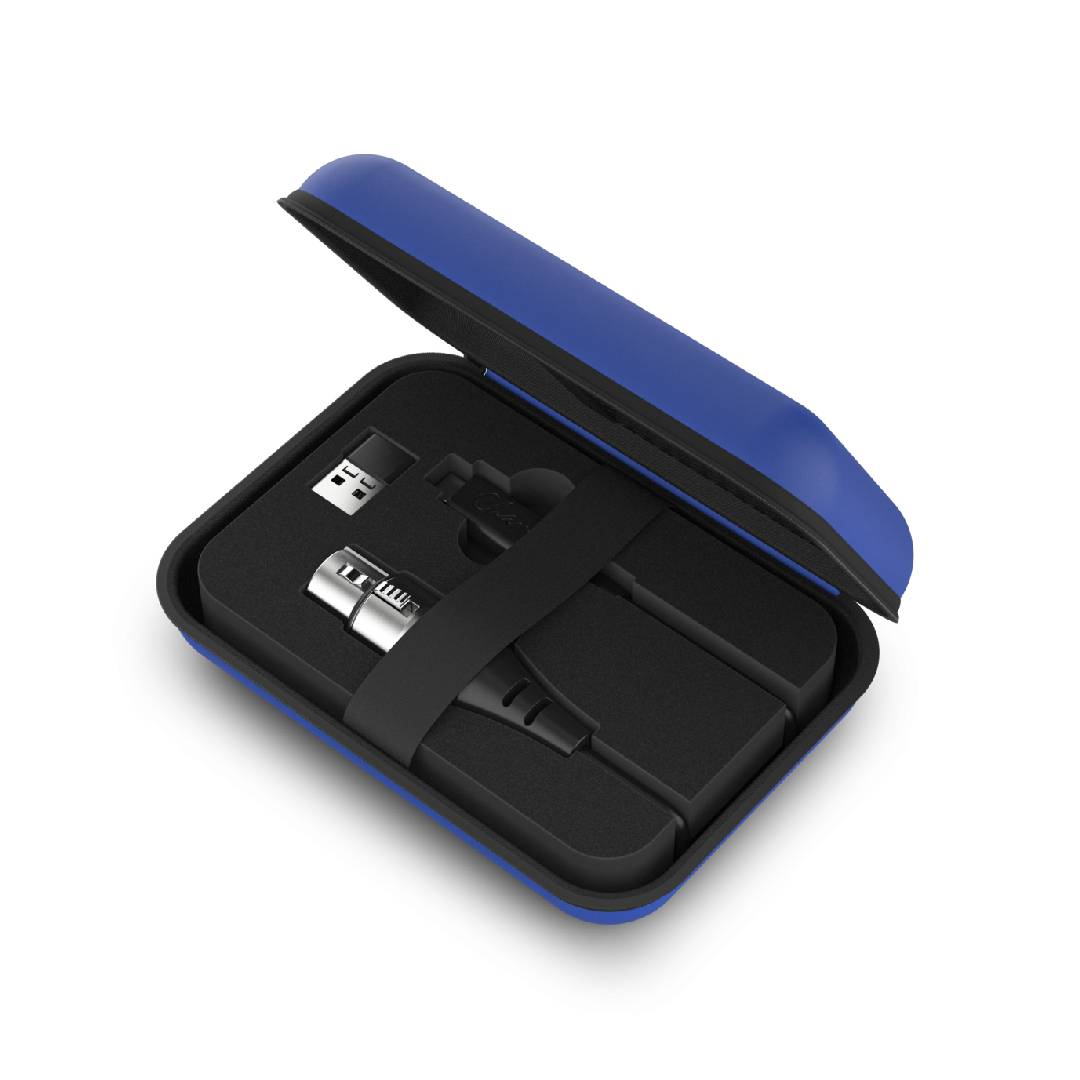

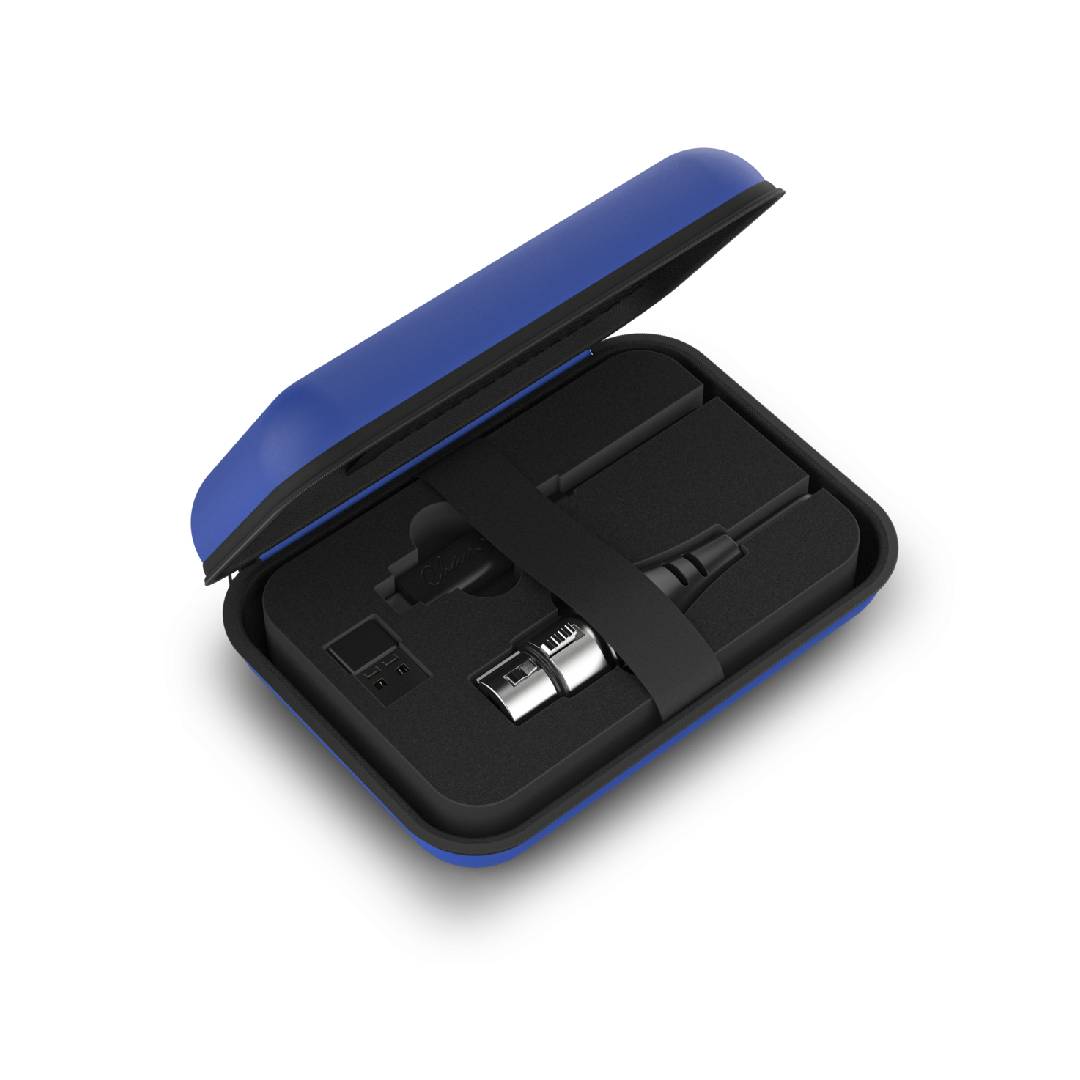

• ChamSys MagicDMX Full USB-to-DMX Interface
• USB-C to USB-A adapter
• Quick start guide / documentation
