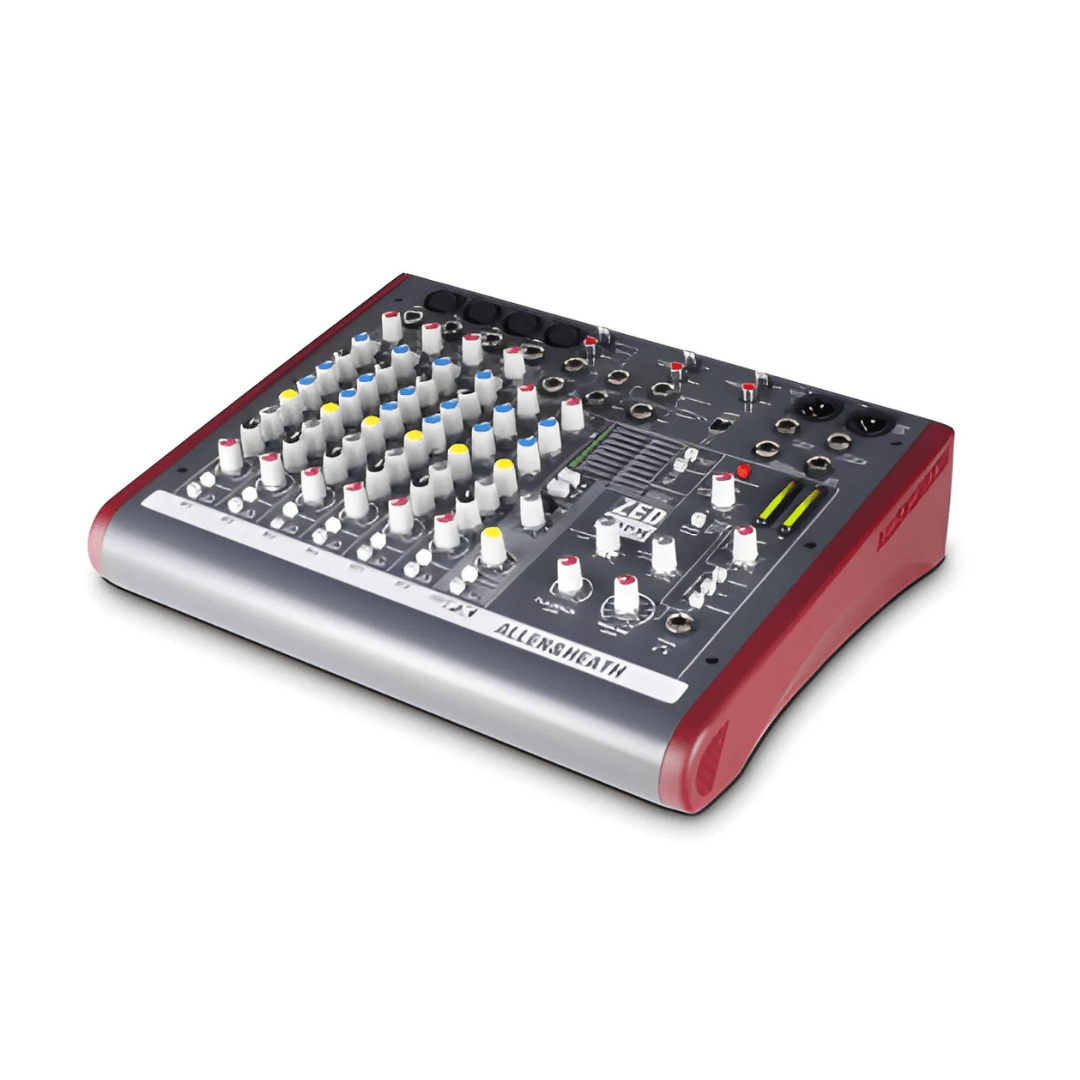

• Compact 10-channel analog mixer with built-in digital effects and USB audio interface.
• Designed for live performance, small bands, solo artists, streaming, rehearsals, and project studios.
• Rugged yet lightweight build with professional-grade sound quality.

Features

• Inputs & Connectivity
  • 4 mono mic/line inputs with XLR + ¼″ jacks.
  • 2 high-impedance Class A FET inputs (for guitars) with 26 dB gain boost.
  • 2 stereo line inputs (¼″ jacks and RCA).
  • USB 2-in / 2-out interface (class-compliant, up to 24-bit/96 kHz).
• EQ & Tone Shaping
  • 3-band EQ with swept mid (“MusiQ”) on mono channels.
  • 2-band EQ on stereo channels.
• Onboard Effects (ZED-FX)
  • 16 high-quality digital effects (reverbs, delays with tap-tempo, chorus, flanger).
  • Simple control with dedicated buttons and LED display.
  • Parameter adjustment for depth, decay, or delay time.

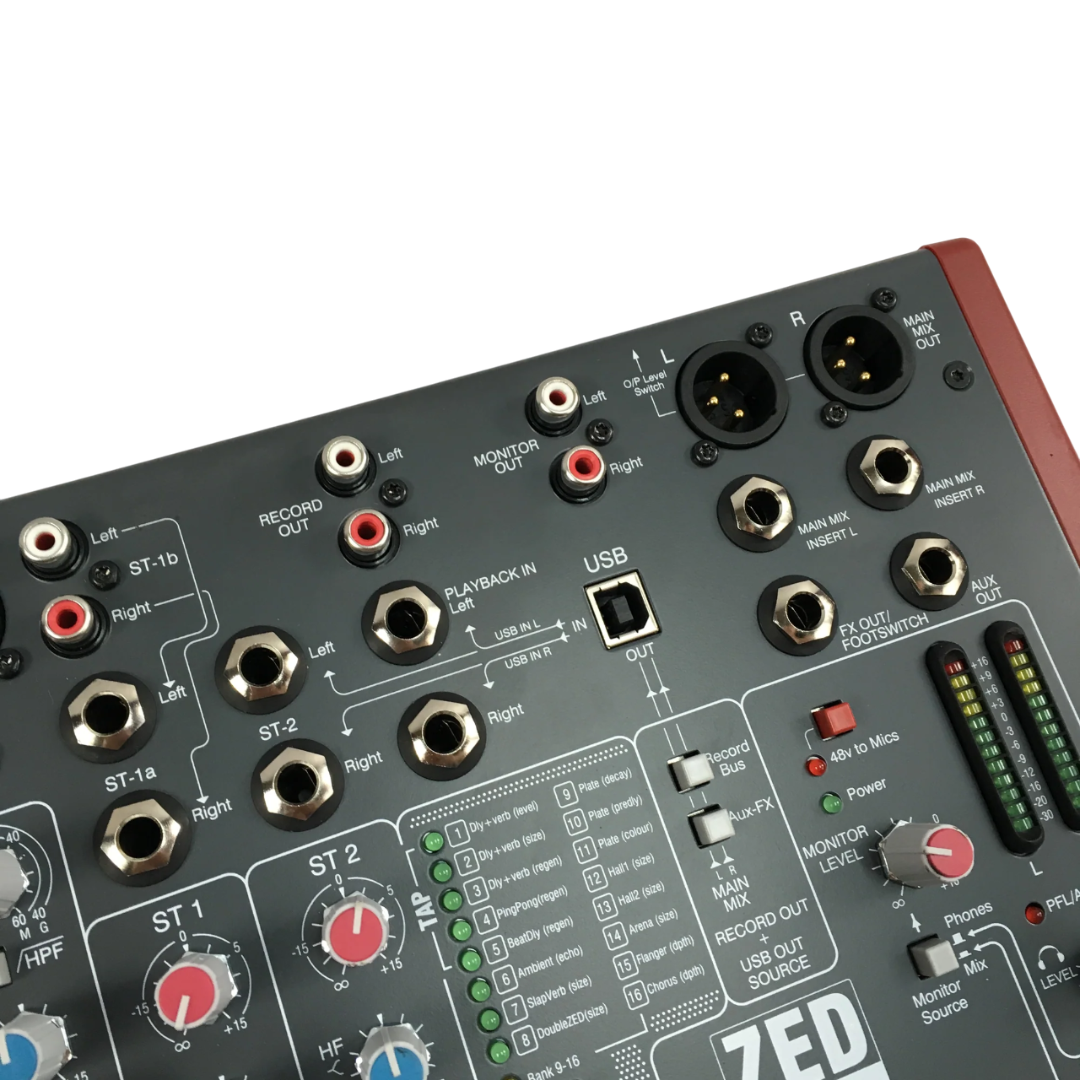

• USB Routing Flexibility
  • Multiple send options: Main Mix L+R, Aux + FX, or Record Bus.
  • Return options: Playback input or Stereo channel.
• Monitoring & Outputs
  • XLR main outputs with inserts.
  • RCA monitor and record outputs.
  • Headphone output with PFL selection.
  • 12-bar stereo level meters and illuminated PFL indicators.
  • Switchable 48 V phantom power for condenser mics.
• Build & Design
  • Lightweight and portable (approx. 2.3 kg).

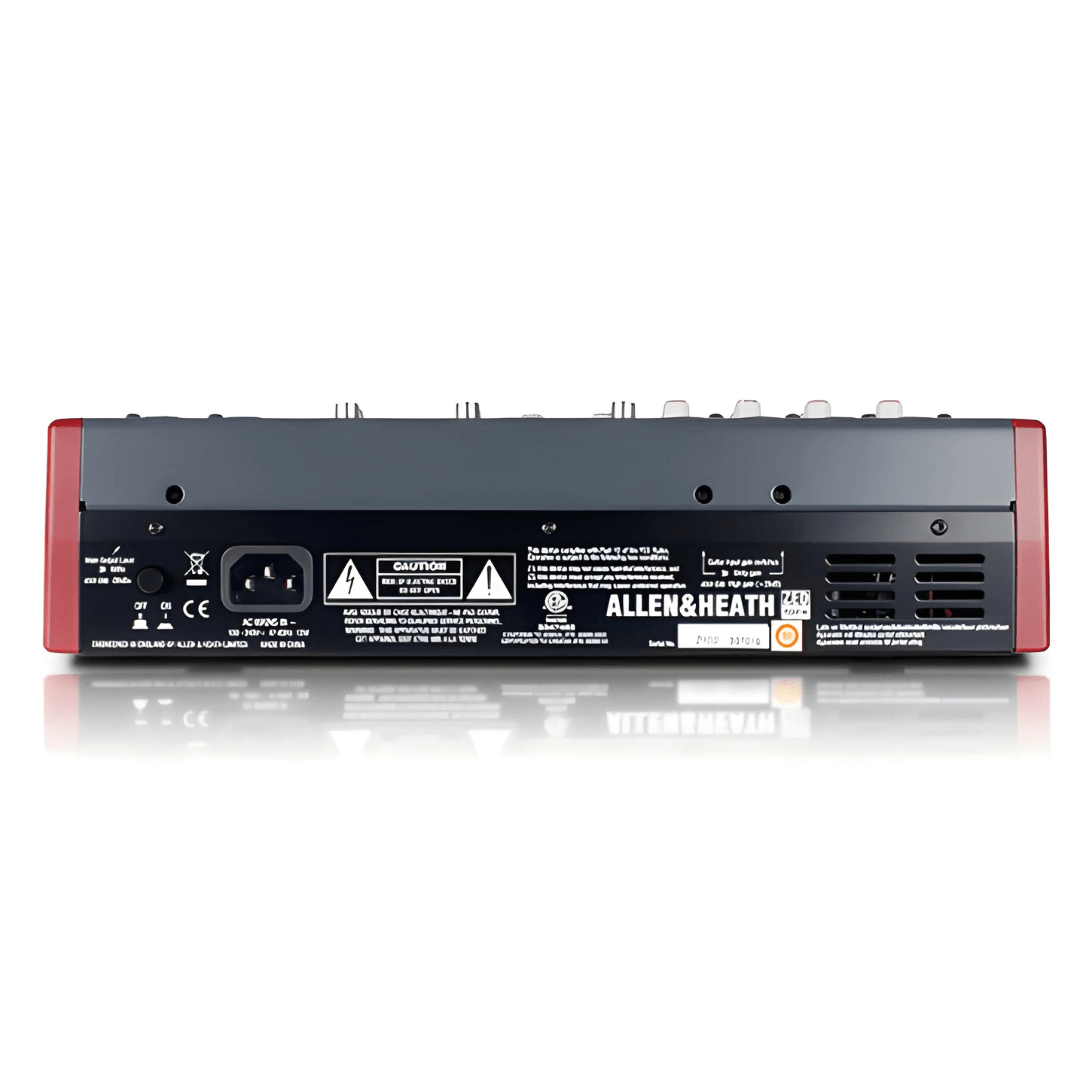

  • Internal universal power supply (100–240 V IEC).
  • Compact footprint with rotary controls for space efficiency

Specifications

• Inputs
  • Mono Mic: –60 dBu to –5 dBu nominal, +13 dBu max.
  • Mono Line: –40 dBu to +14 dBu nominal, +17 dBu max.
  • Stereo Line: 0 dBu nominal, adjustable gain.
• Outputs
  • Main XLR: 0 dBu nominal, +18 dBu max.
  • Aux/FX/Monitor: 0 dBu nominal, +18 dBu max.
• Audio Performance
  • Frequency Response: ±0.5 dB (10 Hz – 30 kHz).
  • THD+N: 0.002–0.01% typical.
  • Equivalent Input Noise: –127 dBu (mic).
• USB Interface
  • 2-in / 2-out audio.
  • 16-bit operation, supports 32, 44.1, or 48 kHz sample rates (up to 96 kHz in later specs).
• Physical
  • Dimensions: 336 × 275 × 95 mm.
  • Weight: ~2.31 kg.

What's in the box

• 1 x Allen & Heath ZED-10FX 10-channel mixer
• 1 x IEC power cable (internal PSU – no external adapter)
• 1 x User manual / quick start guide
