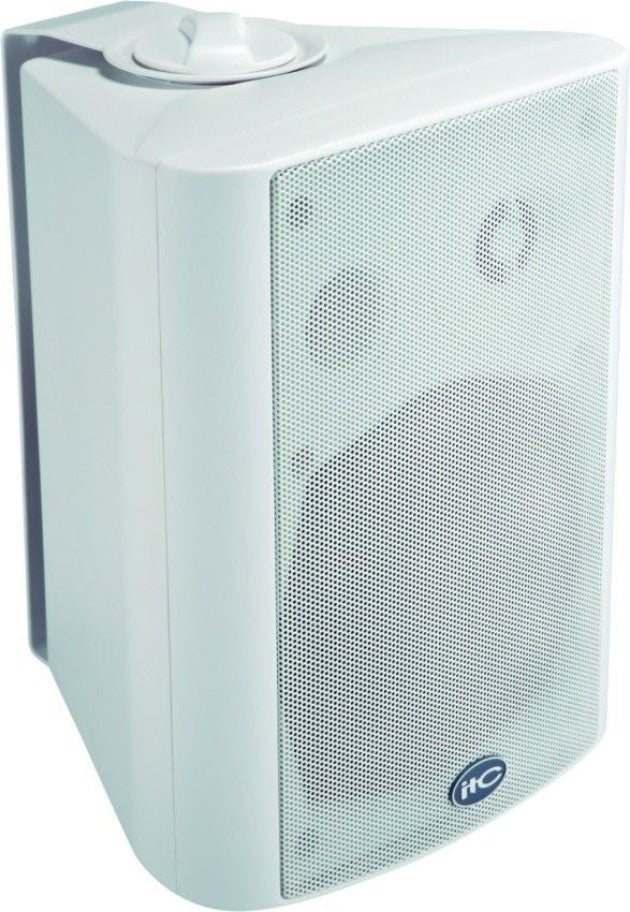

• The T-774PW is a wall mount speaker built-in 70v/100v transformer.
• The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple loudspeakers.

• The built-in 4”+1.5” two ways speaker driver is designed of wide frequency response 130-14kHz, the multiple power taps 2.5W, 5W, 10W & 20W are helpful for different applications varies from room size and ambient noise surroundings.

• The metal grille, ABS enclosure and stainless mounting bracket are of white color. Easy and secure wall mount installation through the supplied mounting bracket.

• It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed

Features

• Built-in 100v/70v transformer

• Wall mount type loudspeaker

• 4” +1.5” two ways speaker unit

• Power taps 2.5w-5w-10w-20w @100V plus 8ohm

• Metal grille, ABS enclosure and stainless mounting bracket

Specifications

• Model: T-774PW

• Power Taps @100V: 2.5W, 5W, 10W, 20W

• Power Taps @70V: 1.25W, 2.5W, 5W, 10W, 20W

• Transformer Impedance: 4KΩ / 2KΩ / 1KΩ / 500Ω / 245Ω

• Input: 70V / 100V / 8Ω

• SPL (1W/1M): 86dB

• Max. SPL (Rated W/1M): 99dB

• Frequency Response (-10dB): 130Hz – 14KHz

• Finish:

  • Baffle: ABS, Black/White

  • Grille: Steel, Black/White

• Speaker Driver:

  • 4" × 1

  • 1.5" × 1

• Dimensions: 222 × 160 × 160 mm

• Weight: 2.3 kg

• Mounting: With mounting bracket fixed by screw

What's in the box

• 1 x T-774PW speaker unit (with built-in 70V/100V transformer and multi-tap selector)
• 1 x Mounting bracket (usually metal, color matching the speaker, to fix to the wall)
• 1 x Mounting screws and wall plugs (for attaching the bracket to the wall and the speaker to the bracket)
• 1 x User manual or installation guide (includes wiring diagrams, tap settings, and mounting instructions)
• 1 x Protective grille (pre-installed on the speaker front)
