• Building on the reputation of the world-famous Peavey CS® 800, which conquered the power amp market in the 1970s, the CS® Series is the global standard bearer for workhorse reliability.
• Over the years, these amps have benefited from some of Peavey’s most popular audio innovations, including our exclusive DDT™ compression/anti-clipping protection.
• With its 2RU design and power points up to 4080 watts, this latest evolution of the CS® Series is leaner, louder and lighter than ever

Features

• 2 temperature-dependant variable speed fans

• 1550 watts (rms) per channel at 2 ohms

• 1065 watts (rms) per channel at 4 ohms

• 650 watts per channel at 8 ohms

• 3100 watts at 4 ohms bridged

• 5-year warranty

• 2-rack-space stereo power amp featuring DDT™

Specifications

• Power output:

  • 950 W RMS per channel @ 4 ohms

  • 600 W RMS per channel @ 8 ohms

  • 3000 W bridged mono @ 4 ohms

• Frequency response: 20 Hz – 20 kHz, ±0.1 dB

• Total harmonic distortion (THD): < 0.03%

• Slew rate: > 40 V/μs

• Damping factor: > 300 @ 8 ohms, 20 Hz – 1 kHz

• Signal-to-noise ratio: > 100 dB, unweighted

• Input sensitivity: 1.0 V for rated output (can vary by input configuration)

• Input impedance: 10 kΩ unbalanced, 20 kΩ balanced

• Cooling: Two-speed, temperature-controlled fans

• Protection circuits:

  • Short circuit protection

  • Thermal overload protection

  • DC voltage protection on outputs

  • Turn-on/turn-off muting

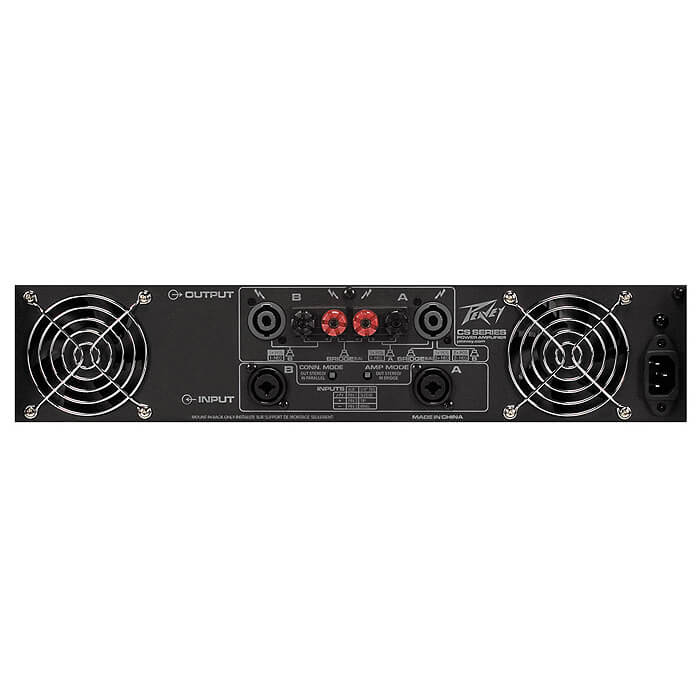

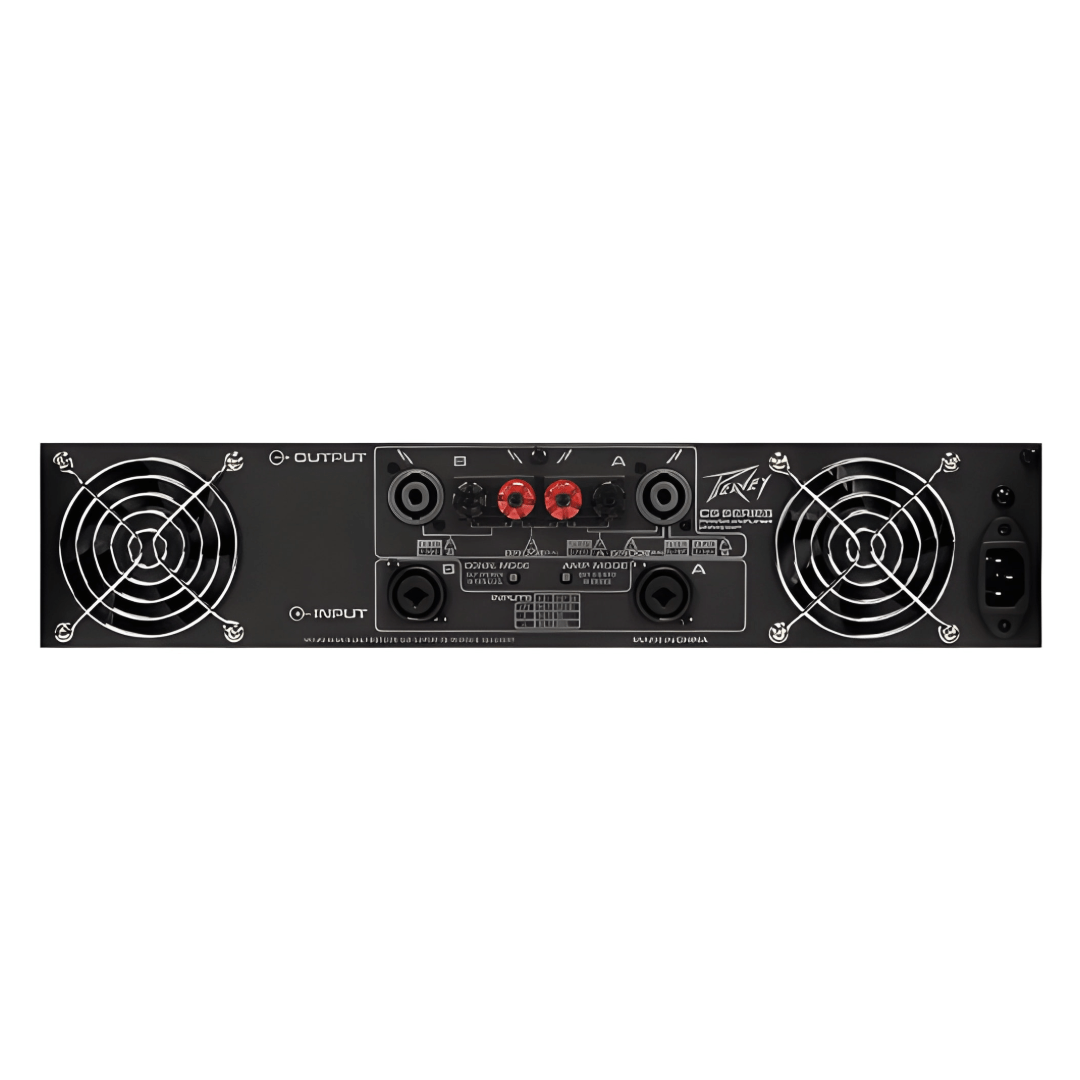

• Connectors:

  • Inputs: Balanced XLR and 1/4" TRS

  • Outputs: Binding posts and Neutrik Speakon

• Controls:

  • Front panel gain controls

  • Rear panel mode switches (stereo/parallel/bridged)

• Dimensions (H x W x D): Approximately 5.25" x 19" x 16" (3U rack height)

• Weight: Approximately 59 lbs (27 kg)

What's in the box

• 1 x Amplifier
• 1 x Power Cable
• 1 x Manual
