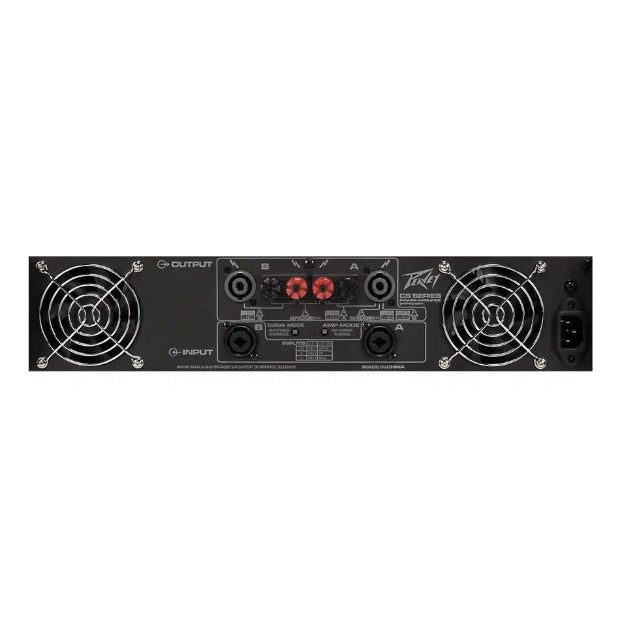

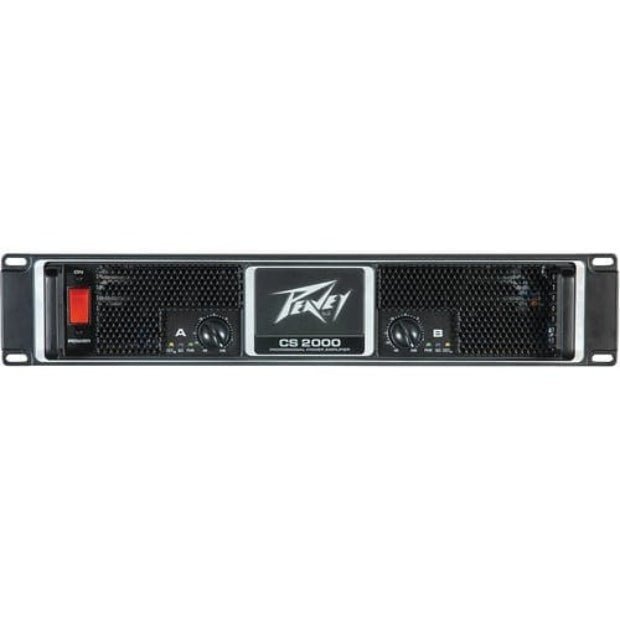

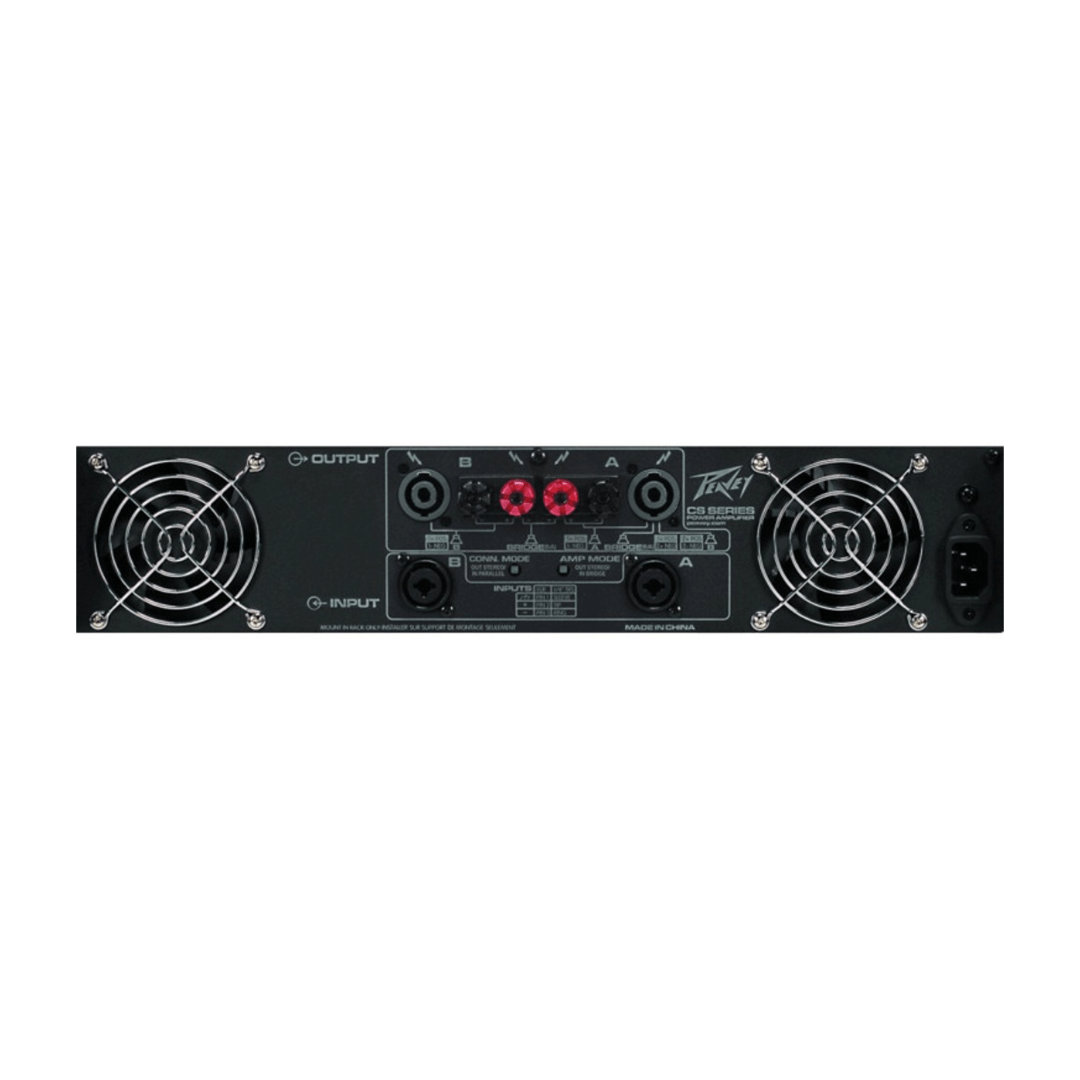

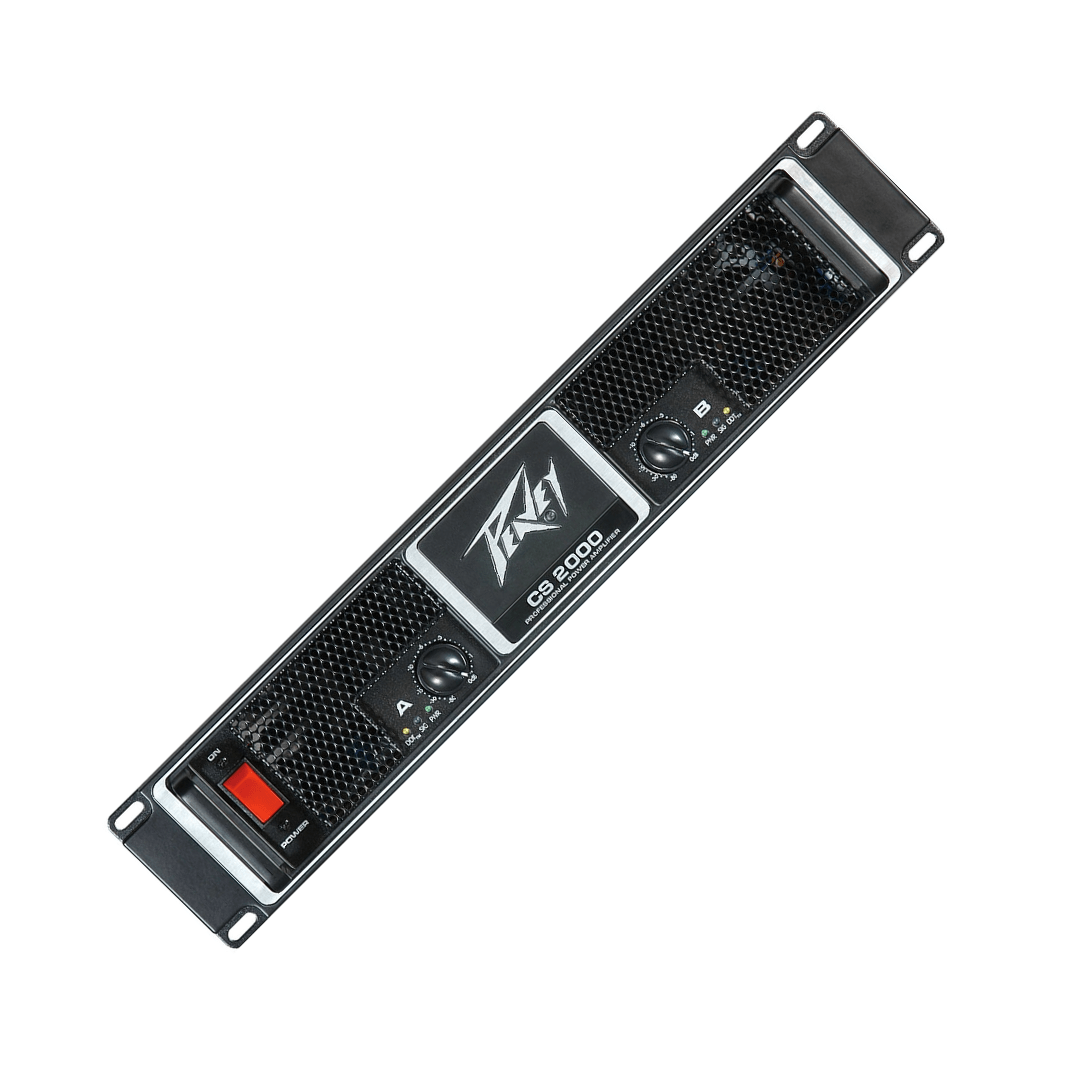

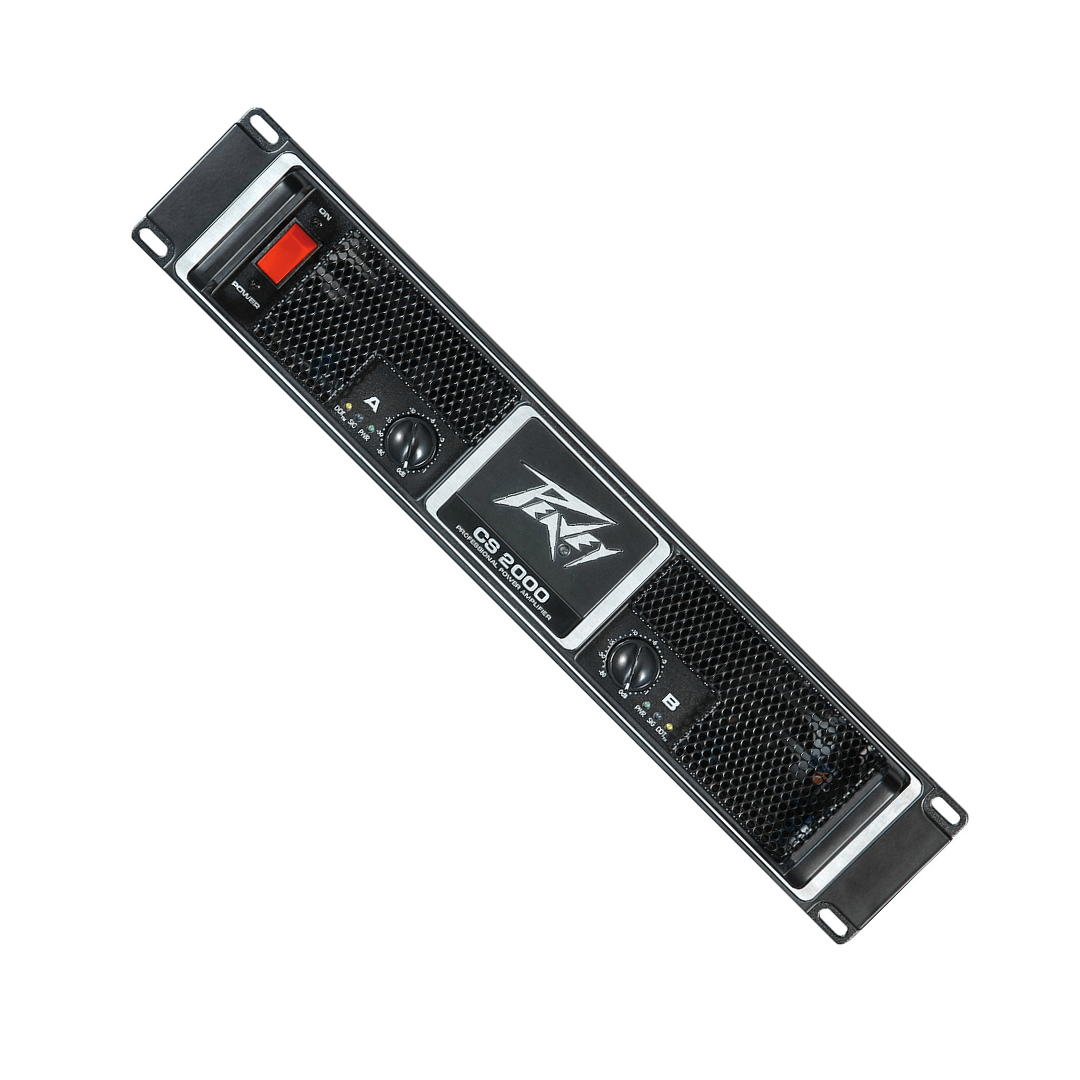

Design: 2‑rack‑unit stereo power amplifier with Distortion Detecting Technique (DDT™) compression and anti‑clipping protection
Power Output (both channels driven, 1 kHz, <0.1 % THD):
2 Ω: 2 × 1075 W
4 Ω: 2 × 760 W
8 Ω: 2 × 495 W
Bridged Mono Mode (1 kHz, <0.1 % THD):
4 Ω bridged: 2150 W
Frequency Response: 10 Hz–25 kHz (±1 dB at 1 W)
Power Bandwidth: 10 Hz–35 kHz (–3 dB at full 2 Ω power)
Total Harmonic Distortion:
2 × 2 Ω: < 0.20 % @ 800 W
2 × 4 Ω: < 0.20 % @ 675 W
2 × 8 Ω: < 0.15 % @ 440 W
SMPTE Intermodulation Distortion: < 0.1 % (60 Hz & 7 kHz @ 250 W into 4 Ω)
Slew Rate: 17 V/µs
Damping Factor: > 400:1 (8 Ω, 20–400 Hz)
Voltage Gain: ×40 (32 dB)
Input Sensitivity:
1.14 V @ 2 Ω
1.35 V @ 4 Ω
1.54 V @ 8 Ω
Input Impedance: 20 kΩ (balanced)
Crosstalk: > –60 dB
Hum & Noise: > –109 dB (A‑weighted, relative to rated 4 Ω power)
RMS Voltage Swing: 72 V
Minimum Load: 2 Ω (per channel)
Vendor | Peavy |
---|---|
Type | Disco Amplifiers |
Sku | 31606220 |
Barcode | 00014367115611 |
Weight: | 20.0 kg |
