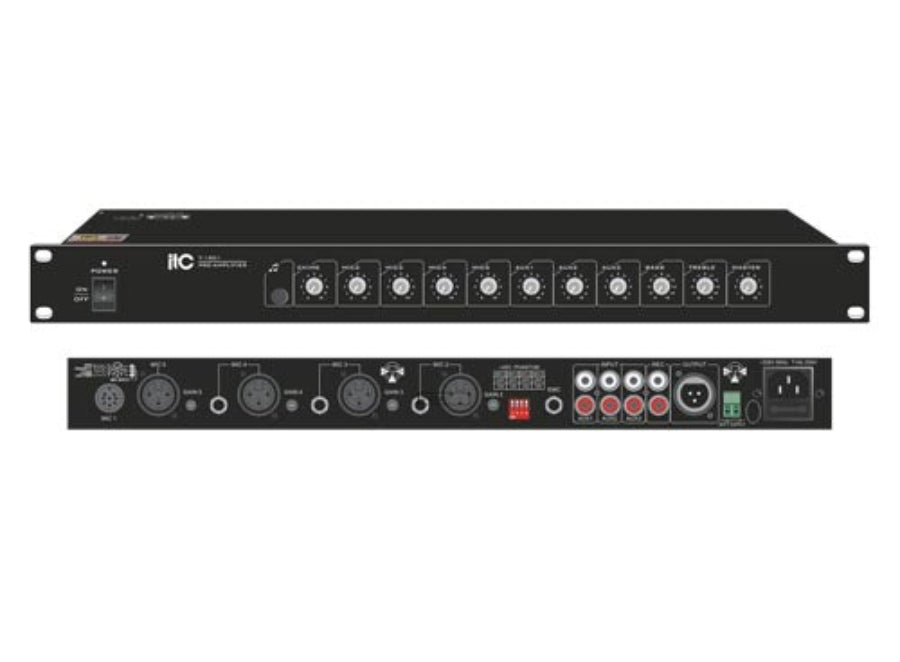

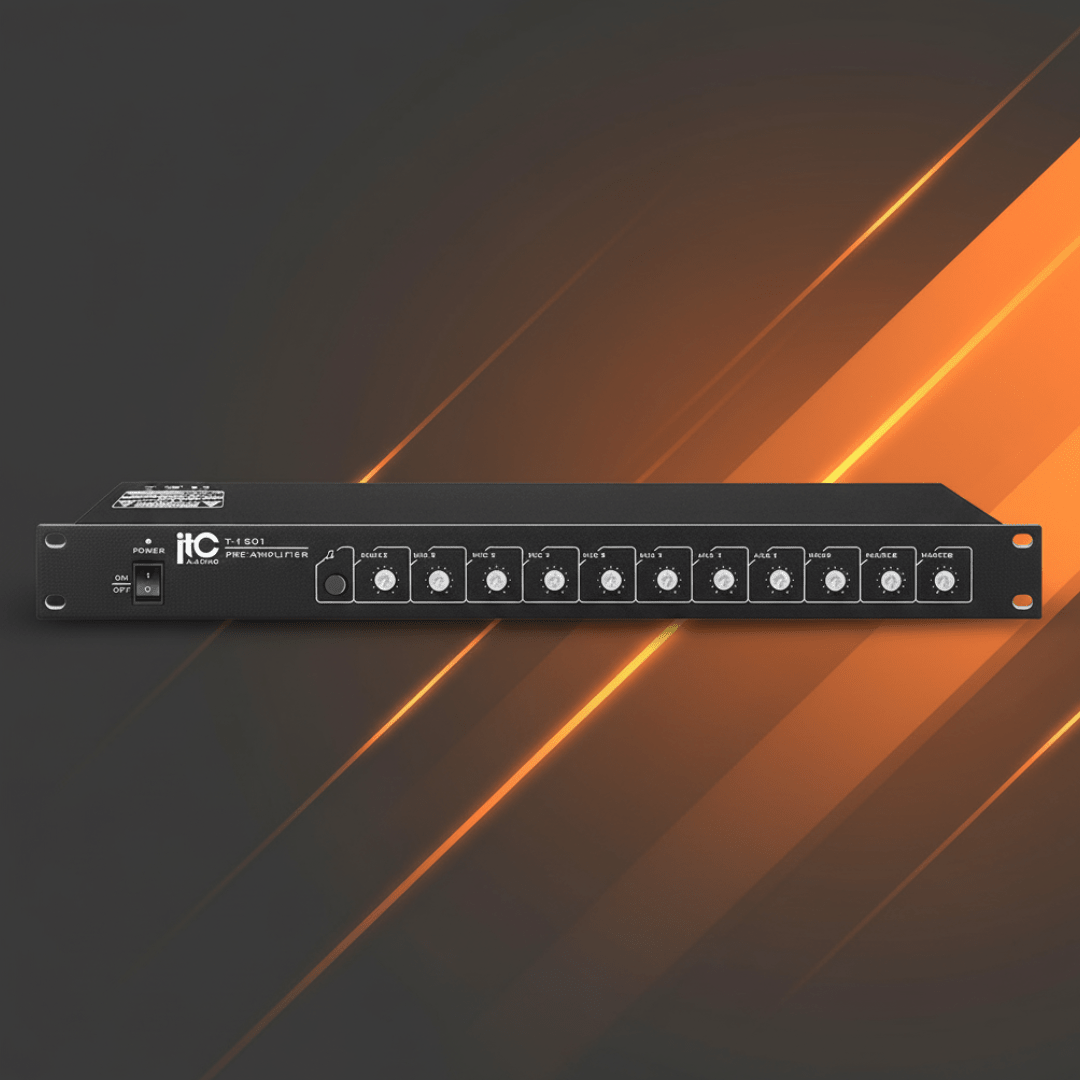

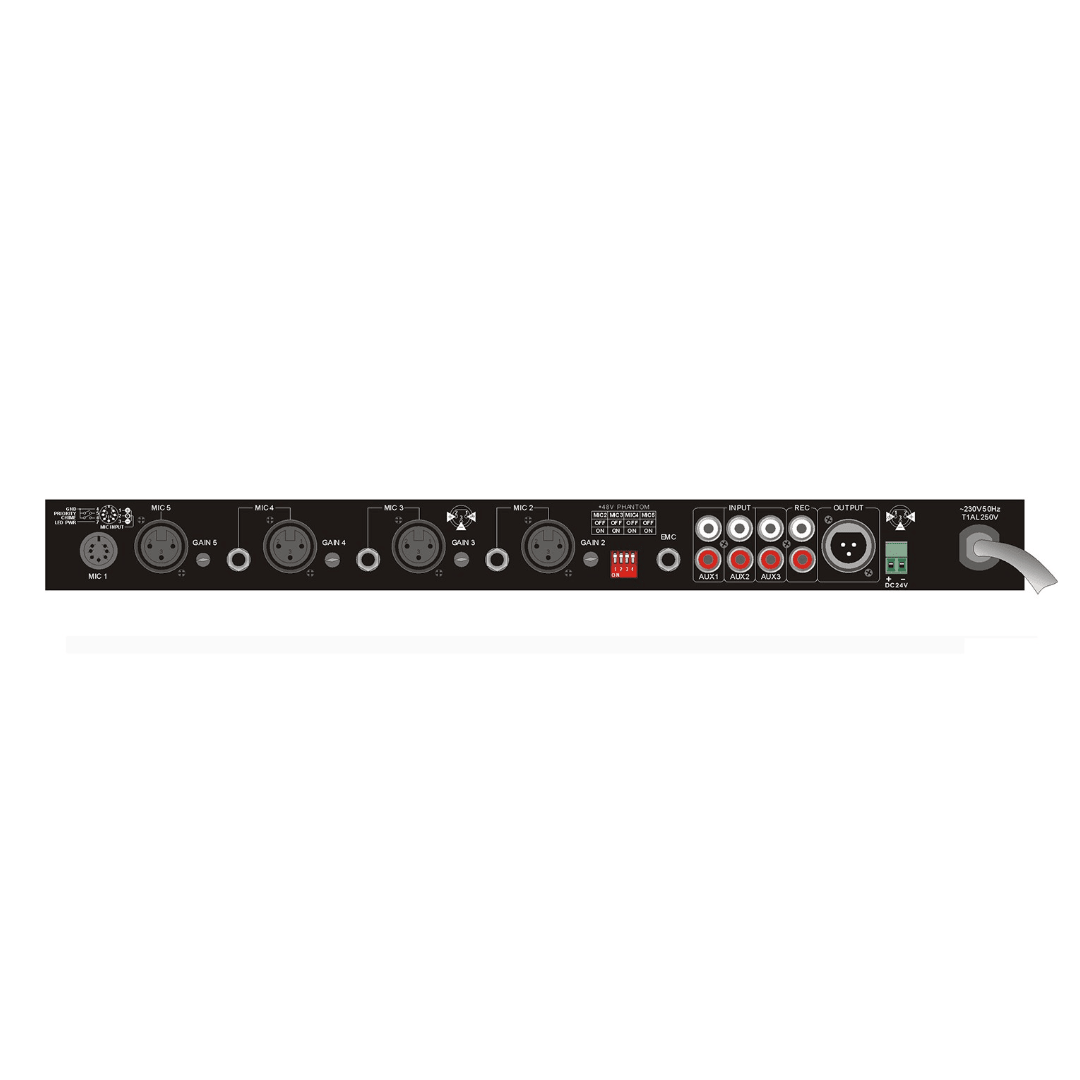

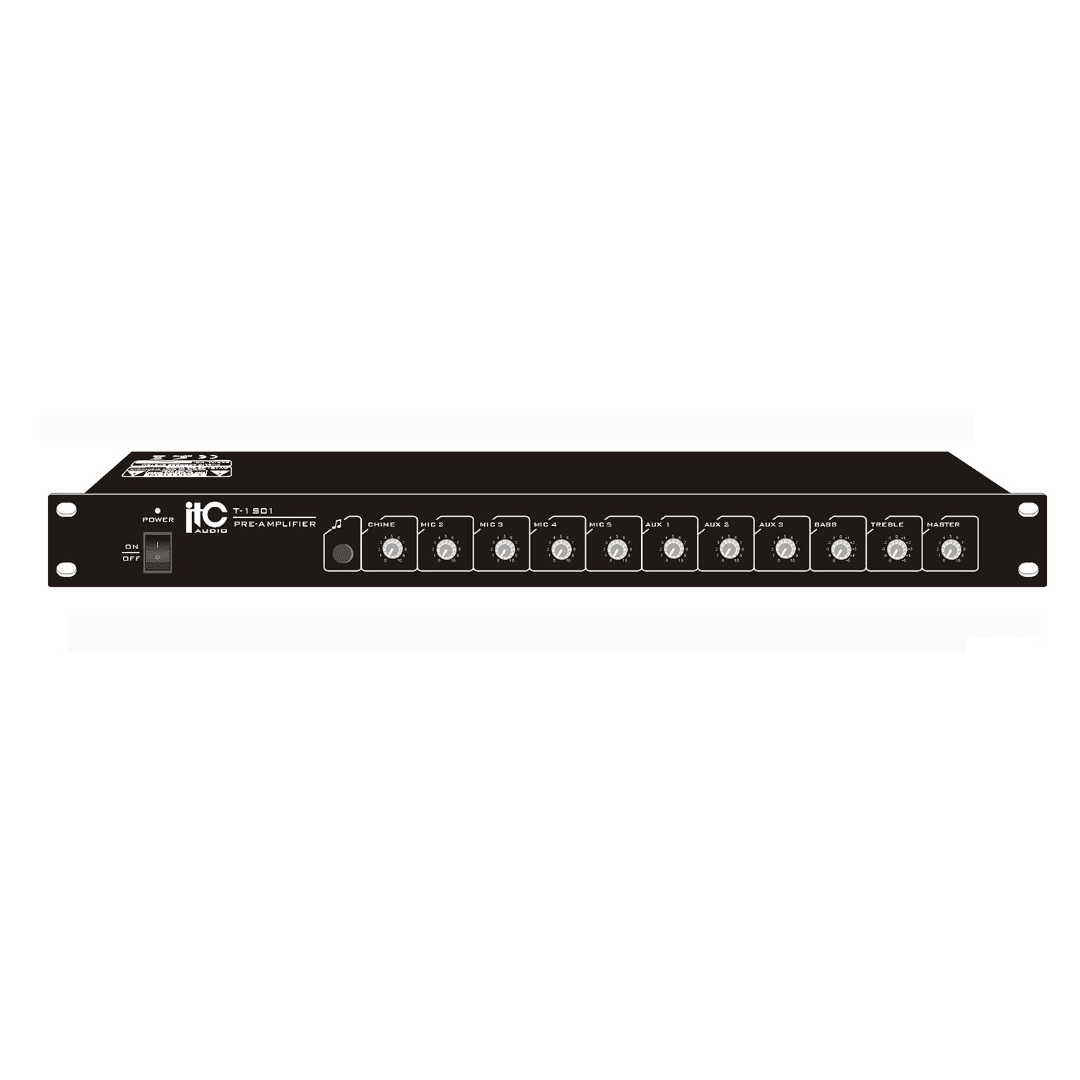

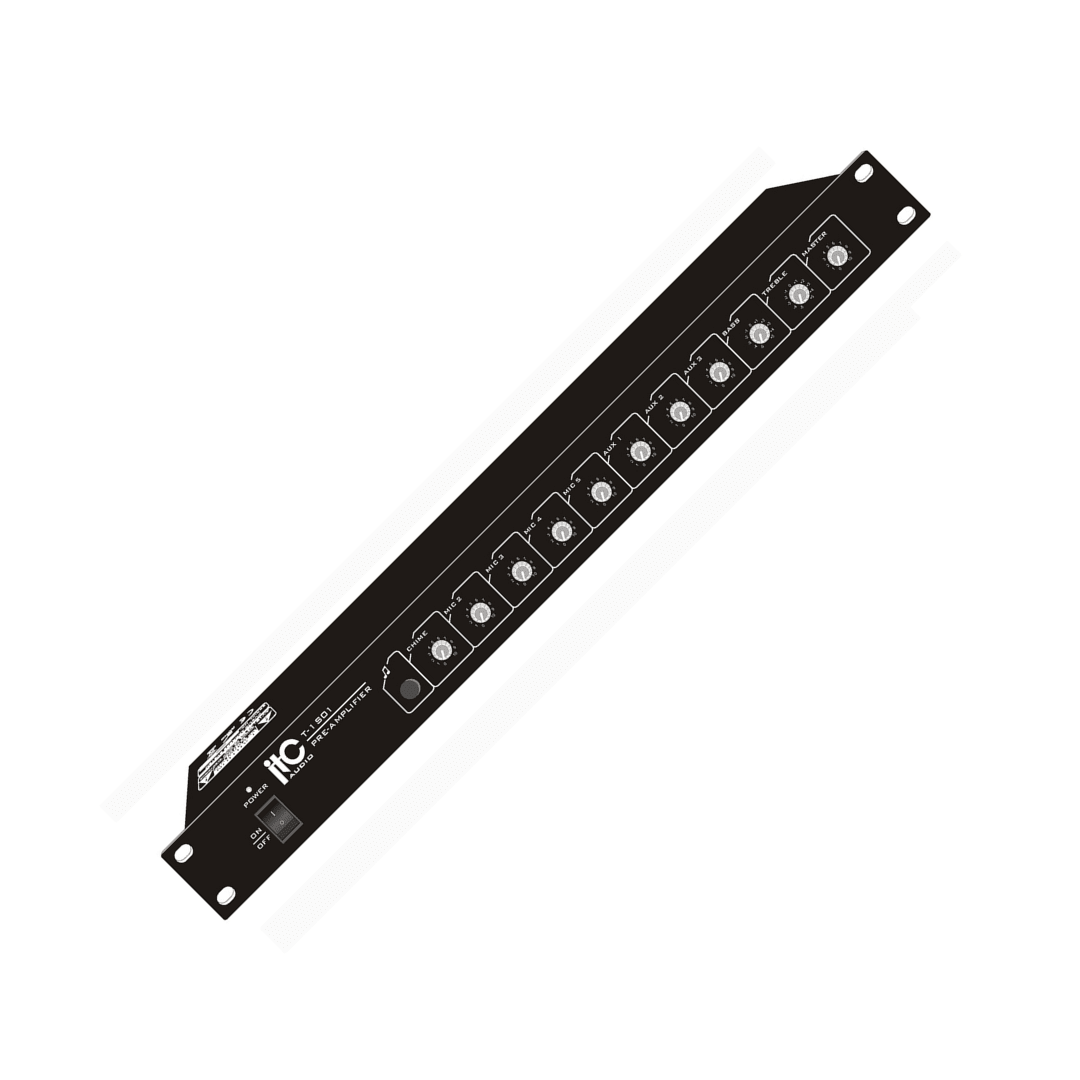

• The T-1S01 pre-amplifier with multiple balanced and unbalanced microphone input options and single channel output.

Features

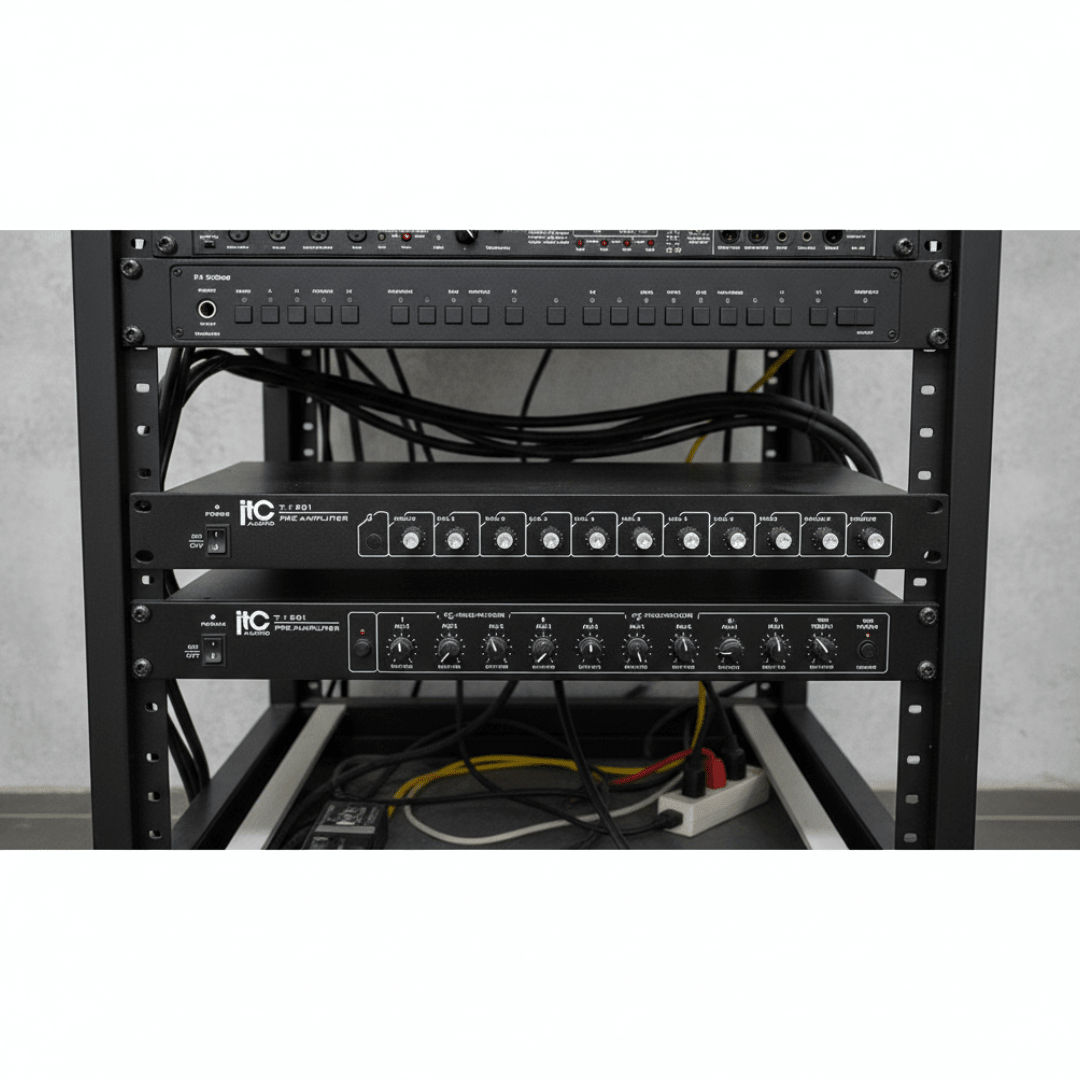

• Standard cabinet design (1U).
• 5-channel MIC input , 3-channel Aux input and 1-channel EMC input.
• Independent volume control, MASTER volume control.
• MIC balance input interface with phantom power.
• Individual Gain control for MIC.
• EMC has priority over all inputs except MIC 2.
• Bass and Treble Tone Control.
• It can be used with T-319.

Specifications

• Model: T-1S01

Input:

• MIC 1, 2, 3, 4, 5: 5mV/600Ω Balanced

• AUX 1, 2, 3: 10KΩ/200mV, Unbalanced

Output:

• 600Ω/1V/0dBV

Frequency Response:

• 20Hz~20KHz (±1dB)

S/N Ratio:

• MIC input: 80dB

• AUX input: 85dB

Tone Control:

• Bass: ±10dB at 100Hz

• Treble: ±10dB at 10KHz

Power Supply:

• ~110V-230V 50/60Hz

Dimensions:

• 484 x 298 x 44mm

Weight:

• 4.22Kg

What's in the box

• 1 x ITC T-1S01 main unit (pre-amplifier)
• 1 x AC power cable (suitable for 110V-230V, 50/60Hz)
• 1 x User manual / instruction booklet
• 1 x Remote control (if model supports it — some pre-amps in this series come with remote)
• 1 x Mounting brackets or rack ears (for 19-inch rack installation)
